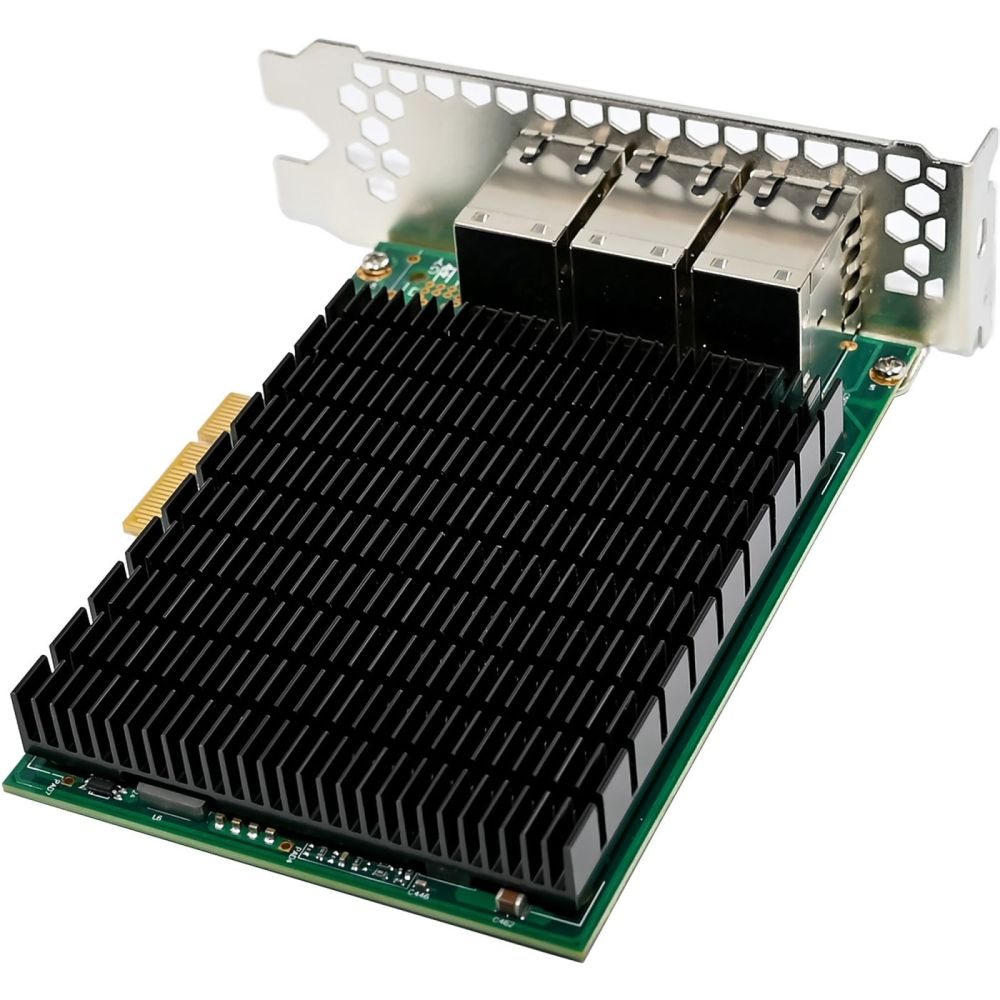

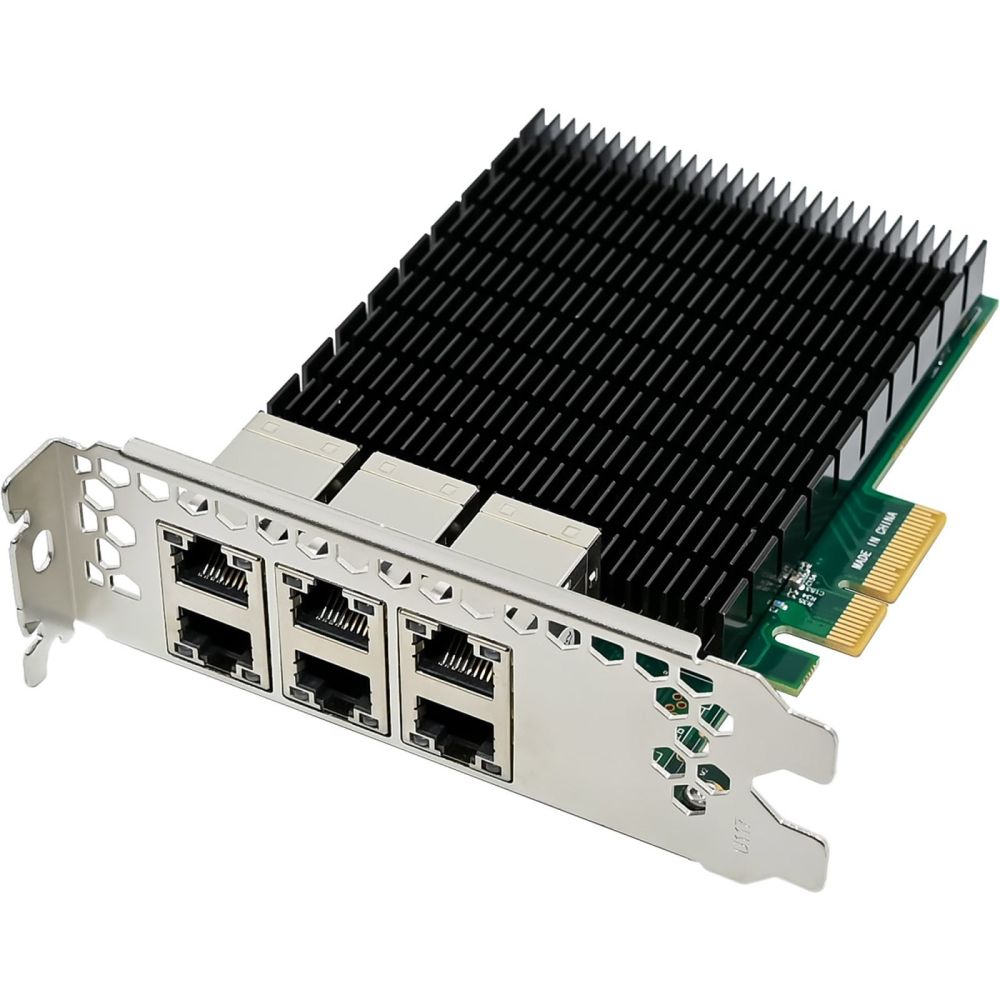

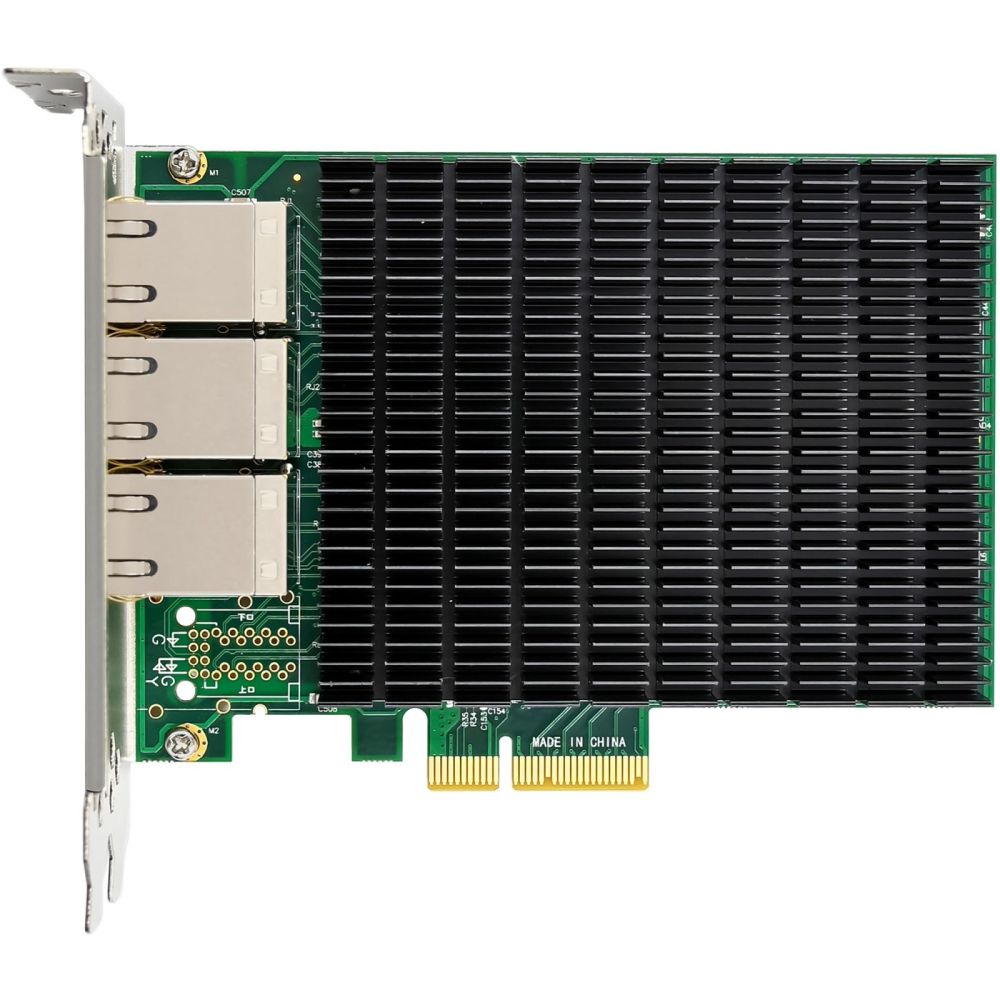

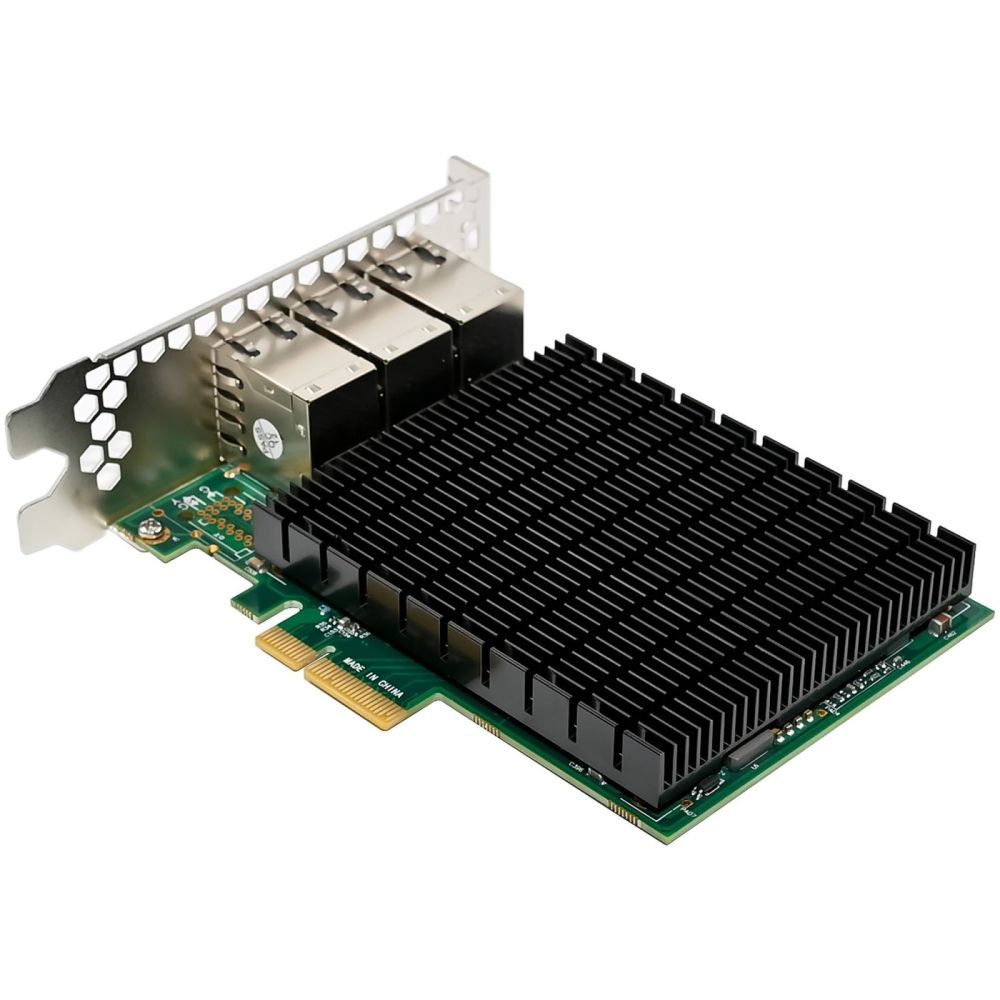

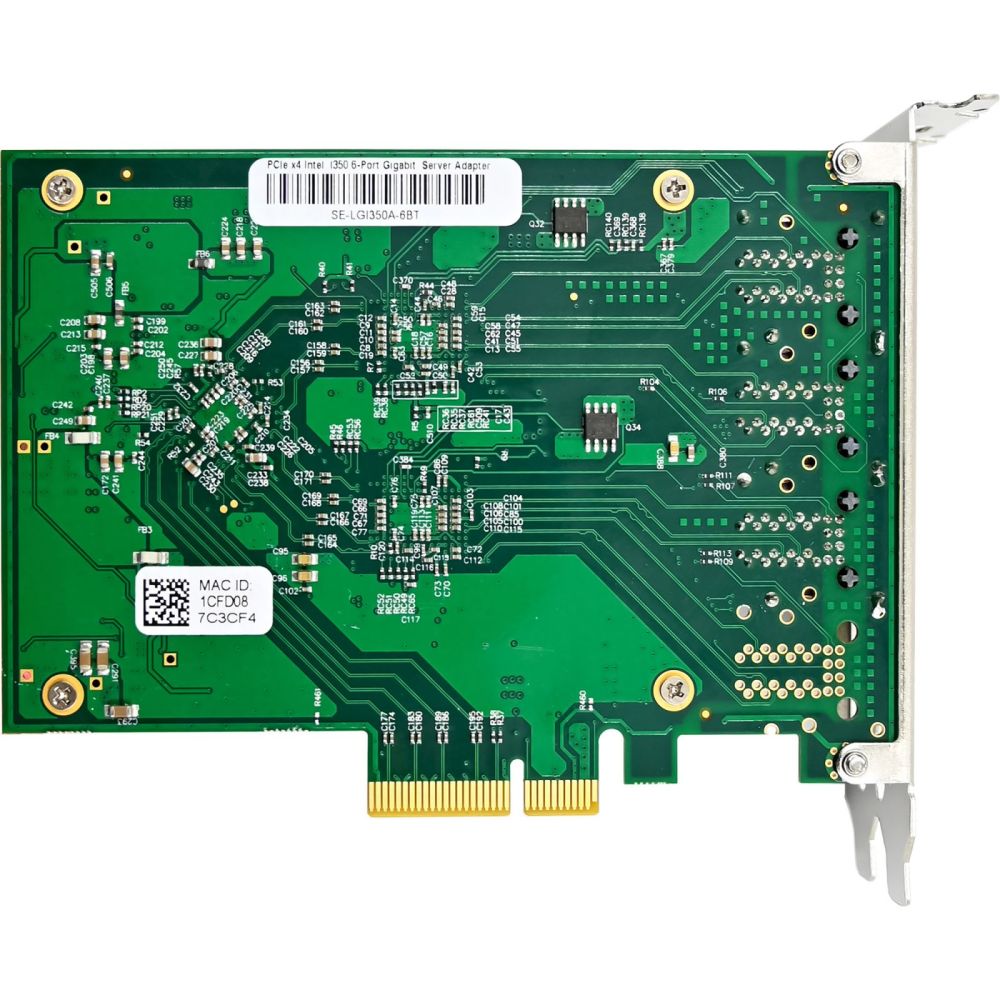

InLine® 6-fold Gigabit network card, 6x RJ45 1 Gb/s, PCIe x4 content_copy

Six RJ45 Gigabit ports for a stable and fast network connection
PCIe x4 interface for high bandwidth and efficient data transmission
Supports VLAN (802.1Q), jumbo frames (up to 9K) and flow control
Ideal for servers, workstations and AV applications
Intel I350AM4 chipset for high performance and energy efficiency
The InLine® 6-way Gigabit network card is a powerful network solution for professional server, workstation and AV applications. With six Gigabit Ethernet ports, it offers high flexibility and stability for demanding network environments.
Thanks to a data rate of up to 1 Gb/s per port, the card supports modern network technologies such as VLAN (802.1Q), Flow Control (802.3x) and Jumbo Frames (up to 9K). The Intel I350AM4 chipset ensures efficient network processing and optimized resource usage.
Thanks to the PCIe x4 interface (v2.1), the card achieves a high bandwidth of up to 5 GT/s and is compatible with various system configurations. Energy Efficient Ethernet (802.3az) helps to reduce energy consumption.
Technical data:
Bus type: PCIe v2.1 (5 GT/s) x4 lanes
Connection: 6 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)
Supported speeds:10/100 Mb/s in half-duplex mode
10/100/1000 Mb/s in full duplex mode
Maximum cable length:10BASE-T: Category-3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category 5e or higher (up to 100 m)
Chipset: Intel I350AM4
Supported protocols: IPv4, IPv6
Dimensions: 132 mm x 98 mm (PCIe board)
Network & protocol support:
Supported IEEE standards:IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control), IEEE 802.1Q (VLAN)
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 1588, 802.1AS (time synchronization)
Functions:
Auto-negotiation (10/100/1000 Mb/s)
Supports Wake-on-LAN (WOL)
Support for Jumbo Frames (up to 9K)
Virtual Machine Device Queues (VMDq, up to 8 VMs)
Operating system support:
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %
Scope of delivery:
1x InLine® 6-way Gigabit network card, 6x RJ45 1 Gb/s
1x driver CD
1x operating instructions (German/English)

Design
Country of origin	Taiwan
Internal

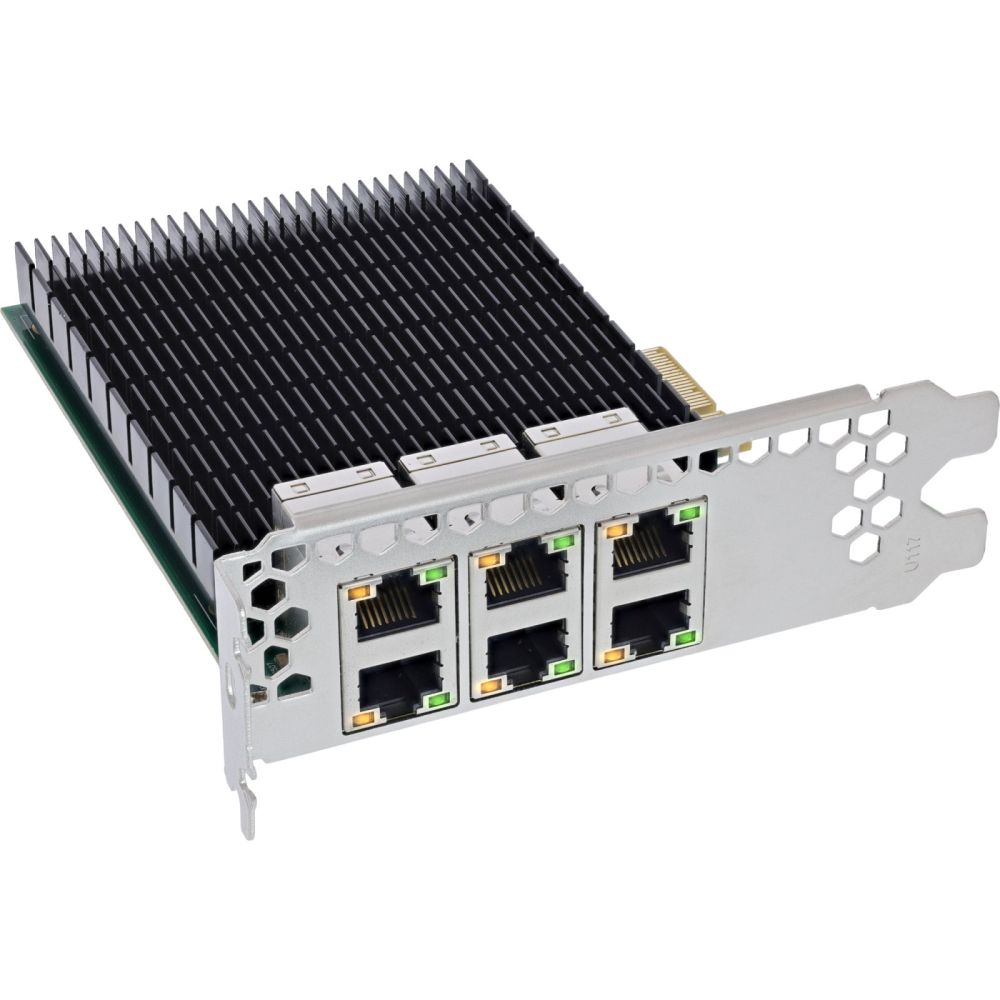

LED indicators
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Connectivity technology	Wired
Dimensions (WxDxH)	148 x 3.48 x 120 mm
Ethernet LAN (RJ-45) ports	6
Networking standards	IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Interface	Ethernet
Packaging data
Package width	173 mm
Package depth	75 mm
Package height	142 mm
Package weight	244 g
Ports & interfaces
Host interface	PCI Express
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4
Server operating systems supported	Windows Server 2008 R2, Windows Server 2016, Windows Server 2019
Technical data
Transmission rate	1Gb/s
Article width	12.00cm
Type	Network card
Net weight	0.244kg
Slot	PCIe
Length packaging	0.075m
Connections external	6x RJ45 Socket
Connections internal	None
Article height	4.10cm
Article length	14.80cm
Height packaging	0.142m
Weight	0.348kg
Width packaging	0.173m
Chipset	Intel I350AM4
Interface	Network
Low Profile
Technical details
Compliance certificates	CE, TÜV mark
Weight & dimensions
Width	148 mm
Depth	3.48 mm
Height	120 mm
Weight	4.1 kg

---
