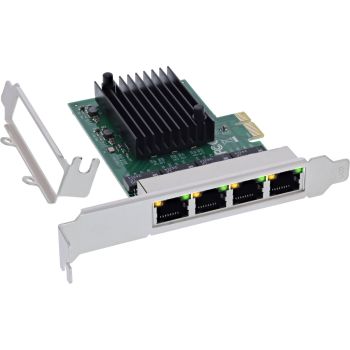

InLine® Quad Gigabit network card, 4x RJ45 1 Gb/s, PCIe x1 content_copy

Four RJ45 Gigabit ports for a stable and fast network connection
PCIe x1 interface for high compatibility with various systems
Supports VLAN (802.1Q), jumbo frames (up to 9K) and flow control
Suitable for servers, workstations and AV applications
Includes low-profile slot bracket for easy integration into compact housings
The InLine® Quad Gigabit network card is a powerful solution for expanding your system with four Gigabit Ethernet ports. It is ideal for servers, workstations and professional AV applications and supports modern network technologies for maximum efficiency.
With a data rate of up to 1 Gb/s per port, the card enables a stable network connection with auto-negotiation and supports Wake-on-LAN (WOL), VLANs (802.1Q) and jumbo frames (up to 9K). The Realtek RTL8111F chipset used ensures reliable performance and energy efficiency.
Thanks to the PCIe x1 interface, the network card is compatible with a wide range of systems and enables efficient data transmission. The supplied low-profile slot bracket facilitates installation in compact housings.
Technical data:
Bus type: PCIe v1.1 (2.5 GT/s) x1 lane
Connection: 4 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)
Supported speeds:
10/100 Mb/s in half-duplex mode
10/100/1000 Mb/s in full-duplex mode
Maximum cable length:10BASE-T: Category-3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category-5e or higher (up to 100 m)
Chipset: Realtek RTL8111F + ASM1184e
Supported protocols: IPv4, IPv6
Dimensions: 100 mm x 69 mm (PCIe board)
Network & protocol support:
Supported IEEE standards:IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control), IEEE 802.1Q (VLAN)
IEEE 802.1P Layer2 Priority Encoding
Functions:
Auto-negotiation (10/100/1000 Mb/s)
Supports Wake-on-LAN (WOL)
Support for Jumbo Frames (up to 9K)
Operating system support:
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %
Scope of delivery:
1x InLine® Quad Gigabit network card, 4x RJ45 1 Gb/s
1x low-profile slot bracket
1x driver CD
1x instruction manual (German/English)

Design
Country of origin	Taiwan
Internal
LED indicators
Features
Chipset	Realtek RTL8111F
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Connectivity technology	Wired
Dimensions (WxDxH)	101 x 1.57 x 120 mm
Ethernet LAN (RJ-45) ports	4
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Interface	Ethernet
Packaging data
Package width	177 mm
Package depth	37 mm
Package height	150 mm
Package weight	77 g
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCI Express
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4
Server operating systems supported	Windows Server 2008 R2, Windows Server 2016, Windows Server 2019
Technical data
Connections external	4x RJ45 socket
Article width	12.00cm
Transmission rate	1Gb/s
Weight	0.157kg
Height packaging	0.150m
Net weight	0.077kg
Interface	Network
Chipset	Realtek RTL8111F + ASMedia ASM1184e
Type	Network card
Slot	PCIe
Article height	2.00cm
Length packaging	0.037m
Connections internal	None
Width packaging	0.177m
Article length	10.10cm
Low Profile
Technical details
Compliance certificates	CE, TÜV mark
Weight & dimensions
Width	101 mm
Depth	1.57 mm
Height	120 mm
Weight	2 kg

---
