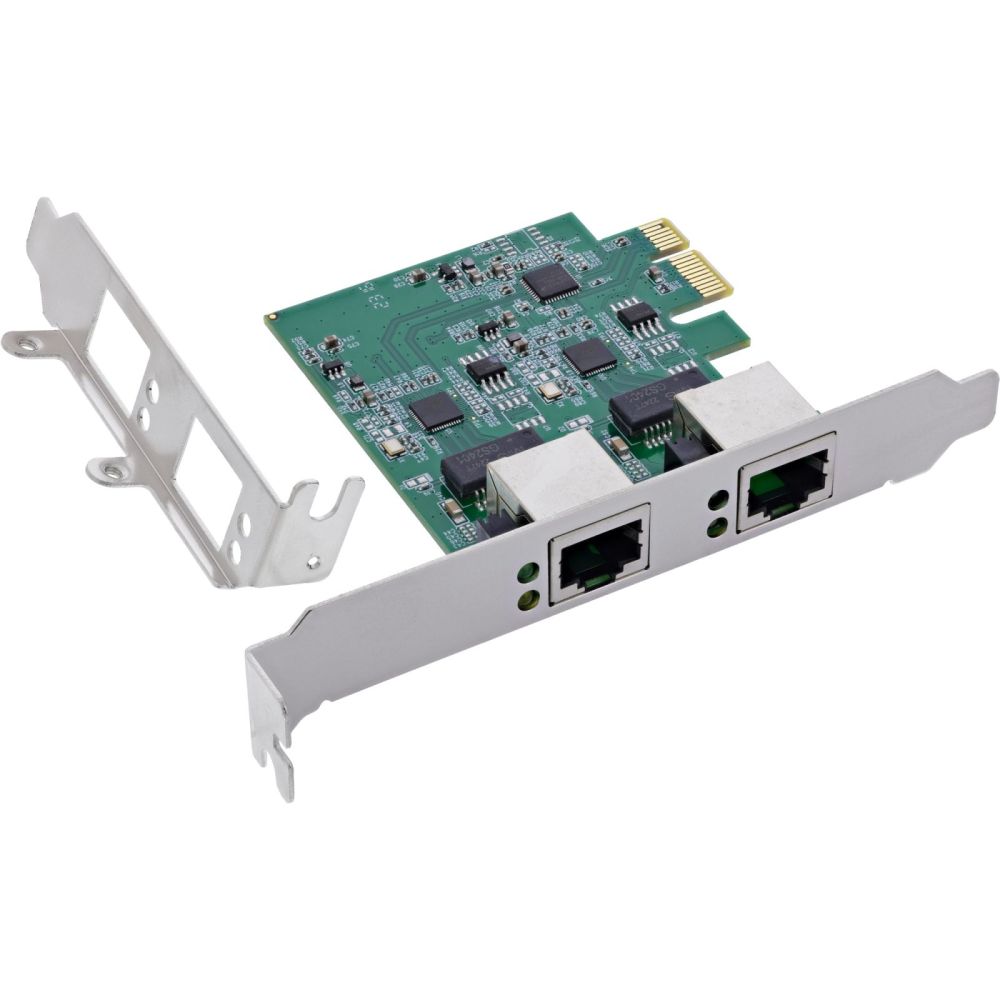

InLine® Dual Gigabit network card, 2x RJ45 2.5Gb/s, PCIe x1, incl. LP bracket content_copy

Two 2.5G ports for fast network upgradeMore performance per port: 2.5 Gb/s accelerate local transfers compared to 1G.
Flexible network separation: Two independent RJ45 ports for segmented networks or services.

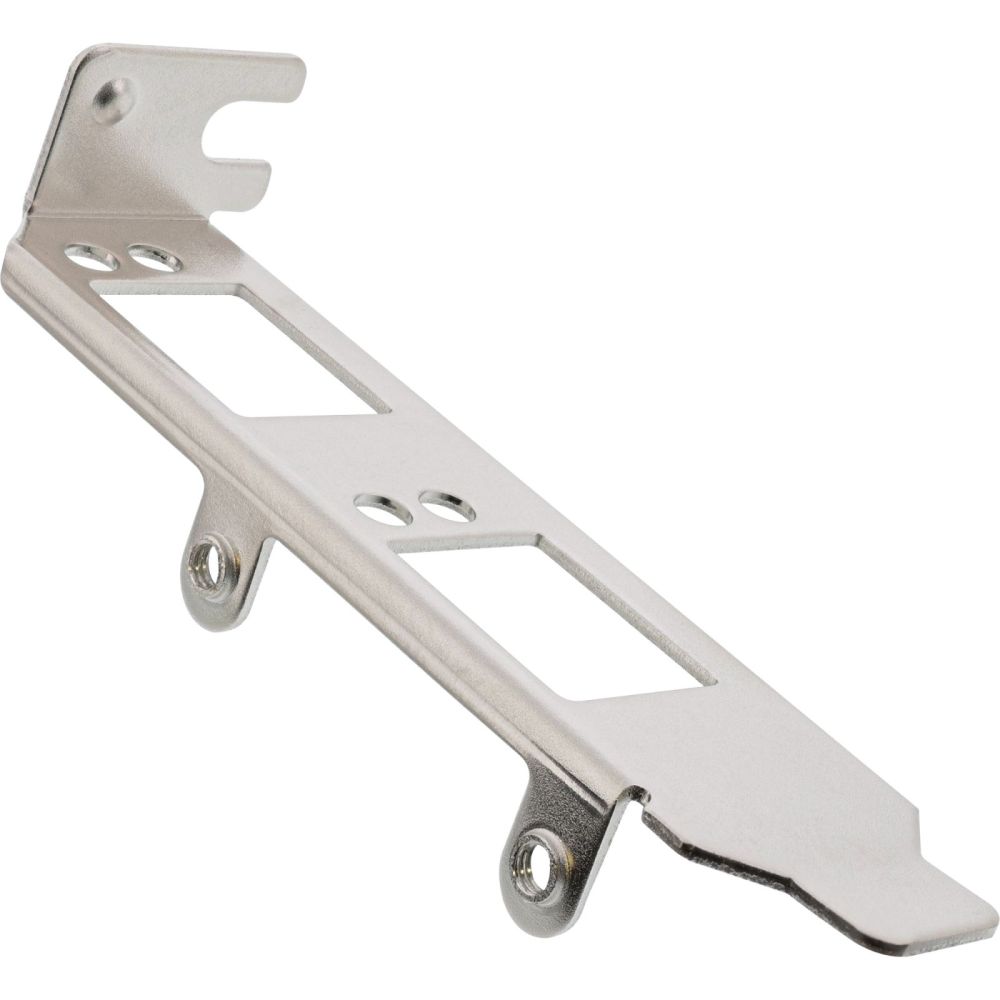

Installation in many systems: PCIe x1 with standard and low-profile bracket for desktop cases of any form factor.
Stable transmission and lower CPU load: Jumbo frames up to 16 KB, flow control as well as checksum and segmentation offloads.
Automatic adaptation in operation: Auto-Negotiation 10/100/1000 Mb/s and 2.5 Gb/s plus crossover detection.
The dual-port PCIe network card adds two 2.5G Ethernet interfaces to your PC for higher transfer rates on the local network. Offload functions for checksums and segmentation reduce CPU load, while full-duplex flow control enables consistent data transfer.
In professional IT environments and existing infrastructures, IEEE 802.1Q VLAN tagging and 802.1p prioritization facilitate the separation and prioritization of traffic. The included low-profile bracket also allows installation in compact cases for on-site installations and service deployments; driver support for Windows and Linux supports use in companies and public institutions.
Connection: 2x RJ45
Interface: PCI Express x1, Revision 2.1
Data rate: 10/100/1000 Mb/s and 2.5 Gb/s (Auto-Negotiation)
Duplex: Full-duplex flow control (IEEE 802.3x)
Jumbo frame: up to 16 KB
QoS/VLAN: IEEE 802.1p, IEEE 802.1Q
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Functions: crossover detection and auto-correction, checksum offload (IPv4, IPv6, TCP, UDP), segmentation task offload (Large Send v1/v2)
Chipset: Realtek RTL8125B
Compatibility: Windows 11/10/8.1/8/7 32/64-bit, Linux
Scope of delivery: Dual 2.5G Ethernet card PCI-E, low-profile bracket, driver CD, manual

Design
Product colour	Chrome, Green
Internal
Features
Chipset	Realtek RTL8125B
Other features
Data transfer rate	2500 Mbit/s
Connectivity technology	Wired
Dimensions (WxDxH)	95 x 1.58 x 122 mm
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.3x, IEEE 802.1Q
Interface	Ethernet
Packaging data
Package width	175 mm
Package depth	143 mm
Package height	39 mm
Package weight	46 g
Package volume	1000 cm³
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCI Express
System requirements
Windows operating systems supported	Windows 10, Windows 8, Windows 7, Windows 8.1, Windows 11
Linux operating systems supported
Technical data
Weight	0.158kg
Connections external	2x RJ45 female
Net weight	0.046kg
Connections internal	None
Type	Network card
Width packaging	0.175m
Interface	Network
Slot	PCIe
Article length	9.50cm
Transmission rate	2.5Gb/s
Chipset	Realtek RTL8125B
Packaging volume	0.0010m³
Article width	12.20cm
Height packaging	0.039m
Length packaging	0.143m
Article height	1.90cm
Low Profile
Weight & dimensions
Width	95 mm
Depth	1.58 mm
Height	122 mm
Weight	1.9 kg

---
