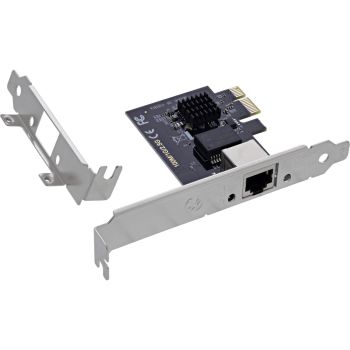

InLine® 2.5 Gigabit network card, 1x RJ45 2.5 Gb/s, PCIe x1 content_copy

High network performance at 2.5 Gb/s: Ideal for servers, NAS, multimedia streaming, and virtualization thanks to RJ45 connection with Realtek RTL8125B chip.
Easy integration via PCIe x1: Compatible with x1, x4, x8, and x16 – fast network expansion for PCs, workstations, and industrial systems.
Numerous features for professionals: Supports VLAN, Double-VLAN, Jumbo Frames, RSS, PTP, VMQ, and VMDq for maximum network efficiency.
Broad system compatibility: Supports Windows 7 to 11, Windows Server 2008–2019, and common Linux distributions with driver support.
Future-proof with Cat 5e cables: No rewiring necessary – 2.5 Gb/s can be used without any problems over existing Cat 5e cables up to 100 m.
This PCIe network card from InLine expands your PC, industrial computer, or workstation with a powerful 2.5 Gigabit Ethernet connection. The RJ45 port allows you to achieve network speeds of up to 2.5 Gb/s – ideal for data-intensive applications such as server connections, virtualization, NAS systems, multimedia streaming, or fast file transfers.
The card is connected via a PCIe x1 interface, but is also compatible with x4, x8, and x16 slots. The modern Realtek RTL8125B chipset offers advanced networking features: auto-negotiation, auto-MDI/MDI-X, VLAN support (including double VLAN), Layer 2 traffic prioritization, flow control, jumbo frames (up to 16 KB), RSS, hardware CRC, Wake-on-LAN, and RealWoW!
VMQ, VMDq, and IEEE time services are supported for virtualization environments. The card is compatible with Windows (7 to 11, Server 2008–2019) and Linux. Cat.5e cabling is sufficient for 2.5 Gigabit operation – ideal for upgrades without structural measures.
The scope of delivery includes a driver CD, a user manual in German and English, and a low-profile slot bracket, so that even compact cases are supported.
PCIe standard: PCIe v2.1 x1 lanes (compatible with x1, x4, x8, and x16)
Connection: 1x RJ45
Chipset: Realtek RTL8125B
Supported speeds:
– 2.5 Gb/s (2.5GBASE-T, IEEE 802.3bz)
– 1 Gb/s (1000BASE-T, IEEE 802.3ab)
– 100 Mb/s (100BASE-TX, IEEE 802.3u)
– 10 Mb/s (10BASE-T, IEEE 802.3)
Supported functions/standards:
– Auto-negotiation
– Auto-MDI/MDI-X
– Flow control: IEEE 802.3x
– VLAN support: IEEE 802.1Q, 802.1ad
– Prioritization: IEEE 802.1p
– Energy-efficient Ethernet: IEEE 802.3az
– Jumbo frames: up to 16 KB
– RSS – Hardware CRC and hardware ECC
– Wake-on-LAN and RealWoW!
– VMDq and VMQ
– PTP time services: IEEE 1588v1/v2, IEEE 802.1AS
Cable requirements: 2.5 Gb/s: Cat-5e or higher (up to 100 m)
Operating temperature: 0 °C to 70 °C C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90%, non-condensing
Supported operating systems: Windows 7 / 8 / 8.1 / 10 / 11, Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 / 2019, Linux
Scope of delivery: 1x InLine 2.5 Gigabit network card, 1x RJ45, 1x low-profile slot bracket, 1x driver CD, 1x user manual in German/English

Design
Component for	PC
Chipset	Realtek RTL8125B
Country of origin	Taiwan
Internal
Network
Maximum data transfer rate	2500 Mbit/s
Networking standards	IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3, IEEE 802.3x, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 1588, IEEE 1588v2, IEEE 802.1as
Jumbo frames	16000
Maximum operating distance	100 m
Wake-on-LAN ready
Jumbo frames support
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Other features
Dimensions (WxDxH)	85 x 1.07 x 120 mm
Package volume	700 cm³
Packaging content
Mounting brackets included
Resource CD
Manual
Packaging data
Package width	140 mm
Package depth	150 mm
Package height	30 mm
Package weight	39 g
Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
PCI version	2.1
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2019, Windows Server 2016, Windows Server 2008 R2, Windows Server 2012 R2
Technical data
Interface	Network
Transmission rate	2.5Gb/s
Weight	0.107kg
Type	Network card
Slot	PCIe
Height packaging	0.030m
Article width	12.00cm
Number of drives	1
Packaging volume	0.0007m³
Connections external	1x RJ45 socket
Net weight	0.039kg
Article height	2.00cm
Length packaging	0.150m
Chipset	Realtek RTL8125B
Connections internal	None
Width packaging	0.140m
Article length	8.50cm
Low Profile
Technical details
Compliance certificates	TÜV mark, Federal Communications Commission (FCC), CE
Weight & dimensions
Width	85 mm
Depth	1.07 mm
Height	120 mm
Weight	2 kg

---
