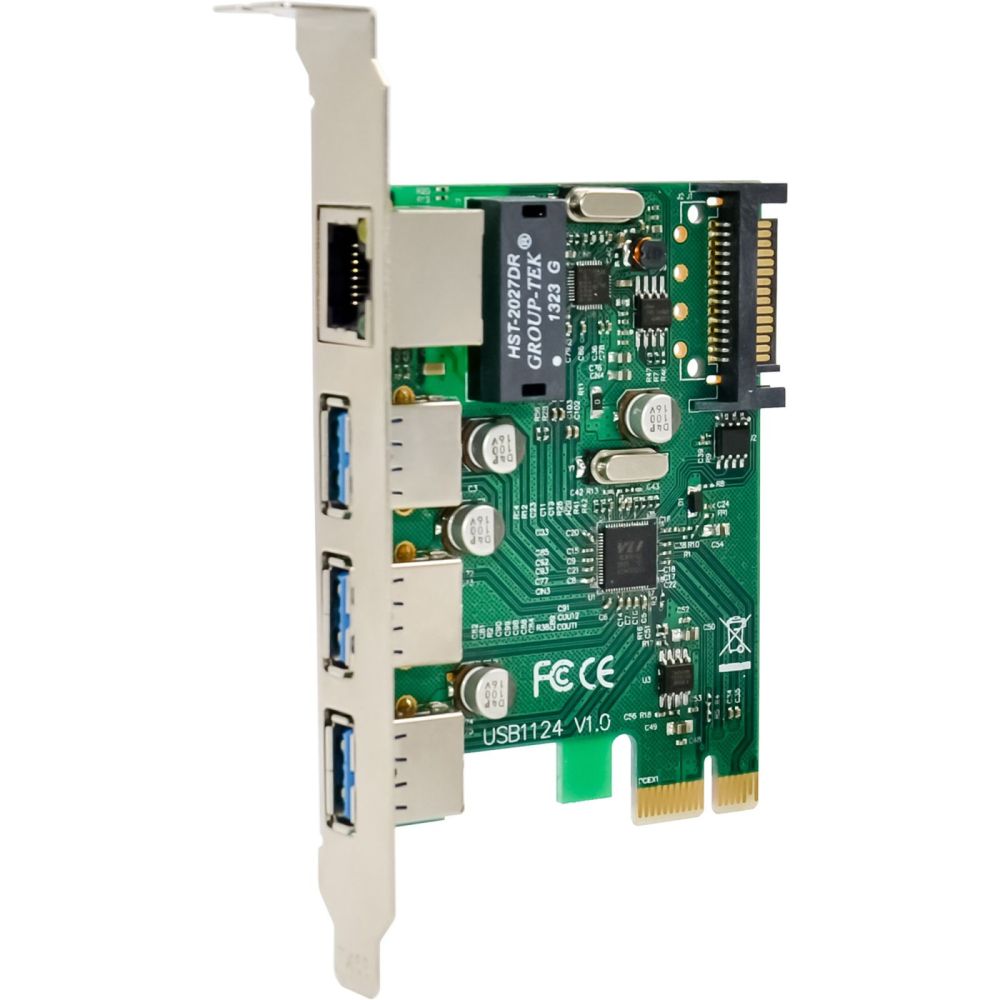

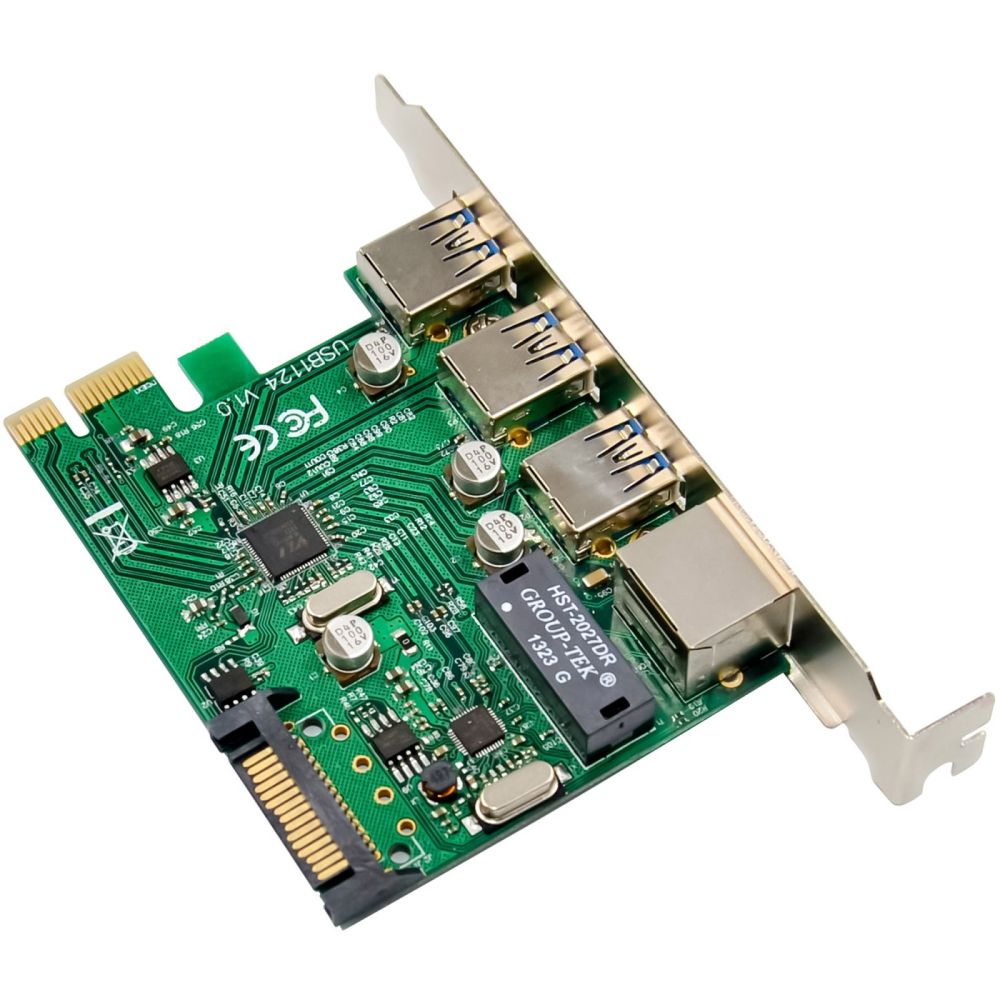

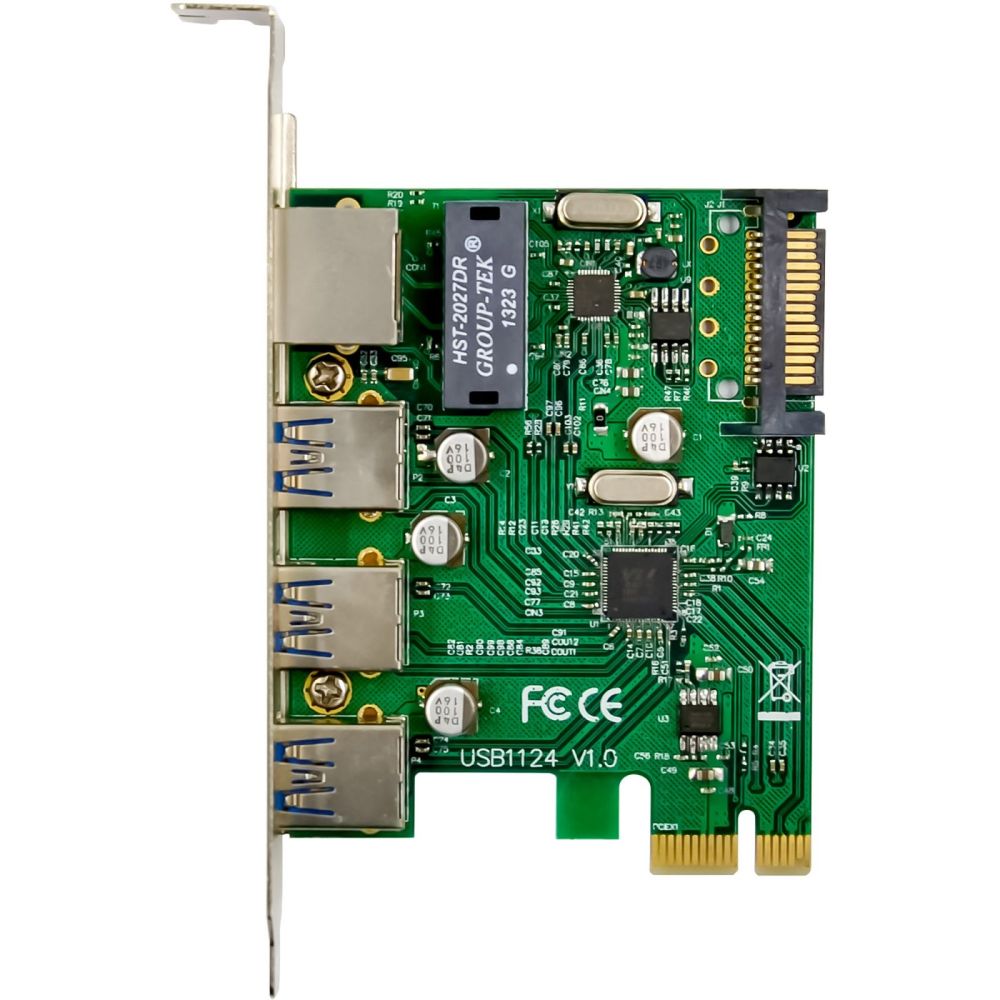

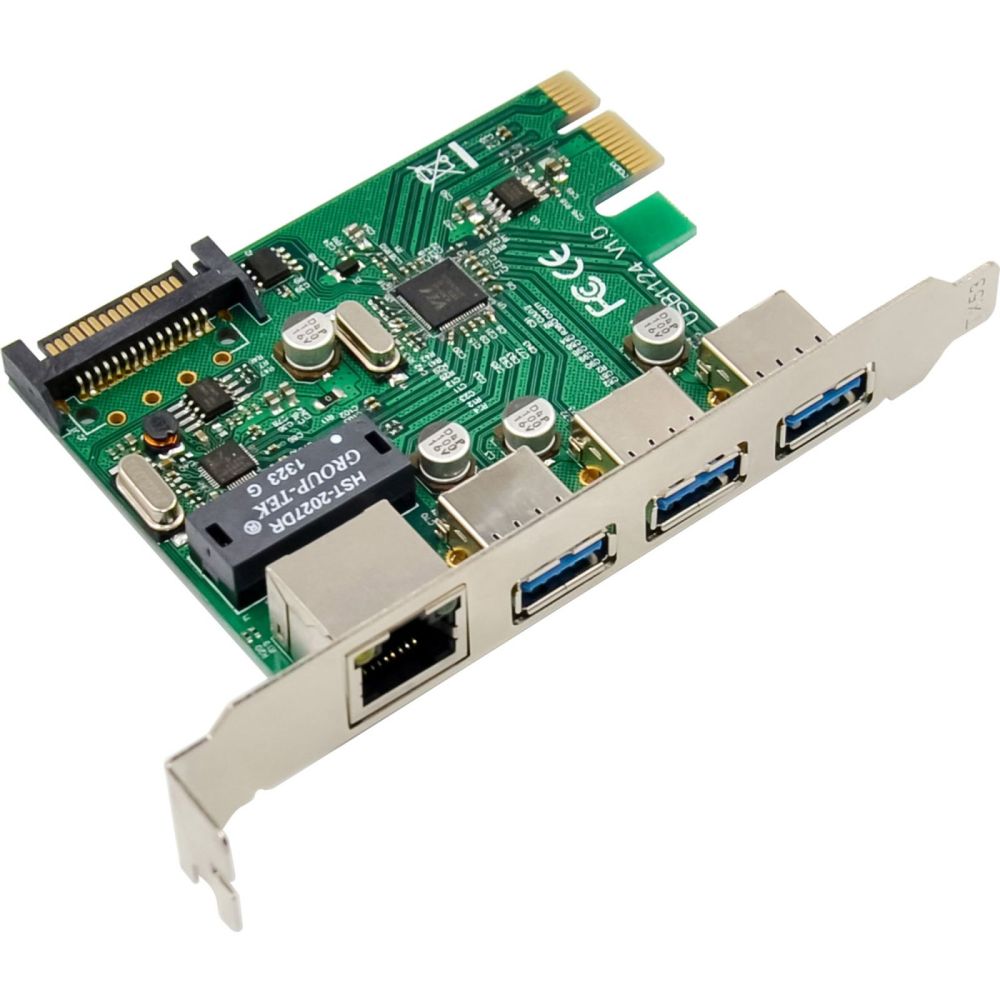

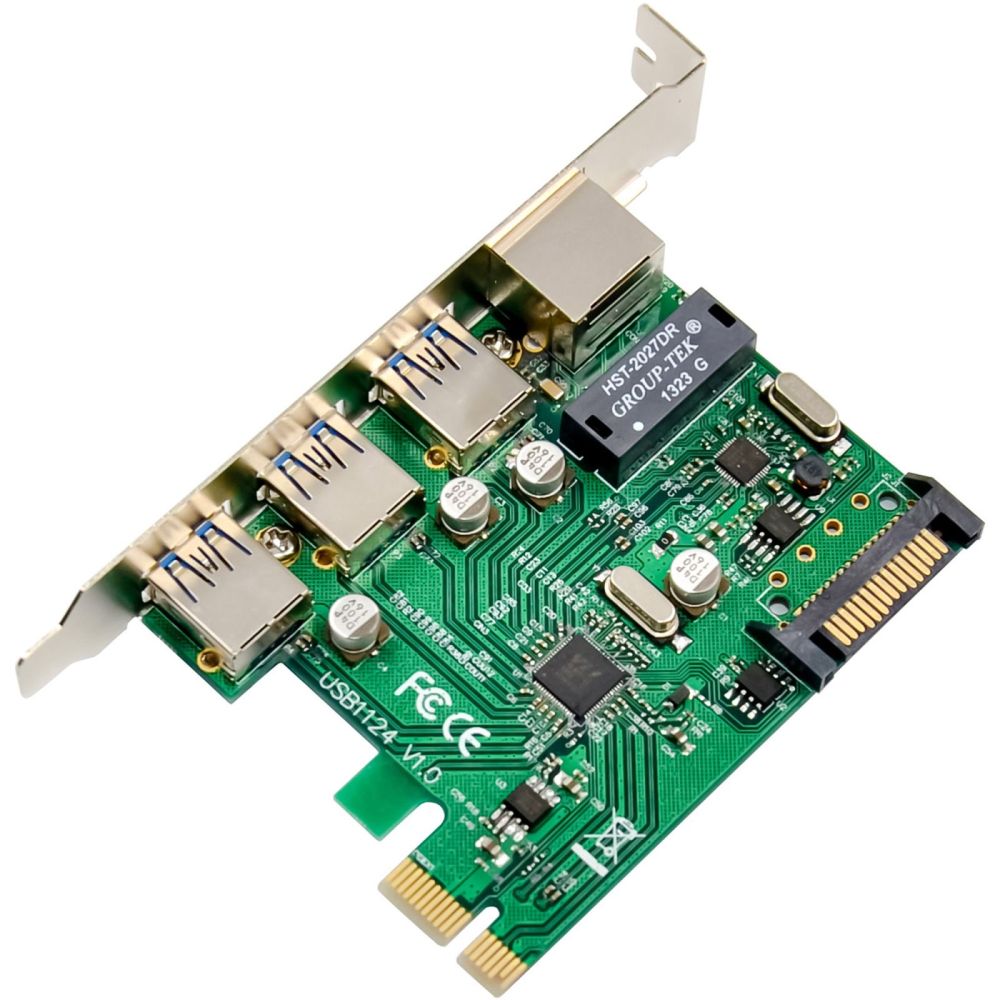

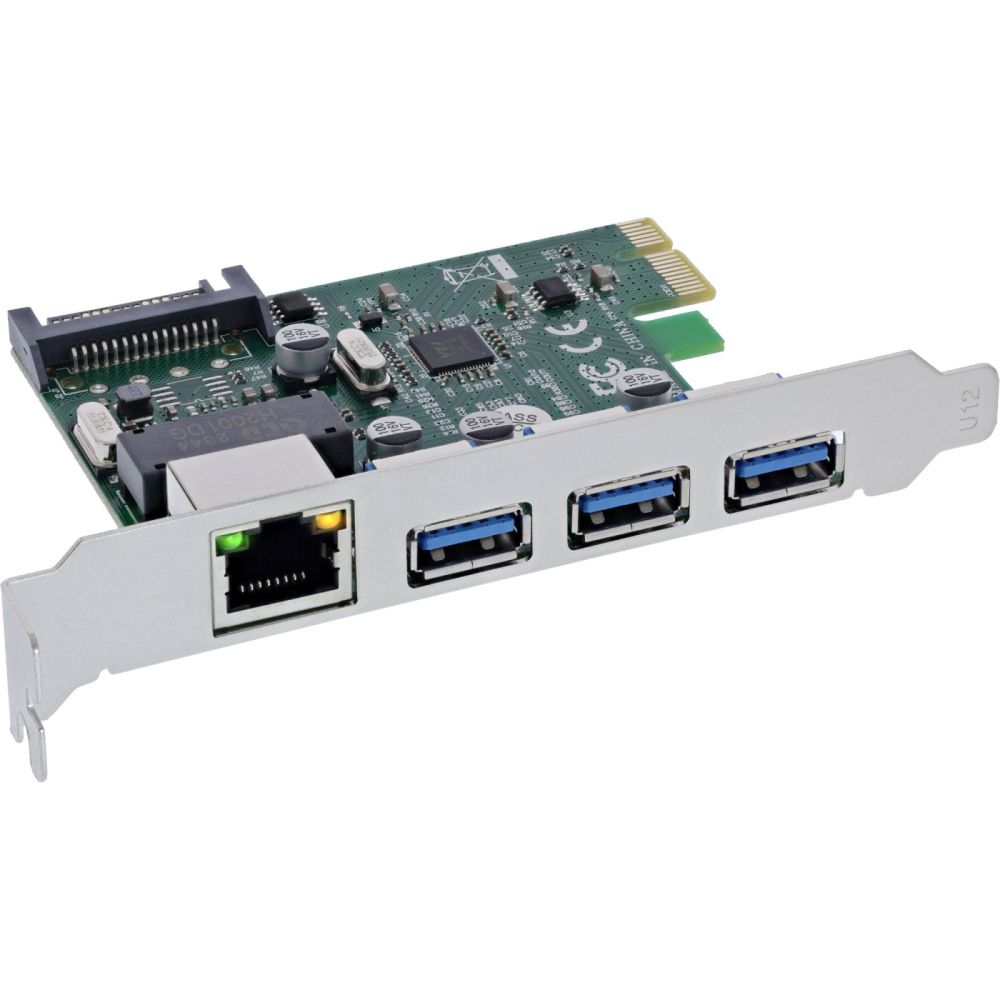

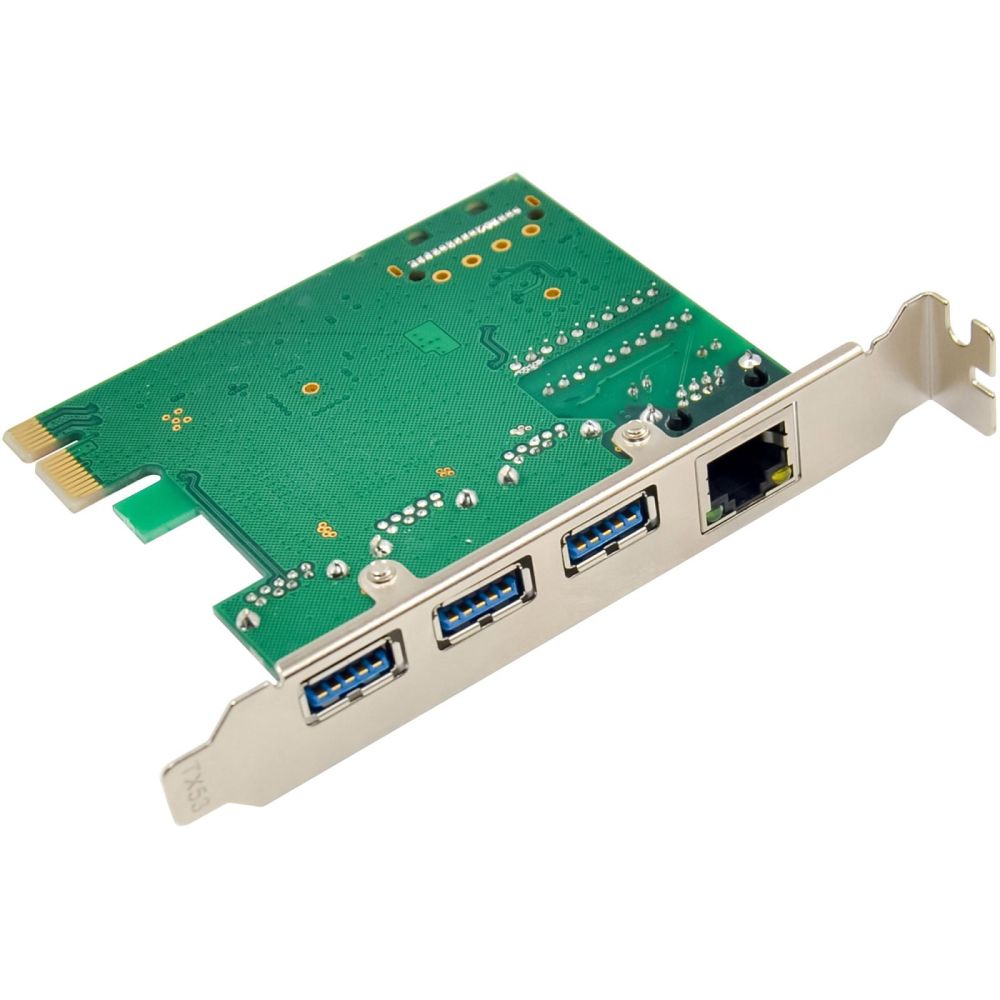

InLine® Combo card Gigabit network and USB 3.2 Gen.1, 1x RJ45, 3x USB-A, PCIe x1 content_copy

Combined network and USB extension for flexible system customization
1x RJ45 Gigabit Ethernet with auto-negotiation for stable connections
3x USB 3.2 Gen.1 ports with up to 5 Gb/s data rate
PCIe x1 interface for easy installation and broad compatibility
Supports Wake-on-LAN, Jumbo Frames & modern network protocols
The InLine® combo card expands your system with a high-performance Gigabit network connection and three fast USB 3.2 Gen.1 ports. Ideal for virtualization, data transfers and energy-efficient network applications.
The RJ45 connector enables a Gigabit Ethernet connection with auto-negotiation and supports IPv4, IPv6, Wake-on-LAN (WOL), Jumbo Frames and modern network protocols.
The USB 3.2 Gen.1 ports achieve transfer rates of up to 5 Gb/s and support Plug & Play and hot-plug functionality. Thanks to the additional 15-pin power connector, a stable power supply to the USB ports is ensured.
Technical data:
Bus type: PCIe v2.1 (5.0 GT/s) 1-lane
Ports: 1 x RJ45 (Gigabit LAN), 3 x USB 3.2 Gen.1 (USB-A, 5 Gb/s)
Data rate RJ45: 10/100/1000 Mb/s (Gigabit Ethernet)
Supported speeds:
10/100 Mb/s in half-duplex mode
10/100/1000 Mb/s in full-duplex mode
Data rate USB-A: 5 Gb/s
Power supply: 15-pin power connector for additional power supply of the USB ports
Chip set: VIA VL805 (USB), Realtek RTL8153 (LAN)
Supported protocols: IPv4, IPv6
Dimensions: 75 mm x 80 mm (PCIe board)
Network & protocol support:
Supported IEEE standards:IEEE 802.3, 802.3u, 802.3az (Ethernet standards)
IEEE 802.3x (flow control)
Supports reliable data transmission and power-saving mechanisms
USB 3.2 Gen.1 interface - 3x USB-A ports:
Maximum power: 5 V / 900 mA per port
Compatibility: Plug & Play and hot-pluggable
Features:
Auto-negotiation (10/100/1000 Mb/s)
Wake-on-LAN (WOL) & remote wakeup
Support for jumbo frames (up to 9K)
UDP/TCP & IP checksum offloading
Virtual Machine Device Queues (VMDq, up to 8 VMs)
Interrupt throttling control
Operating system support:
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %
Scope of delivery:
1x InLine® combo card Gigabit network
1x driver CD
1x operating instructions (German/English)

Design
Country of origin	Taiwan
LED indicators
Features
Chipset	Realtek RTL8153
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Connectivity technology	Wired
Dimensions (WxDxH)	79 x 1.02 x 120 mm
Ethernet LAN (RJ-45) ports	1
Networking standards	IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Interface	Ethernet
Packaging data
Package width	140 mm
Package depth	33 mm
Package height	155 mm
Package weight	47 g
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCI Express
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4
Server operating systems supported	Windows Server 2008 R2, Windows Server 2016, Windows Server 2019
Technical data
Height packaging	0.155m
Transmission rate	5Gb/s
Interface	Network
Weight	0.102kg
Chipset	VIA VL805 (USB), Realtek RTL8153 (LAN)
Connections internal	None
Slot	PCIe
Width packaging	0.140m
Article width	12.00cm
Article height	2.20cm
Article length	7.90cm
Length packaging	0.033m
Connections external	1x RJ45 Buchse + 3x USB-A
Type	Network card
Net weight	0.047kg
Low Profile
Technical details
Compliance certificates	CE, TÜV mark
Weight & dimensions
Width	79 mm
Depth	1.02 mm
Height	120 mm
Weight	2.2 kg

---
