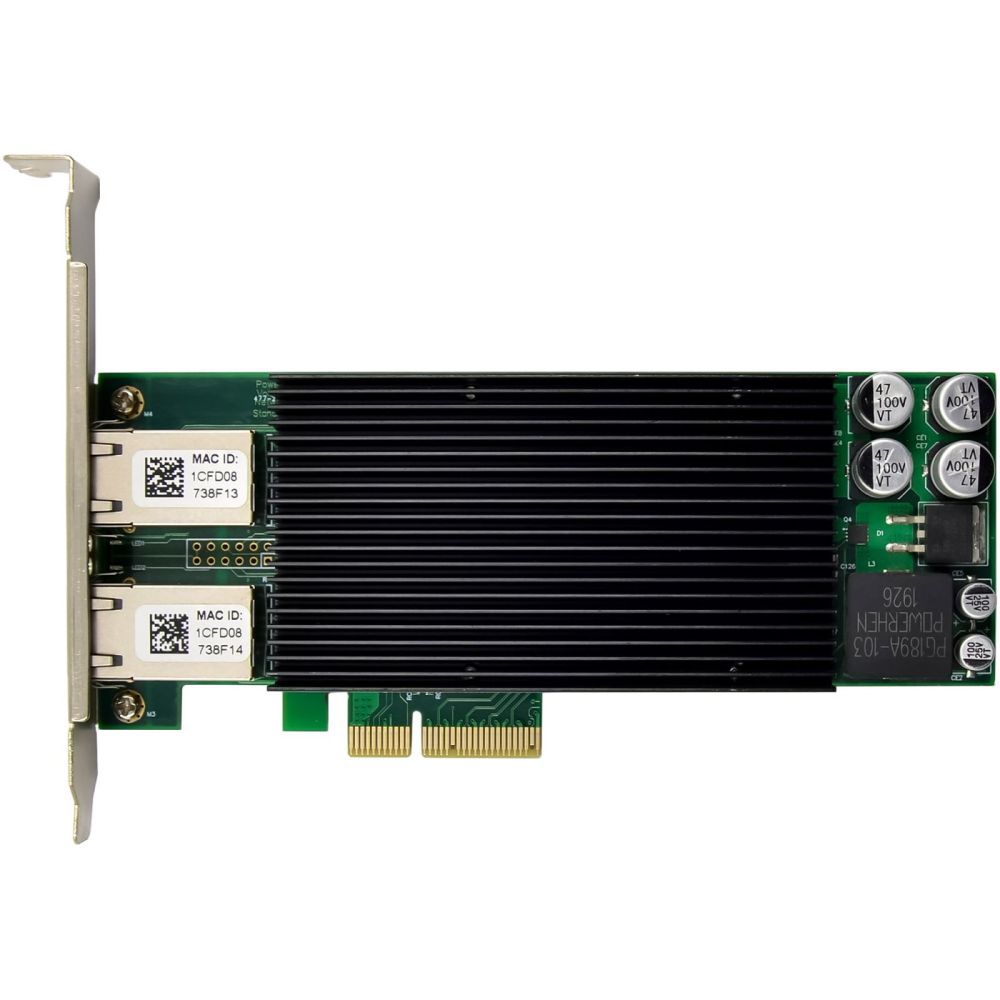

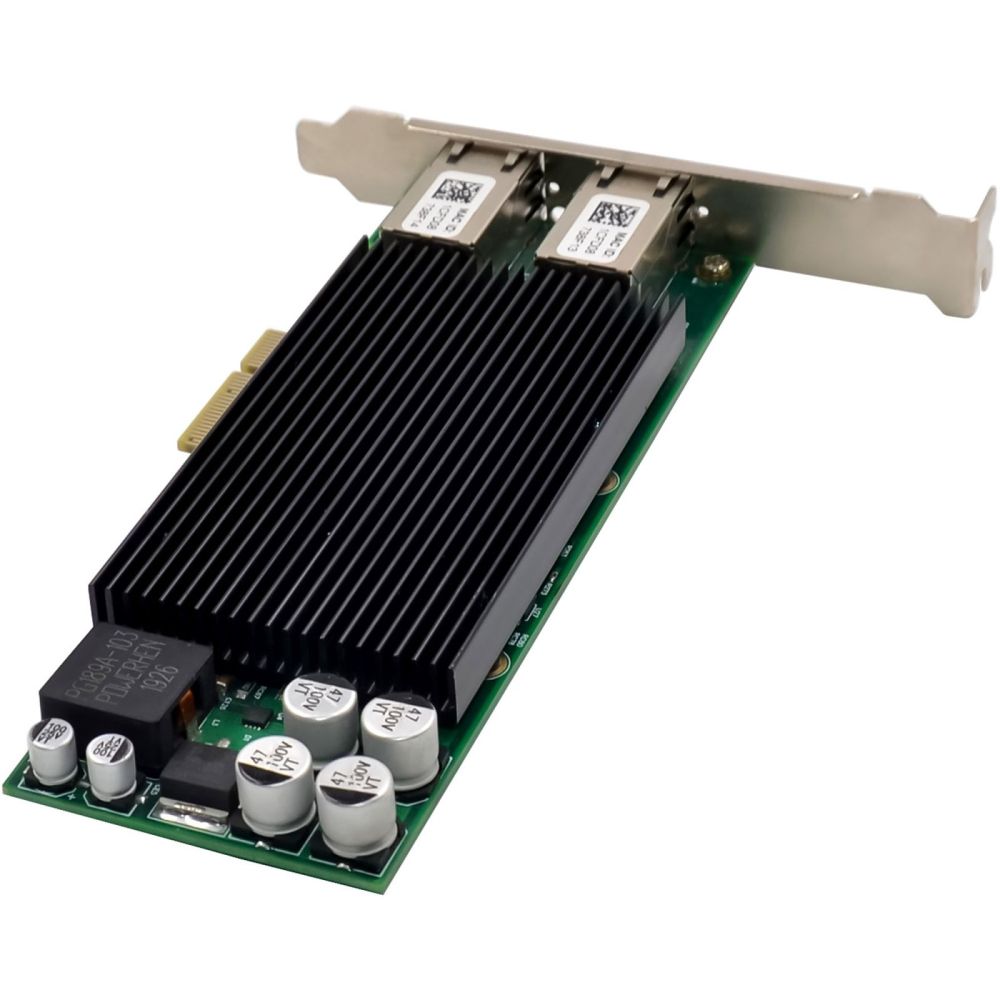

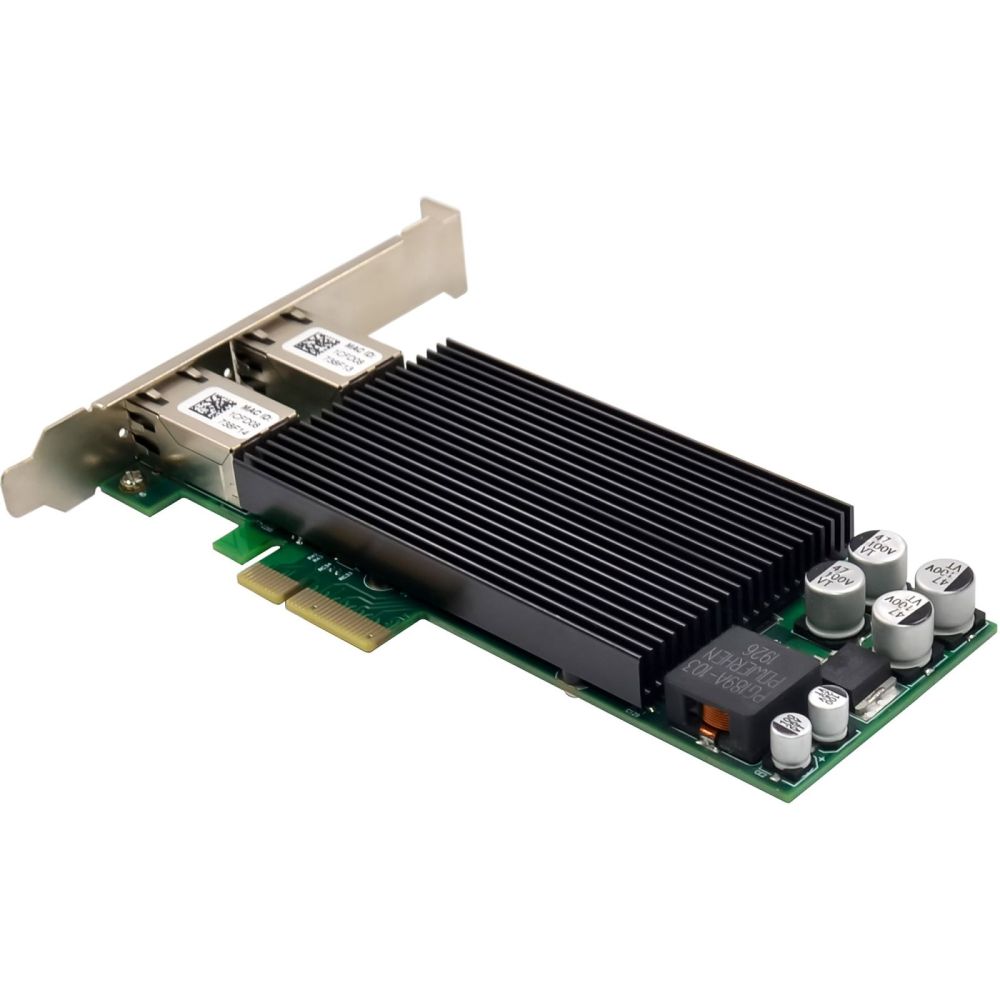

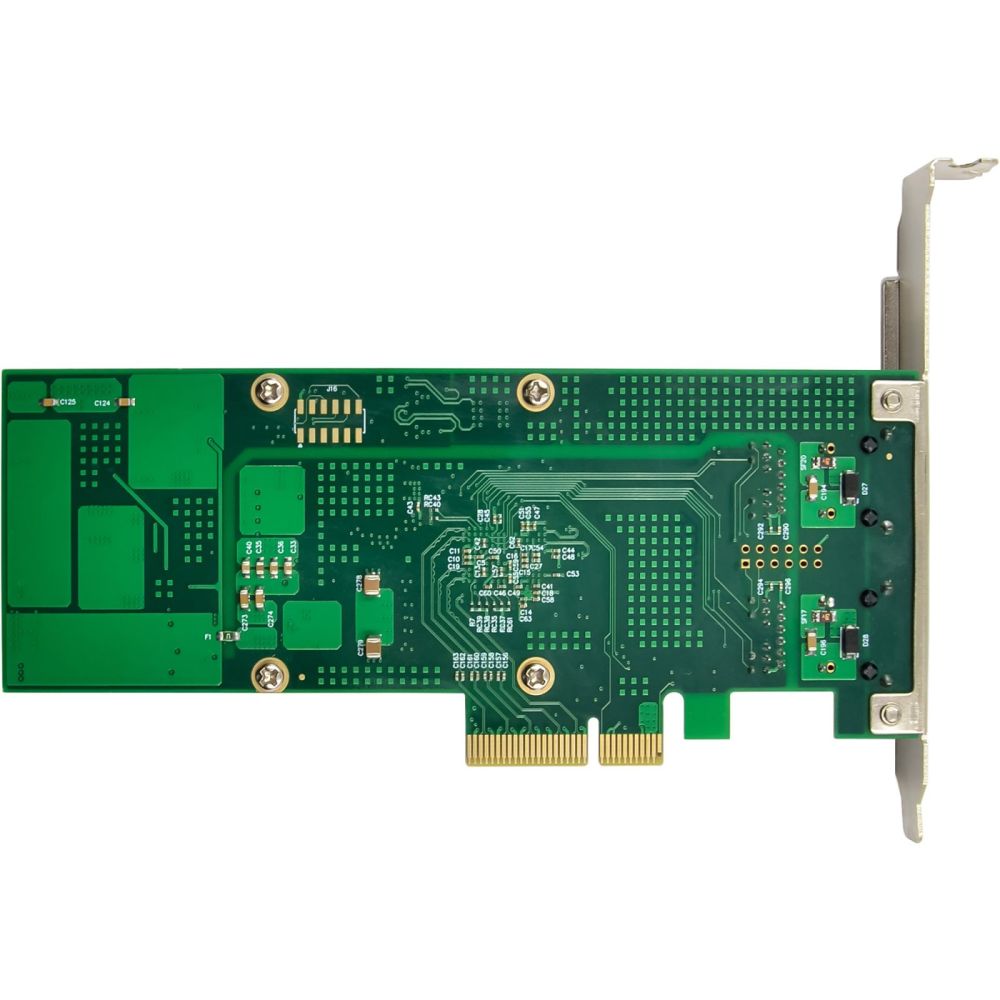

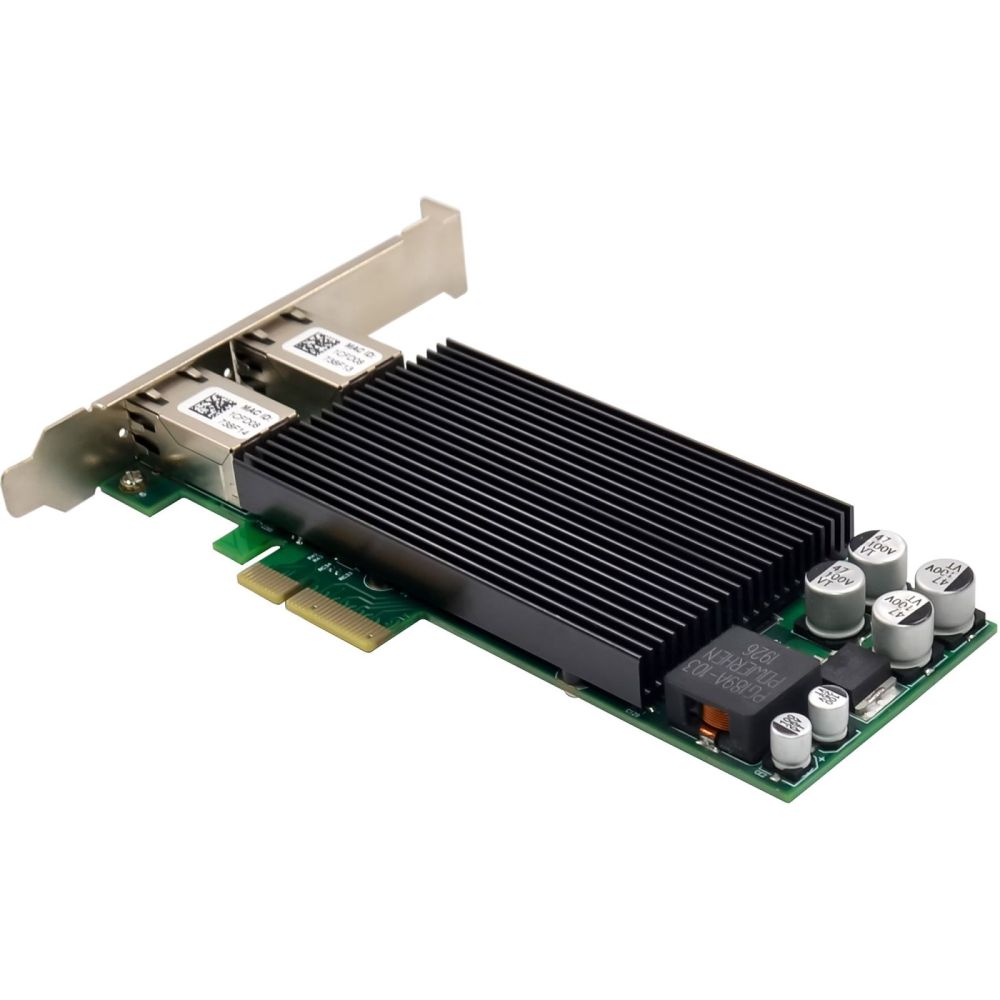

InLine® Dual Gigabit network card, 2x RJ45 1 Gb/s, PCIe x4, PoE+ content_copy

Dual Gigabit Ethernet with PoE+ for a fast and reliable connection
2x RJ45 ports with 10/100/1000 Mb/s data rate
Supports Power over Ethernet Plus (PoE+) with up to 30 W per port
Intel NHI350AM2 chipset for high performance and energy efficiency
PCIe x4 interface with standard and low-profile bracket
The InLine® Dual Gigabit Network Card PoE+ offers a high-performance and versatile solution for professional use in servers, workstations and AV applications. With two RJ45 Gigabit interfaces, it enables a reliable 10/100/1000 Mb/s Ethernet connection and supports modern network technologies for optimized performance and energy efficiency.
Thanks to PoE+ (IEEE 802.3af/at) with up to 30 W per port, it is ideal for IP cameras, access points and VoIP telephones, which can be supplied with power directly via the network cable - without a separate power source.
Additional features such as VLAN support (802.1Q), Jumbo Frames up to 9K, Flow Control (802.3x) and Virtual Machine Device Queues (VMDq) ensure optimized network performance and efficient use of system resources.
Technical data:
Bus type: PCIe v2.1 (5.0 GT/s) 4-lanes
Connection: 2 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)
Maximum cable length:
10BASE-T: Category-3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category-5e or higher (up to 100 m)
Chipset: Intel NHI350AM2
Supported protocols: IPv4, IPv6
PoE+ (Power over Ethernet)
Maximum power: 30 W per port
Voltage range: 44-57 V DC per port
Dimensions: 160 mm x 69 mm (PCIe board)
Network & protocol support Supported IEEE standards:
IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control), IEEE 802.1Q (VLAN)
IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
IEEE 802.1Qav (audio-video bridging)
IEEE 1588 & 802.1AS (precise time synchronization)
Features:
Auto-negotiation (10/100/1000 Mb/s)
MDI/MDI-X (automatic crossover detection)
Receive-Side Scaling (RSS)
Support for jumbo frames (up to 9K)
UDP/TCP & IP Checksum Offloading
Virtual Machine Device Queues (VMDq, up to 8 VMs)
Interrupt throttling control
Operating system support
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Other: FreeBSD, virtualization environments (e.g. VMware ESXi)
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90%
Scope of delivery:
1x InLine® Dual Gigabit network card PoE+, 2x RJ45 1Gb/s

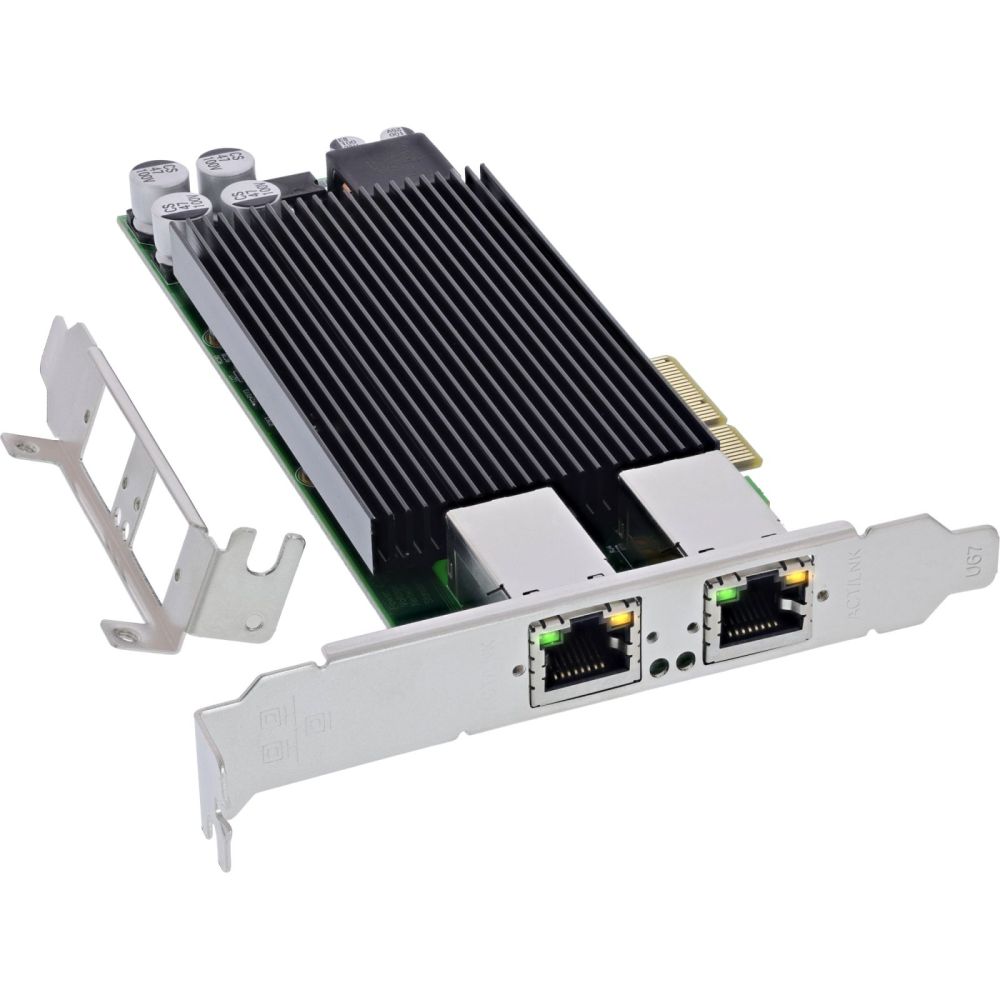

1x low-profile slot bracket
1x driver CD
1x operating instructions (German/English)

Design
Country of origin	Taiwan
Internal
LED indicators
Features
Chipset	Intel NHI350AM2
Full duplex
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Connectivity technology	Wired
Dimensions (WxDxH)	172 x 2.5 x 120 mm
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 1588, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Interface	Ethernet
Packaging data
Package width	175 mm
Package depth	32 mm
Package height	150 mm
Package weight	250 g
Package volume	700 cm³
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCI Express
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4
Server operating systems supported	Windows Server 2008 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	FreeBSD
Technical data
Width packaging	0.175m
Article length	17.20cm
Connections external	2x RJ45 female
Transmission rate	1Gb/s
Connections internal	None
Height packaging	0.150m
Packaging volume	0.0007m³
Chipset	Intel NHI350AM2
Weight	0.250kg
Article height	2.20cm
Interface	Network
Slot	PCIe
Type	Network card
Net weight	0.250kg
Length packaging	0.032m
Article width	12.00cm
Low Profile
Technical details
Compliance certificates	CE, TÜV mark
Weight & dimensions
Width	172 mm
Depth	2.5 mm
Height	120 mm
Weight	2.2 kg

---
