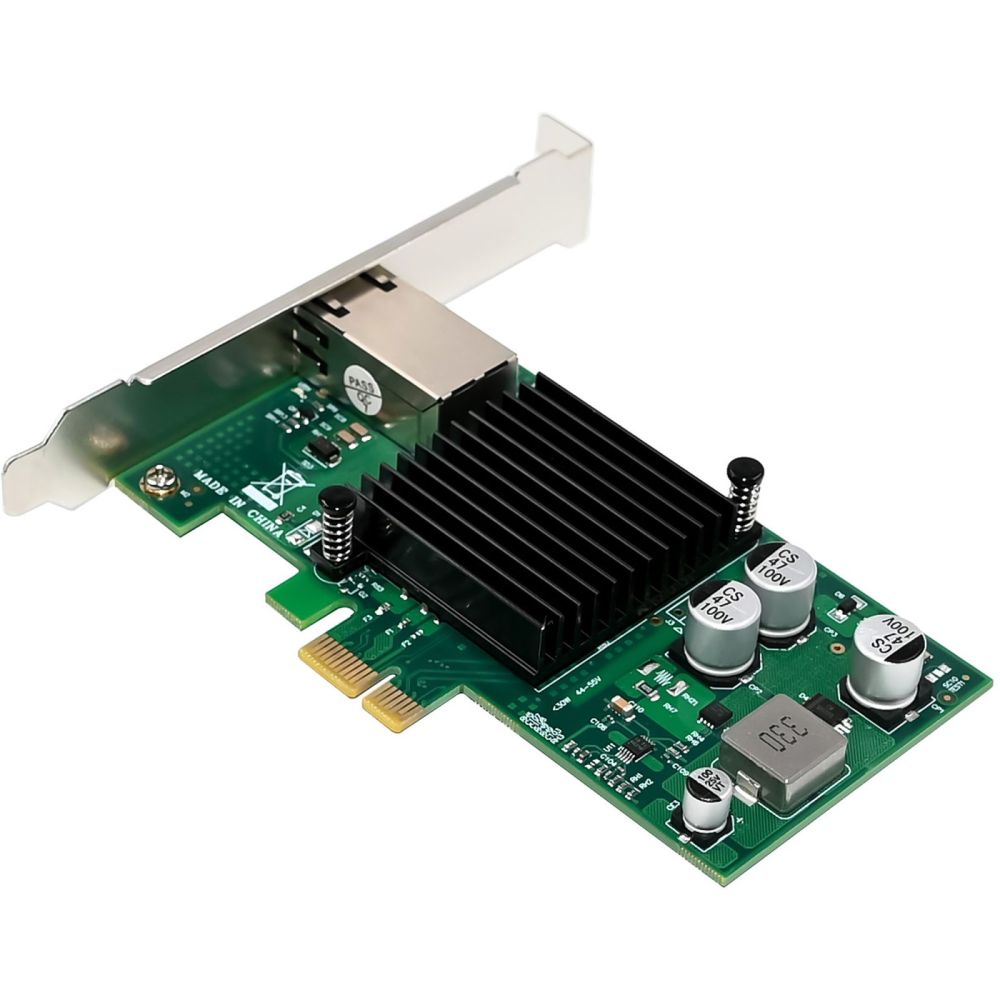

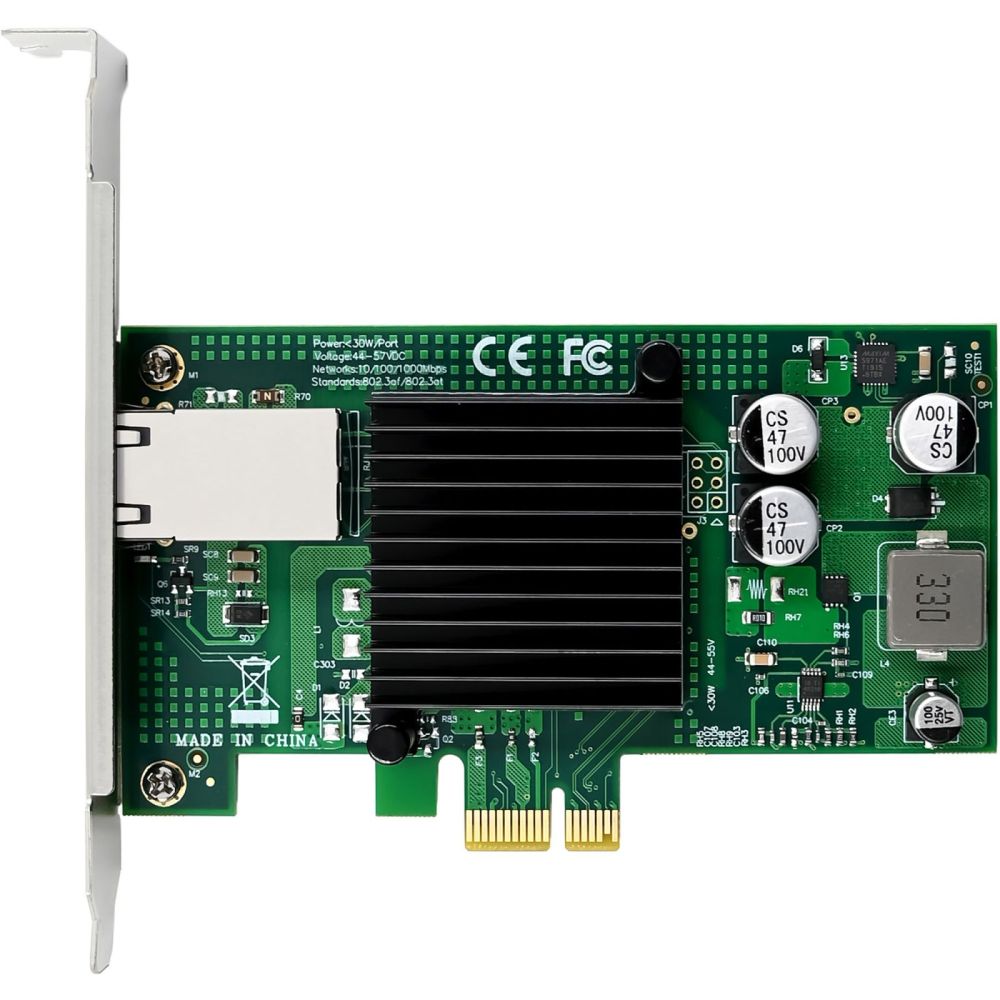

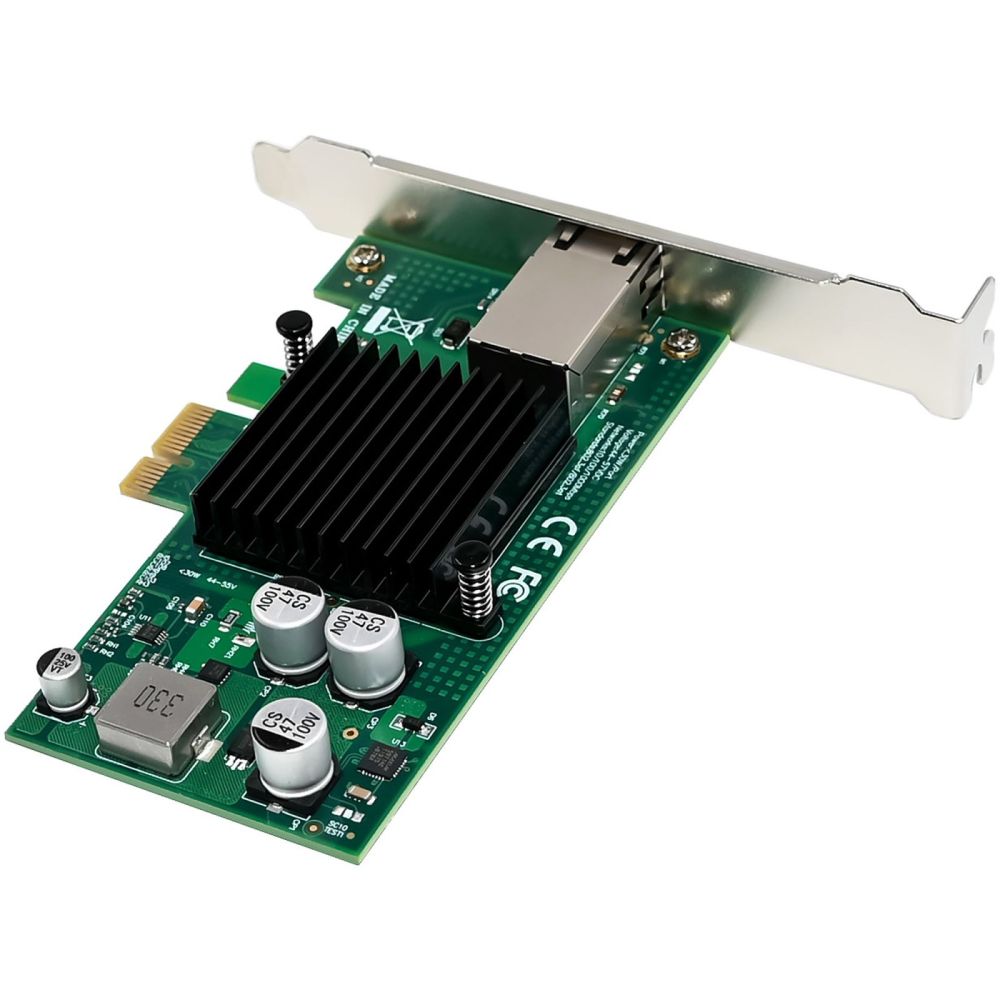

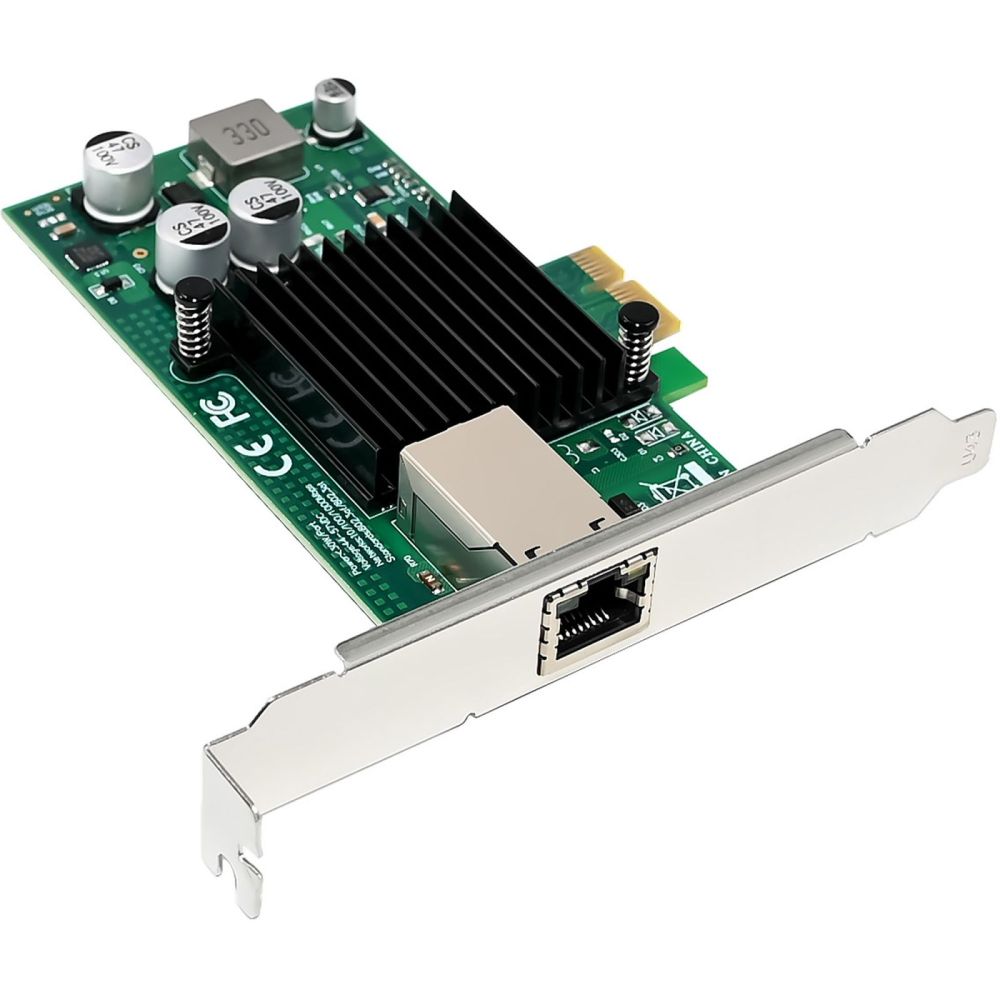

InLine® Gigabit network card, 1x RJ45 1 Gb/s, PCIe x1, PoE+ content_copy

Gigabit Ethernet with PoE+ for a fast and reliable connection
1x RJ45 connection with 10/100/1000 Mb/s data rate
Supports Power over Ethernet Plus (PoE+) with up to 30 W power
Intel WGI210AT chipset for high performance and energy efficiency

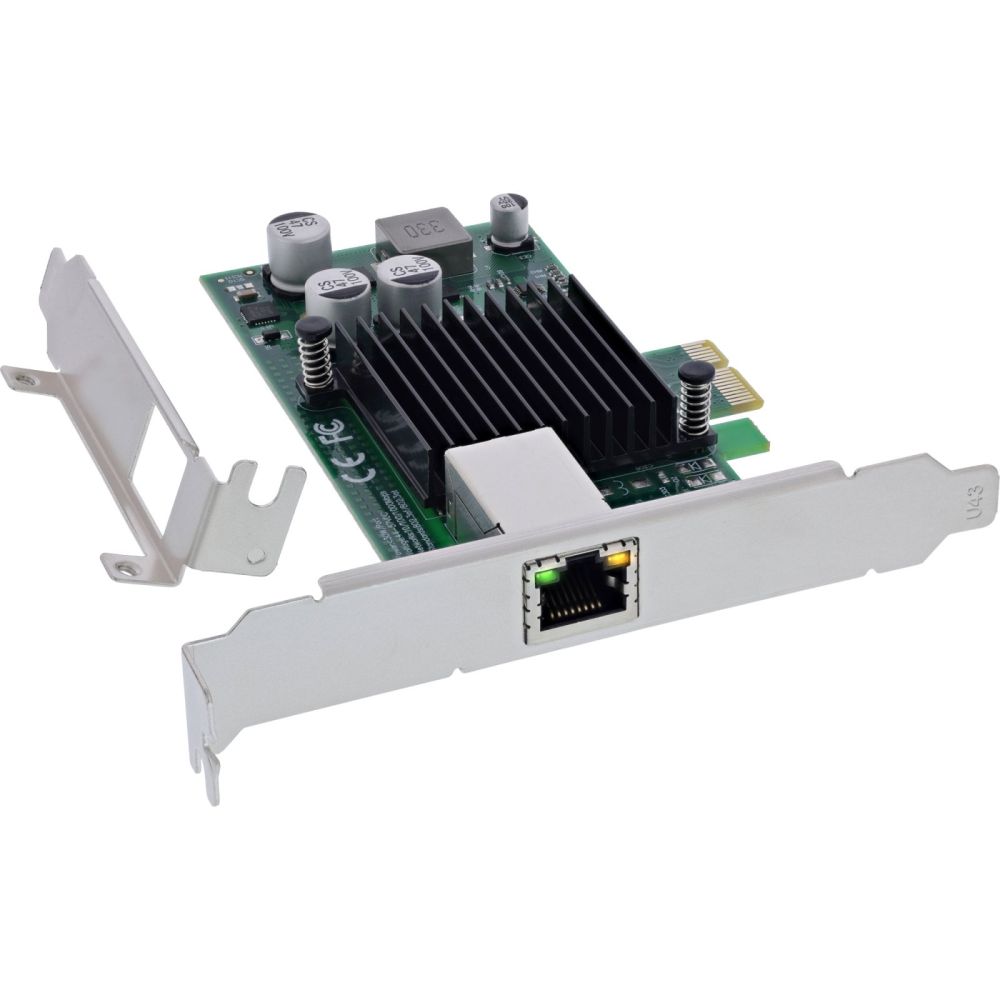

PCIe x1 interface with standard and low-profile slot bracket
The InLine® Gigabit network card PoE+ offers a powerful and versatile solution for professional use in servers, workstations and AV applications. With an RJ45 Gigabit interface, it enables a reliable 10/100/1000 Mb/s Ethernet connection and supports modern network technologies for optimized performance and energy efficiency.
Thanks to PoE+ (IEEE 802.3af/at) with up to 30 W, it is ideal for IP cameras, access points and VoIP telephones, which can be supplied with power directly via the network cable - without a separate power source.
Additional features such as VLAN support (802.1Q), Jumbo Frames up to 9K, Flow Control (802.3x) and Virtual Machine Device Queues (VMDq) ensure optimized network performance and efficient use of system resources.
Technical data:
Bus type: PCIe v2.1 (5.0 GT/s) 1-lane
Connection: 1 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)
Maximum cable length:
10BASE-T: Category 3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category 5e or higher (up to 100 m)
Chip set: Intel WGI210AT
Supported protocols: IPv4, IPv6
PoE+ (Power over Ethernet)
Maximum power: 30 W
Voltage range: 44-57 V DC
Dimension: 115 mm x 69 mm (PCIe board)
Network & protocol support
Supported IEEE standards:
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control)
IEEE 802.1Q (VLAN)
IEEE 802.3af / 802.3at (PoE+)
IEEE 802.1Qav (audio-video bridging)
IEEE 1588 & 802.1AS (precise time synchronization)
Features:
Auto-negotiation (10/100/1000 Mb/s)
MDI/MDI-X (automatic crossover detection)
Receive-Side Scaling (RSS)
Support for jumbo frames (up to 9K)
UDP/TCP & IP checksum offloading
Virtual Machine Device Queues (VMDq, up to 8 VMs)
Interrupt throttling control
Operating system support
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Other: FreeBSD, virtualization environments (e.g. VMware ESXi)
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %
Scope of delivery:
1x InLine® Gigabit network card PoE+, 1x RJ45 1Gb/s
1x low-profile slot bracket
1x driver CD
1x operating instructions (German/English)

Design
Country of origin	Taiwan
Internal
LED indicators
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Connectivity technology	Wired
Dimensions (WxDxH)	126 x 1.56 x 120 mm
Ethernet LAN (RJ-45) ports	1
Networking standards	IEEE 1588, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Interface	Ethernet
Packaging data
Package width	140 mm
Package depth	33 mm
Package height	155 mm
Package weight	80 g
Package volume	700 cm³
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCI Express
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4
Server operating systems supported	Windows Server 2008 R2, Windows Server 2016, Windows Server 2019
Technical data
Length packaging	0.033m
Article width	12.00cm
Connections internal	None
Height packaging	0.155m
Packaging volume	0.0007m³
Chipset	Intel WGI210AT
Connections external	1x RJ45 socket
Interface	Network
Article height	2.20cm
Transmission rate	1Gb/s
Weight	0.156kg
Width packaging	0.140m
Article length	12.60cm
Type	Network card
Slot	PCIe
Net weight	0.080kg
Low Profile
Technical details
Compliance certificates	TÜV mark, CE
Weight & dimensions
Width	126 mm
Depth	1.56 mm
Height	120 mm
Weight	2.2 kg

---
