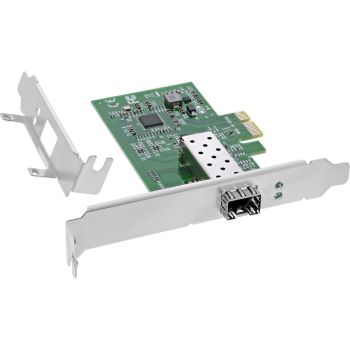

InLine® Gigabit network card, 1x SFP fibre 1Gb/s, PCIe x1, LP slot bracket content_copy

Extensive fibre optic network connection with up to 1 Gb/s (fibre)
Supports 1000BASE-SX/LX/BX for flexible deployment options
Powerful Intel WGI210CS chipset for optimum stability
PCIe x1 interface with standard and low-profile bracket
Compatible with Windows, Linux, FreeBSD and virtualisation systems
This InLine® Gigabit network card, 1x SFP fibre 1Gb/s was developed for use in desktop, server and embedded systems and meets modern requirements in terms of energy efficiency, form factor and network stability. It is equipped with an SFP slot that supports various fibre optic transceivers and thus enables flexible network connections over different distances and media types.
By supporting current network protocols and functions such as VLAN tagging, flow control, jumbo frames or checksum offloading, the card is suitable for both standard networks and specialised applications, such as audio-video transmission in accordance with IEEE 802.1Qav. The card is installed via a PCIe slot (PCI Express 2.1), allowing it to be easily integrated into existing systems.
Technical data:
Bus type: PCIe v2.1 (5.0 GT/s) x1 lane
Data rate: 1 Gb/s (fibre)
Chip set: Intel WGI210CS
Supported protocols: IPv4, IPv6
Dimensions: 96 mm x 62 mm (PCIe board)
Supported network modes:
The card can use various fibre optic connections, including:
1000BASE-SX (multimode): For short distances with light signals.
1000BASE-LX (singlemode): For longer distances with a thinner optical fibre.
1000BASE-BX (singlemode WDM): For special applications where uploads and downloads run over a single fibre.
Supported interfaces:
Serializer-Deserializer (SerDes) for 1000BASE-SX/LX (optical fibre - IEEE 802.3)
Serialiser-Deserialiser (SerDes) for 1000BASE-KX (IEEE 802.3ap)
1000BASE-BX (PICMIG 3.1) for gigabit backplane applications
SGMII (Serial-GMII specification) interface for SFP (SFP MSA INF-8074i)/external PHY connections

Supported network functions:
IEEE 802.3x Flow Control: Helps to avoid data congestion in the network.
IEEE 802.1q VLAN: Makes it possible to divide a network into several virtual networks.
Receive-side Scaling (RSS): Distributes incoming network data to multiple CPU cores for load balancing and better performance with multi-core processors.
Jumbo frames up to 9K: Allows larger data packets for more efficient transmission.
Checksum Offloading: Relieves the processor when calculating checksums to improve performance.

Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C

Supported operating systems:
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, , 2012, 2016, 2019, 2022
Linux: from kernel version 2.6.30
Other: FreeBSD, virtualisation environments (e.g. VMware ESXi)

Scope of delivery:
1x InLine® Gigabit network card
1x low-profile slot bracket
1x driver CD
1x user manual (German/English)

Design
Internal
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Other features
Connectivity technology	Wired
Dimensions (WxDxH)	109 x 1.35 x 120 mm
Networking standards	IEEE 802.1Q, IEEE 802.3x
Interface	Fiber
Packaging data
Package width	40 mm
Package depth	178 mm
Package height	167 mm
Package weight	43 g
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCI Express
Fiber optic connector	SFP
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Other operating systems supported	FreeBSD
Technical data
Length packaging	0.178m
Height packaging	0.167m
Connections internal	None
Transmission rate	1Gb/s
Article length	10.90cm
Connections external	1x SFP socket
Article width	12.00cm
Interface	Network
Chipset	Intel WGI210CL
Width packaging	0.040m
Type	Network card
Slot	PCIe
Weight	0.135kg
Article height	2.20cm
Net weight	0.043kg
Low Profile
Technical details
Compliance certificates	CE, TÜV mark
Weight & dimensions
Width	109 mm
Depth	1.35 mm
Height	120 mm
Weight	2.2 kg

---
