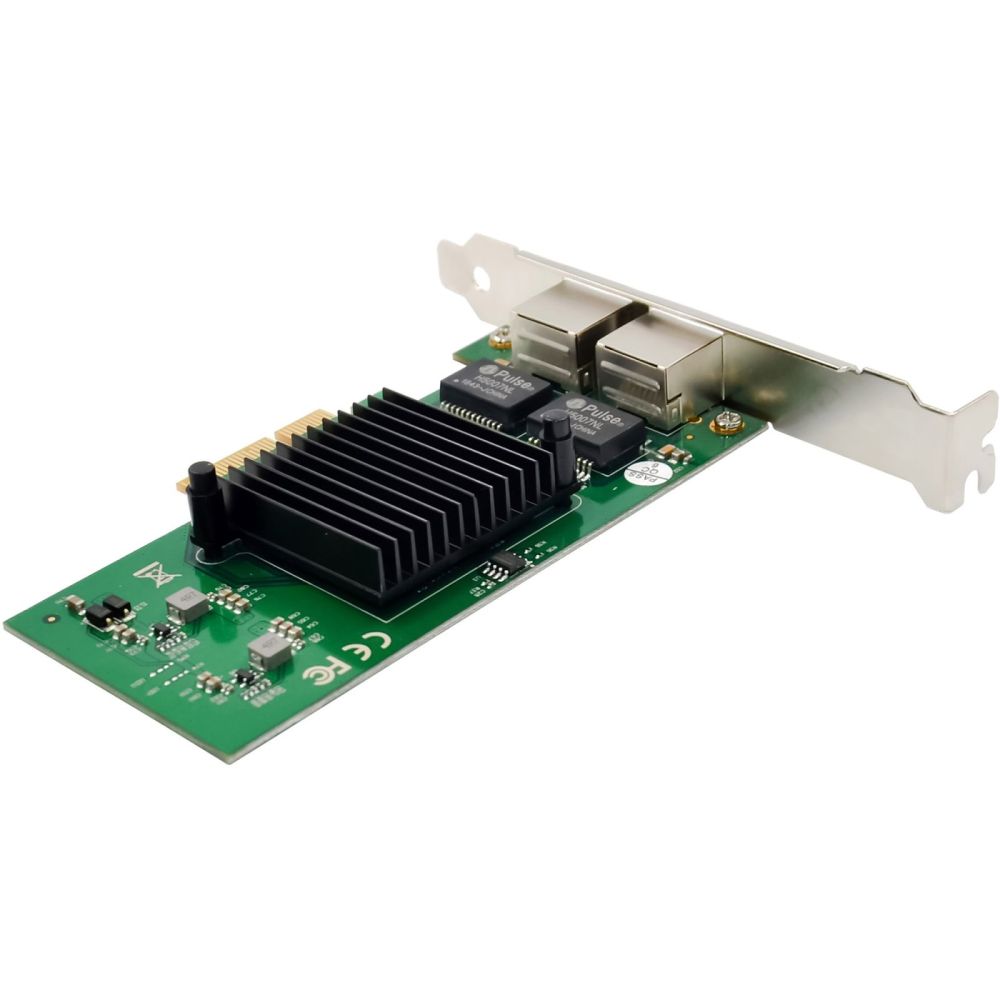

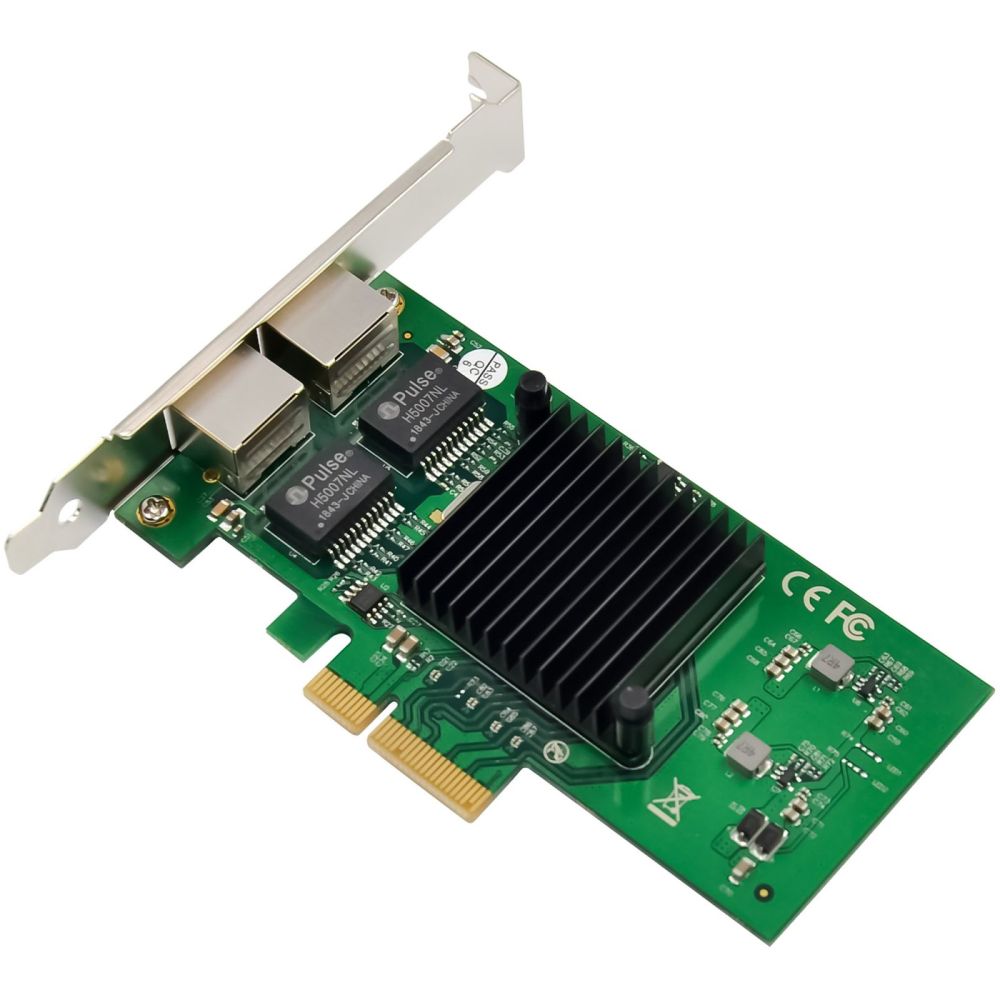

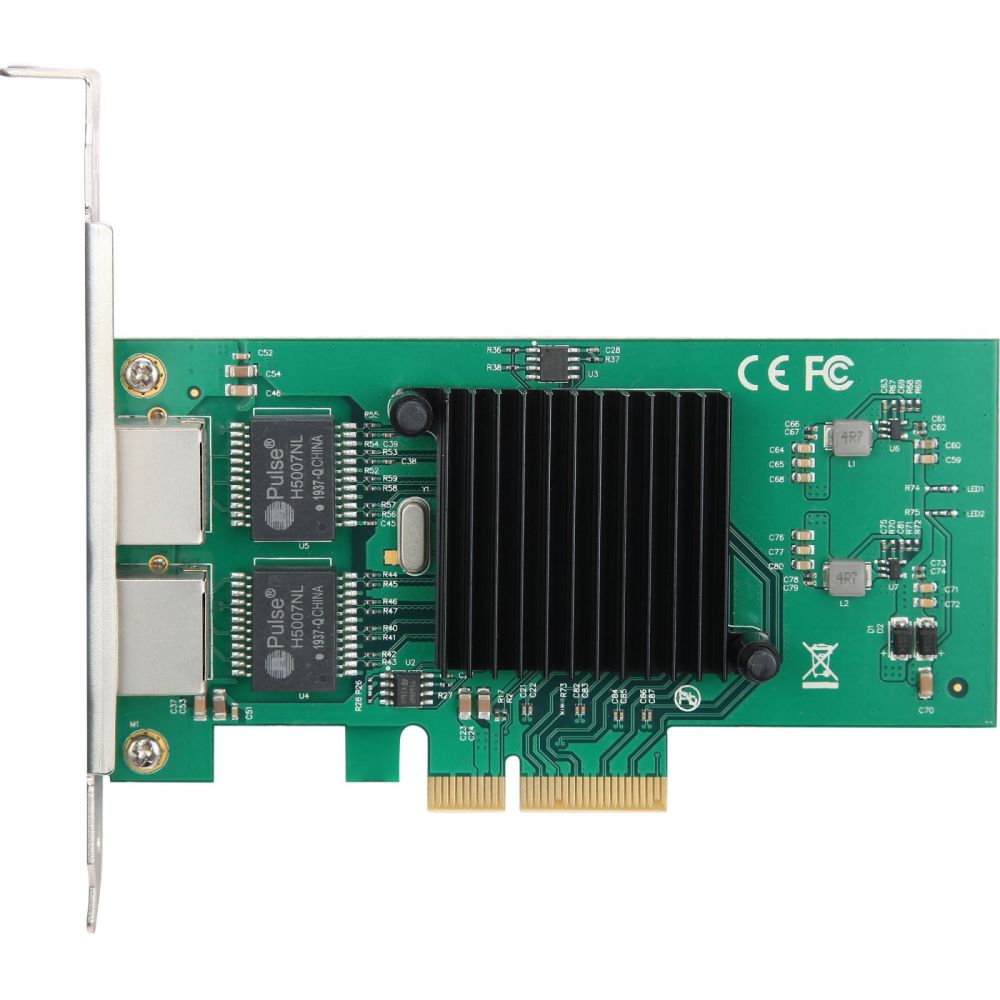

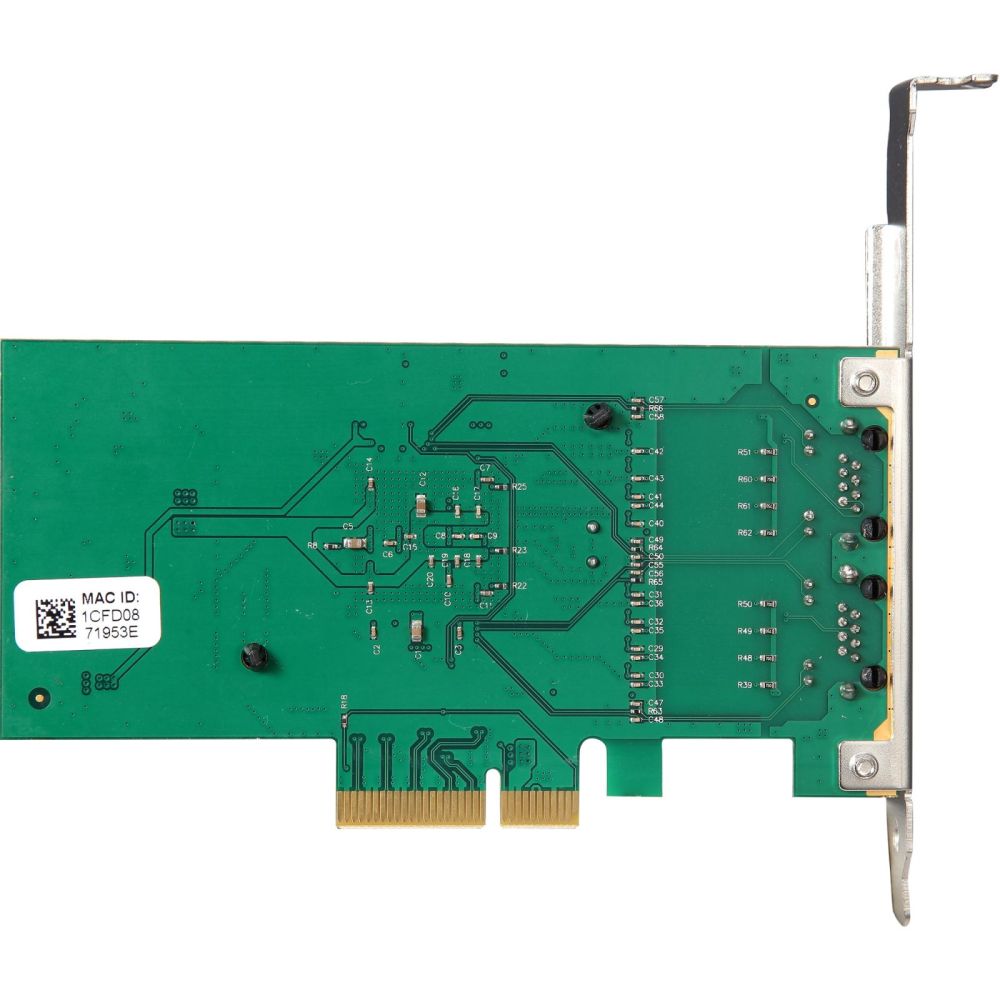

InLine® Dual Gigabit network card, 2x RJ45 1 Gb/s, PCIe x4, incl. low-profile content_copy

Maximum network performance: Two RJ45 Gigabit ports provide reliable data transfer at up to 1 Gb/s each for demanding applications.
Optimized for virtualization: Supports Intel VMDq for efficient allocation of network resources to up to eight virtual machines.
Efficient system load reduction: Features such as RSS, flow control, and checksum offload reduce CPU load and improve overall performance.
Reliable data connection: The Intel 82576EB controller ensures stable connections with VLAN, jumbo frames, and IPv6 support.

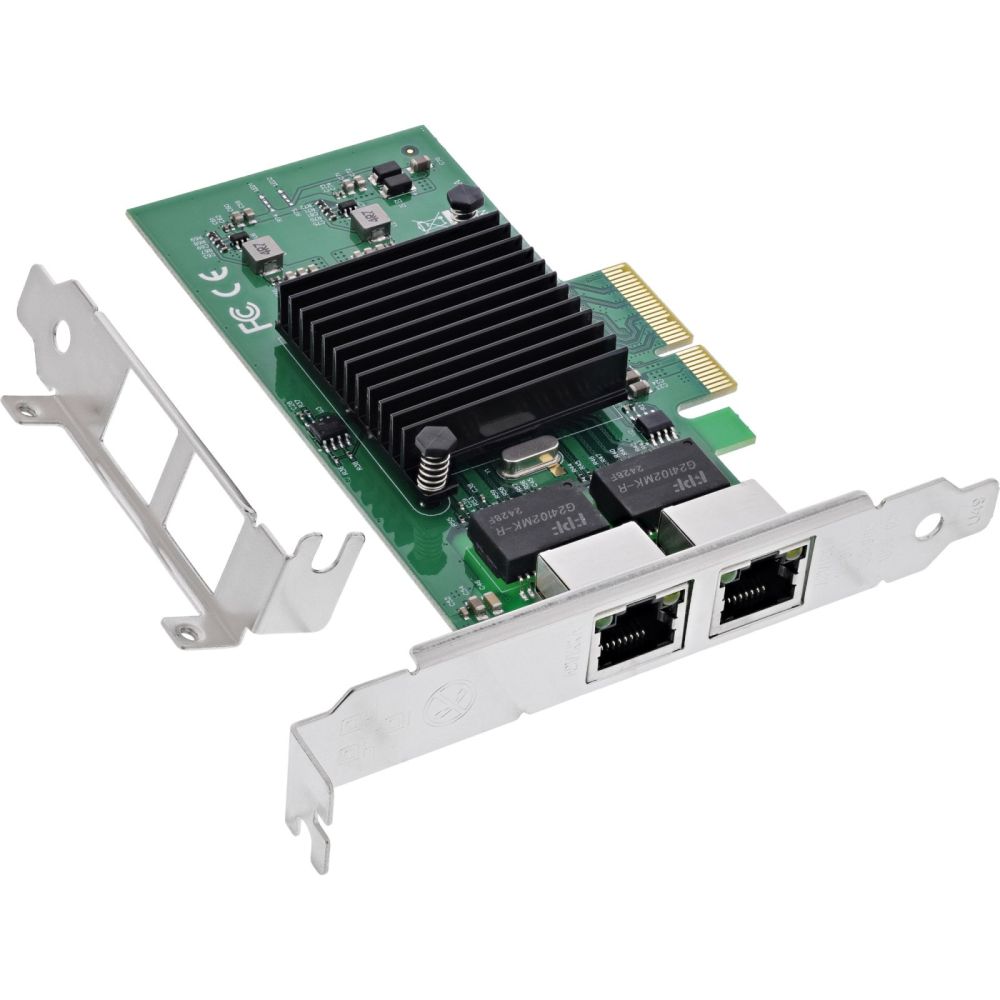

Flexible use: Includes low-profile slot bracket for standard and compact cases and supports PCIe x4 according to v2.0 standard.
The InLine® Dual Gigabit Network Card with two RJ45 ports is the ideal solution for anyone who needs maximum stability and performance in their network. Equipped with the Intel 82576EB controller, the card offers extensive functions for increasing efficiency and reducing system load, including VLAN support, jumbo frames, flow control, and receive side scaling (RSS).
Thanks to its support for VMDq, the card is perfectly suited for virtualized environments and allows network resources to be allocated to up to eight virtual machines. The PCI Express x4 interface according to v2.0 provides sufficient bandwidth for both ports and ensures uninterrupted data transmission.
The included low-profile slot bracket allows the card to be flexibly integrated into a wide variety of systems, from compact office PCs to rack servers. The high-quality workmanship and extensive compatibility with IPv4 and IPv6 make the card a future-proof choice for professional network infrastructures and ambitious home networks.
PCIe standard: PCIe v2.0 x4 lane
Connections: 2x RJ45
Speeds: 10/100/1000 Mb/s per port
Chipset: Intel 82576EB
Protocols: IPv4, IPv6
Jumbo frames: up to 9.5K
VLAN support: IEEE 802.1Q
Flow control: IEEE 802.3x
RSS: Receive-Side Scaling
Checksum offload: Relieves the CPU
VMDq support: Up to 8 virtual machines
Interrupt throttling: Optimized CPU utilization
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90%, non-condensing
Cable requirements: Cat.5e or higher recommended for 1000 Mb/s
LED behavior per port: Orange LED (Link) – lights up continuously when connected; green LED (Activity) – flashes during data transfer
Scope of delivery: 1x network card, 1x low-profile slot bracket, 1x driver CD, 1x manual DE/EN

Design
Component for	PC/Server
Country of origin	Taiwan
Internal
LED indicators
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3x
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Jumbo frames	9500
Supported network protocols	IPv4, IPv6
LAN controller	Intel® 82576EB
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Other features
Dimensions (WxDxH)	140 x 1.61 x 120 mm
Package volume	700 cm³
Packaging content
Mounting brackets included
Resource CD
Manual
Packaging data
Package width	125 mm
Package depth	180 mm
Package height	30 mm
Package weight	80 g
Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
PCI version	2.0
Technical data
Connections external	2x RJ45 female
Article height	2.00cm
Length packaging	0.180m
Article width	12.00cm
Type	Network card
Interface	Network
Slot	PCIe
Net weight	0.080kg
Packaging volume	0.0007m³
Chipset	Intel 82576
Connections internal	None
Height packaging	0.030m
Width packaging	0.125m
Article length	14.00cm
Transmission rate	1Gb/s
Weight	0.161kg
Low Profile
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	140 mm
Depth	1.61 mm
Height	120 mm
Weight	2 kg

---
