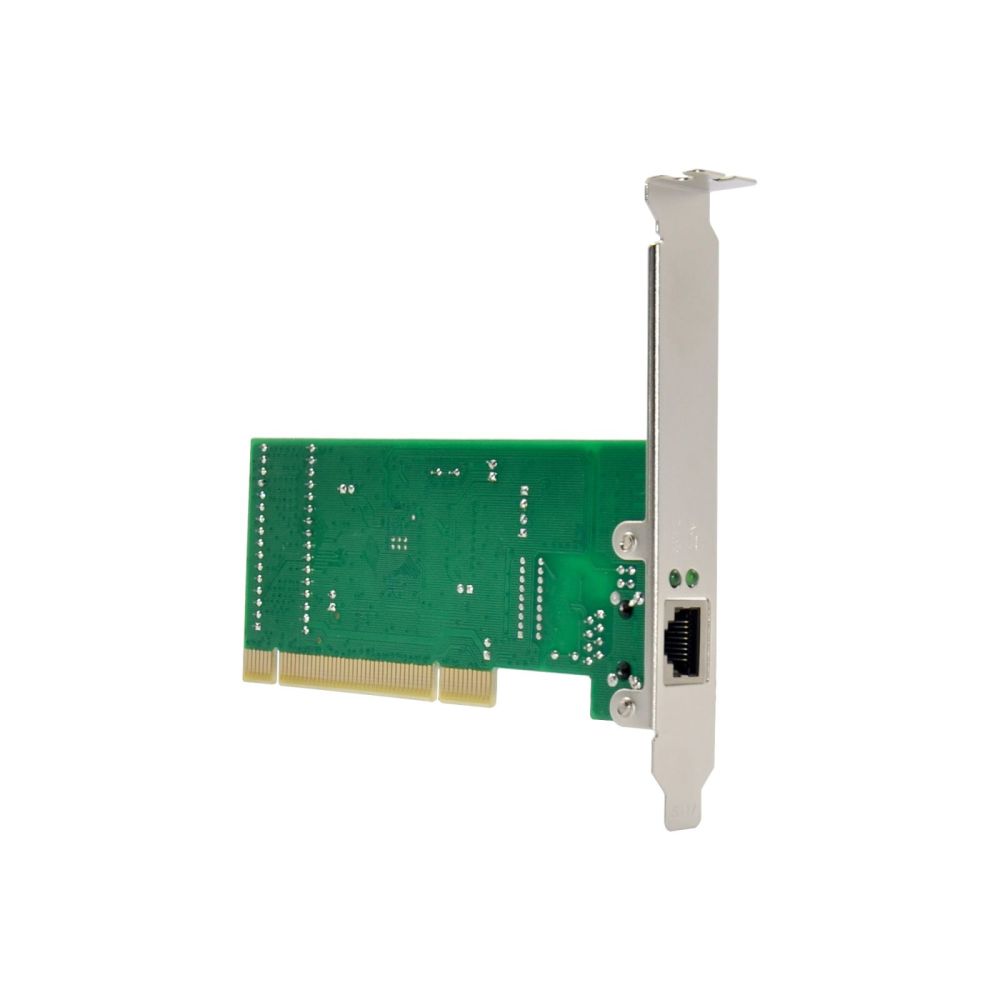

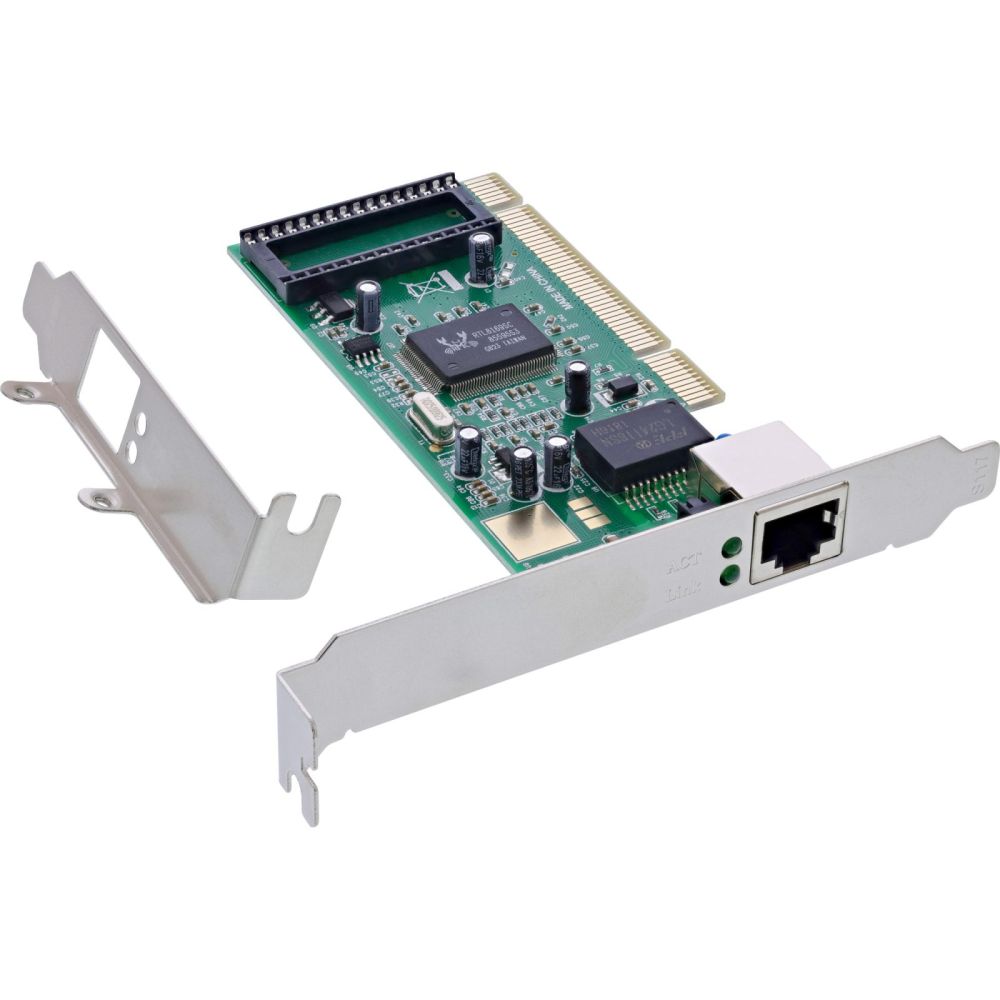

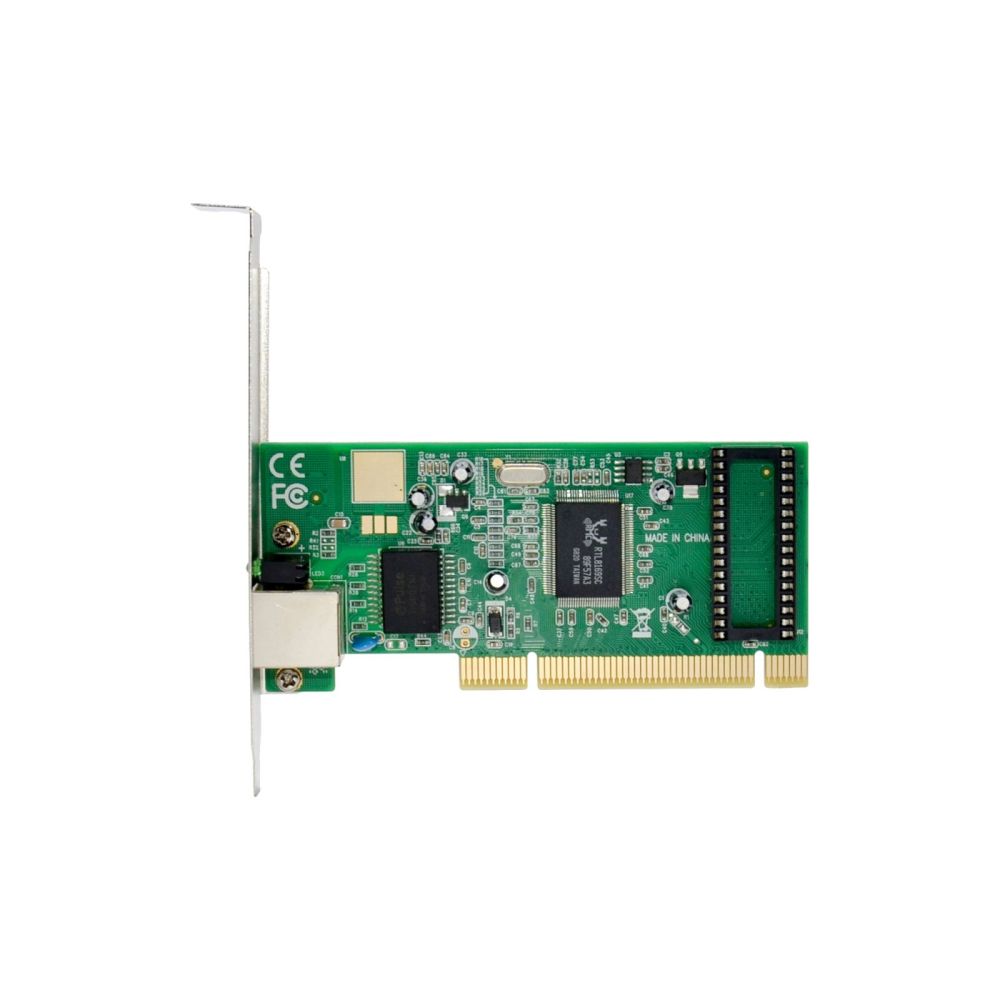

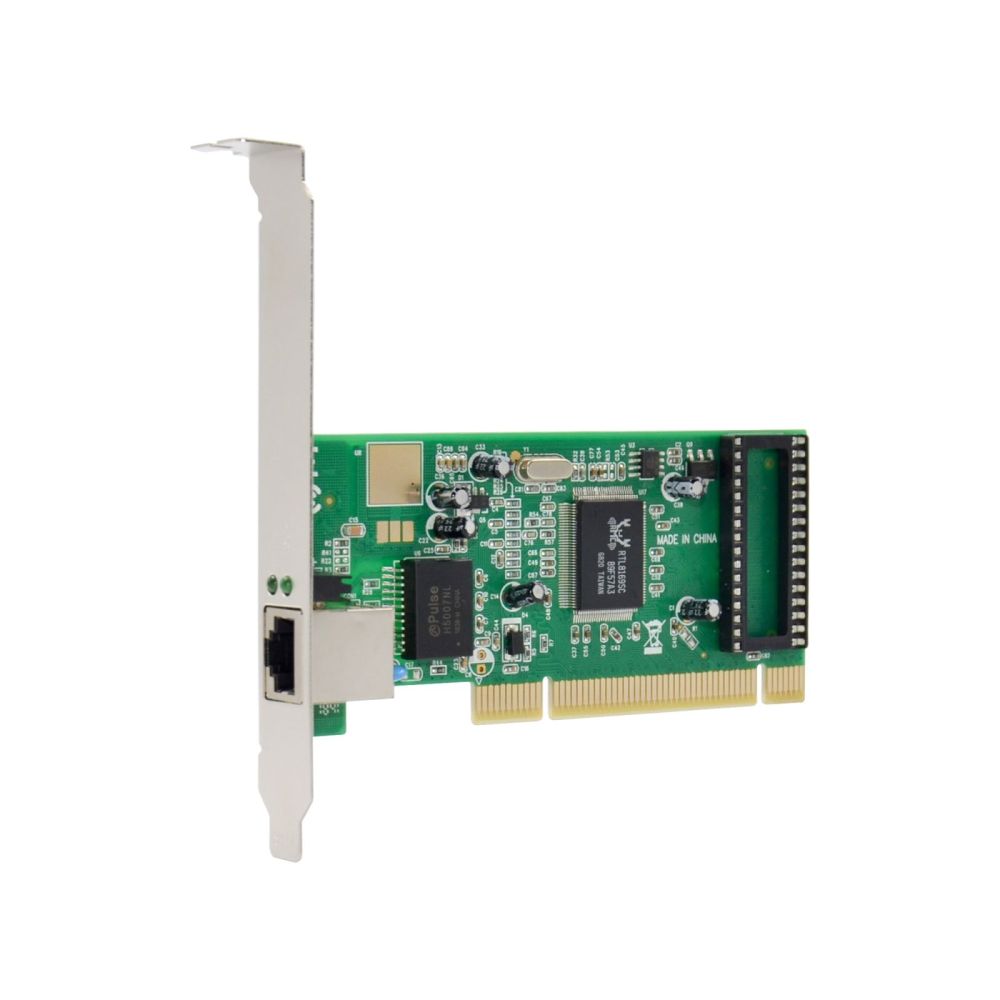

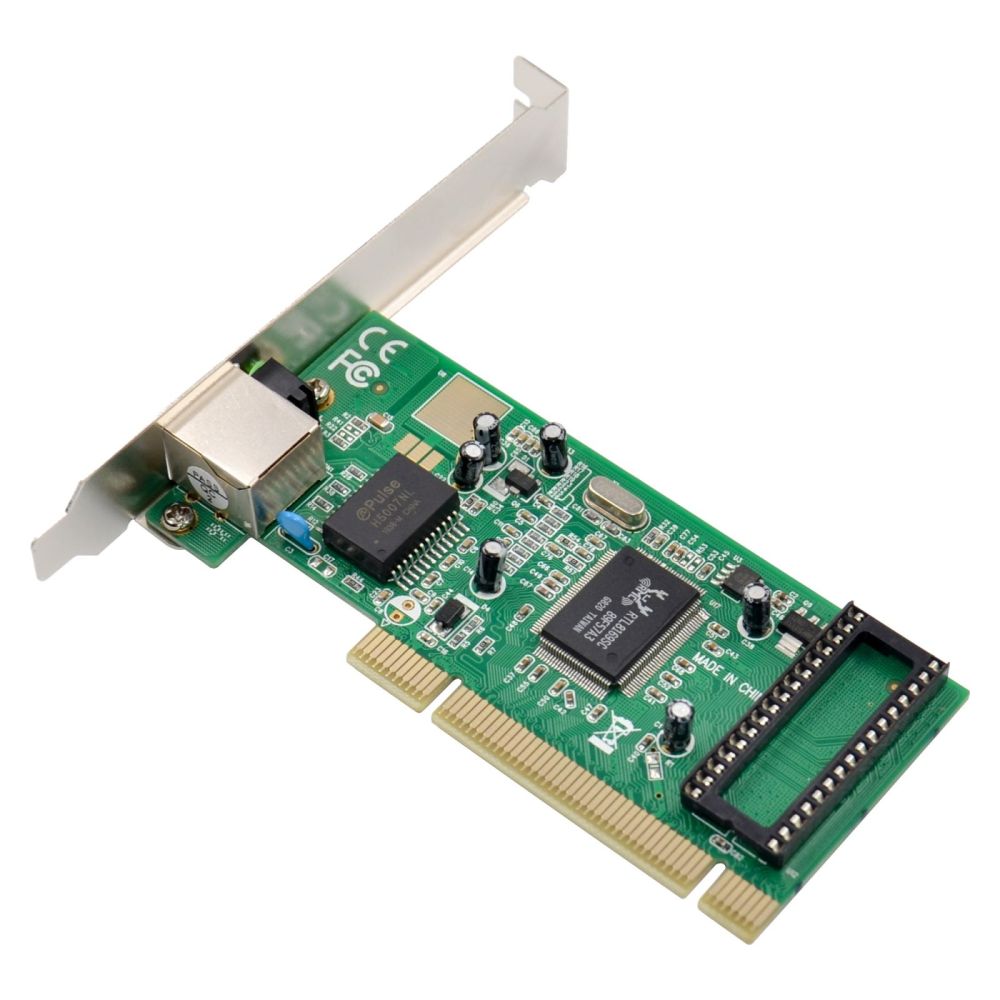

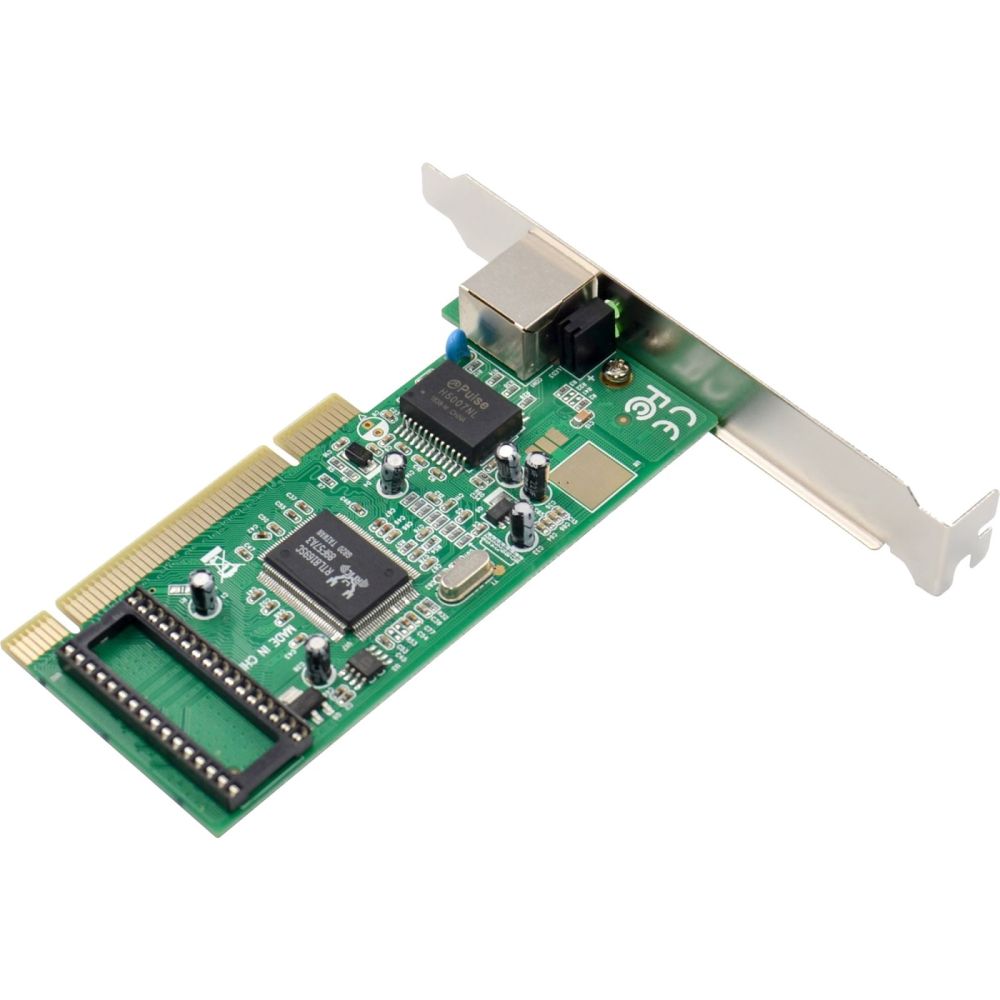

InLine® Gigabit network card, 1Gb/s, PCI content_copy

Gigabit network card for 10/100/1000 Mb/s connections
Compatible with common CAT.5e or higher cabling
PCI interface for easy upgrade of older systems
Supports VLAN, Wake on LAN & crossover detection
Compatible with Windows, Linux & macOS
With the InLine® Gigabit network card, you can upgrade your PC or server for fast network connections at low cost. The card offers transfer rates of up to 1Gb/s and is therefore ideal for streaming, online gaming or integration into home and office networks.
Thanks to the Realtek RTL8169SC chipset, the card runs stably and efficiently. It is fully backward compatible with 10/100BASE-TX networks and supports numerous functions such as full-duplex flow control, VLAN tagging and Wake on LAN (WoL).
The network card is equipped with a classic PCI interface and can therefore also be integrated into older systems. Support for Windows, Linux and macOS makes it particularly versatile.
Technical specifications:
Chip set: Realtek RTL8169SC
PCI interface: V2.2 (32/64-bit, 33/66 MHz)
Speed: 10 / 100 / 1000 Mb/s
Cabling: CAT.5e or higher
Standards: IEEE 802.3, 802.3u, 802.3ab
Functions: VLAN, WoL, crossover detection, auto-correction, ACPI, boot ROM (optional)
Compatible operating systems: Windows 98SE or newer, Server 2003 or newer, Linux 2.4 or newer, macOS X 10.4 or newer

Design
Country of origin	Taiwan
Internal
LED indicators
Features
Data transfer rate (max)	1 Gbit/s
Other features
Dimensions (WxDxH)	130 x 1.22 x 120 mm
Packaging data
Package width	140 mm
Package depth	150 mm
Package height	30 mm
Package weight	48 g
Package volume	700 cm³
Ports & interfaces
Host interface	PCI
Host interface gender	Male
Output interface	RJ-45
Expansion card standard	PCI 2.2
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 98SE, Windows Vista, Windows XP
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Server operating systems supported	Windows Server 2003, Windows Server 2007, Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Technical data
Article width	12.00cm
Transmission rate	1Gb/s
Connections external	1x RJ45 socket
Height packaging	0.030m
Interface	Network
Weight	0.122kg
Length packaging	0.150m
Chipset	Realtek RTL8169SC
Slot	PCI
Type	Network card
Width packaging	0.140m
Article height	2.00cm
Packaging volume	0.0007m³
Net weight	0.048kg
Connections internal	None
Article length	13.00cm
Low Profile
Weight & dimensions
Width	130 mm
Depth	1.22 mm
Height	120 mm
Weight	2 kg

---
