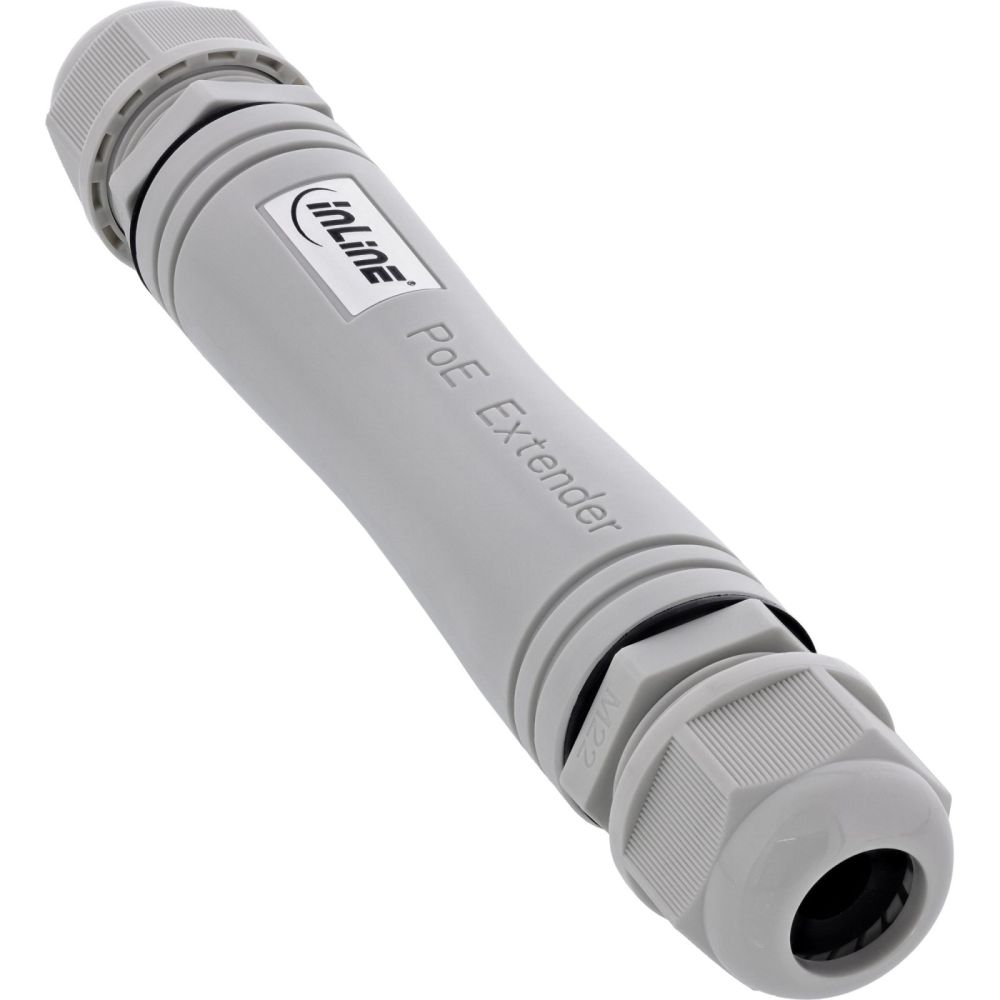

InLine® PoE+ extender, IP67 outdoor, 1 Gb/s, 30 W, cascadable content_copy

PoE Extender, Outdoor, IP67, 1 Gb/s, 30 W, daisy-chainableDaisy-chainable range of up to 800 m: Extends PoE and network connections over long distances by daisy-chaining multiple extenders, depending on the installation and cable type.

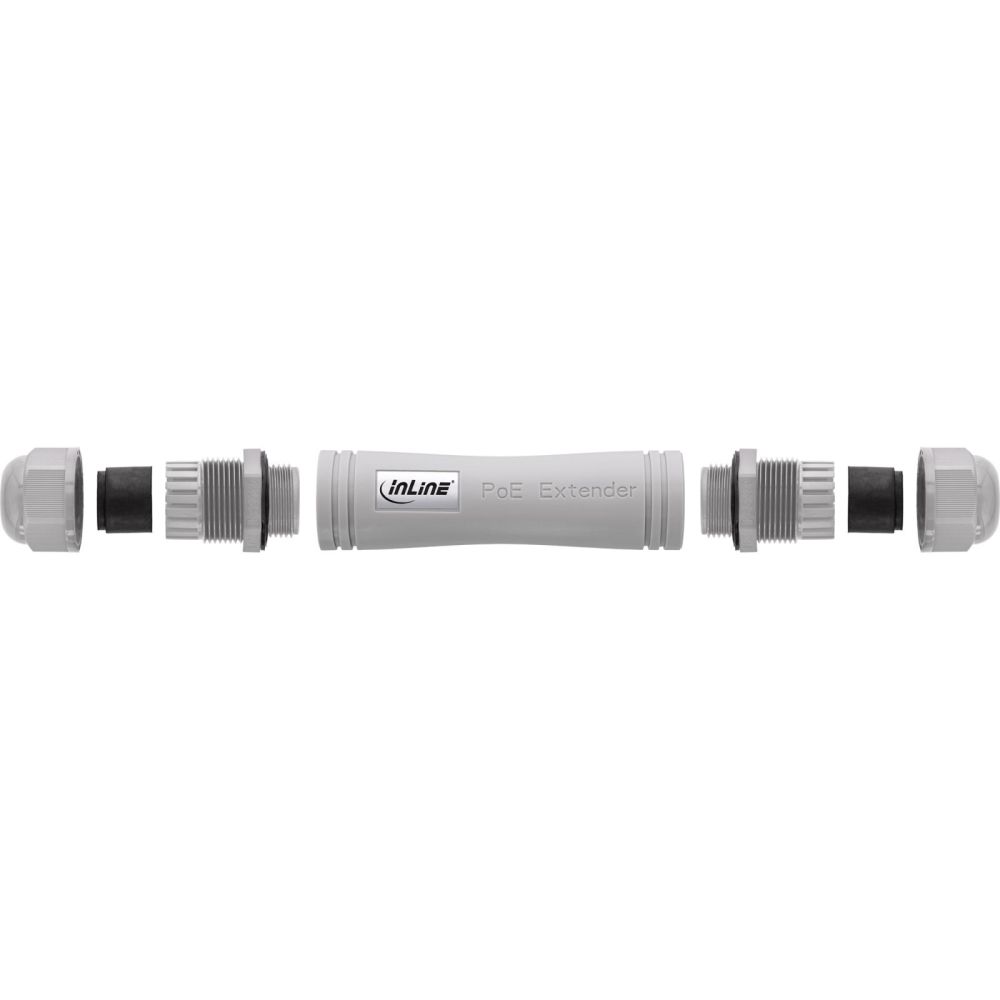

Robust IP67 housing: Dust- and waterproof for reliable outdoor use and in demanding environmental conditions.
PoE+ operation without a power supply unit: Power is supplied via IEEE 802.3af/at directly through the network cable for simple and flexible installation.
Gigabit network performance: Supports up to 1 Gb/s for stable data transmission in applications such as IP cameras or network technology.
Plug-and-play integration: Ready for immediate use without configuration; easy integration into existing network structures.
The PoE extender enables the reliable extension of network and PoE connections over long distances, both indoors and outdoors. Thanks to support for IEEE 802.3af/at, power is supplied directly via the network cable. A separate power supply unit is not required. This reduces installation effort and allows for flexible deployment, even in hard-to-reach locations.
The robust housing with IP67 protection is designed for use in demanding conditions. The extender operates reliably in changing weather conditions and is suitable for outdoor applications such as surveillance systems, building networking or industrial installations.
With data transfer rates of up to 1 Gb/s, the device supports performance-intensive applications. Multiple extenders can be connected in series. This allows network links of up to 800 m to be achieved, depending on the cable type and installation environment.
Installation is carried out via plug-and-play without the need for configuration. The extender is simply integrated into the existing network structure and is ready for use immediately.

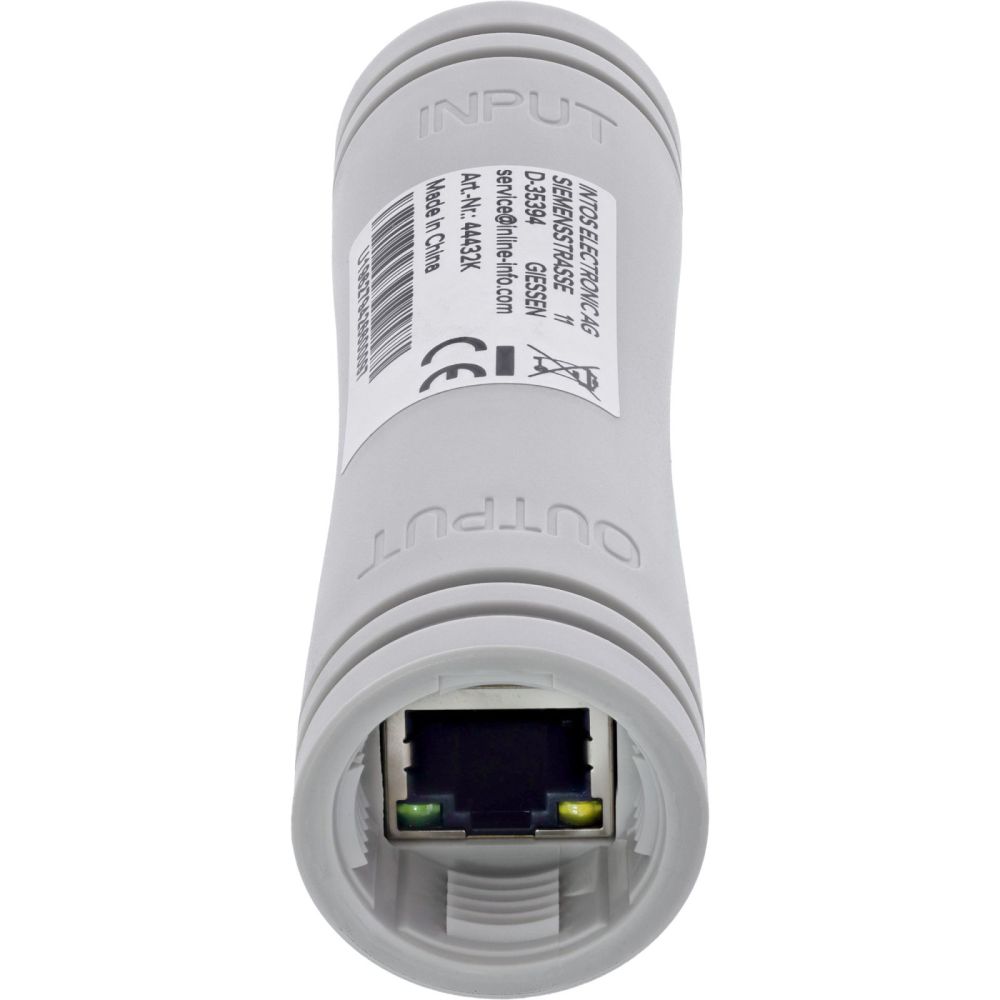

Interfaces: 2 x RJ45
Data rate: 10/100/1000 Mb/s
PoE standard: IEEE802.3af/at
PoE power: 30 W
Voltage: 48–57 V
Protection rating: IP67
Operating temperature: –10 °C to 50 °C
Humidity: 10% to 90%, non-condensing
Dimensions: 156.5 x 29 x 29 mm
Installation: Plug and Play, no power supply required
Special features: Can be cascaded, range up to 800 m depending on cable type and installation

Certificates
Certification	IP67
Features
Product colour	Grey
Maximum operating distance	800 m
Easy to install
Plug and Play
USB Power Delivery (USB PD)
Logistics data
Customs product code (TARIC)	8517620000
Harmonized System (HS) code	851762
Country of origin	China
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	100,1000,10 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE) type supported	PoE+
Networking standards	IEEE 802.3af, IEEE 802.3at
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Packaging content
Number of products included	1 pc(s)
Power cord included
Manual
Packaging data
Package width	35 mm
Package depth	175 mm
Package height	35 mm
Package weight	97 g
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
DC-in jack
Power
Output power	30 W
Input voltage	48–57
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	30 W
Technical data
Max. supported PoE standard	802.3at
Height packaging	0.035m
Article height	3.30cm
Width packaging	0.095m
Article length	16.50cm
Length packaging	0.175m
Net weight	0.080kg
Max. supported power	30W
Weight	0.097kg
Max. supported data transfer rate	1Gb/s
Type	Extender
Article width	3.30cm
Weight & dimensions
Width	33 mm
Depth	165 mm
Height	33 mm
Weight	80 g
Dimensions (WxDxH)	33 x 165 x 33 mm

---
