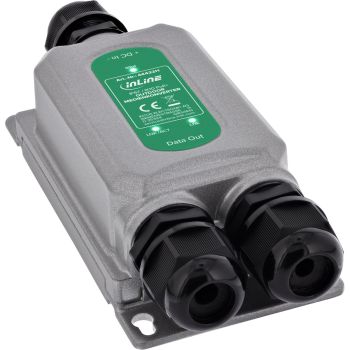

InLine® PoE+ media converter outdoor IP67 IK10 1 Gb/s RJ45 SFP content_copy

PoE+ media converter for outdoor use with IP67 and IK10Robust for outdoor use: IP67 protection rating and IK10 impact resistance allow for use in dusty, wet and physically demanding environments
PoE+ with up to 30 W: Powers compatible devices via the network cable and reduces the need for additional cabling
Gigabit media converter: Connects RJ45 copper networks to SFP fibre-optic networks, enabling flexible network structures
Reliable data transmission: 4 Gb/s bandwidth and store-and-forward technology ensure stable network performance
For demanding environments: Integrated ESD and surge protection supports safe operation in industrial settings
The PoE+ media converter enables a reliable connection between copper and fibre-optic networks in outdoor environments. With an RJ45 interface and an SFP port, the device integrates flexibly into existing network structures.
Gigabit support ensures stable, high-performance data transmission. At the same time, PoE-enabled devices can be powered directly via the network cable with up to 30 W. This significantly reduces installation effort, particularly in hard-to-reach locations.
The housing is designed for demanding conditions. With an IP67 rating, the media converter is protected against dust and water. The IK10 rating offers additional protection against mechanical impact. This makes the device suitable for industrial applications, outdoor installations and infrastructure networks.
Additional protective mechanisms, such as ESD and surge protection, ensure reliable operation even under fluctuating environmental conditions.
Ports: 1 x RJ45 10/100/1000 Mb/s, 1 x SFP 1000 Mb/s
PoE standard: IEEE802.3af/at
PoE power: max. 30 W
Bandwidth: 4 Gb/s
Forwarding rate: 2.98 Mpps
MAC address table: 2 K
Jumbo frames: 9216 bytes
Transmission method: Store-and-forward
Input voltage: DC 24–56 V
ESD protection: 6 kV contact / 8 kV air
Surge protection: ±6 kV common mode / ±4 kV differential mode
Operating temperature: -20 °C to 60 °C
Humidity: 10–90 %
Protection rating: IP67
Impact resistance: IK10
Dimensions: 150 x 73 x 44 mm

Features
Product colour	Grey
Power protection features	Surge protection, Static electricity
Compliance industry standards	IP67, IK10
Internal
Plug and Play
Logistics data
Country of origin	China
Customs product code (TARIC)	8517620000
Harmonized System (HS) code	851762
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Other features
Dimensions (WxDxH)	71 x 180 x 44 mm
Packaging content
Manual
Packaging data
Package width	188 mm
Package depth	240 mm
Package height	86 mm
Package volume	3900 cm³
Package weight	718 g
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber optic connector	SFP, RJ-45
Power over Ethernet (PoE) ports quantity	1
DC-in jack
Power
Input voltage	24–56
Power consumption (max)	30 W
Total Power over Ethernet (PoE) budget	30 W
Power over Ethernet (PoE)
Technical data
Length packaging	0.240m
Height packaging	0.086m
Article width	7.10cm
Width packaging	0.188m
Article height	4.40cm
Net weight	0.488kg
Type	Media converter
Packaging volume	0.0039m³
Max. supported power	30W
Weight	0.718kg
Max. supported PoE standard	802.3at
Max. supported data transfer rate	1Gb/s
Article length	18.00cm
Weight & dimensions
Width	71 mm
Depth	180 mm
Height	44 mm
Weight	488 g

---
