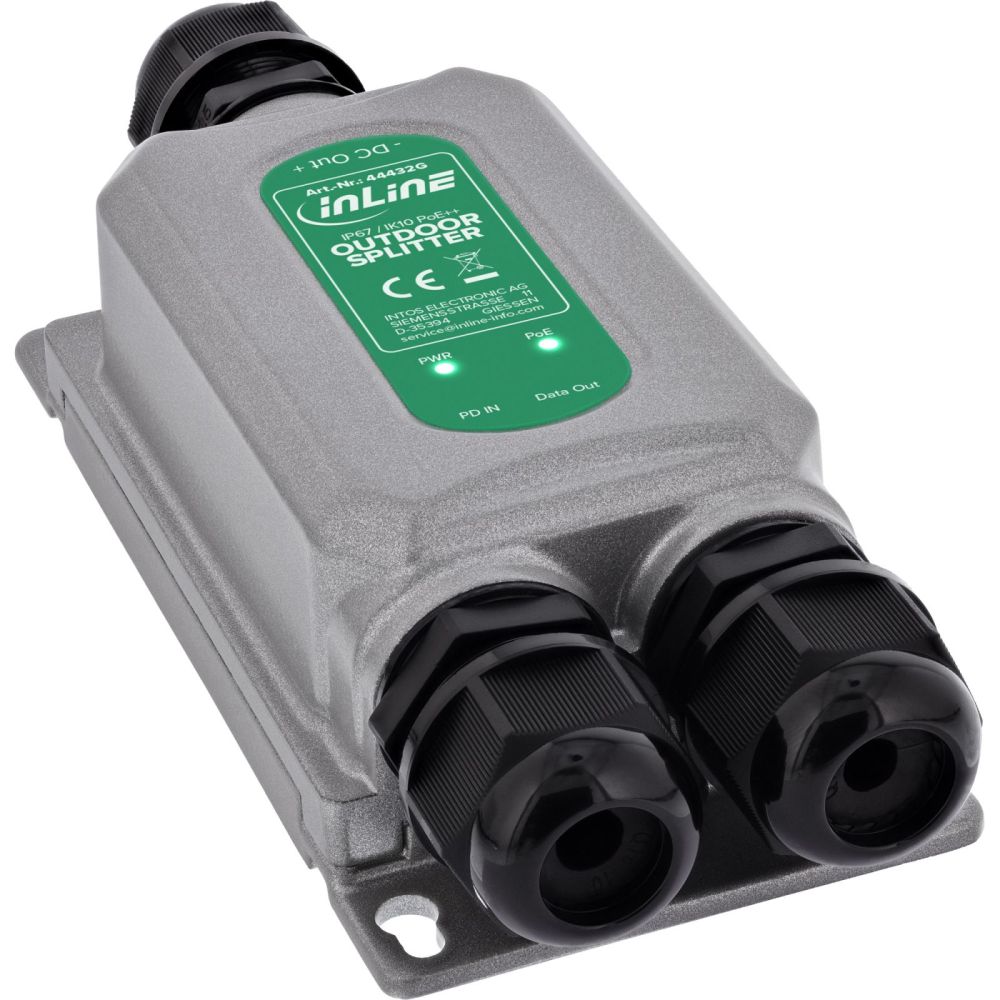

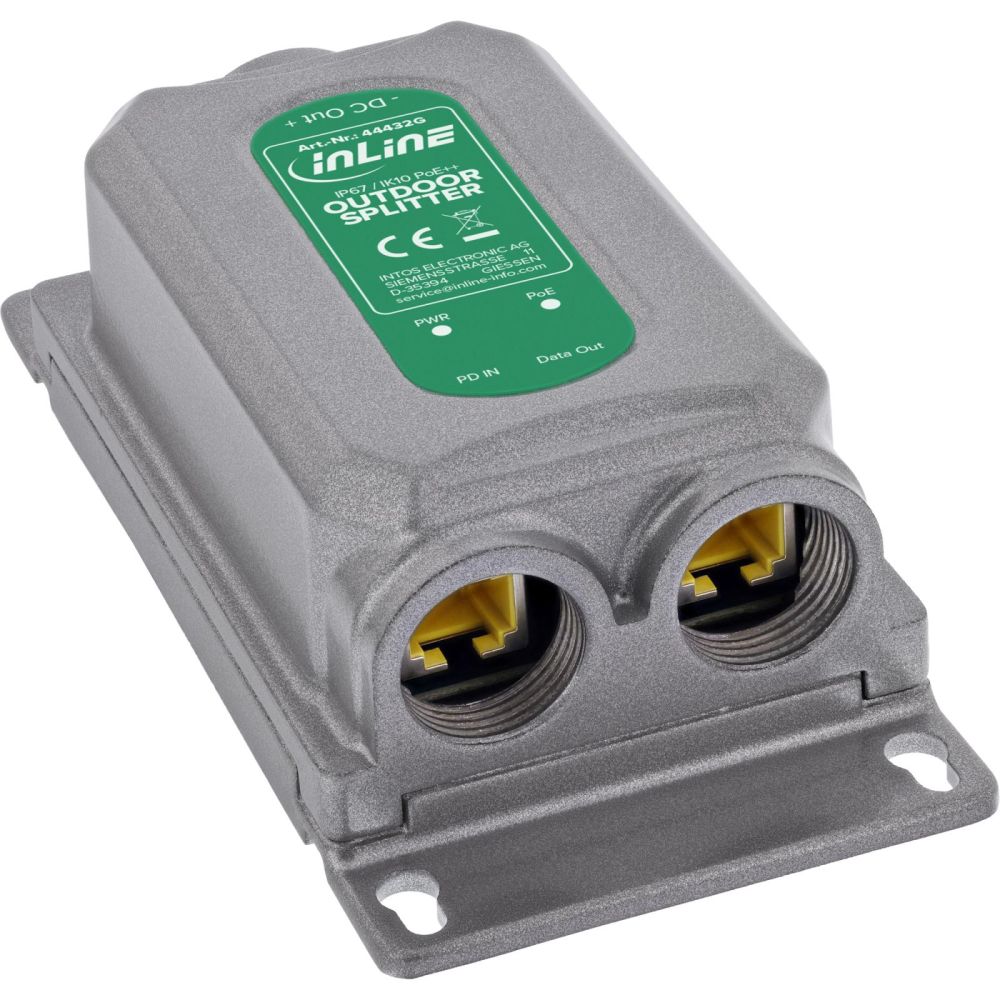

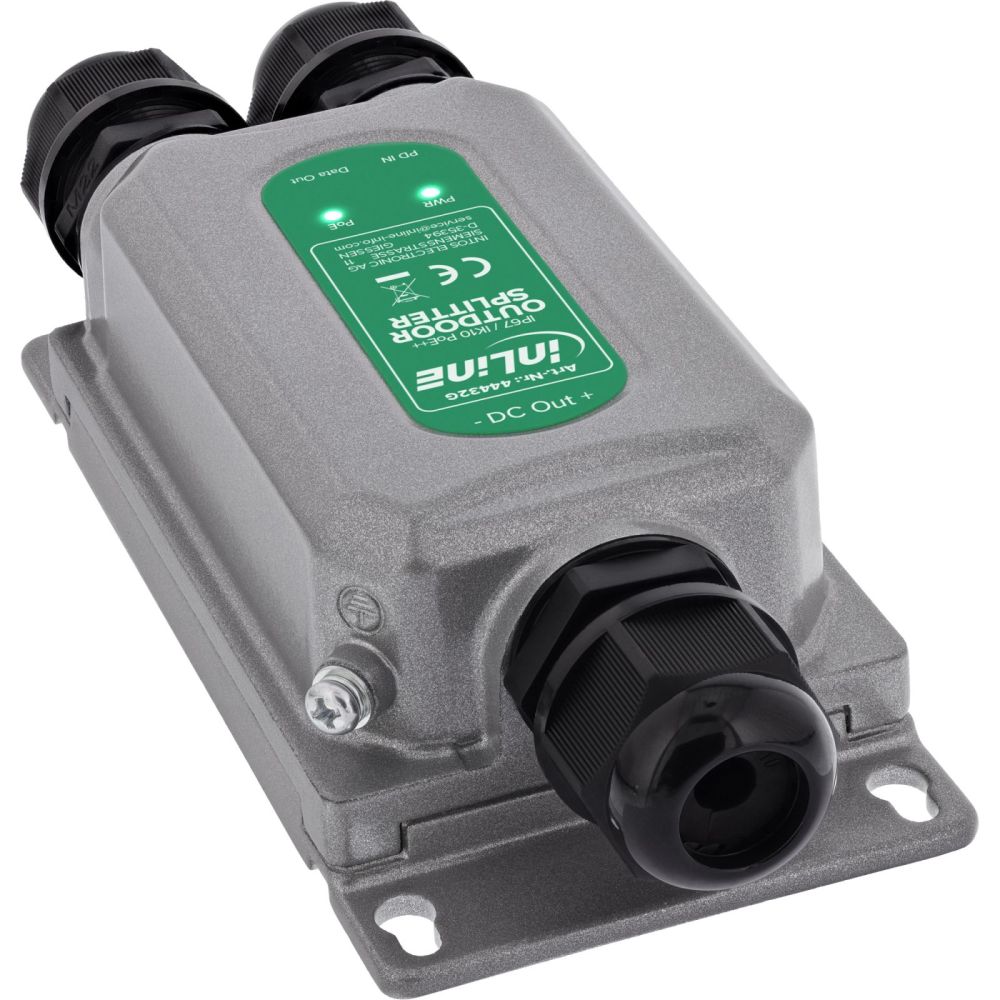

InLine® PoE++ splitter outdoor IP67 IK10 60 W 12 V 1 Gb/s content_copy

12 V PoE splitter for outdoor use with IP67 and IK10 protectionFlexible power supply without the need for an on-site power supply unit: Converts PoE into 12 V DC and data, ideal for devices without PoE support where existing network infrastructure is in place
Designed for extreme outdoor conditions: IP67 protection against dust and water, as well as IK10 impact resistance, for reliable outdoor use
High power output for demanding devices: Delivers up to 60 W of output power at 12 V / 5 A for high-power applications
Stable Gigabit data transmission: Supports 10/100/1000 Mb/s for fast and reliable network connections
Wide compatibility with PoE standards: Supports IEEE 802.3af, 802.3at and 802.3bt for versatile applications
The PoE++ splitter enables the reliable separation of data and power directly at the point of use. PoE is supplied via a single network cable and split into a stable 12 V DC power supply and a separate data connection. This simplifies installations and significantly reduces the amount of cabling required.
With an output power of up to 60 W at 12 V / 5 A, the device is also suitable for power-intensive applications. At the same time, the network connection operates at speeds of up to 1 Gb/s, ensuring there are no restrictions on data performance.
The robust housing with IP67 protection ensures reliable operation in dusty, damp and wet conditions. The IK10 impact resistance makes the splitter particularly resilient to mechanical impacts and suitable for demanding environments.
With support for IEEE 802.3af, 802.3at and 802.3bt, the splitter is versatile and can be easily integrated into existing PoE infrastructures.
PoE input: IEEE 802.3af, 802.3at, 802.3bt
PoE input power: max. 95 W
Output power: max. 60 W
Output voltage: 12 V DC
Output current: 5 A
Data rate: 10/100/1000 Mb/s

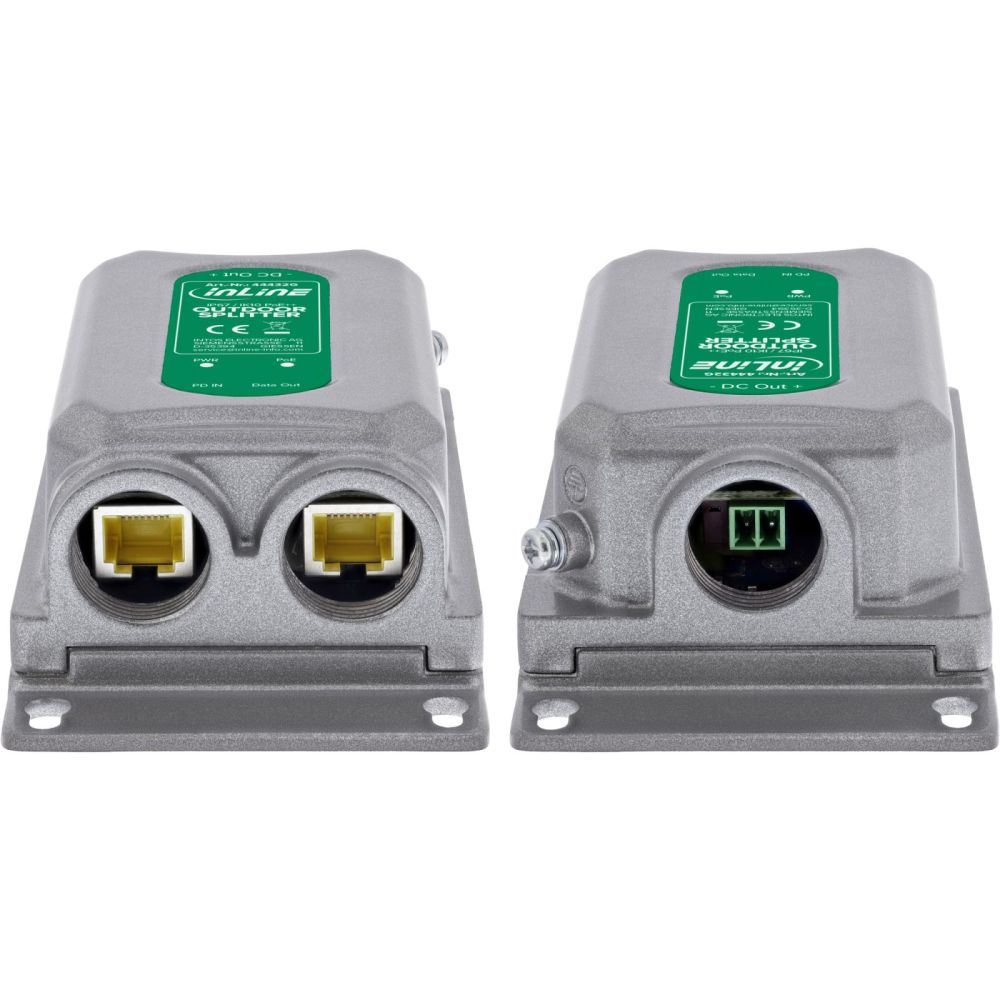

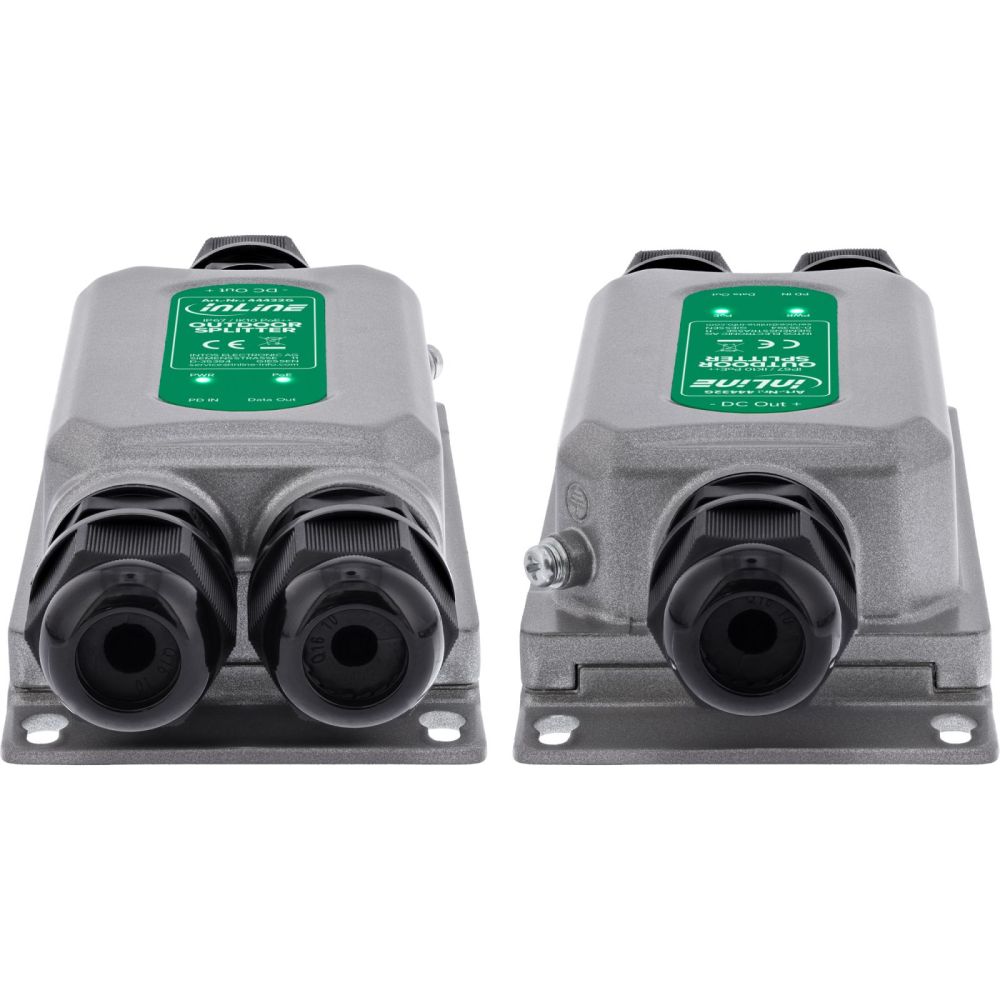

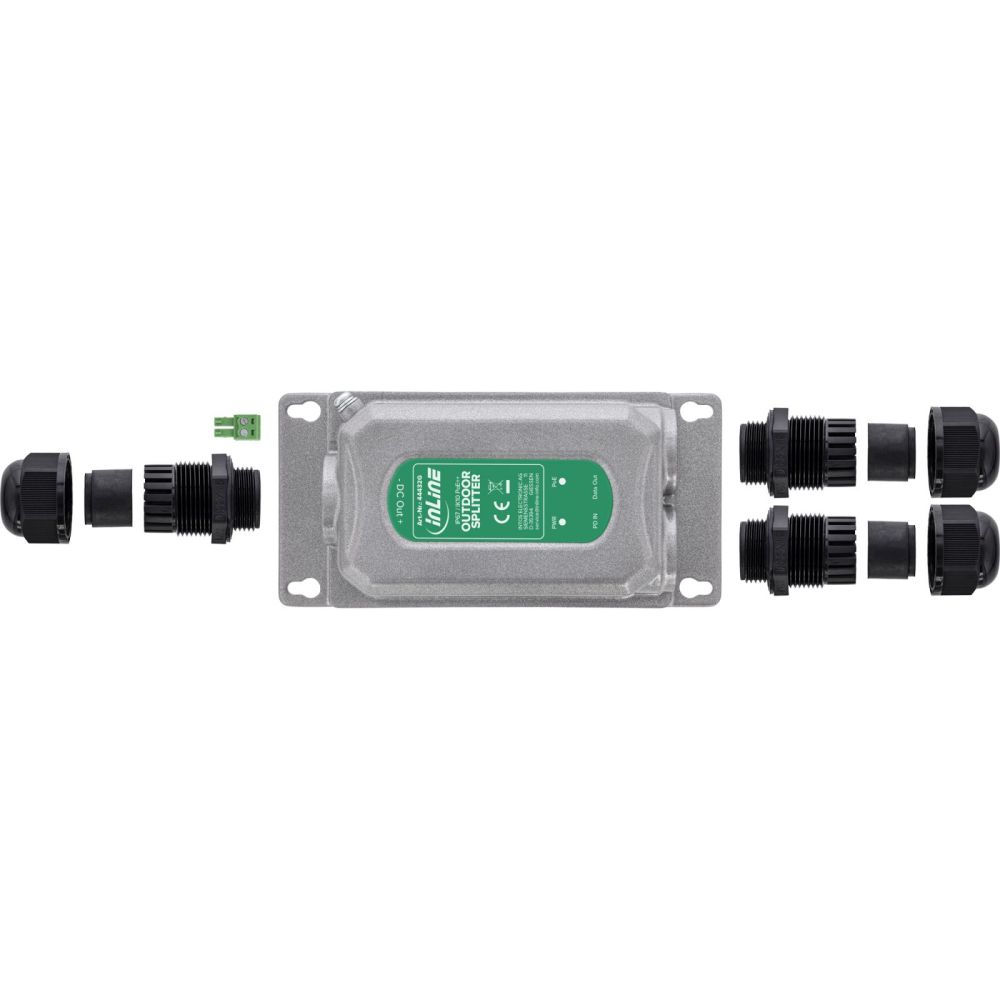

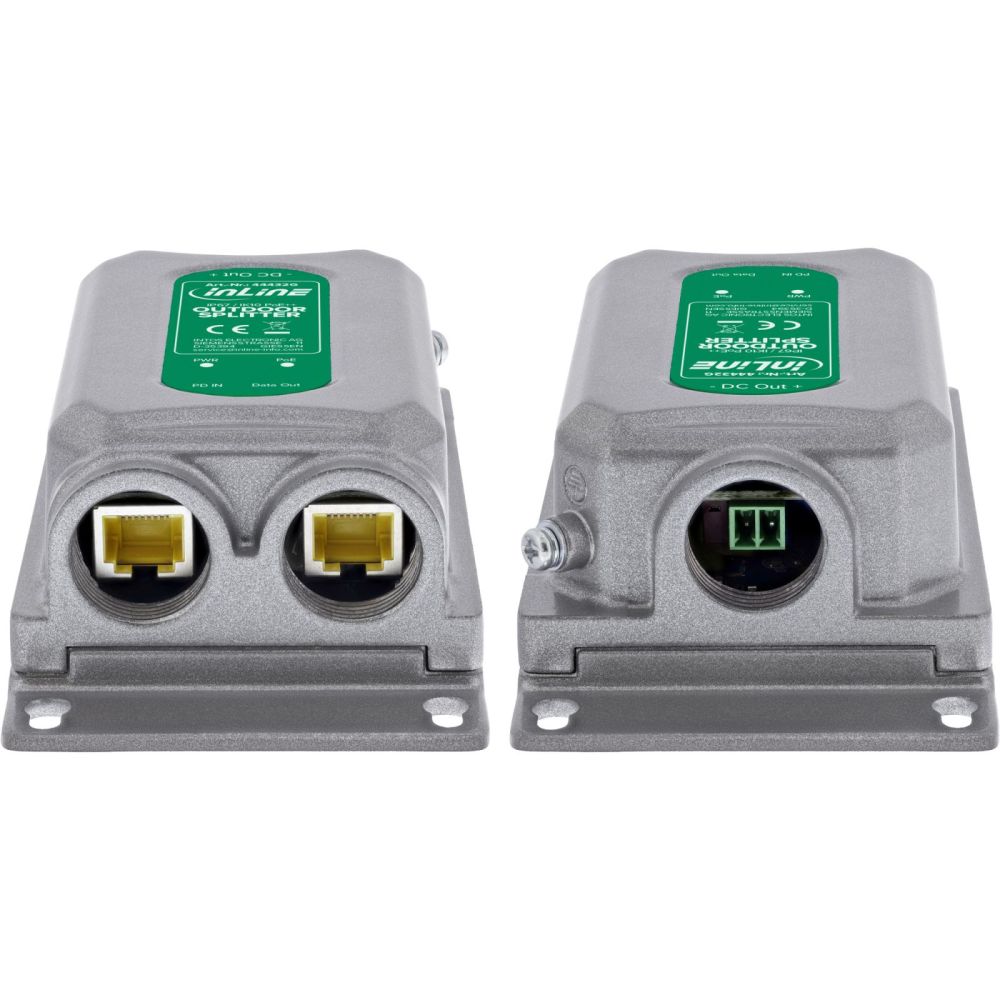

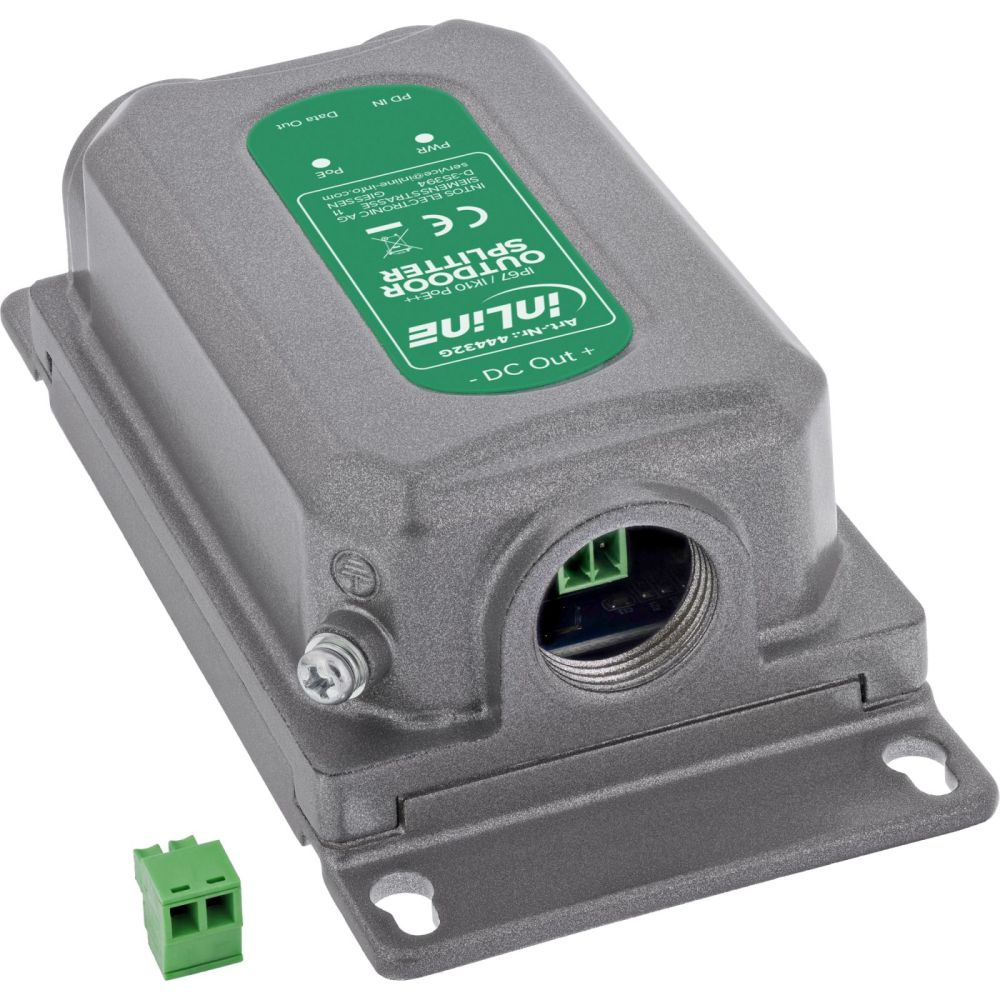

Connections: 1 x RJ45 PoE input, 1 x RJ45 data output, 1 x DC output, 2-pin
Protection rating: IP67
Impact resistance: IK10
Application: Suitable for outdoor use
Operating temperature: -40 °C to 75 °C

Certificates
Certification	IP67, IK10
Waste Electrical and Electronic Equipment (WEEE) compliance
Features
Product colour	Grey

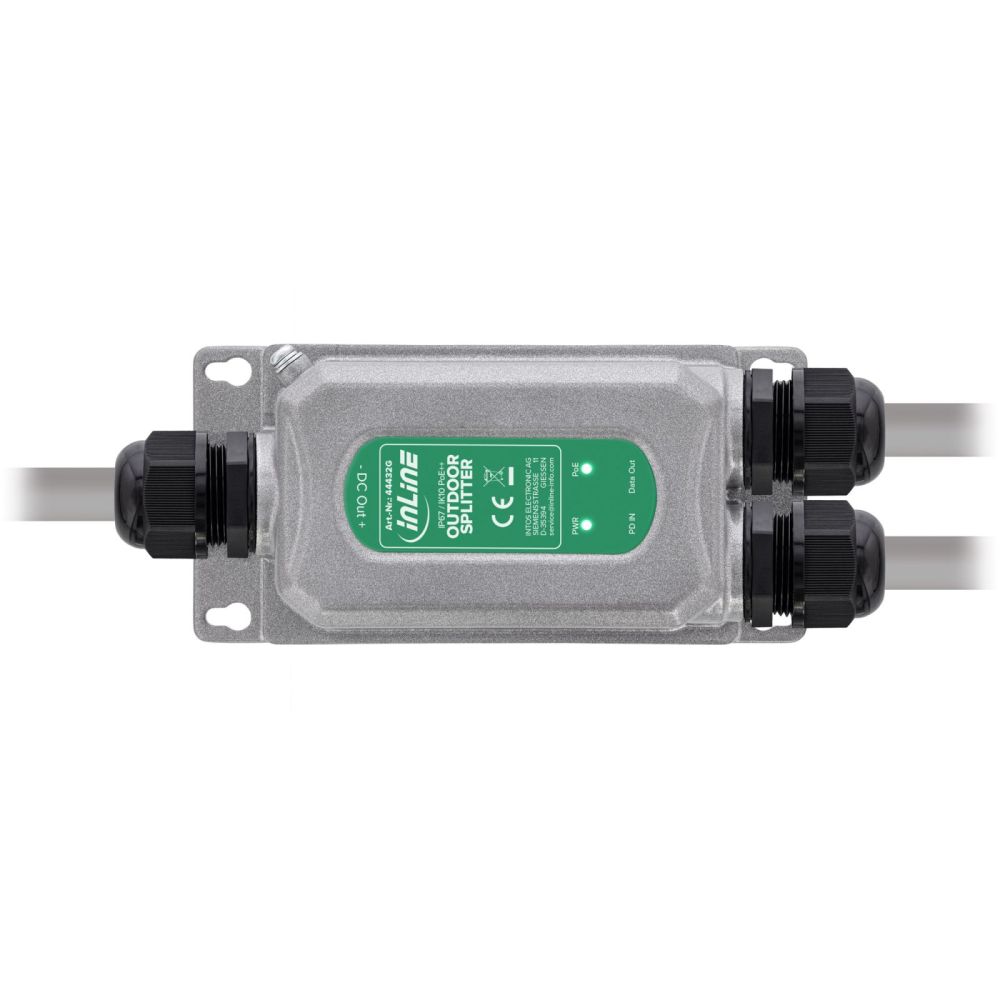

Wall mountable
Easy to install
Rack mounting
Plug and Play
USB Power Delivery (USB PD)
Logistics data
Customs product code (TARIC)	8517620000
Harmonized System (HS) code	851762
Country of origin	China
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Power over Ethernet (PoE) modes	4PPoE
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)	-40 - 75 °C

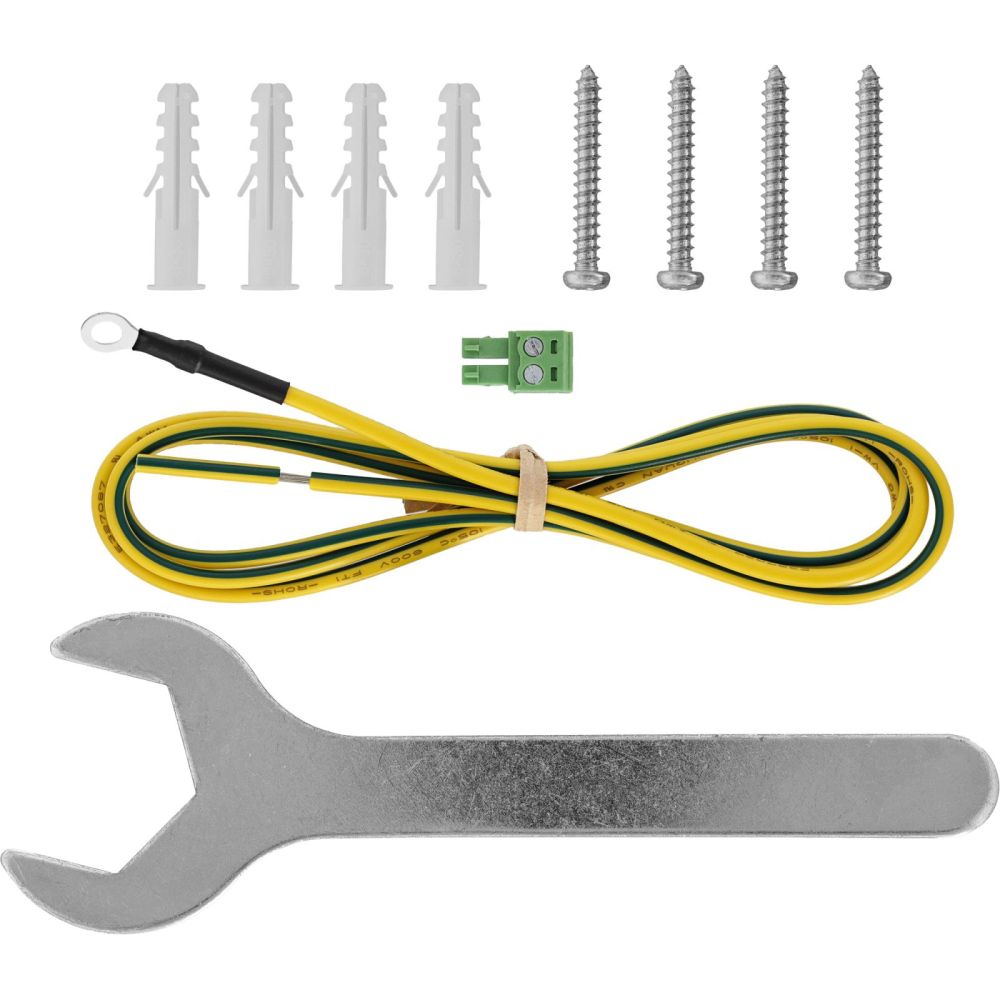

Packaging content
Number of products included	1 pc(s)
Manual
Packaging data
Package width	188 mm
Package depth	240 mm
Package height	86 mm
Package weight	779 g
Package volume	3900 cm³
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	2
DC-in jack
Power
Output power	60 W
Output current	5 A
Power over Ethernet (PoE) power per port	60 W
Total Power over Ethernet (PoE) budget	60 W
Technical data
Packaging volume	0.0039m³
Article width	7.10cm
Max. supported data transfer rate	1Gb/s
Type	Splitter
Max. supported PoE standard	802.3bt
Weight	0.779kg
Height packaging	0.086m
Net weight	0.550kg
Width packaging	0.188m
Article length	18.00cm
Length packaging	0.240m
Article height	4.40cm
Max. supported power	60W
Weight & dimensions
Width	71 mm
Depth	180 mm
Height	44 mm
Weight	550 g
Dimensions (WxDxH)	71 x 180 x 44 mm

---
