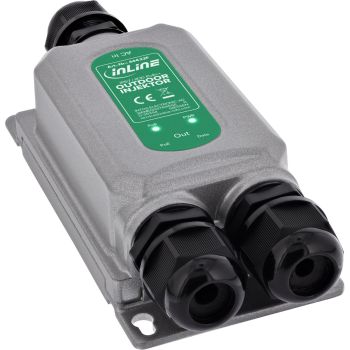

InLine® 60W PoE++ injector for outdoor use, 2.5Gb/s, IP67 dust content_copy

PoE injector for outdoor networks with 60 W, Gigabit, IP67 and IK10Power and data via a single cable: The PoE injector supplies power to compatible devices via the network cable. This eliminates the need for separate power cables and simplifies outdoor installation.
Robust for outdoor use: IP67 and IK10 ratings protect the metal housing against dust, water and mechanical stress. This means the injector can also be used in demanding environments.
60 W for modern PoE devices: IEEE 802.3af, 802.3at and 802.3bt support compatible end devices with varying power requirements. This increases flexibility of use on site.
Gigabit for stable connections: 2x RJ45 ports with 10/100/1000 Mb/s auto-negotiation reliably connect the network and PoE. This is suitable for data-intensive outdoor applications.
Quick to install: Plug-and-play automatically detects compatible devices and requires no configuration. A range of up to 100 m allows for flexible placement of the device.
This PoE injector combines power supply and data transmission via a single network cable. This simplifies installation wherever a compatible PoE device is to be operated outdoors or in harsh environments. With Gigabit support and up to 60 W of PoE power, the model is suitable for modern network devices with higher power requirements.
With IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt, the PoE++ injector supports several common PoE standards. 2x RJ45 ports with 10/100/1000 Mb/s auto-negotiation ensure a Gigabit connection. A range of up to 100 m allows for flexible placement of the compatible end device. Plug-and-play further simplifies commissioning, as no configuration is required.
For demanding installations, the device features a metal housing with IP67 and IK10 ratings. This protects the injector against dust, water and mechanical stress. The AC input (100–240 V, 50/60 Hz) further expands its range of applications. This provides you with a robust solution for powering compatible devices in outdoor networks via PoE.
AC input current: 1.2 A max.
Output ripple: ≤200 mV
Storage temperature: -40 °C to 80 °C
Operating humidity: 10–90 % RH, non-condensing
Storage humidity: 5–90 % RH, non-condensing
Dimensions: 150 x 73 x 44 mm
LED indicators: PWR green, PoE Bt green, UPoE orange
Network cable: 10BASE-T Cat.3 or Cat.5, 100BASE-TX Cat.5 or Cat.5e, 1000BASE-T Cat.5e or Cat.6
Surge protection: Differential mode ±2 kV, common-mode ±4 kV
Electrostatic protection: Contact ±6 kV, air ±8 kV
MTBF: >50,000 hours

Certificates
Compliance certificates	RoHS, CE
Certification	IP67, IK10
Waste Electrical and Electronic Equipment (WEEE) compliance
Features
Product colour	Grey
Maximum operating distance	100 m
Wall mountable
Easy to install
Plug and Play
Surge protection
USB Power Delivery (USB PD)
LED indicators
Auto-sensing
Logistics data
Customs product code (TARIC)	8517620000
Harmonized System (HS) code	851762
Country of origin	China
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Power over Ethernet (PoE) modes	4PPoE
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Packaging content
Number of products included	1 pc(s)
Manual
Packaging data
Package width	188 mm
Package depth	240 mm
Package height	86 mm
Package weight	736 g
Package volume	3900 cm³
Package type	Box
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
DC-in jack
Power
Output power	60 W
AC adapter input voltage	100–240
AC adapter frequency	50/60 Hz
Input voltage	100–240
Input frequency	50/60 Hz
Power consumption (max)	60 W
Power over Ethernet (PoE) power per port	60 W
Total Power over Ethernet (PoE) budget	60 W
Technical data
Packaging volume	0.0039m³
Article width	7.10cm
Max. supported power	60W
Max. supported data transfer rate	2.5Gb/s
Length packaging	0.240m
Article height	4.40cm
Type	Injector
Height packaging	0.086m
Max. supported PoE standard	802.3bt
Width packaging	0.188m
Article length	18.00cm
Weight	0.736kg
Net weight	0.515kg
Weight & dimensions
Width	71 mm
Depth	180 mm
Height	44 mm
Weight	515 g
Dimensions (WxDxH)	71 x 180 x 44 mm

---
