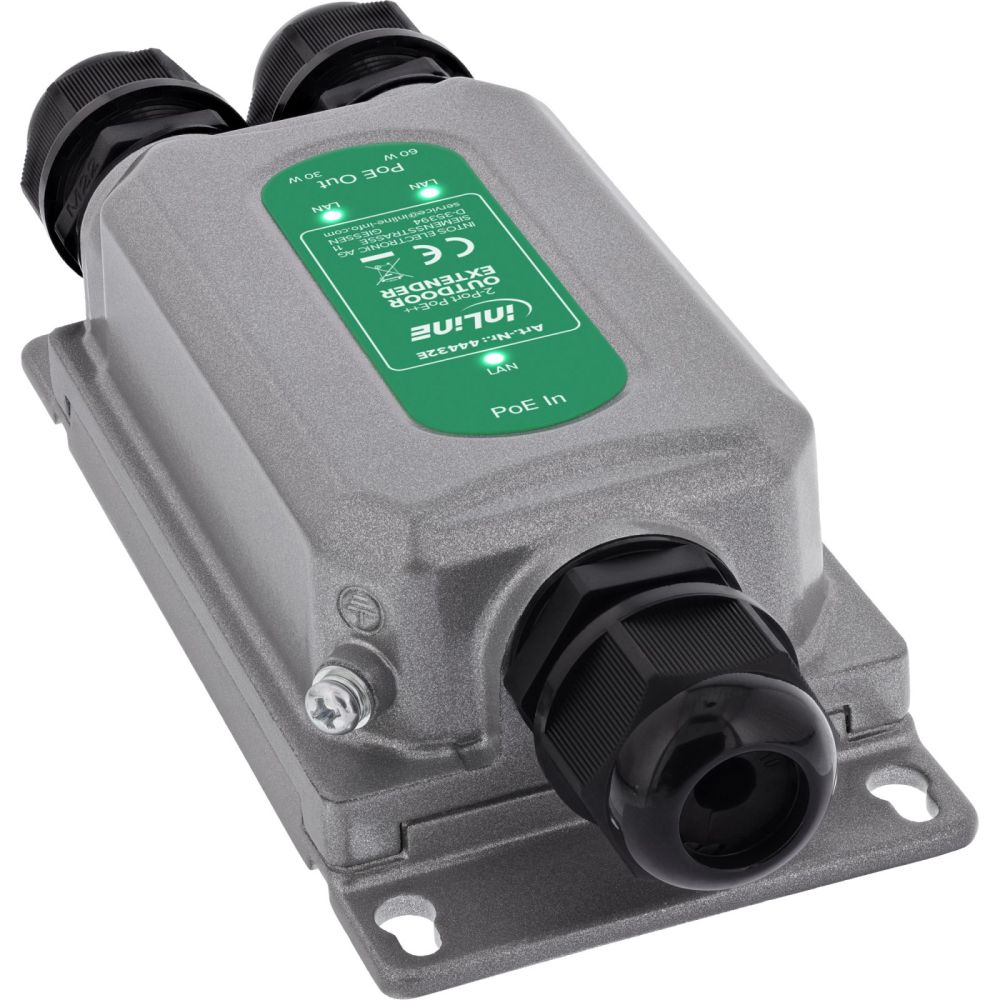

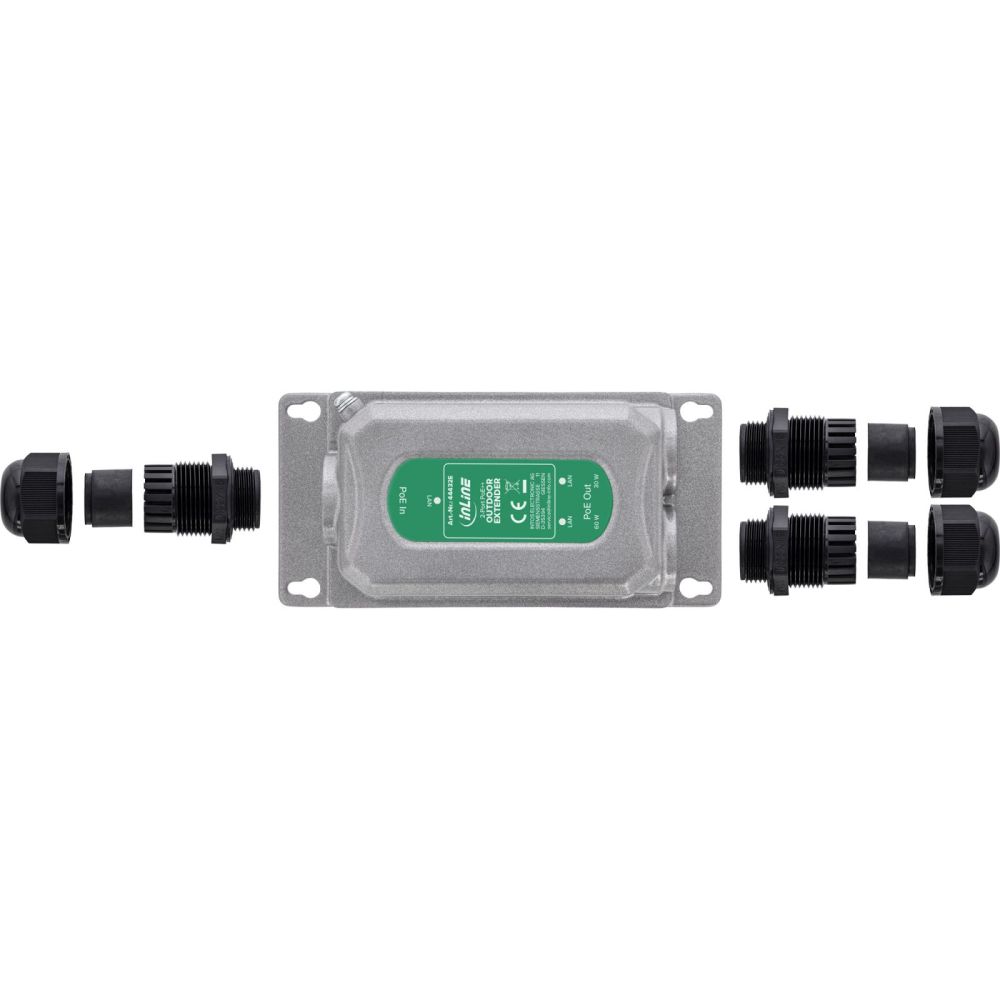

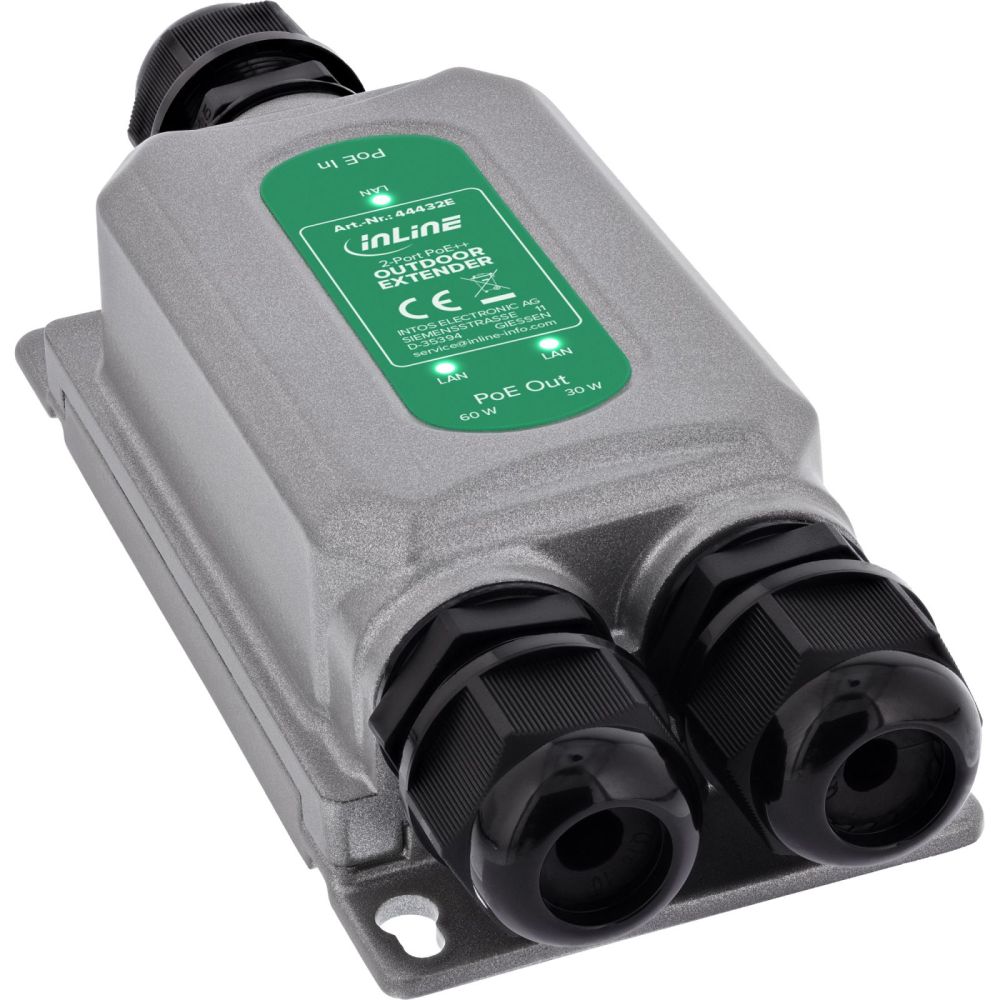

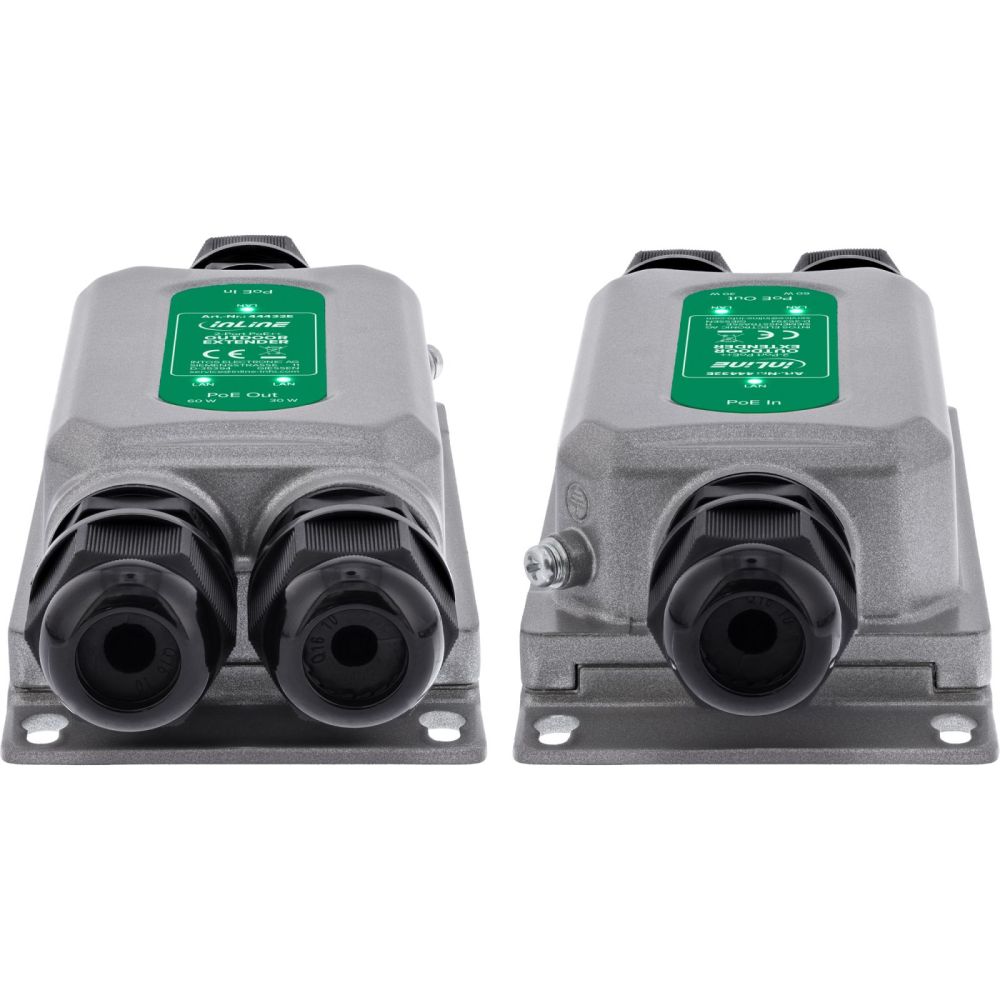

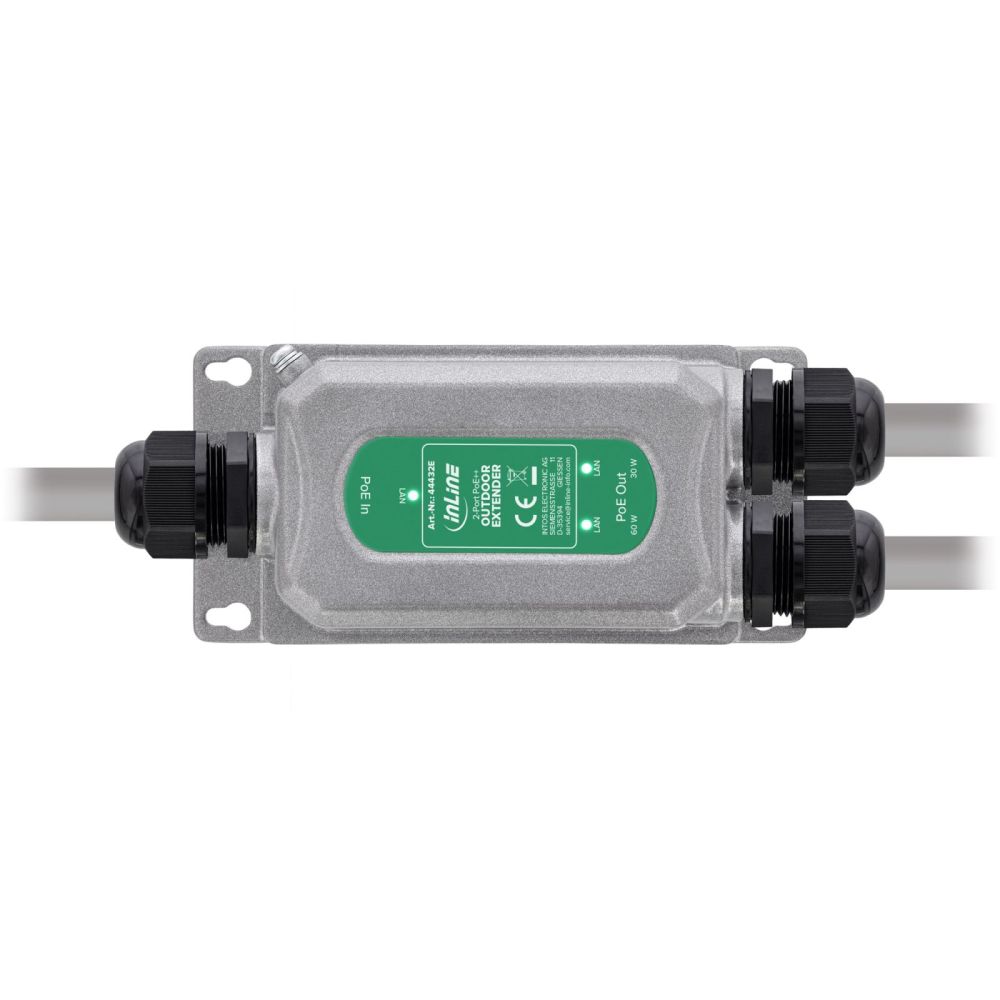

InLine® Gigabit PoE extender, 90 W, 2-port, IP67, IEEE 802.3bt content_copy

Gigabit PoE Extender with 2-port output for reliable network extensionExtends your network over long distances: The PoE Extender transmits data and power over a single cable for up to 100 m, enabling a reliable connection for remote devices
Powers two devices simultaneously: Two RJ45 outputs rated at 60 W and 30 W allow devices with different power requirements to be operated in parallel without the need for additional infrastructure
No power supply unit required: Power is supplied entirely via PoE, enabling installations even in hard-to-reach locations without a power socket
Reliable for indoor and outdoor use: The robust IP67-rated housing protects against water and dust and offers high resistance to external influences
Quick and effortless installation: Plug-and-play enables immediate commissioning without configuration and ensures easy integration into existing networks
The PoE extender is used to efficiently expand and flexibly adapt network structures. It is particularly suitable for installations where existing cable routes need to be utilised optimally and additional components should be avoided.
Thanks to its compact design, the device can be discreetly integrated alongside existing cabling. This facilitates a tidy installation and reduces the space required within the infrastructure.
Support for Gigabit Ethernet ensures consistent data quality even in more complex network structures. This keeps data transfers stable and reliable, even when multiple connections are active simultaneously.
The device helps to simplify installation processes and reduce the number of components required. This facilitates planning and ensures a well-organised implementation for new or expanded network installations.
Thanks to its design, the extender can be used flexibly in a variety of environments and supports a stable network infrastructure in the long term.

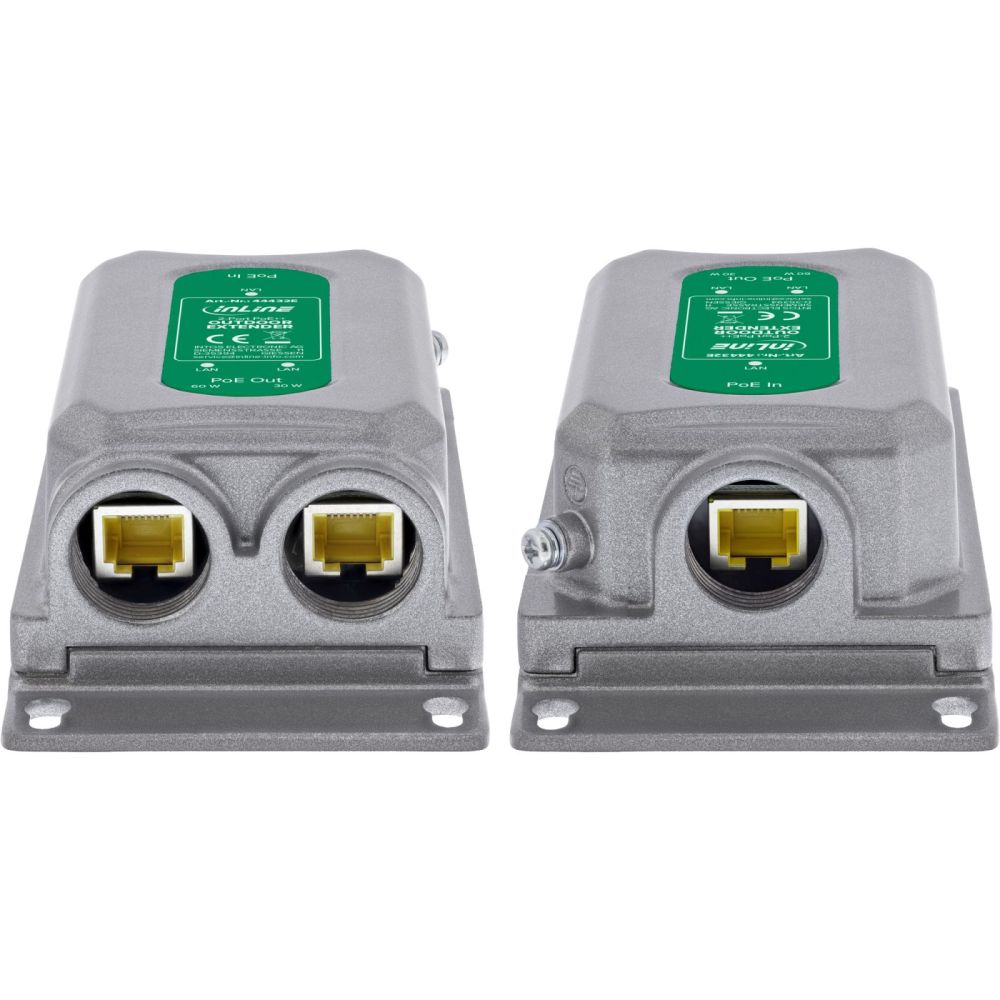

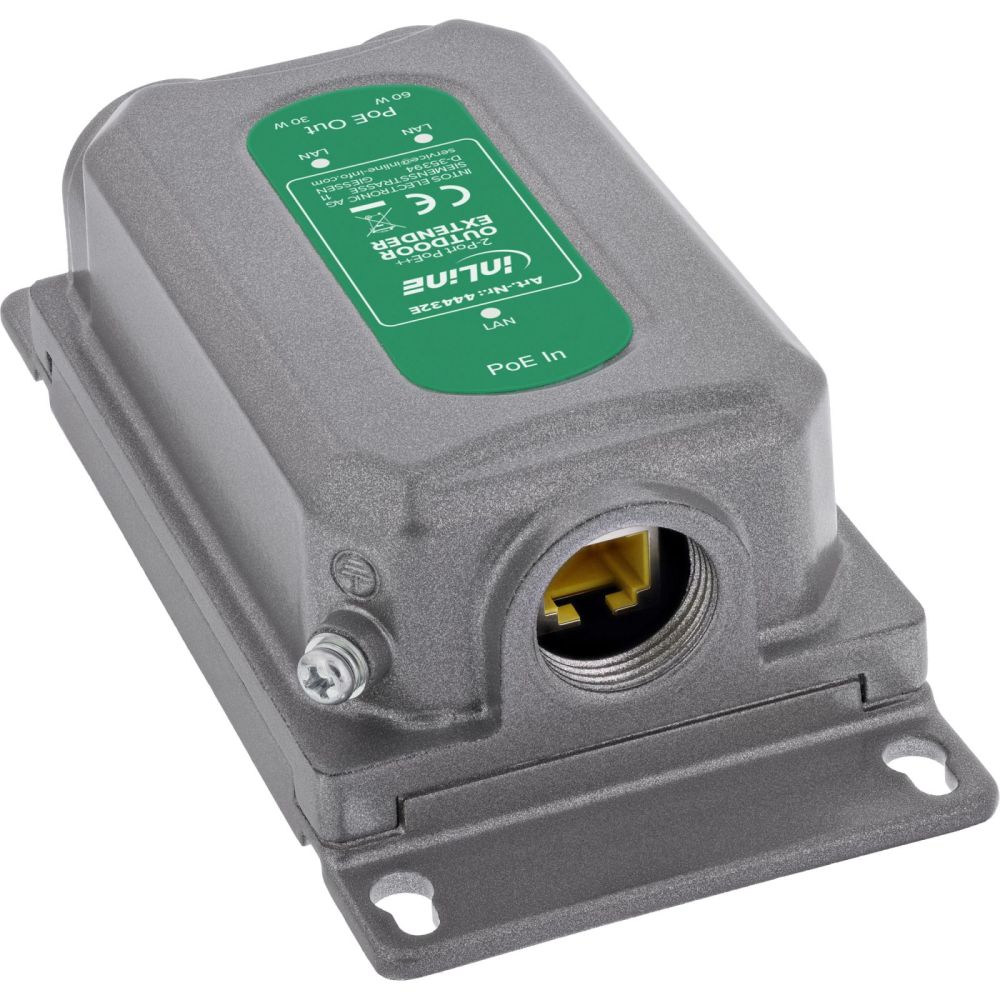

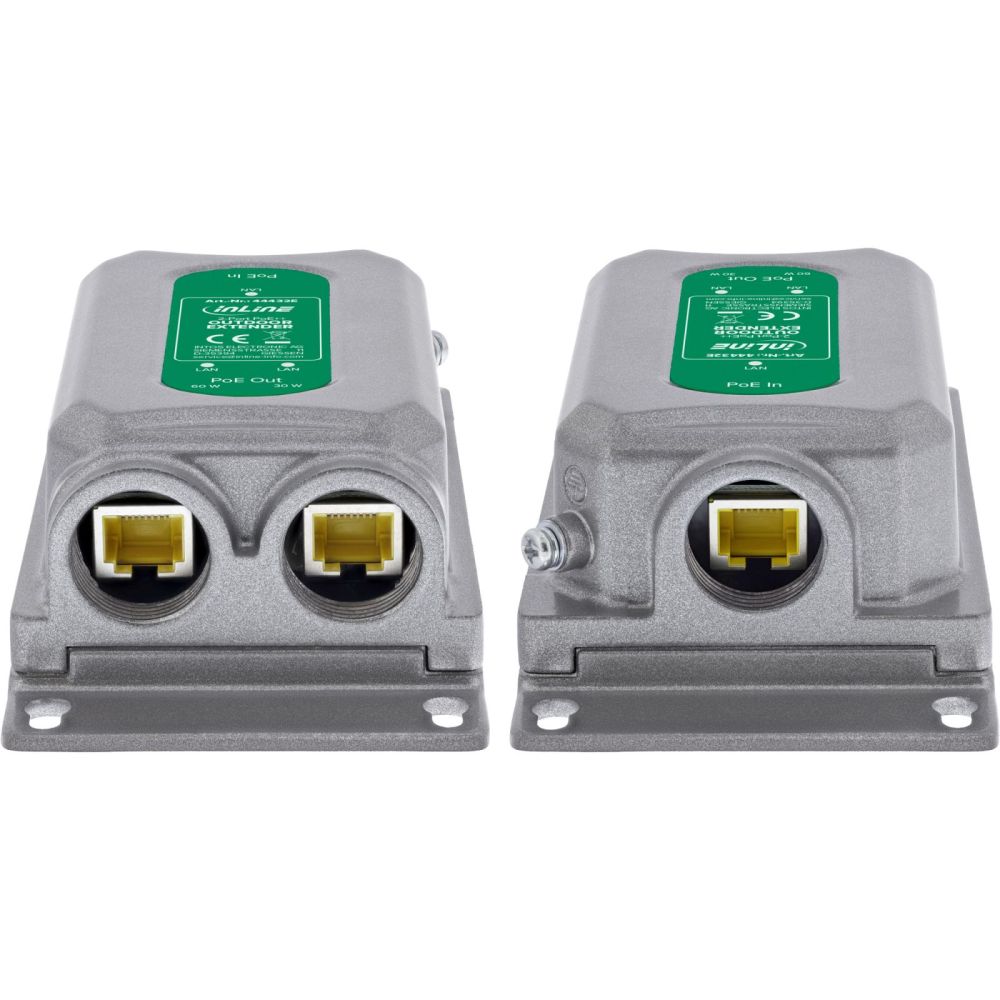

1 x RJ45 PoE input, 10/100/1000 Mb/s

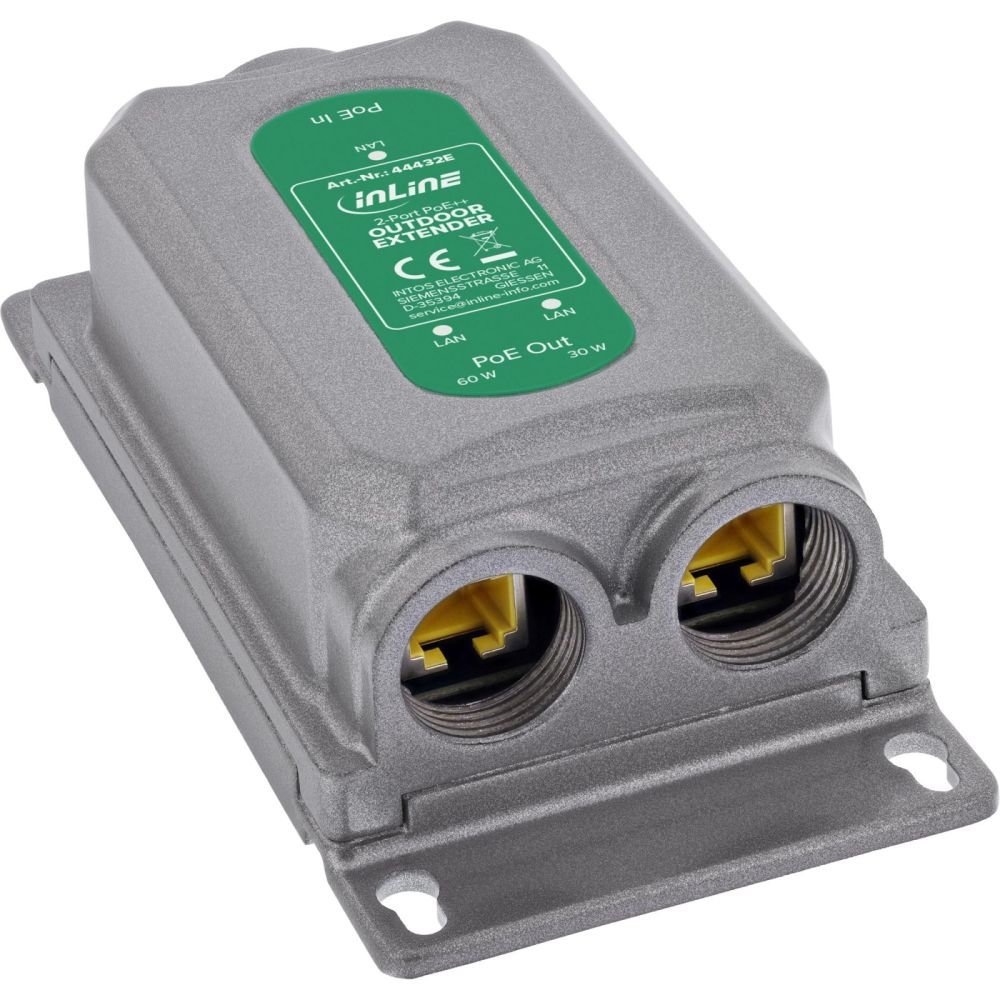

2 x RJ45 PoE output, 10/100/1000 Mb/s
PoE standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
PoE input: 90 W
Total PoE output power: 85 W
PoE outputs: 60 W and 30 W
Range: up to 100 m
Protection class: IP67, IK10
Operating temperature: -20 °C to 60 °C

Certificates
Compliance certificates	RoHS, CE
Certification	IP67, IK10
Waste Electrical and Electronic Equipment (WEEE) compliance
Features
Product colour	Grey
Maximum operating distance	100 m
LED indicators	LAN
Power protection features	Over voltage, Static electricity
Wall mountable
Easy to install
Rack mounting
Plug and Play
Surge protection
USB Power Delivery (USB PD)
Logistics data
Customs product code (TARIC)	8517620000
Harmonized System (HS) code	851762
Country of origin	China
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Networking standards	IEEE 802.3af, IEEE 802.3at
Cable types supported	Cat5, Cat5e, Cat6+, Cat6, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Power over Ethernet (PoE)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 80 °C
Storage relative humidity (H-H)	5 - 90%
Packaging content
Number of products included	1 pc(s)
Power cord included
Manual
Packaging data
Package width	188 mm
Package depth	240 mm
Package height	86 mm
Package weight	640 g
Package volume	3900 cm³
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
RJ-45 input ports	1
RJ-45 output ports	2
DC-in jack
Power
Power over Ethernet (PoE) voltage	55 V
Output power	85 W
Input current	48 - 55 A
Power consumption (max)	90 W
Power over Ethernet (PoE) power per port	60 W
Total Power over Ethernet (PoE) budget	85 W
Technical data
Max. supported power	60W
Width packaging	0.188m
Article length	18.00cm
Max. supported data transfer rate	1Gb/s
Type	Extender
Weight	0.640kg
Height packaging	0.086m
Length packaging	0.240m
Article height	4.40cm
Net weight	0.417kg
Max. supported PoE standard	802.3bt
Packaging volume	0.0039m³
Article width	7.10cm
Weight & dimensions
Width	71 mm
Depth	180 mm
Height	44 mm
Weight	417 g
Dimensions (WxDxH)	71 x 180 x 44 mm

---
