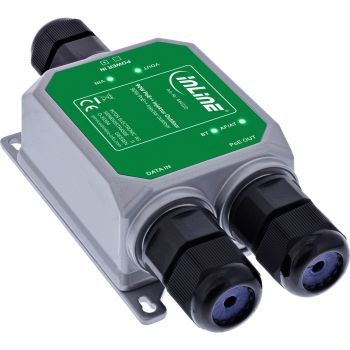

InLine® PoE++ outdoor injector, 10Gb/s, 90W, IP67 content_copy

Maximum performance for modern network devices: The PoE++ injector delivers up to 90 watts of output power in accordance with IEEE 802.3bt and reliably supplies powerful devices such as Wi-Fi access points or IP cameras with power and data via a single Ethernet cable.
10 Gigabit speed for high bandwidths: Supports 10 Gb/s Ethernet from 10Base-T to 10GBase-T and enables stable data transmission for demanding applications such as high-resolution video surveillance or fast network backbones.
IP67 protection for outdoor use: The dustproof and waterproof housing provides reliable protection against moisture, dirt and weather conditions and is ideal for outdoor installations on facades, masts or in industrial environments.
Flexible installation without additional power lines: Thanks to the midspan principle, power is supplied directly via the network cable. Separate sockets at the installation site are not required. This significantly simplifies installation.
High operational reliability in extreme conditions: Designed for temperatures from -40 degrees Celsius to 80 degrees Celsius and with integrated 8 kV ESD and 6 kV surge protection for permanently stable operation.
The InLine PoE++ Outdoor Injector is a powerful solution for the combined power and data supply of modern network components via a single Ethernet cable. With support for IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt, the device delivers up to 90 watts of power while enabling data transfers of up to 10 gigabits per second.
Thanks to
IP67 protection, the housing is dustproof and protected against temporary submersion. This makes the injector suitable for outdoor installations or in environments with increased requirements for durability and reliability.
The midspan principle allows for easy integration into existing networks. The DATA IN port connects to the existing switch, while the PoE OUT port transmits power and data to the end device in a bundled form. No additional power lines are required at the installation site.
The injector supports multi-gigabit connections from 10Base-T to 1000Base-T to 10GBase-T. This makes the device suitable for power-intensive applications such as high-resolution IP cameras, modern access points or industrial network components.
The extended temperature range from -40 degrees Celsius to 80 degrees Celsius and integrated ESD and surge protection support stable continuous operation even under demanding conditions.
Input voltage: DC48-57V
Input power: max. 120W
PoE output voltage: DC48-57V
Threaded screw cap: M25
Cable diameter: 4-8mm
Supported distance 10Base-T: up to 250m
Supported distance 100Base-TX: up to 100m
Supported distance 1000Base-T: up to 100m
Supported distance 2.5GBase-T: up to 100m
Supported distance 5GBase-T: up to 80m
Supported distance 10GBase-T: up to 50m
Protection level: 8kV-AIR, 8kV-ESD, 6kV-Lightning
Dimensions: 164x77x43mm
Weight: approx. 270g
Storage temperature: -40°C-90°C
Humidity: 5-95% non-condensing

Features
Product colour	Grey, Black
Network
Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN data rates	10000 Mbit/s
Networking standards	IEEE 802.3bt
Power over Ethernet (PoE)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 90 °C
Packaging content
Number of products included	1 pc(s)
Packaging data
Package width	105 mm
Package depth	210 mm
Package height	55 mm
Package weight	384 g
Package volume	1200 cm³
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
Power
Power over Ethernet (PoE) voltage	57 V
Output power	120 W
Technical data
Type	Injector
Max. supported power	90W
Weight	0.384kg
Max. supported PoE standard	802.3bt
Height packaging	0.055m
Max. supported data transfer rate	10Gb/s
Net weight	0.231kg
Width packaging	0.105m
Article length	16.40cm
Packaging volume	0.0012m³
Article width	7.70cm
Length packaging	0.210m
Article height	4.30cm
Weight & dimensions
Width	77 mm
Depth	164 mm
Height	43 mm
Weight	270 g
Dimensions (WxDxH)	77 x 164 x 43 mm

---
