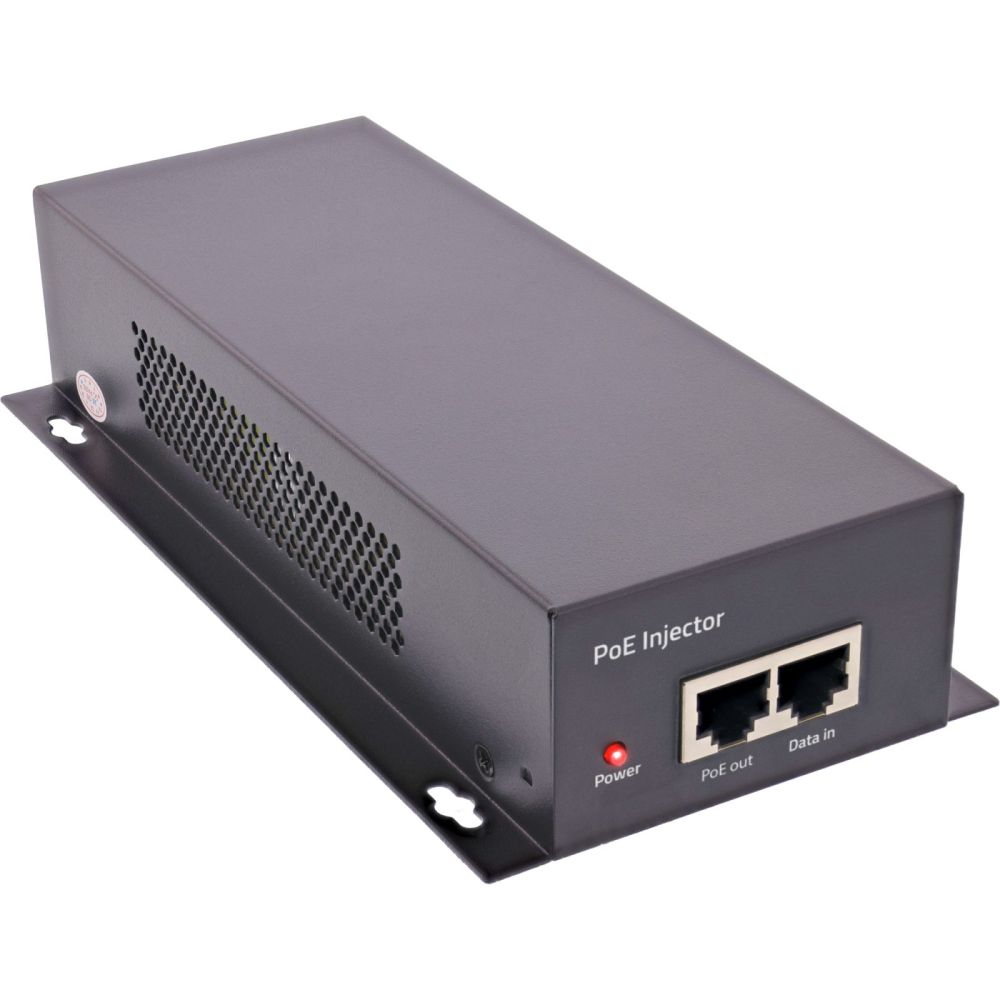

InLine® PoE++ injector indoor 10 Gb/s, max. 90W content_copy

Full PoE compatibility: Supports IEEE 802.3af, 802.3at and 802.3bt for broad device compatibility with up to 90 W of power.
High-speed data transfer: The 10GBase-T port provides high bandwidths for modern network devices such as access points and surveillance cameras.
Power over a single cable: Combines data and power for simple, clean installations with just one Ethernet cable.
Easy integration: Ideal for retrofitting existing networks without replacing existing switches – plug and play.
Reliable operation: Surge and ESD protection ensure reliable continuous operation even in demanding conditions.
The InLine PoE++ Injector expands your network with a powerful IEEE 802.3af/at/bt-compliant power supply – without replacing your existing switches. Using a single Ethernet cable (Cat.6 or better), it transmits data and up to 90 W of power to IP cameras, access points or other PoE-enabled devices. This not only reduces installation effort, but also the need for separate power connections.
Thanks to the 10GBase-T connection, you benefit from maximum bandwidth – ideal for data-intensive applications such as high-resolution surveillance technology or modern WiFi systems. The integrated protection circuit with ESD and overvoltage protection reliably protects your hardware even during long-term use.
Plug-and-play integration makes the injector a practical retrofit solution for home and company networks alike. Whether for professional network devices or smart home components, the InLine PoE++ injector is the simple and secure solution for your PoE supply.
Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3an 10GBase-T, IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3bt PoE++
Port ‘Data in’: 1x 10GBase-T RJ45
Port ‘PoE out’: 1x 10GBase-T RJ45

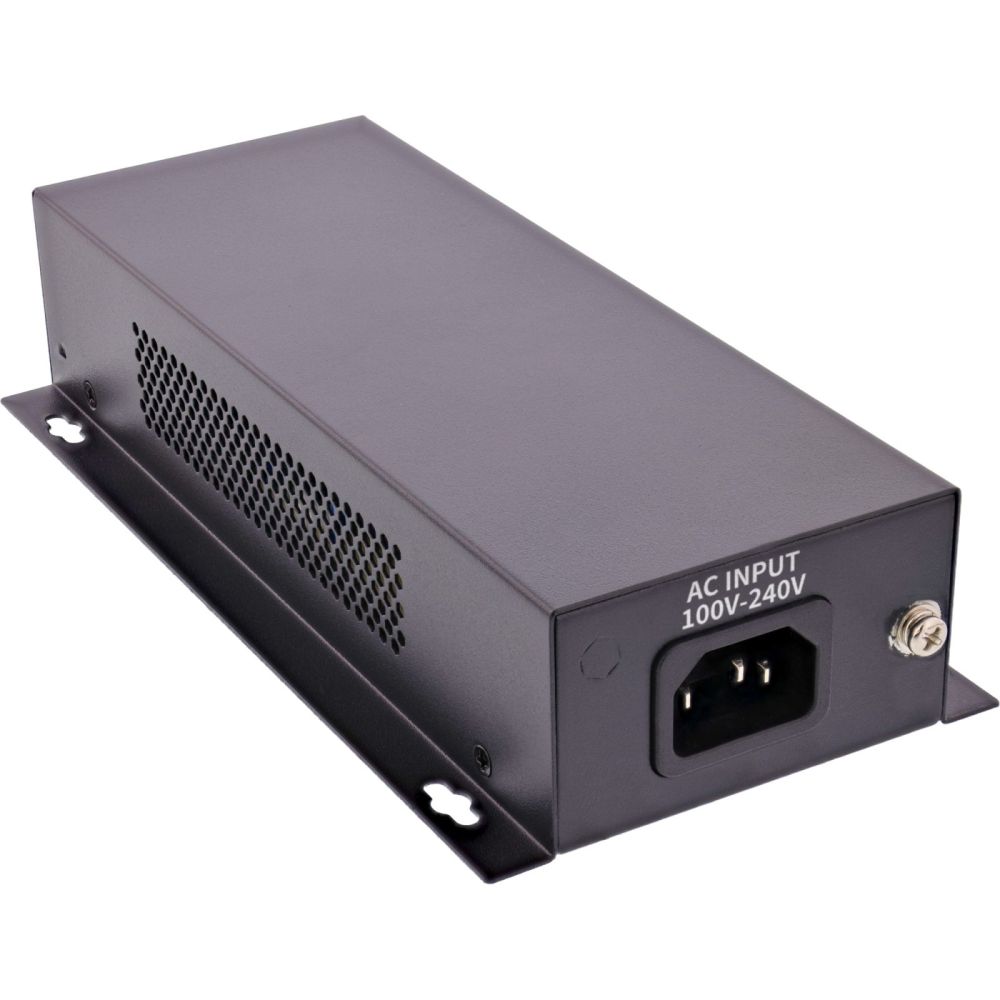

Power supply: AC 100 V - 240 V 50/60 Hz / DC 52 V / 1.92 A
PoE output voltage: DC 44-57 V
PoE output power: max. 90 watts
Overvoltage protection: Connection overvoltage: differential mode 2KV, common mode 6KV / Electrostatic: ESD 6KV, air 8KV (Class B)
LED indicators: POWER
Dimensions (L x W x H): 187 x 95 x 40 mm
Weight: approx. 490 g
Ambient conditions: Operating temperature -20-50 °C, storage temperature -40-85 °C, humidity 5-90 % non-condensing

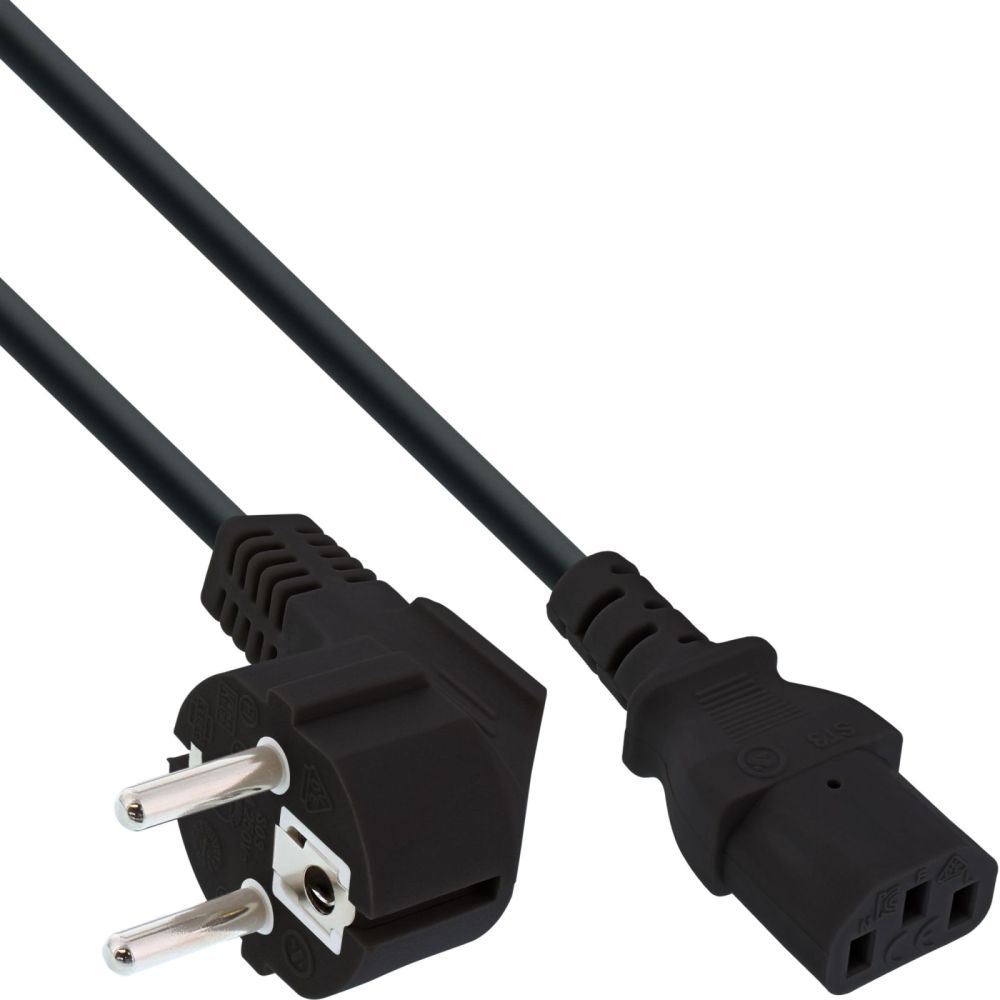

Scope of delivery: 1x InLine® PoE++ injector 10 Gigabit, 802.3bt, 90 Watt, 2x operating instructions (German/English), 1x power cable

Certificates
Compliance certificates	CE, TÜV mark
Features
Product colour	Black
LED indicators	Power
Power protection features	Over voltage, Surge protection
Logistics data
Country of origin	Taiwan
Network
Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Cable types supported	Cat6
Power over Ethernet (PoE)
Packaging content
Power cord included
Manual
Packaging data
Package width	190 mm
Package depth	255 mm
Package height	60 mm
Package weight	752 g
Package volume	0 cm³
Package type	Box
Ports & interfaces
RJ-45 input ports	1
RJ-45 output ports	1
Power
Power over Ethernet (PoE) voltage	52 V
Output power	90 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1.92 A
Technical data
Max. supported PoE standard	802.3bt
Number of ports	1
Net weight	0.488kg
Height packaging	0.060m
Max. supported data transfer rate	10Gb/s
Article length	19.00cm
Type	Injector
Max. supported power	90W
Weight	0.752kg
Width packaging	0.190m
Article width	9.00cm
Article height	4.30cm
Length packaging	0.255m
Weight & dimensions
Width	90 mm
Depth	190 mm
Height	43 mm
Weight	488 g
Dimensions (WxDxH)	90 x 190 x 43 mm

---
