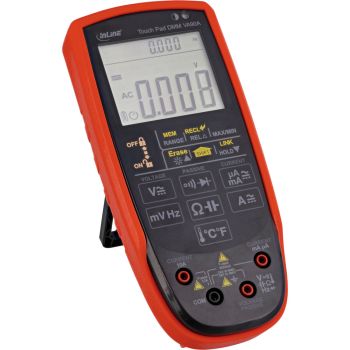

InLine® Multimeter with touch pad and illuminated display, CAT III / CAT IV content_copy

Fast measurements by touch with clear dual displayTouch operation without rotary switch: Select ranges directly by tap, less susceptible to dirt.
Dual-value display with LED backlight: Read values clearly even in low light.
Safety for installations and service: Safety category CAT III 1000 V / CAT IV 600 V.
Automatic AC/DC switching: The measurement type is automatically detected and set.
2-color illumination for status messages: Capture operating states at a glance.
The multimeter with touch-pad control measures voltages, currents, resistances, capacitances, frequencies, diodes, and temperatures precisely and conveniently. The measurement range is selected directly via button, without mechanical switching. The bright 2-color backlight and the large dual-value display support safe reading of the values.
It proves itself in on-site installations and in service deployments as well as in existing infrastructures of companies and public institutions. The robust design to a high safety category supports reliable measurements in the workshop, control cabinet, and on the construction site.
Display: 2 x 4 digits dual-value, resolution 6000, approx. 62 x 50 mm, LED backlight
Safety category: CAT III 1000 V / CAT IV 600 V
Calibration: Digital
Backlight: 2-color
Switching: Automatic AC/DC
Voltage: AC/DC 6/60/600/1000 V
Current: 600/6000 µA, 60/600 mA, 6/10 A
Resistance: 600 Ohm, 6 kOhm/60 kOhm/600 kOhm, 6 MOhm/60 MOhm
Capacitance: 6 n/60 n/600 n, 6 µ/60 µ/600 µ, 6 m/60 mF
Continuity: 0-600.0 Ohm
Diode test: 0-3.0 V
Frequency/duty cycle: 0-999.9 kHz
Temperature: -200 to 1000 °C
Scope of delivery: multimeter, test leads, temperature sensor, manual, 2 x 1.5 V AA

Display
Display	LED
Display size (HxV)	62 x 50 mm
Features
Product type	Digital multimeter
Placement supported	Handheld multimeter
Measuring category	CAT III 1000V
DC voltage range	6 - 1000 V
AC voltage range	6 - 1000 V
AC current range	0.0006 - 10 A
DC current range	0.0006 - 10 A
Resistance range	600 - 60000000 Ω
Capacitance range	6 - 60000000 nF
Frequency range	0 - 999.9 kHz
Temperature measurement range	-200 - 1000 °C
Product colour	Black, Yellow
Backlight
Diode test
Other features
Dimensions (WxDxH)	90 x 195 x 40 mm
Packaging content
Test leads
Batteries included
Manual
Packaging data
Package width	151 mm
Package depth	220 mm
Package height	60 mm
Package weight	693 g
Package volume	2500 cm³
Power
Power source	Battery
Battery type	AA
Number of batteries supported	2
Battery voltage	1.5 V
Technical data
Type	Multimeter
Weight	0.693kg
Length packaging	0.220m
Width packaging	0.151m
Article width	9.00cm
Packaging volume	0.0025m³
Article length	19.50cm
Height packaging	0.060m
Article height	4.00cm
Net weight	0.358kg
Weight & dimensions
Width	90 mm
Depth	195 mm
Height	40 mm
Weight	358 g

---
