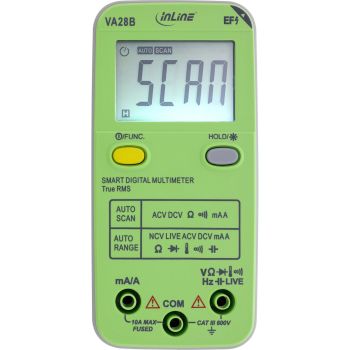

InLine® Multimeter with Auto-Range and Autoscan, pocket size content_copy

Compact multimeter for fast, safe on-site measurementsSpace-saving in use: Pocket size 130 x 62 x 27 mm fits in tool bags and drawers.
Time-saving measurement without range selection: Auto-Range and Autoscan automatically detect voltage, current, and resistance.
Reliable results on modern loads: True RMS delivers reliable results even with distorted signals.
Additional safety in testing: NCV/LIVE test and CAT III 600 V for lower-risk voltage checks.
Good readability everywhere: Backlight and integrated flashlight support in dark environments.
The pocket-size multimeter simplifies everyday measurement tasks: Auto-Range and Autoscan accelerate checks of AC/DC voltage and current, resistance, and continuity, while True RMS provides reliable values even for non-sinusoidal signals. The NCV/LIVE function enables non-contact voltage detection, and the LCD remains easy to read thanks to the backlight.
In on-site installations, service deployments, maintenance, and troubleshooting in existing infrastructures, the device supports precise, rapid measurements in companies and public institutions as well as in professional work environments.
Dimensions: 130 x 62 x 27 mm
Auto-Range measurement functions: ACV, DCV, resistance, continuity, diode, forward voltage, capacitance, NCV, LIVE, mA, A
Autoscan: ACV, DCV, resistance, continuity, mA, A
DC voltage: 400 mV, 4 V, 40 V, 400 V, 600 V
AC voltage: 400 mV, 4 V, 40 V, 400 V, 600 V
DC current: 4000 mA-10 A
AC current: 4000 mA-10 A
Resistance: 400 Ohm, 4 kOhm, 40 kOhm, 400 kOhm, 4 MOhm, 40 MOhm
Capacitance: 4.000 nF-1.000 mF
Temperature: -200 °C to 1200 °C
Frequency: 10 Hz-40 kHz
Display: LCD, 3999
Display size: 44 x 30 mm
Safety category: CAT III 600 V
Functions: Auto power-off, backlight, flashlight
Power supply: 2 x 1.5 V AAA (included)

Display
Display	LCD
Display size (HxV)	44 x 30 mm
Features
Product type	Digital multimeter
Placement supported	Handheld multimeter
Measuring category	CAT III 600V
DC voltage range	400mV/4V/40V/400V/600V
AC voltage range	0.4 - 600 V
AC current range	4 - 10 A
DC current range	4 - 10 A
Resistance range	400 - 40000000 Ω
Capacitance range	4000 - 1000000000 nF
Frequency range	10 - 40000 kHz
Product colour	Green
Backlight
Logistics data
Country of origin	Taiwan
Packaging content
Test leads
Batteries included
Packaging data
Package width	108 mm
Package depth	153 mm
Package height	43 mm
Package weight	271 g
Package volume	800 cm³
Power
Power source	AC
Battery type	AAA
Number of batteries supported	2
Battery voltage	1.5 V
Auto power off
Technical data
Width packaging	0.108m
Height packaging	0.043m
Net weight	0.118kg
Type	Multimeter
Packaging volume	0.0008m³
Length packaging	0.153m
Weight	0.271kg
Technical details
Sustainability certificates	TÜV mark
Sustainability compliance
Weight & dimensions
Width	62 mm
Depth	27 mm
Height	130 mm
Weight	118 g

---
