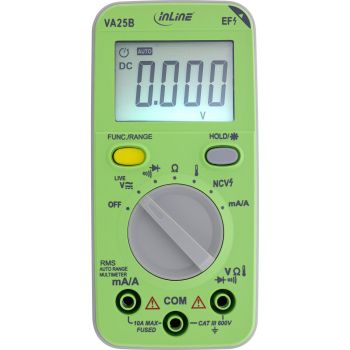

InLine® Multimeter with Auto-Range, pocket size content_copy

Auto-range multimeter in pocket format for versatile testingFast measurement results without readjustment: Auto-range automatically selects the appropriate range for you.
Voltage testing without contact: NCV/LIVE test helps you identify live conductors.
Reliable AC measurements: True RMS provides reliable values even with distorted signals.
Compact for field use: Pocket format, backlit display and flashlight make work easier in tight, dark areas.
Designed for distribution boards: CAT III 600 V supports your measurements on installations and devices.
With this compact auto-range multimeter you measure AC/DC voltage and current, resistance, continuity, diodes, and temperature. The automatic range selection speeds up the work, while True RMS delivers reliable results even with non-sinusoidal signals. The 1999 LCD with backlight and the integrated flashlight make reading easier; the automatic shutdown conserves the batteries.
In on-site installations and service deployments, it enables quick tests in control cabinets, distribution boards and existing infrastructures of companies and public institutions. In professional IT environments, the non-contact voltage test supports safe workflows, while the pocket format makes transport in the tool case or jacket pocket easier.
Dimensions: 130 x 62 x 27 mm
Measurement functions: ACV, DCV, resistance, continuity, diode, continuity, NCV, mA, A
DC voltage (DCV): 200 mV/2 V/20 V/200 V/600 V
AC voltage (ACV): 200 mV/2 V/20 V/200 V/600 V
DC current (DCA): 2000 mA~10.00 A
AC current (ACA): 2000 mA~10.00 A
Resistance: 200 Ohm/2 kOhm/20 kOhm/200 kOhm/2 MOhm/20 MOhm
Temperature: -200 °C to 1200 °C
Display: 1999 LCD, size 44 x 30 mm
Test: NCV/LIVE test, continuity, diode, continuity
Measurement method: True RMS
Safety rating: CAT III 600 V
Shutdown: automatic
Illumination: backlight, flashlight
Power supply: 2 x 1.5 V AAA (included)

Display
Display	LCD
Display size (HxV)	44 x 30 mm
Features
Product type	Digital multimeter
Placement supported	Handheld multimeter
Measuring category	CAT III 600V
DC voltage range	200mV/2V/20V/200V/600V
AC voltage range	0.2 - 600 V
AC current range	2 - 10 A
DC current range	2 - 10 A
Resistance range	200 - 20000000 Ω
Temperature measurement range	-200 - 1200 °C
Product colour	Green
Backlight
Logistics data
Country of origin	Taiwan
Other features
Dimensions (WxDxH)	62 x 130 x 27 mm
Packaging content
Test leads
Batteries included
Packaging data
Package width	107 mm
Package depth	153 mm
Package height	43 mm
Package weight	271 g
Package volume	800 cm³
Power
Power source	Battery
Battery type	AAA
Number of batteries supported	2
Battery voltage	1.5 V
Auto power off
Technical data
Packaging volume	0.0008m³
Length packaging	0.153m
Article length	13cm
Width packaging	0.107m
Net weight	0.119kg
Weight	0.271kg
Type	Multimeter
Article width	6.2cm
Height packaging	0.043m
Article height	2.7cm
Technical details
Sustainability certificates	TÜV mark
Sustainability compliance
Weight & dimensions
Width	62 mm
Depth	130 mm
Height	27 mm
Weight	119 g

---
