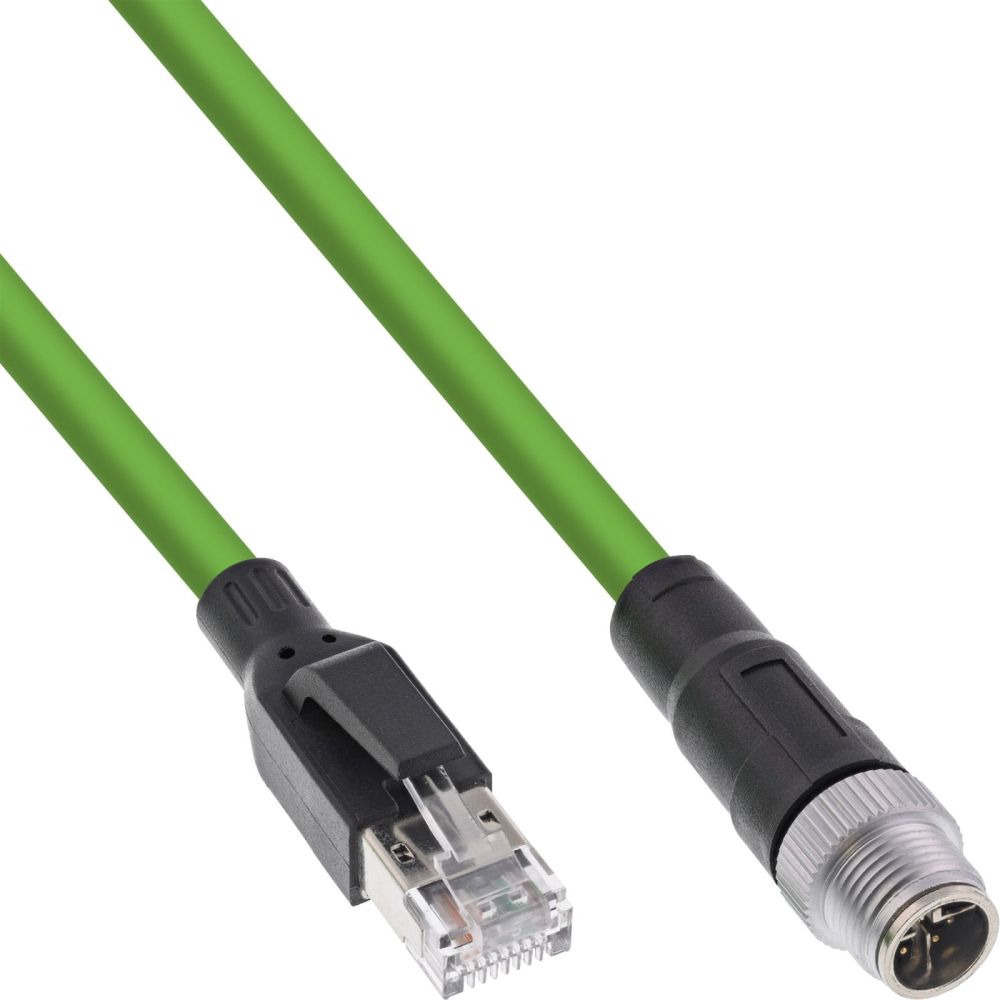

InLine® Industrial network cable, M12 8-pin X-coded to RJ45 plug, Cat.6A PUR 20m content_copy

High-speed data transmission – Supports network speeds of up to 10 Gbit/s (Cat.6A)
Extremely durable and flexible: drag-chain-compatible up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks
The InLine® industrial network cable M12 to RJ45 offers an extremely robust and reliable connection for industrial networks, workshops or demanding home installations. Thanks to the high-quality PUR jacket, the cable is particularly resistant to oil, UV radiation and mechanical stress.
Developed for flexible applications, it can withstand up to 10 million bends and remains functional even with constant movement. Whether connecting machines, control systems or rugged network infrastructures – this cable is the perfect choice for environments where standard network cables would fail.
The waterproof M12 connectors IP67) protect against dust and moisture. With Cat.6A performance, the cable supports data transmission rates of up to 10 Gbit/s and ensures a stable connection for your applications.
Experience the reliability and durability of a professional network cable – ideal for industrial environments, automation technology and demanding DIY projects.
Technical details:
Wire cross-section: 26 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Plug type: M12 8-pin X-coded IP67) to RJ45 IP67)
Certifications: Flame retardant according to UL 94
Shielding: S/FTP
Dynamic bending radius: >64 mm
Static bending radius: >32 mm
Operating temperature: -20 to +80 °C
Storage temperature: -20 to +80 °C
Outlet diameter: 6.4 mm
Color: green

Features
Cable length	20 m
Connector 1	M12
Connector 2	RJ-45
Connector gender	Male/Male
Cable colour	Green
Conductor material	Copper
AWG wire size	26
Jacket material	Polyurethane (PUR)
Bending radius (max)	10.2 cm
Country of origin	China
Oil-resistant
Ultraviolet (UV) resistant
Operational conditions
Operating temperature (T-T)	-25 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Packaging data
Quantity	1
Package width	305 mm
Package depth	330 mm
Package height	55 mm
Package weight	1.01 kg
Package type	Polybag
Technical data
Signal	Network / Data
Wire pairs used for power transmission	All
Length	20m
Colour	Green
Special feature	Suitable for drag chains
Width packaging	0.305m
Data transmission rate	10Gb/s
Type	Cat.6A
Conductor material	Copper
Article length	2000.00cm
Sheath	PUR
Operation temperature	-25 to +70°C
Article width	1.50cm
Packaging volume	0.0056m³
Side A	M12 male plug 8-pin straight
Length packaging	0.330m
Coding	X-coded
Max. supported data transfer rate	10Gb/s
Shielding	SF/UTP
Outer diameter	6.8mm
Bending radius (dynamic)	>102mm
Max. supported power	90W
Diameter	AWG 26
Side B	RJ45 plug straight
Bending radius (static)	>55mm
Max. supported PoE standard	802.3bt
Torsion	+/- 180°/m
Net weight	0.994kg
Height packaging	0.055m
Storage temperature	-40 to +80°C
Weight	1.013kg
Article height	1.50cm
UL
Technical details
Doesn't contain	Halogen
Package volume	5600 cm³
Compliance certificates	UL

---
