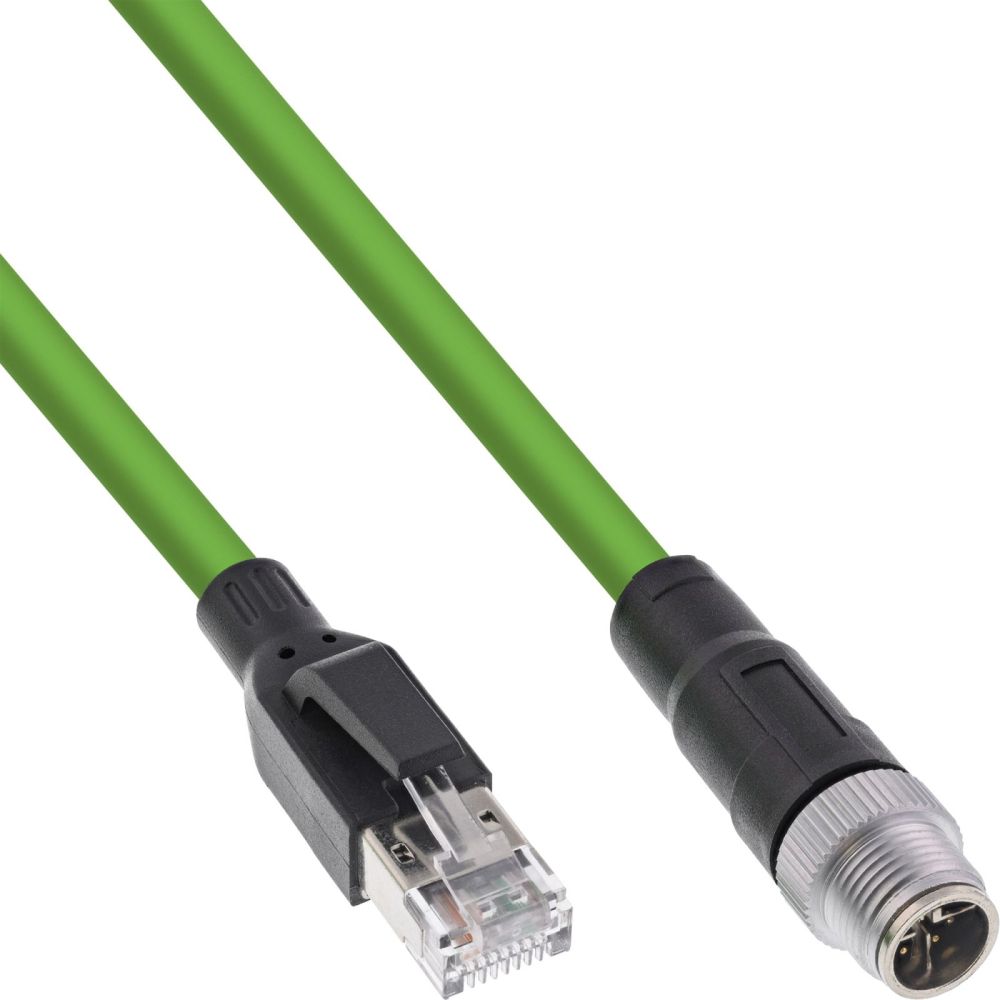

InLine® Industrial network cable, M12 8-pin X-coded to RJ45 plug Cat.6A PUR 7.5m content_copy

High-speed data transmission – Supports network speeds of up to 10 Gbit/s (Cat.6A)
Extremely durable and flexible: drag-chain-compatible up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks
The InLine® industrial network cable M12 to RJ45 offers an extremely robust and reliable connection for industrial networks, workshops or demanding home installations. Thanks to the high-quality PUR jacket, the cable is particularly resistant to oil, UV radiation and mechanical stress.
Developed for flexible applications, it can withstand up to 10 million bends and remains functional even with constant movement. Whether connecting machines, control systems or rugged network infrastructures – this cable is the perfect choice for environments where standard network cables would fail.
The waterproof M12 connectors IP67) protect against dust and moisture. With Cat.6A performance, the cable supports data transmission rates of up to 10 Gbit/s and ensures a stable connection for your applications.
Experience the reliability and durability of a professional network cable – ideal for industrial environments, automation technology and demanding DIY projects.
Technical details:
Wire cross-section: 26 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Plug type: M12 8-pin X-coded IP67) to RJ45 IP67)
Certifications: Flame retardant according to UL 94
Shielding: S/FTP
Dynamic bending radius: >64 mm
Static bending radius: >32 mm
Operating temperature: -20 to +80 °C
Storage temperature: -20 to +80 °C
Outlet diameter: 6.4 mm
Color: green

Features
Cable length	7.5 m
Connector 1	M12
Connector 2	RJ-45
Connector gender	Male/Male
Cable colour	Green
Conductor material	Copper
AWG wire size	26
Jacket material	Polyurethane (PUR)
Bending radius (max)	10.2 cm
Country of origin	China
Oil-resistant
Ultraviolet (UV) resistant
Operational conditions
Operating temperature (T-T)	-25 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Packaging data
Quantity	1
Package width	260 mm
Package depth	345 mm
Package height	35 mm
Package weight	390 g

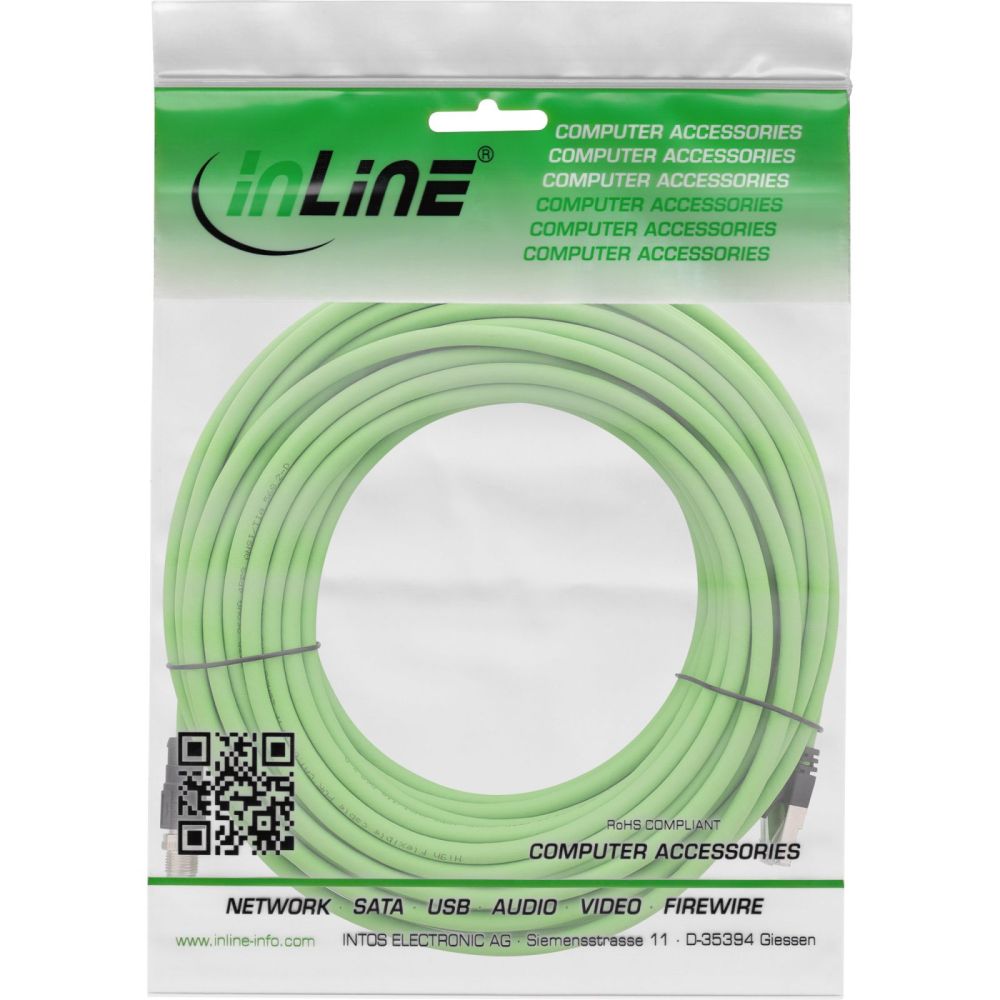

Package type	Polybag
Technical data
Sheath	PUR
Special feature	Suitable for drag chains
Torsion	+/- 180°/m
Data transmission rate	10Gb/s
Side B	RJ45 plug straight
Bending radius (static)	>55mm
Width packaging	0.260m
Packaging volume	0.0032m³
Side A	M12 male plug 8-pin straight
Net weight	0.414kg
Outer diameter	6.8mm
Bending radius (dynamic)	>102mm
Article width	1.40cm
Colour	Green
Signal	Network / Data
Article length	750.00cm
Conductor material	Copper
Shielding	SF/UTP
Length	7.50m
Type	Cat.6A
Storage temperature	-40 to +80°C
Diameter	AWG 26
Height packaging	0.035m
Operation temperature	-25 to +70°C
Weight	0.390kg
Length packaging	0.345m
Coding	X-coded
Article height	1.50cm
UL
Technical details
Doesn't contain	Halogen
Package volume	3200 cm³
Compliance certificates	UL

---
