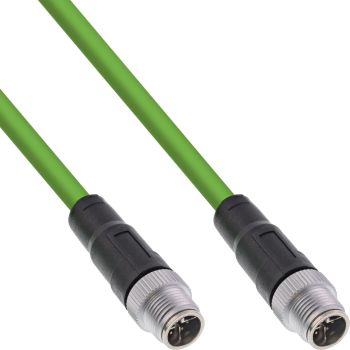

InLine® Industrial network cable, M12 8-pin X-coded male/male, Cat.6A PUR 10m content_copy

High-speed data transmission – Supports network speeds of up to 10 Gbit/s (Cat.6A)
Extremely durable and flexible: drag-chain-compatible up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks
The InLine® industrial network cable M12 offers an extremely robust and reliable connection for industrial networks, workshops or demanding home installations. Thanks to the high-quality PUR jacket, the cable is particularly resistant to oil, UV radiation and mechanical stress.
Developed for flexible applications, it can withstand up to 10 million bends and remains functional even with constant movement. Whether connecting machines, control systems or rugged network infrastructures – this cable is the perfect choice for environments where standard network cables would fail.
The waterproof M12 connectors IP67) protect against dust and moisture. With Cat.6A performance, the cable supports data transmission rates of up to 10 Gbit/s and ensures a stable connection for your applications.
Experience the reliability and durability of a professional network cable – ideal for industrial environments, automation technology and demanding DIY projects.
Technical details:
Wire cross-section: 26 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Connector type: M12 8-pin X-coded IP67) to M12 8-pin X-coded IP67)
Certifications: Flame retardant according to UL 94
Shielding: S/FTP
Dynamic bending radius: >64 mm
Static bending radius: >32 mm
Operating temperature: -20 to +80 °C
Storage temperature: -20 to +80 °C
Outlet diameter: 6.4 mm
Color: green

Features
Cable length	10 m
Connector 1	M12
Connector 2	M12
Connector gender	Male/Male
Cable colour	Green
Conductor material	Copper
AWG wire size	26
Jacket material	Polyurethane (PUR)
Bending radius (max)	10.2 cm
Country of origin	China
Oil-resistant
Ultraviolet (UV) resistant
Operational conditions
Operating temperature (T-T)	-25 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Packaging data
Quantity	1
Package width	260 mm
Package depth	345 mm
Package height	32 mm
Package weight	576 g
Package type	Polybag
Technical data
Packaging volume	0.0029m³
Side B	M12 male plug 8-pin straight
Net weight	0.556kg
Data transmission rate	10Gb/s
Height packaging	0.036m
Conductor material	Copper
Outer diameter	6.8mm
Bending radius (static)	>55mm
Width packaging	0.260m
Length packaging	0.345m
Bending radius (dynamic)	>102mm
Article width	1.50cm
Signal	Network / Data
Coding	X-coded
Article height	1.50cm
Sheath	PUR
Storage temperature	-40 to +80°C
Length	10m
Type	Cat.6A
Torsion	+/- 180°/m
Diameter	AWG 26
Weight	0.576kg
Special feature	Suitable for drag chains
Article length	1000.00cm
Colour	Green
Operation temperature	-25 to +70°C
Side A	M12 male plug 8-pin straight
Shielding	SF/UTP
UL
Technical details
Doesn't contain	Halogen
Package volume	2900 cm³
Compliance certificates	UL

---
