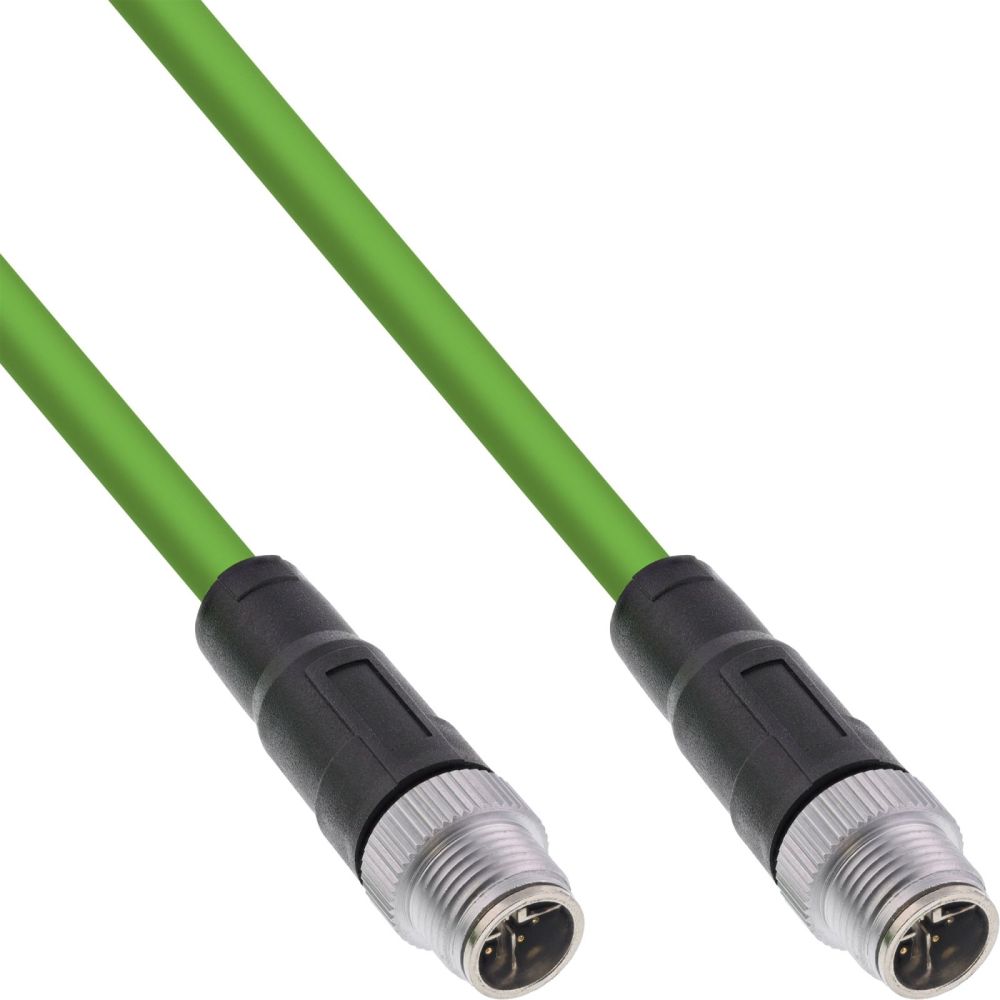

InLine® Industrial network cable, M12 8-pin X-coded male/male, Cat.6A PUR 7.5m content_copy

High-speed data transmission – Supports network speeds of up to 10 Gbit/s (Cat.6A)
Extremely durable and flexible: drag-chain-compatible up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks
The InLine® industrial network cable M12 offers an extremely robust and reliable connection for industrial networks, workshops or demanding home installations. Thanks to the high-quality PUR jacket, the cable is particularly resistant to oil, UV radiation and mechanical stress.
Developed for flexible applications, it can withstand up to 10 million bends and remains functional even with constant movement. Whether connecting machines, control systems or rugged network infrastructures – this cable is the perfect choice for environments where standard network cables would fail.
The waterproof M12 connectors IP67) protect against dust and moisture. With Cat.6A performance, the cable supports data transmission rates of up to 10 Gbit/s and ensures a stable connection for your applications.
Experience the reliability and durability of a professional network cable – ideal for industrial environments, automation technology and demanding DIY projects.
Technical details:
Wire cross-section: 26 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant

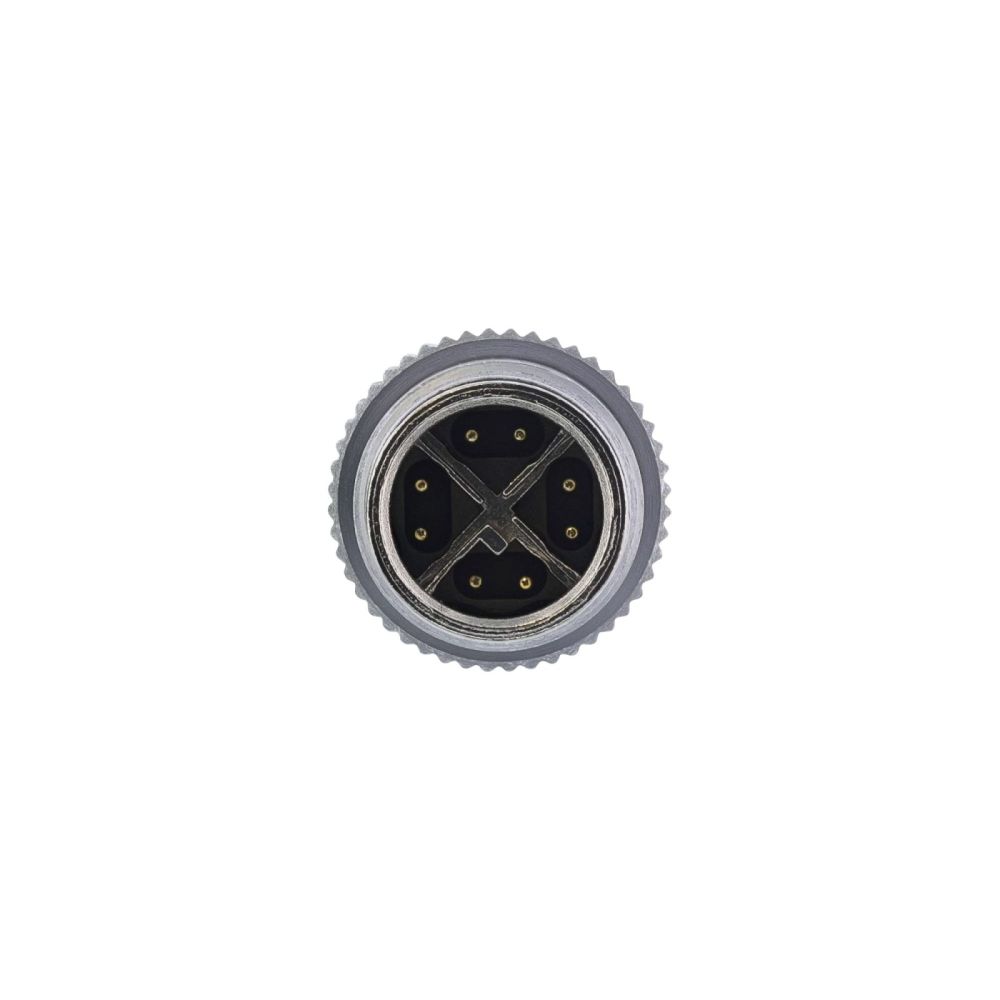

Connector type: M12 8-pin X-coded IP67) to M12 8-pin X-coded IP67)
Certifications: Flame retardant according to UL 94
Shielding: S/FTP
Dynamic bending radius: >64 mm
Static bending radius: >32 mm
Operating temperature: -20 to +80 °C
Storage temperature: -20 to +80 °C
Outlet diameter: 6.4 mm
Color: green

Features
Cable length	7.5 m
Connector 1	M12
Connector 2	M12
Connector gender	Male/Male
Cable colour	Green
Conductor material	Copper
AWG wire size	26
Jacket material	Polyurethane (PUR)
Bending radius (max)	10.2 cm
Country of origin	China
Oil-resistant
Ultraviolet (UV) resistant
Operational conditions
Operating temperature (T-T)	-25 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Packaging data
Quantity	1
Package width	260 mm
Package depth	345 mm
Package height	26 mm
Package weight	409 g
Package type	Polybag
Technical data
Length	7.50m
Side A	M12 male plug 8-pin straight
Data transmission rate	10Gb/s
Outer diameter	6.8mm
Bending radius (static)	>55mm
Article width	1.40cm
Torsion	+/- 180°/m
Shielding	SF/UTP
Packaging volume	0.0024m³
Side B	M12 male plug 8-pin straight
Width packaging	0.260m
Colour	Green
Special feature	Suitable for drag chains
Net weight	0.389kg
Type	Cat.6A
Conductor material	Copper
Diameter	AWG 26
Length packaging	0.345m
Bending radius (dynamic)	>102mm
Article height	1.50cm
Sheath	PUR
Operation temperature	-25 to +70°C
Weight	0.409kg
Signal	Network / Data
Coding	X-coded
Article length	750.00cm
Height packaging	0.026m
Storage temperature	-40 to +80°C
UL
Technical details
Doesn't contain	Halogen
Package volume	2400 cm³
Compliance certificates	UL

---
