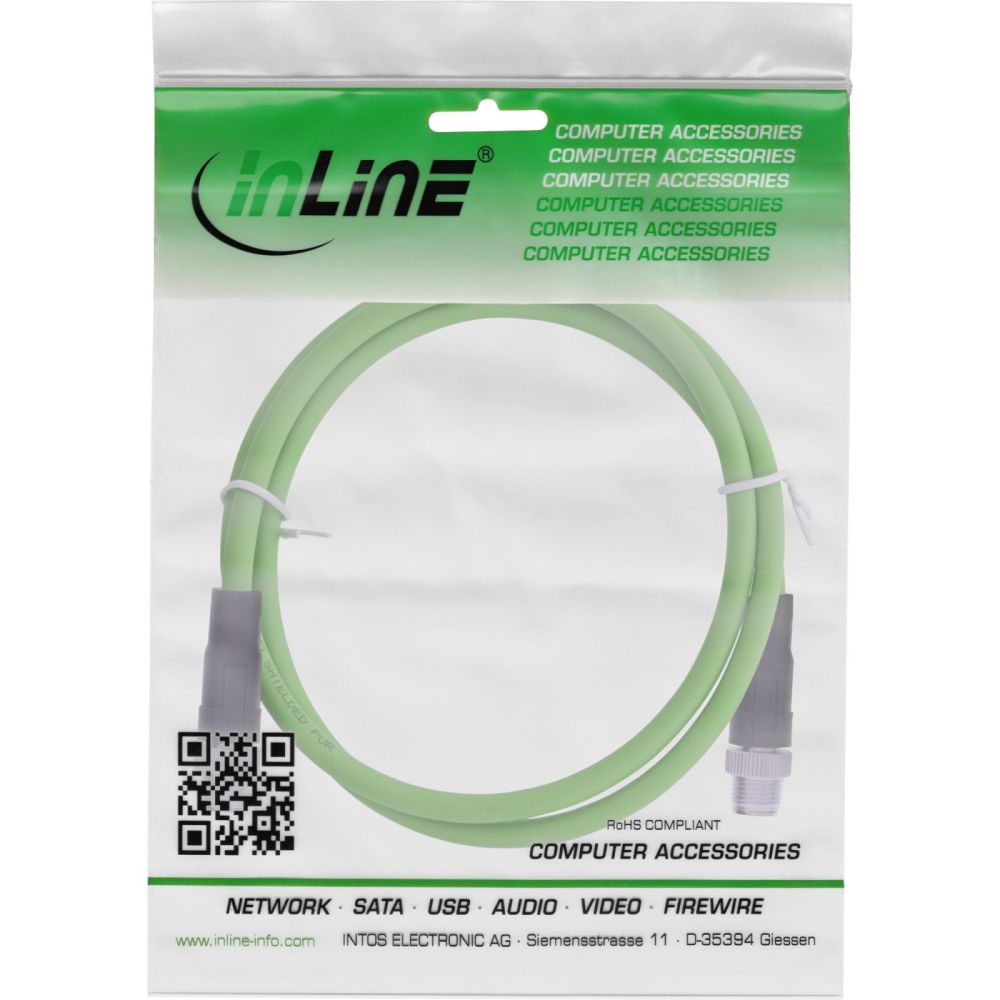

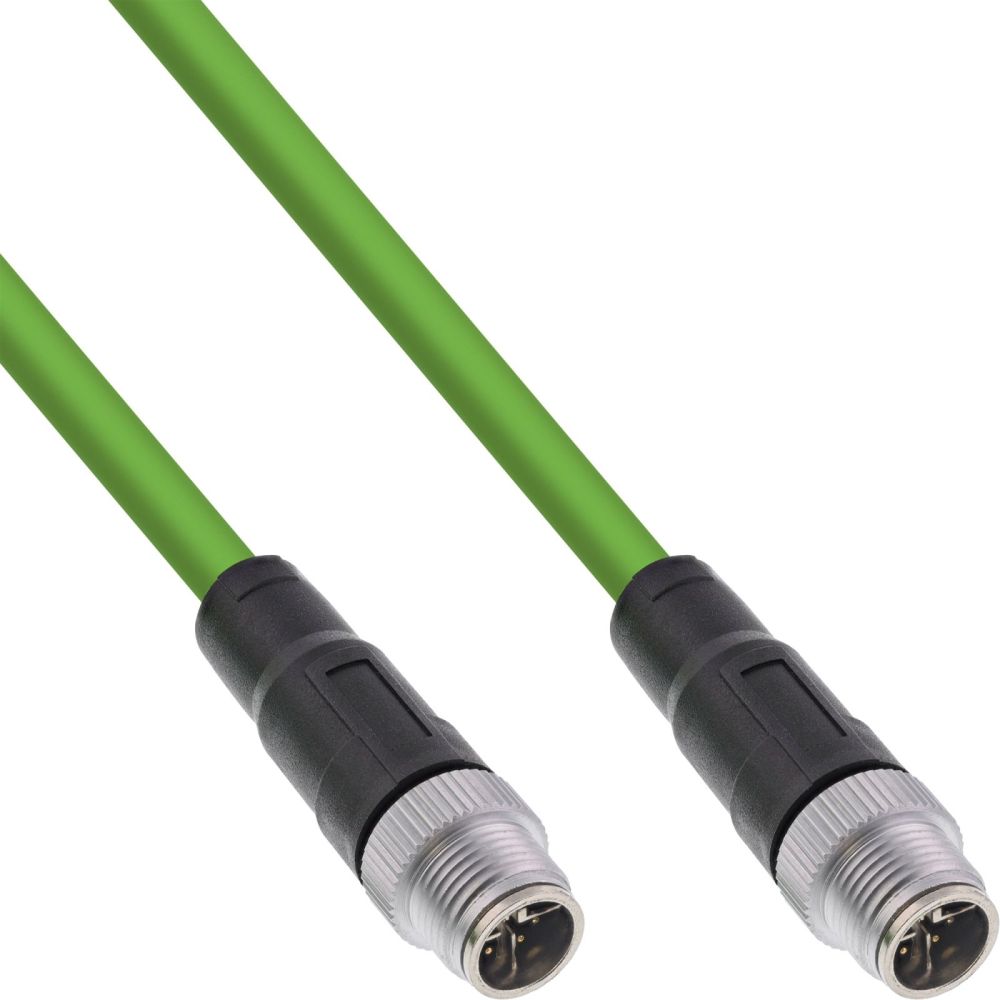

InLine® Industrial network cable, M12 8-pin X-coded male/male, Cat.6A PUR 1m content_copy

High-speed data transmission – Supports network speeds of up to 10 Gbit/s (Cat.6A)
Extremely durable and flexible: drag-chain-compatible up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks
The InLine® industrial network cable M12 offers an extremely robust and reliable connection for industrial networks, workshops or demanding home installations. Thanks to the high-quality PUR jacket, the cable is particularly resistant to oil, UV radiation and mechanical stress.
Developed for flexible applications, it can withstand up to 10 million bends and remains functional even with constant movement. Whether connecting machines, control systems or rugged network infrastructures – this cable is the perfect choice for environments where standard network cables would fail.
The waterproof M12 connectors IP67) protect against dust and moisture. With Cat.6A performance, the cable supports data transmission rates of up to 10 Gbit/s and ensures a stable connection for your applications.
Experience the reliability and durability of a professional network cable – ideal for industrial environments, automation technology and demanding DIY projects.
Technical details:
Wire cross-section: 26 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant

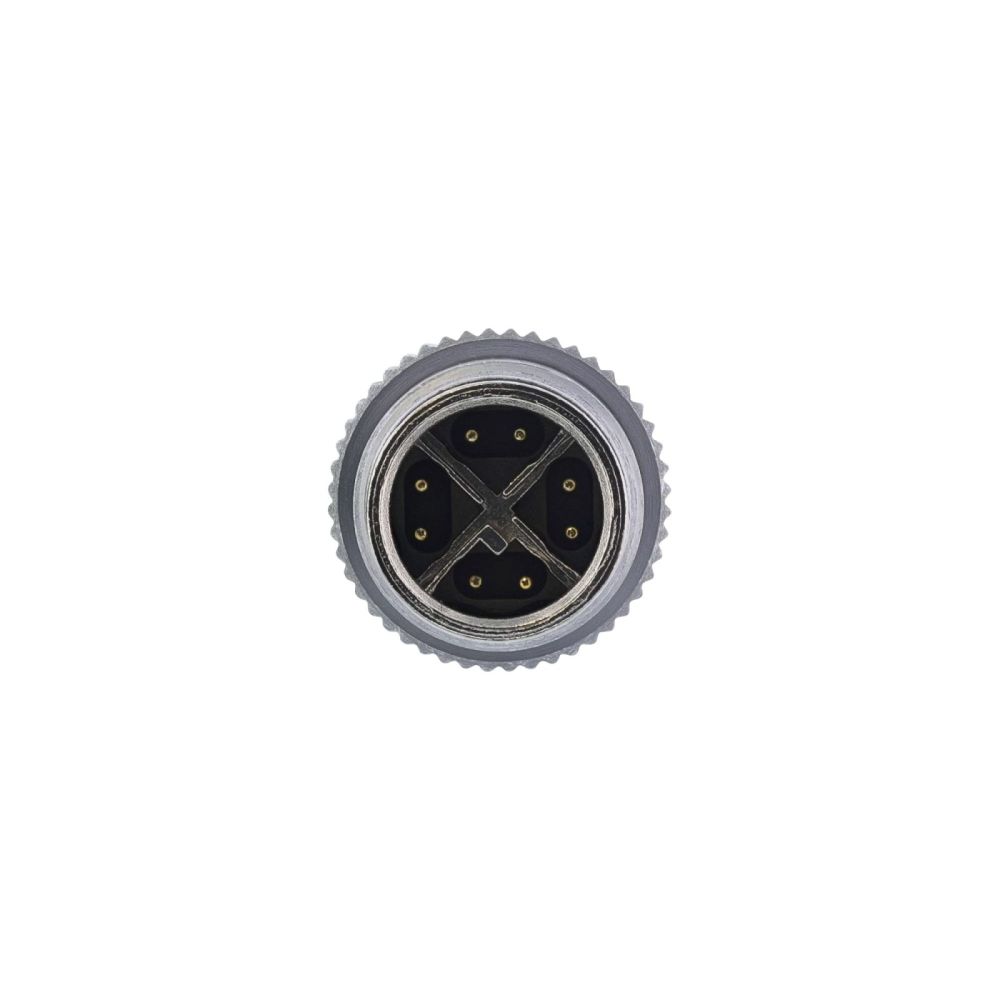

Connector type: M12 8-pin X-coded IP67) to M12 8-pin X-coded IP67)
Certifications: Flame retardant according to UL 94
Shielding: S/FTP
Dynamic bending radius: >64 mm
Static bending radius: >32 mm
Operating temperature: -20 to +80 °C
Storage temperature: -20 to +80 °C
Outlet diameter: 6.4 mm
Color: green

Features
Cable length	1 m
Connector 1	M12
Connector 2	M12
Connector gender	Male/Male
Cable colour	Green
Conductor material	Copper
AWG wire size	26
Jacket material	Polyurethane (PUR)
Bending radius (max)	10.2 cm
Country of origin	China
Oil-resistant
Ultraviolet (UV) resistant
Operational conditions
Operating temperature (T-T)	-25 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Packaging data
Quantity	1
Package width	173 mm
Package depth	240 mm
Package height	15 mm
Package weight	93 g
Package type	Polybag
Technical data
Signal	Network / Data
Coding	X-coded
Article length	100.00cm
Diameter	AWG 26
Side A	M12 male plug 8-pin straight
Colour	Green
Operation temperature	-25 to +70°C
Type	Cat.6A
Torsion	+/- 180°/m
Shielding	SF/UTP
Packaging volume	0.0007m³
Side B	M12 male plug 8-pin straight
Data transmission rate	10Gb/s
Outer diameter	6.8mm
Special feature	Suitable for drag chains
Net weight	0.090kg
Length packaging	0.240m
Bending radius (dynamic)	>102mm
Article height	1.50cm
Sheath	PUR
Storage temperature	-40 to +80°C
Width packaging	0.173m
Height packaging	0.015m
Conductor material	Copper
Bending radius (static)	>55mm
Article width	1.50cm
Weight	0.093kg
UL
Technical details
Doesn't contain	Halogen
Package volume	700 cm³
Compliance certificates	UL

---
