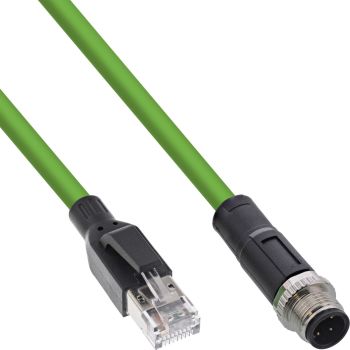

InLine® Industrial network cable, M12 4-pin D-coded male plug to RJ45, PUR 10m content_copy

Industrial network cable for reliable data transmission with up to 100 Mbit/s
Extremely durable and flexible: Suitable for drag chains up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water- and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks
The InLine® industrial network cable M12 4-pin D-coded offers a high-quality solution for industrial applications where a robust and reliable data connection is required.
With a CAT5E performance of up to 100 Mbit/s, it enables fast and secure data transmission - ideal for automation, mechanical engineering and industrial networks.
The cable impresses with its extreme load capacity: It is suitable for drag chains up to 10 million bends and torsion-resistant up to 3 million bends. The high-quality PUR coating protects against oil, UV radiation and abrasion and ensures a long service life.
The M12 4-pin D-coded plug is waterproof to IP67, so the connection remains reliable even in damp or dusty environments. The RJ45 side complies with IP67, perfect for connecting to industrial networks and control systems.
Technical details:
Wire cross-section: 22 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Connector type: M12 4-pin D-coded IP67) to RJ45 IP67)
Certifications: Flame retardant according to UL 94
Shielding: SF/UTP
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green

Features
Cable length	10 m
Connector 1	M12
Connector 2	RJ-45
Connector gender	Male/Male
Cable colour	Green
Conductor material	Copper
AWG wire size	22
Jacket material	Polyurethane (PUR)
Bending radius (max)	9.8 cm
Country of origin	China
Oil-resistant
Ultraviolet (UV) resistant
Operational conditions
Operating temperature (T-T)	-25 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Packaging data
Quantity	1
Package width	260 mm
Package depth	345 mm
Package height	30 mm
Package weight	514 g
Package type	Polybag
Technical data
Type	Cat.5e
Bending radius (static)	>52mm
Article height	1.50cm
Height packaging	0.030m
Special feature	Suitable for drag chains
Article width	1.50cm
Length packaging	0.345m
Conductor material	Copper
Max. supported power	90W
Shielding	SF/UTP
Colour	Green
Signal	Network / Data
Wire pairs used for power transmission	All
Outer diameter	6.5mm
Coding	D-coded
Max. supported PoE standard	802.3bt
Side B	RJ45 plug straight
Storage temperature	-40 to +80°C
Length	10m
Bending radius (dynamic)	>98mm
Net weight	0.562kg
Article length	1000.00cm
Sheath	PUR
Data transmission rate	100Mb/s
Width packaging	0.260m
Packaging volume	0.0027m³
Operation temperature	-25 to +70°C
Weight	0.514kg
Side A	M12 male plug 4-pin straight
Torsion	+/- 180°/m
Max. supported data transfer rate	100Mb/s
UL
Technical details
Doesn't contain	Halogen
Package volume	2700 cm³
Compliance certificates	UL

---
