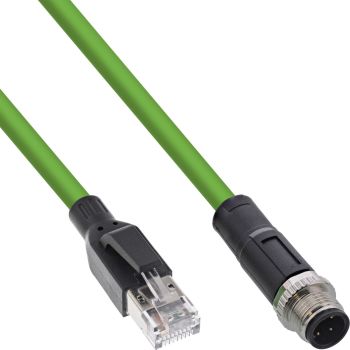

InLine® Industrial network cable, M12 4-pin D-coded male plug to RJ45, PUR 5m content_copy

Industrial network cable for reliable data transmission with up to 100 Mbit/s
Extremely durable and flexible: Suitable for drag chains up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water- and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks
The InLine® industrial network cable M12 4-pin D-coded offers a high-quality solution for industrial applications where a robust and reliable data connection is required.
With a CAT5E performance of up to 100 Mbit/s, it enables fast and secure data transmission - ideal for automation, mechanical engineering and industrial networks.
The cable impresses with its extreme load capacity: It is suitable for drag chains up to 10 million bends and torsion-resistant up to 3 million bends. The high-quality PUR coating protects against oil, UV radiation and abrasion and ensures a long service life.
The M12 4-pin D-coded plug is waterproof to IP67, so the connection remains reliable even in damp or dusty environments. The RJ45 side complies with IP67, perfect for connecting to industrial networks and control systems.
Technical details:
Wire cross-section: 22 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Connector type: M12 4-pin D-coded IP67) to RJ45 IP67)
Certifications: Flame retardant according to UL 94
Shielding: SF/UTP
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green

Features
Cable length	5 m
Connector 1	M12
Connector 2	RJ-45
Connector gender	Male/Male
Cable colour	Green
Conductor material	Copper
AWG wire size	22
Jacket material	Polyurethane (PUR)
Bending radius (max)	9.8 cm
Country of origin	China
Oil-resistant
Ultraviolet (UV) resistant
Operational conditions
Operating temperature (T-T)	-25 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Packaging data
Quantity	1
Package width	200 mm
Package depth	260 mm
Package height	30 mm
Package weight	299 g
Package type	Polybag
Technical data
Bending radius (dynamic)	>98mm
Length	5m
Colour	Green
Signal	Network / Data
Article length	500.00cm
Side A	M12 male plug 4-pin straight
Torsion	+/- 180°/m
Article height	1.50cm
Type	Cat.5e
Bending radius (static)	>52mm
Shielding	SF/UTP
Sheath	PUR
Data transmission rate	100Mb/s
Length packaging	0.260m
Conductor material	Copper
Article width	1.50cm
Outer diameter	6.5mm
Coding	D-coded
Net weight	0.286kg
Side B	RJ45 plug straight
Storage temperature	-40 to +80°C
Width packaging	0.200m
Height packaging	0.030m
Special feature	Suitable for drag chains
Packaging volume	0.0016m³
Operation temperature	-25 to +70°C
Weight	0.299kg
UL
Technical details
Doesn't contain	Halogen
Package volume	1600 cm³
Compliance certificates	UL

---
