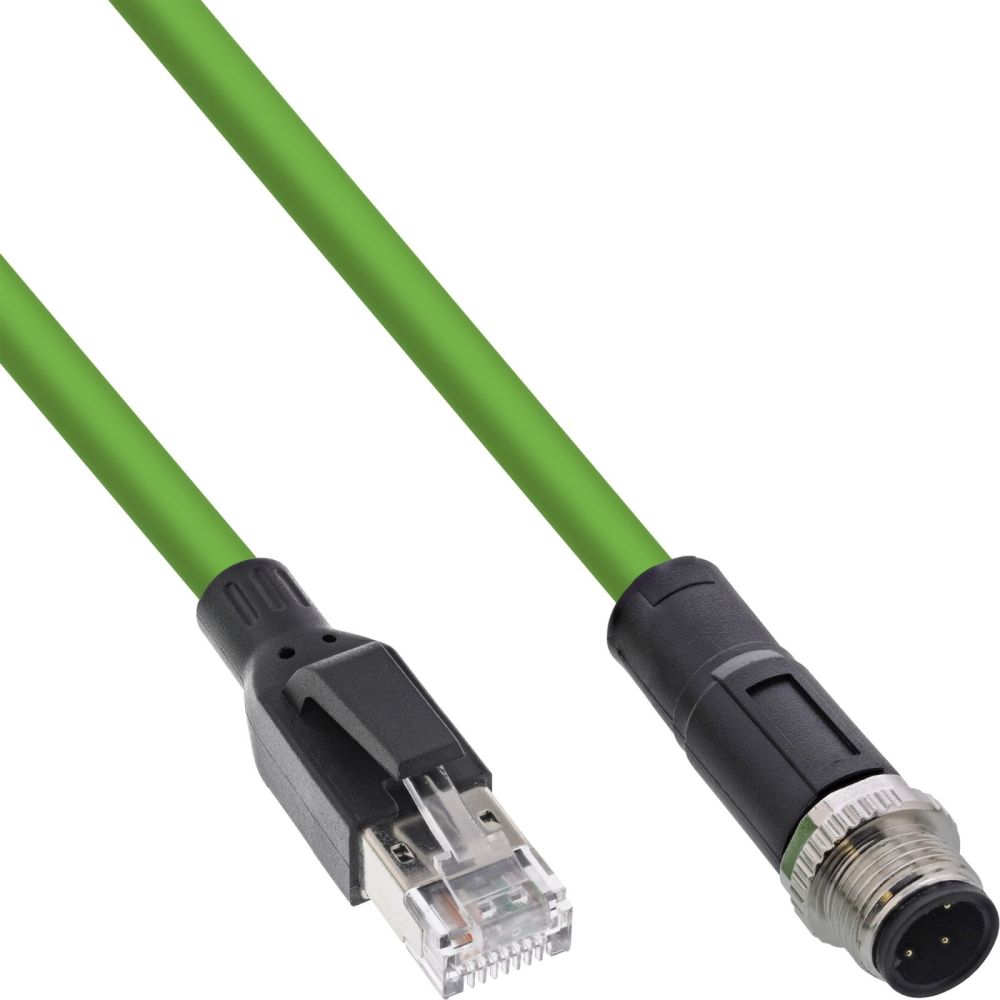

InLine® Industrial network cable, M12 4-pin D-coded male plug to RJ45, PUR 3m
|
20,88 EUR |
|
|
( 24,85 EUR incl. VAT ) ≈ £17.48 | ≈ $23.36 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22194819 |
| Mfg Part No: | 40403 |
| UPC/EAN: | 4043718318544 |
| Weight: | 0.19 kg |
Product information for Inline 40403:
Industrial network cable for reliable data transmission with up to 100 Mbit/s
Extremely durable and flexible: Suitable for drag chains up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water- and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks
The InLine® industrial network cable M12 4-pin D-coded offers a high-quality solution for industrial applications where a robust and reliable data connection is required.
With a CAT5E performance of up to 100 Mbit/s, it enables fast and secure data transmission - ideal for automation, mechanical engineering and industrial networks.
The cable impresses with its extreme load capacity: It is suitable for drag chains up to 10 million bends and torsion-resistant up to 3 million bends. The high-quality PUR coating protects against oil, UV radiation and abrasion and ensures a long service life.
The M12 4-pin D-coded plug is waterproof to IP67, so the connection remains reliable even in damp or dusty environments. The RJ45 side complies with IP67, perfect for connecting to industrial networks and control systems.
Technical details:
Wire cross-section: 22 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Connector type: M12 4-pin D-coded IP67) to RJ45 IP67)
Certifications: Flame retardant according to UL 94
Shielding: SF/UTP
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green
Extremely durable and flexible: Suitable for drag chains up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water- and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks
The InLine® industrial network cable M12 4-pin D-coded offers a high-quality solution for industrial applications where a robust and reliable data connection is required.
With a CAT5E performance of up to 100 Mbit/s, it enables fast and secure data transmission - ideal for automation, mechanical engineering and industrial networks.
The cable impresses with its extreme load capacity: It is suitable for drag chains up to 10 million bends and torsion-resistant up to 3 million bends. The high-quality PUR coating protects against oil, UV radiation and abrasion and ensures a long service life.
The M12 4-pin D-coded plug is waterproof to IP67, so the connection remains reliable even in damp or dusty environments. The RJ45 side complies with IP67, perfect for connecting to industrial networks and control systems.
Technical details:
Wire cross-section: 22 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Connector type: M12 4-pin D-coded IP67) to RJ45 IP67)
Certifications: Flame retardant according to UL 94
Shielding: SF/UTP
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green
| Features | |
| Cable length | 3 m |
| Connector 1 | M12 |
| Connector 2 | RJ-45 |
| Connector gender | Male/Male |
| Cable colour | Green |
| Conductor material | Copper |
| AWG wire size | 22 |
| Jacket material | Polyurethane (PUR) |
| Bending radius (max) | 9.8 cm |
| Country of origin | China |
| Oil-resistant | |
| Ultraviolet (UV) resistant | |
| Operational conditions | |
| Operating temperature (T-T) | -25 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Packaging data | |
| Quantity | 1 |
| Package width | 200 mm |
| Package depth | 260 mm |
| Package height | 25 mm |
| Package weight | 190 g |
| Package type | Polybag |
| Technical data | |
| Length packaging | 0.260m |
| Conductor material | Copper |
| Article width | 1.50cm |
| Bending radius (dynamic) | >98mm |
| Height packaging | 0.025m |
| Special feature | Suitable for drag chains |
| Sheath | PUR |
| Data transmission rate | 100Mb/s |
| Colour | Green |
| Signal | Network / Data |
| Article length | 300.00cm |
| Packaging volume | 0.0013m³ |
| Operation temperature | -25 to +70°C |
| Weight | 0.190kg |
| Type | Cat.5e |
| Bending radius (static) | >52mm |
| Shielding | SF/UTP |
| Side B | RJ45 plug straight |
| Storage temperature | -40 to +80°C |
| Width packaging | 0.200m |
| Side A | M12 male plug 4-pin straight |
| Torsion | +/- 180°/m |
| Article height | 1.50cm |
| Outer diameter | 6.5mm |
| Coding | D-coded |
| Net weight | 0.177kg |
| UL | |
| Technical details | |
| Doesn't contain | Halogen |
| Package volume | 1300 cm³ |
| Compliance certificates | UL |
