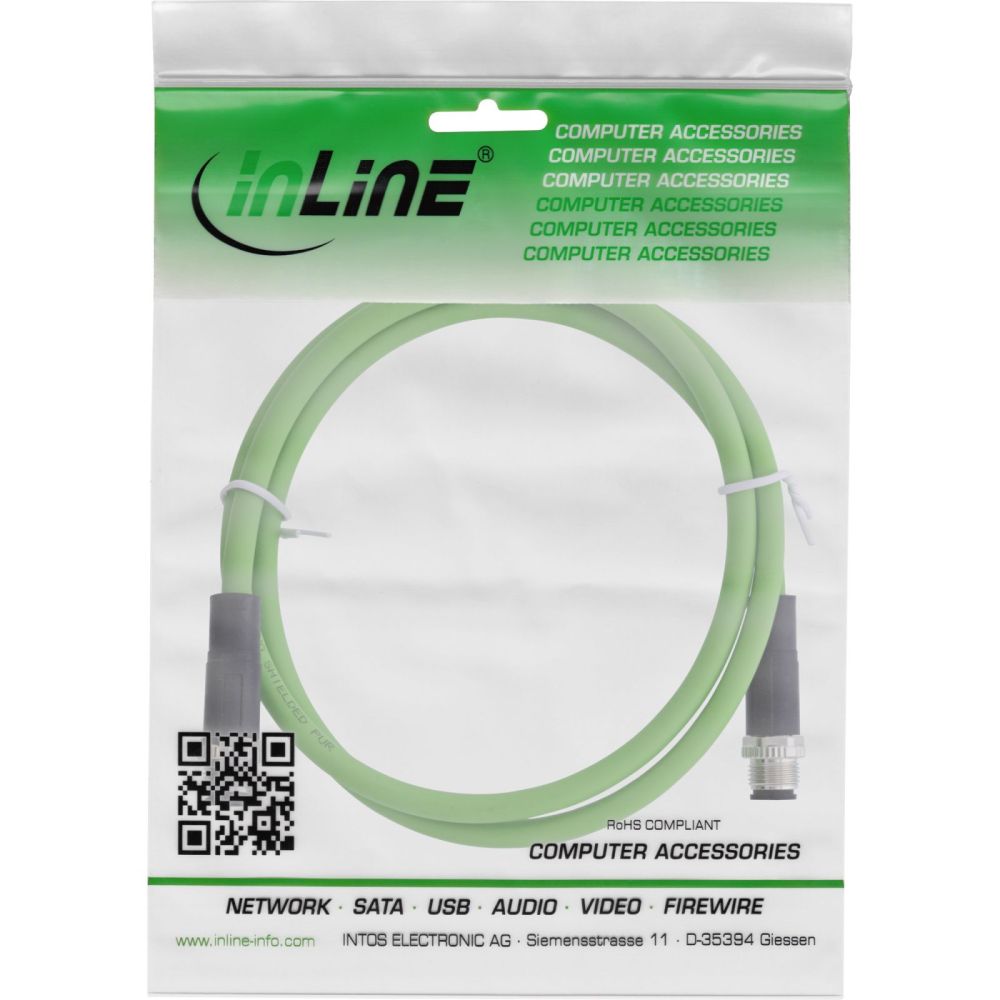

InLine® Industrial network cable, M12 4-pin D-coded male/male, PUR 3m content_copy

Industrial network cable for reliable data transmission with up to 100 Mbit/s
Extremely durable and flexible: Suitable for drag chains up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water- and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks

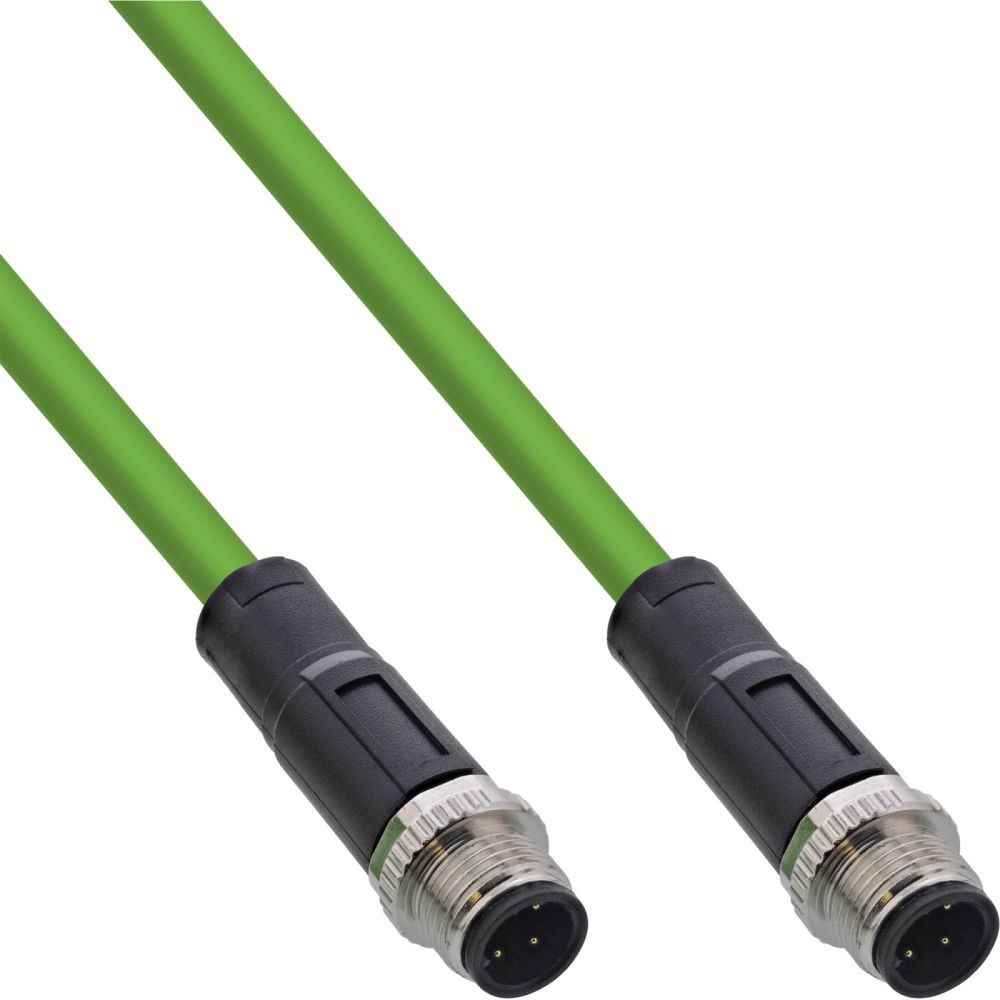

The InLine® industrial network cable M12 4-pin D-coded plug/connector offers a high-quality solution for industrial applications where a robust and reliable data connection is required.
With a CAT5E performance of up to 100 Mbit/s, it enables fast and secure data transmission - ideal for automation, mechanical engineering and industrial networks.
The cable impresses with its extreme load capacity: It is suitable for drag chains up to 10 million bends and torsion-resistant up to 3 million bends. The high-quality PUR coating protects against oil, UV radiation and abrasion and ensures a long service life.

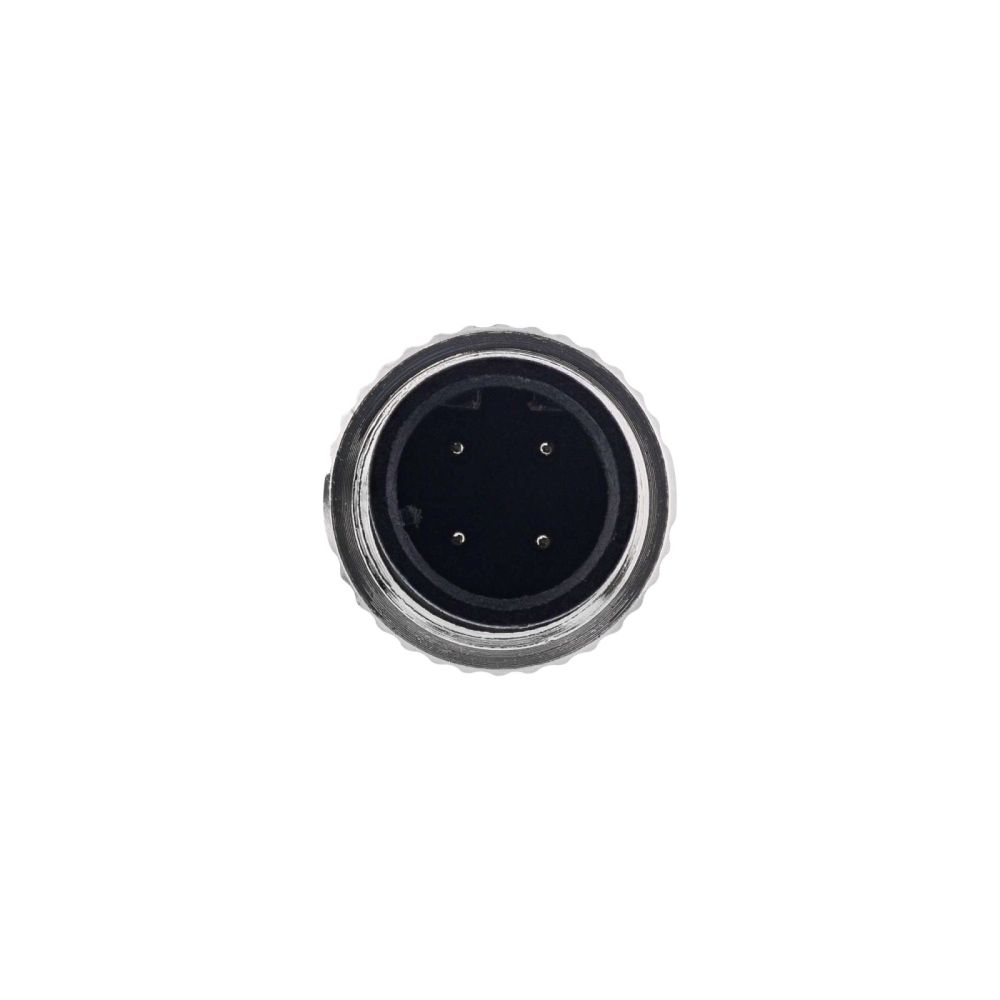

The M12 4-pin D-coded connector is IP67 waterproof, so the connection remains reliable even in damp or dusty environments, perfect for connecting to industrial networks and control systems.
Technical details:
Wire cross-section: 22 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Connector type: M12 4-pin D-coded IP67) to M12 4-pin D-coded IP67)
Certifications: Flame retardant according to UL 94
Shielding: SF/UTP
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green

Features
Cable length	3 m
Connector 1	M12
Connector 2	M12
Connector gender	Male/Male
Cable colour	Green
Conductor material	Copper
AWG wire size	22
Jacket material	Polyurethane (PUR)
Bending radius (max)	9.8 cm
Country of origin	China
Oil-resistant
Ultraviolet (UV) resistant
Operational conditions
Operating temperature (T-T)	-25 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Packaging data
Quantity	1
Package width	200 mm
Package depth	260 mm
Package height	23 mm
Package weight	174 g
Technical data
Outer diameter	6.5mm
Storage temperature	-40 to +80°C
Width packaging	0.200m
Weight	0.174kg
Length packaging	0.260m
Coding	D-coded
Net weight	0.161kg
Colour	Green
Signal	Network / Data
Article length	300.00cm
Side A	M12 male plug 4-pin straight
Conductor material	Copper
Article width	1.50cm
Height packaging	0.023m
Special feature	Suitable for drag chains
Packaging volume	0.0012m³
Operation temperature	-25 to +70°C
Diameter	AWG 24
Bending radius (dynamic)	>98mm
Type	Cat.5e
Bending radius (static)	>52mm
Shielding	SF/UTP
Sheath	PUR
Data transmission rate	100Mb/s
Side B	M12 male plug 4-pin straight
Torsion	+/- 180°/m
Article height	1.50cm
UL
Technical details
Doesn't contain	Halogen
Package volume	1200 cm³
Compliance certificates	UL

---
