InLine® Industrial network cable, M12 4-pin D-coded male/male, PUR 1m
|
20,59 EUR |
|
|
( 24,50 EUR incl. VAT ) ≈ £17.23 | ≈ $23.04 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22194831 |
| Mfg Part No: | 40301 |
| UPC/EAN: | 4043718318445 |
| Weight: | 0.077 kg |

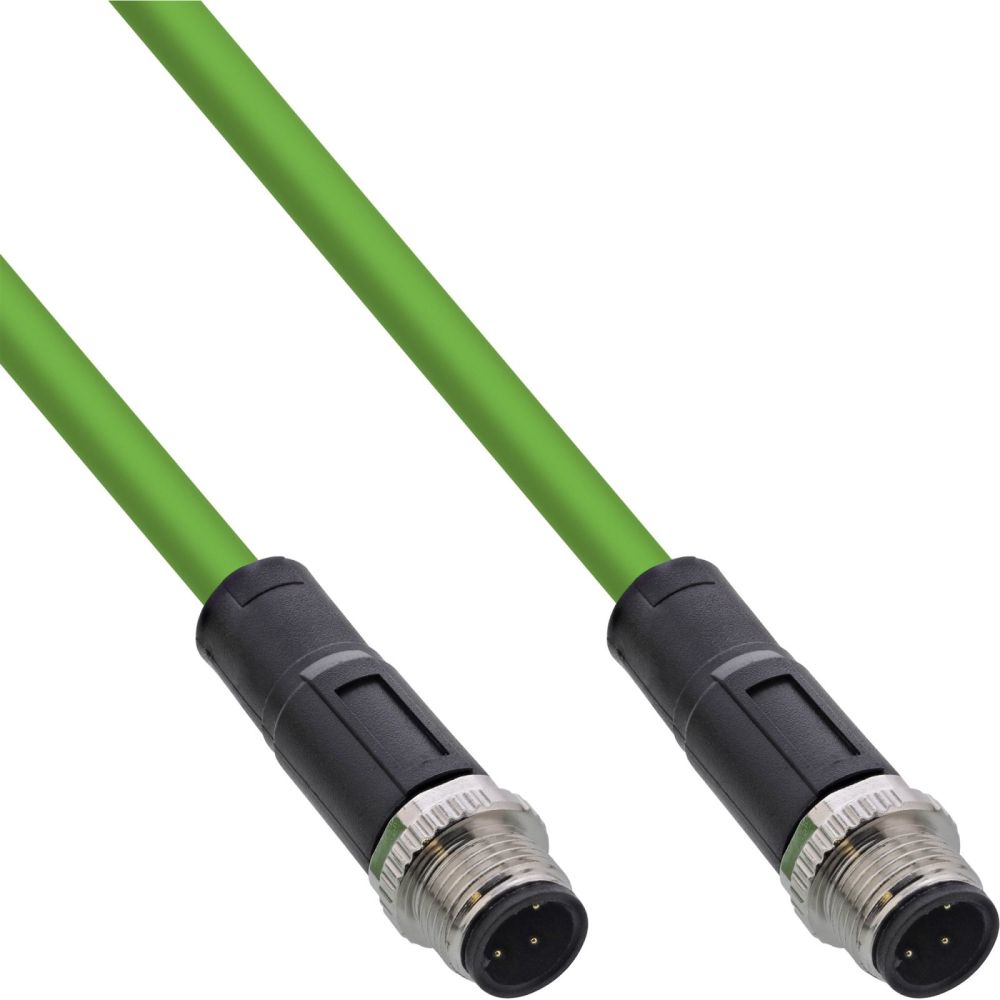

Product information for Inline 40301:
Industrial network cable for reliable data transmission with up to 100 Mbit/s
Extremely durable and flexible: Suitable for drag chains up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water- and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks
The InLine® industrial network cable M12 4-pin D-coded plug/connector offers a high-quality solution for industrial applications where a robust and reliable data connection is required.
With a CAT5E performance of up to 100 Mbit/s, it enables fast and secure data transmission - ideal for automation, mechanical engineering and industrial networks.
The cable impresses with its extreme load capacity: It is suitable for drag chains up to 10 million bends and torsion-resistant up to 3 million bends. The high-quality PUR coating protects against oil, UV radiation and abrasion and ensures a long service life.
The M12 4-pin D-coded connector is IP67 waterproof, so the connection remains reliable even in damp or dusty environments, perfect for connecting to industrial networks and control systems.
Technical details:
Wire cross-section: 22 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant

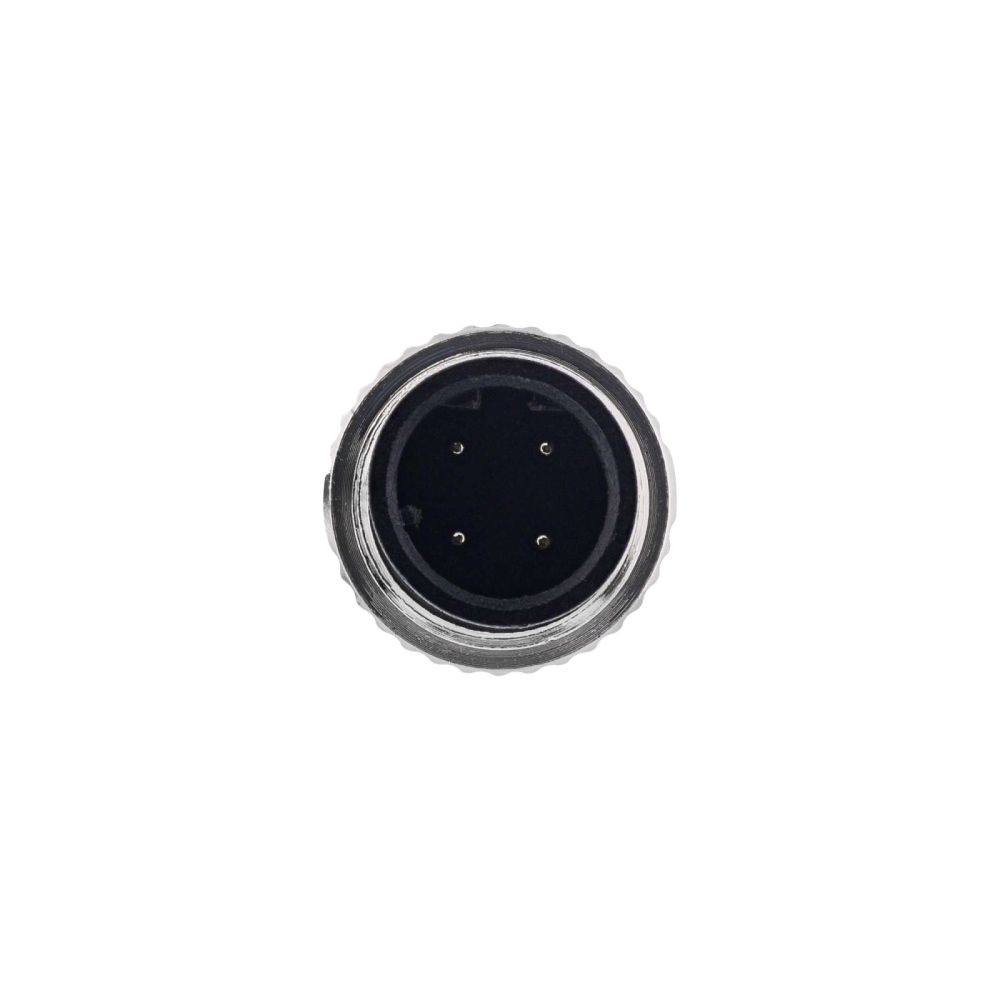

Connector type: M12 4-pin D-coded IP67) to M12 4-pin D-coded IP67)
Certifications: Flame retardant according to UL 94
Shielding: SF/UTP
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green
Extremely durable and flexible: Suitable for drag chains up to 10 million bends, torsion-resistant up to 3 million bends
Rugged design with IP67 M12 connector – water- and dust-protected for industrial use
Resistant PUR jacket: Oil-resistant, UV-resistant, abrasion-resistant, halogen-free and flame-retardant (UL 94)
Ideal for automation, mechanical engineering and industrial networks
The InLine® industrial network cable M12 4-pin D-coded plug/connector offers a high-quality solution for industrial applications where a robust and reliable data connection is required.
With a CAT5E performance of up to 100 Mbit/s, it enables fast and secure data transmission - ideal for automation, mechanical engineering and industrial networks.
The cable impresses with its extreme load capacity: It is suitable for drag chains up to 10 million bends and torsion-resistant up to 3 million bends. The high-quality PUR coating protects against oil, UV radiation and abrasion and ensures a long service life.
The M12 4-pin D-coded connector is IP67 waterproof, so the connection remains reliable even in damp or dusty environments, perfect for connecting to industrial networks and control systems.
Technical details:
Wire cross-section: 22 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Connector type: M12 4-pin D-coded IP67) to M12 4-pin D-coded IP67)
Certifications: Flame retardant according to UL 94
Shielding: SF/UTP
Dynamic bending radius: >98 mm
Static bending radius: >52 mm
Operating temperature: -25 to +70 °C
Storage temperature: -40 to +80 °C
Outlet diameter: 6.5 mm
Color: green
| Features | |
| Cable length | 1 m |
| Connector 1 | M12 |
| Connector 2 | M12 |
| Connector gender | Male/Male |
| Cable colour | Green |
| Conductor material | Copper |
| AWG wire size | 22 |
| Jacket material | Polyurethane (PUR) |
| Bending radius (max) | 9.8 cm |
| Country of origin | China |
| Oil-resistant | |
| Ultraviolet (UV) resistant | |
| Operational conditions | |
| Operating temperature (T-T) | -25 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |

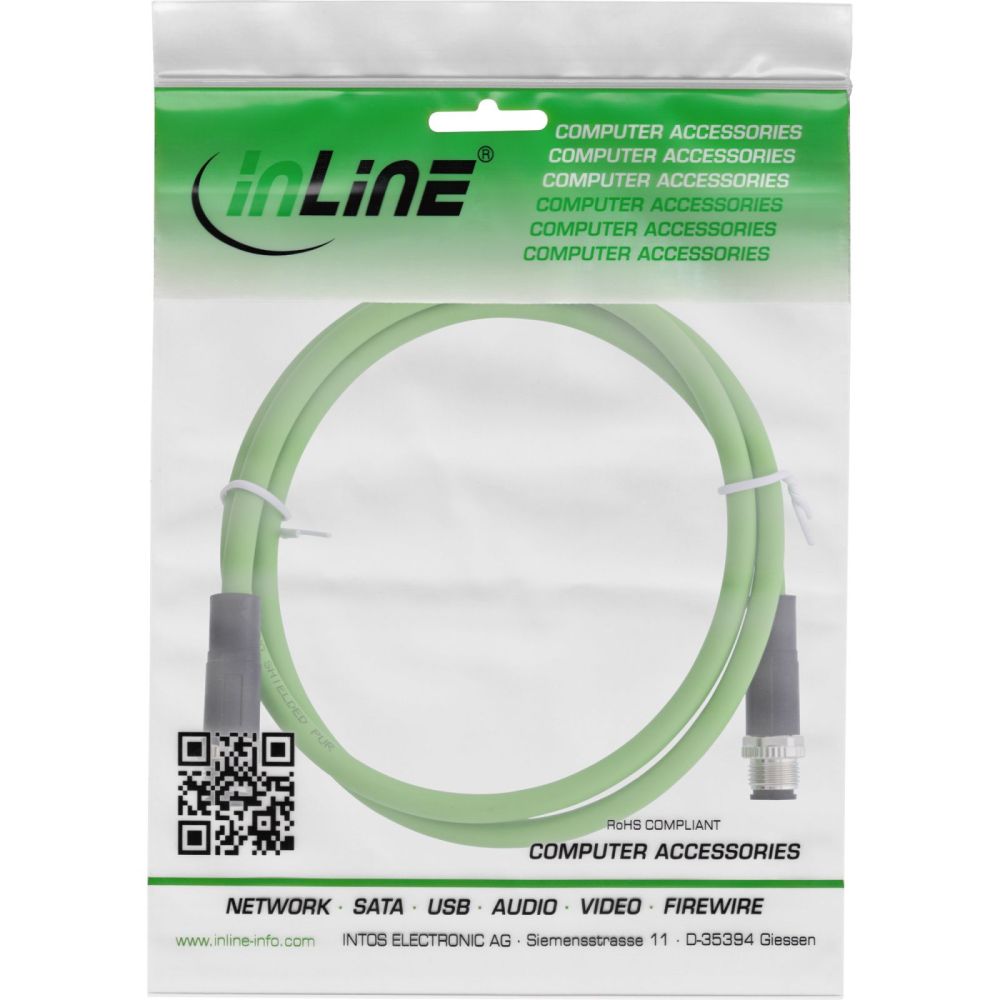

| Packaging data | |
| Quantity | 1 |
| Package width | 175 mm |
| Package depth | 240 mm |
| Package height | 15 mm |
| Package weight | 77 g |
| Package type | Polybag |
| Technical data | |
| Packaging volume | 0.0007m³ |
| Operation temperature | -25 to +70°C |
| Diameter | AWG 24 |
| Height packaging | 0.015m |
| Special feature | Suitable for drag chains |
| Side A | M12 male plug 4-pin straight |
| Conductor material | Copper |
| Length packaging | 0.240m |
| Coding | D-coded |
| Article width | 1.50cm |
| Sheath | PUR |
| Bending radius (dynamic) | >98mm |
| Data transmission rate | 100Mb/s |
| Type | Cat.5e |
| Bending radius (static) | >52mm |
| Shielding | SF/UTP |
| Article height | 1.50cm |
| Side B | M12 male plug 4-pin straight |
| Torsion | +/- 180°/m |
| Article length | 100.00cm |
| Colour | Green |
| Signal | Network / Data |
| Net weight | 0.070kg |
| Width packaging | 0.175m |
| Outer diameter | 6.5mm |
| Storage temperature | -40 to +80°C |
| Weight | 0.077kg |
| UL | |
| Technical details | |
| Doesn't contain | Halogen |
| Package volume | 700 cm³ |
| Compliance certificates | UL |
