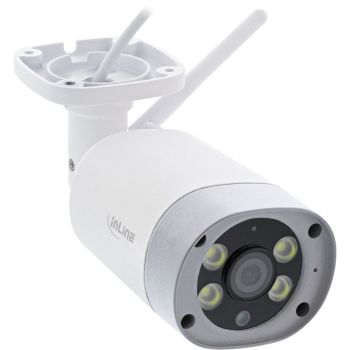

InLine® SmartHome HD WLAN outdoor camera with LED, IP66 content_copy

Reliable outdoor surveillance in Full HD quality: The camera delivers a resolution of 1,920x1,080@50Hz at 25 frames per second and uses H.264 compression for efficient data processing and space-saving storage.
Robust IP66 housing for long-term outdoor use: The water- and dust-proof construction made of metal, glass and ABS+PC is designed for operating temperatures of -30-50°C and enables reliable use in a wide range of weather conditions.
Clear vision day and night: Four integrated IR LEDs enable night vision up to 15 metres. Additional LED lighting supports image display from as little as 0.5 lux.
Secure network integration via 2.4 GHz WiFi: The camera supports IEEE802.11b/g/n as well as DHCP/IP/TCP/UDP and 64/128-bit WEP or WPA/WPA2. This allows it to be integrated into existing networks in a stable and secure manner.
Local recording without additional infrastructure: The integrated micro SD slot supports memory cards up to 128 GB and enables independent data storage directly in the device.
The InLine® SmartHome HD camera for outdoor use combines robust construction with modern network technology. The IP66-protected housing provides reliable protection against dust and water. This allows for continuous outdoor use even in demanding weather conditions. The camera is designed for operating temperatures of -30-50°C.
The integrated 1/6,9 cm ( 2,7 inch ) progressive CMOS sensor delivers a resolution of 1,920x1,080@50Hz at 25 frames/s. Thanks to H.264 compression, image data is processed and stored efficiently. The 75° image angle enables targeted monitoring of defined areas.
Four IR LEDs are available for use in the dark. These enable a night vision range of up to 15 m. In addition, integrated LED lighting supports visibility in low ambient brightness conditions from 0.5 lux.
The camera is integrated into the network via 2.4 GHz WiFi in accordance with IEEE802.11b/g/n. DHCP/IP/TCP/UDP as well as 64/128-bit WEP and WPA/WPA2 are supported. The maximum transmission power is 9.58 dBm in the frequency range from 2.412 to 2.472 GHz.Power is supplied via AC 100-240V. The included power supply provides 12V/1A via DC 5.5x2.1mm. The maximum power consumption is 10kWh/year.A micro SD slot for up to 128GB is available in the housing for local storage.
Motion detection (~8 m)
Push notifications IP66 (water and dust resistant)
WiFi signal: WiFi 2.4 GHz
WiFi standard: IEEE802.11b/g/n
Protocol: DHCP/IP/TCP/UDP
WiFi security: 64/128-bit WEP encryption, WPA/WPA2
Frequency range: 2.412-2.472 GHz
Max. transmission power: 9.58 dBm
Range: Up to 45 m (with line of sight)
Image sensor: 1/6,9 cm ( 2,7 inch ) progressive CMOS
Resolution: 1,920 x 1,080 @ 50 Hz
Image compression: H.264
Frame rate: 25 frames/s
Image angle: 75
Infrared light: 4 IR LEDs, night vision up to 15 m
External, omnidirectional antenna
Colour: White, silver
Material: Metal, glass, ABS+PC plastic
Connection: AC 100-240V
Power supply: 12V/1A, DC 5.5x2.1mm
Power consumption: max. 10kWh/year
Connections: Micro SD card up to 128GB in the housing
Blue signal LED
Product dimensions (LxWxH): 165x79x76mm
Net weight: 389g
Illumination: 0.5 lux
Camera lens: 3.6mm
Image mirroring: Vertical
Operating temperature: -30°-50°C
Operating humidity: 20%-85% non-condensing
Storage temperature: -30°-65°C
Storage humidity: 0%-90% non-condensing
Contents: InLine® SmartHome HD camera, power supply, 4 screws and dowels, screwdriver, user manual
App: Smart Life
Compatible with: Amazon Alexa, Google Assistant

Camera
Lens viewing angle, horizontal	75°
Lens viewing angle, vertical	75°
Design
Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	Silver, White
Housing material	Glass, Metal, Plastic
International Protection (IP) code	IP66
Image sensor
Number of sensors	1
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Sensor type	CMOS
Lens system
Number of lenses	1
Lens diameter	3.6 mm
Network
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	DHCP/IP/TCP/UDP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN
Wi-Fi
Bluetooth
Night vision
Night vision distance	5 m
LED type	IR
Number of illumination LEDs	4
Night vision
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	0 - 90%
Other features
Dimensions (WxDxH)	70 x 170 x 80 mm
Packaging content
Number of cameras	1
Screws included
Packaging data
Package width	150 mm
Package depth	180 mm
Package height	85 mm
Package weight	558 g
Package volume	2300 cm³
Performance
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	45 m
Antenna type	External
Antennas quantity	1
Power
Power source type	AC, DC
AC input voltage	100 - 240 V
DC output voltage	12
DC output current	1 A
Security
Security algorithms	WPA, WPA2
Video motion detection
Storage
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Built-in HDD
Card reader integrated
Technical data
Height packaging	0.085m
Article width	7.00cm
WiFi standard	IEEE802.11b/g/n
Type	Camera
Range (approx.)	In visual sight up to 45m
WiFi signal	2.4GHz
Packaging volume	0.0023m³
Article height	8.00cm
WiFi security	WPA/WPA2 encryption
Width packaging	0.150m
Article length	17.00cm
Weight	0.558kg
Length packaging	0.180m
Net weight	0.440kg
Video
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264
Frame rate	25 fps
Weight & dimensions
Width	70 mm
Depth	170 mm
Height	80 mm
Length	165 mm
Weight	440 g

---
