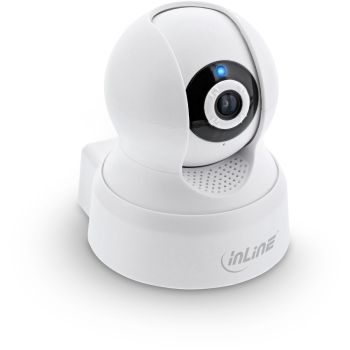

InLine® Smart Home Camera Indoor content_copy

Convenient indoor monitoring with app and night visionWide field of view: 330° horizontal and 120° vertical for broad room coverage.
Reliable detection and alerting: Motion detection with push notifications informs in real time.
Clear recordings day and night: 8 IR LEDs provide up to 10 m night vision.
Direct communication: Integrated microphone and speaker enable two-way audio.
Fast integration and control: 2.4 GHz WiFi and app support for scenarios and automations.
The compact indoor camera is integrated into your smart home via WiFi and monitors rooms reliably. Motion detection with push notifications, pan/tilt function, and night vision help keep activities in view. Using the Smart Life app, you retrieve live images, control the orientation, use the voice function, and store recordings locally on a Micro SD card up to 128 GB.
Whether in apartments, offices, entrance areas, or meeting rooms - the camera integrates quickly into existing infrastructures and supports on-site installations as well as ongoing operation in companies and public institutions. Scenarios and automations can be implemented conveniently via the app, while remote access and notifications simplify daily control.
Connection: Micro-USB (5 V/1 A), Reset, Micro SD up to 128 GB card slot (exFAT)
Wireless: WiFi 2.4 GHz
Standard: IEEE 802.11b/g/n
Protocol: DHCP/IP/TCP/UDP/UDP
Security: 64/128-bit WEP, WPA/WPA2
Antenna: Built-in omnidirectional antenna
Rotation angle: Horizontal 330°, vertical 120°
Night vision: 8 IR LEDs, up to 10 m
Image sensor: 1/10,2 cm ( 4 inch ) color CMOS sensor
Viewing angle: 65°
Video: H.264, 25 fps
Resolution: 1.280 x 720 @ 50 Hz; 640 x 360 @ 60 Hz
Mirroring: Vertical
Range: Up to 45 m (line of sight)
Product dimensions: 86 x 86 x 100 mm
Material: ABS+PC plastic
Color: White
Camera lens: 3.6 mm 4G lens
Signal LED: Blue
Power supply: 100-240 V USB plug-in power supply
Power consumption: max. 43 kWh/year
Operating temperature: 0-40 °C
Operating humidity: 20-85 % non-condensing
Storage temperature: 0-60 °C
Storage humidity: 0-90 % non-condensing
App: Smart Life
Compatibility: Amazon Alexa, Google Assistant

Audio
Built-in speaker(s)
Built-in microphone
Camera
Minimum illumination	0.5 lx
Lens viewing angle, horizontal	330°
Lens viewing angle, vertical	120°
Design
Form factor	Turret
Mounting type	Desk
Product colour	White
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
LED indicators
Image sensor
Optical sensor size	25.4 / 4 mm (1 / 4")
Sensor type	CMOS
Lens system
Lens diameter	3.6 mm
Management features
Reset button
Network
Supported network protocols	DHCP/IP/TCP/UDP/UDP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN
Wi-Fi
Bluetooth
Night vision
Night vision distance	10 m
LED type	IR
Number of illumination LEDs	8
Night vision
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	0 - 90%
Other features
Dimensions (WxDxH)	85 x 95 x 105 mm
Packaging content
Number of cameras	1
Packaging data
Package width	109 mm
Package depth	177 mm
Package height	90 mm
Package weight	372 g
Package volume	1800 cm³
Performance
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Maximum operating distance	45 m
Antenna type	Internal
Power
Power source type	AC
AC input voltage	100 - 240 V
Security
Security algorithms	WPA, WPA2
Video motion detection
Storage
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Built-in HDD
Card reader integrated
Technical data
Weight	0.372kg
Width packaging	0.109m
Height packaging	0.090m
Range (approx.)	In visual sight up to 45m
Article height	10.50cm
Type	Camera
Net weight	0.203kg
WiFi security	WPA/WPA2 encryption
WiFi signal	2.4GHz
Length packaging	0.177m
Article length	9.50cm
WiFi standard	IEEE802.11b/g/n
Packaging volume	0.0018m³
Article width	8.50cm
Video
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Supported graphics resolutions	640 x 360, 1280 x 720 (HD 720)
Frame rate	25 fps
Weight & dimensions
Width	85 mm
Depth	95 mm
Height	105 mm
Weight	203 g

---
