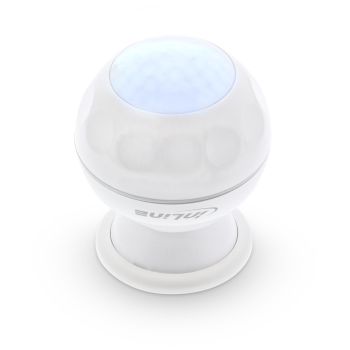

InLine® Smart Home motion detector content_copy

Smart home automations with reliable motion detectionAutomatic scenes and alerts: Detects motion and starts defined routines such as lights or notifications.
Quick app-based setup: Pairing, rules and links in a few steps.
Reliable WiFi connection: 2.4 GHz WiFi for flexible placement.
Long battery operation: Up to 2 years at 7 triggers per day with 1 x CR123A.
Compact and unobtrusive: 46 mm diameter, 60 mm height with base.
The motion sensor connects to the 2.4 GHz WiFi and is set up in the Smart Life app. It detects motion at 4-6 m and then triggers scenes or automations, for example for lighting control or notifications. The wireless range is up to 45 m with line of sight.
In apartments, offices, entrance areas and corridors, the sensor supports convenient automation without additional cabling. It also facilitates on-site installations and service deployments in existing infrastructures of companies and public institutions, since rules and links can be quickly adjusted via the app.
Color: White
Material: ABS+PC plastic
Wireless: WiFi 2.4 GHz
Standard: IEEE802.11b/g/n
Range: up to 45 m (line of sight)
Motion detection: 4-6 m
Power consumption: 120-130 mA
Standby consumption: 13 µA
Battery: 1 x CR123A
Battery life: approx. 2 years (at 7 triggers per day)
Battery life in standby: approx. 5 years
Operating temperature: 0-40 °C
Operating humidity: 20-85 %
Storage temperature: 0-60 °C
Storage humidity: 0-90 %
Weight: 100 g
Dimensions (D): 46 mm
Dimensions (D x H, with base): 46 x 60 mm
App: Smart Life
Compatibility: Amazon Alexa and Google Assistant

Features
Mounting type	Ceiling
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi frequency	2.4 GHz
Product colour	White
Security algorithms	WPA, WPA2
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	0 - 90%
Packaging content
Batteries included
Manual
Screws included
Packaging data
Package width	85 mm
Package depth	97 mm
Package height	50 mm
Package weight	93 g
Power
Power source type	Battery
Power consumption	130 mA
Standby current	0.013 mA
Battery type	CR123A
Number of batteries supported	1
Security
Connectivity technology	Wireless
Operating frequency	2400 MHz
Detection distance	6 m
Transmission distance	45 m
Technical data
Type	Motion detector
Range (approx.)	In visual sight up to 45m
Width packaging	0.085m
Length packaging	0.097m
Article length	5.00cm
Packaging volume	0.0005m³
Article height	6.00cm
WiFi standard	IEEE802.11b/g/n
Net weight	0.060kg
Weight	0.093kg
WiFi security	WPA/WPA2 encryption
Height packaging	0.050m
Article width	5.00cm
WiFi signal	2.4GHz
Weight & dimensions
Width	500 mm
Depth	500 mm
Height	600 mm
Weight	60 g

---
