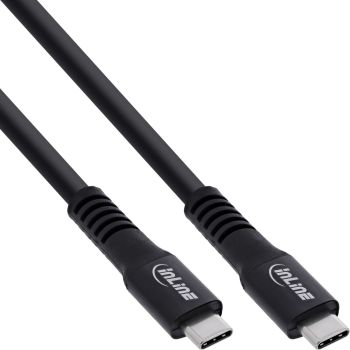

InLine® USB4 cable, USB-C male/male, 4K 60Hz, 60W, TPE/aluminium, black, 5m content_copy

Greater freedom in positioning your USB-C devicesFlexibly bridge long distances: With lengths of 3 m, 5 m or 7.5 m, you can connect USB-C devices even where short cables for monitors, docking stations or PCs are not long enough.
Take advantage of fast data transfer: USB4 Gen 2x2 enables speeds of up to 20 Gb/s between compatible USB-C devices, making it ideal for large files, docking stations and other data-intensive connections.
Transmit 4K video signals via USB-C: The cable supports video up to 4K @ 60 Hz and connects compatible monitors or displays to a USB-C source device even over longer distances.
Choose the appropriate power supply for each variant: The 3-metre version supports up to 240 W at 48 V and 5 A. The 5-metre and 7.5-metre versions support up to 60 W at 20 V and 3 A.
Combining multiple functions in a single connection: Data, video signals and power can be transmitted via the same USB-C cable, provided the connected devices support the respective functions.
With these extra-long USB4 cables, USB-C devices can be conveniently connected even when longer distances need to be bridged. The 3 m, 5 m and 7.5 m versions offer greater freedom when positioning monitors, docking stations, PCs and other compatible USB-C devices.
This makes the cables particularly suitable for desks, presentation areas and installations where the source and destination devices are not immediately next to one another. Long cable runs can be achieved without the need for multiple short intermediate connections.
USB4 Gen 2x2 supports data transfer rates of up to 20 Gb/s. In addition, compatible video signals can be transmitted at up to 4K @ 60 Hz. This allows data transfer, video and power supply to be utilised via a single USB-C connection.
The variants differ in terms of power supply. The 3-metre cable supports up to 240 W at 48 V and 5 A. The 5-metre and 7.5-metre versions support up to 60 W at 20 V and 3 A.
USB4 Gen 2x2
Data transfer rate up to 20 Gb/s
Supports video transmission up to 4K @ 60 Hz
Extra-long cable lengths of 3 m, 5 m and 7.5 m
35933A: Power Delivery up to 240 W / 48 V / 5 A
35935A / 35937A: Power Delivery up to 60 W / 20 V / 3 AIntegrated E-marker
Black aluminium connector housing
Black TPE cable sheath
Gold-plated USB-C contacts, nickel-plated connector shielding
Backwards compatible with USB 3.2 and USB 2.0
Operating temperature: 0 to +45 °C
Storage temperature: -20 to +70 °C

Features
USB version	USB4 Gen 2x2
Connector 1	USB C
Connector 2	USB C
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Cable jacket material	Thermoplastic elastomer (TPE)
Maximum data transfer rate	20 Gbit/s
Cable type	Round cable
USB Power Delivery up to	60 W
Product colour	Black
USB Power Delivery (USB PD)
Logistics data
Package volume	1300 cm³
Packaging data
Package width	180 mm
Package depth	240 mm
Package height	30 mm
Package weight	249 g
Power
Output voltage	20 V
Output current (max)	3 A
Technical data
Length packaging	0.240m
Weight	0.249kg
Side B	USB-C male
Article width	1.30cm
Length	5m
Packaging volume	0.0013m³
Article length	500.00cm
Colour	Black
Net weight	0.236kg
USB specification	USB 4
Article height	0.70cm
Signal	Data/Power
Packing	Retail
Operation temperature	0 to +45°C
Side A	USB-C male
Width packaging	0.180m
Design	Round cable
Type	USB4
Height packaging	0.030m
Storage temperature	-20 to +70°C
UL
Weight & dimensions
Cable length	5 m
Width	13 mm
Depth	5000 mm
Height	7 mm
Weight	236 g
Dimensions (WxDxH)	13 x 5000 x 7 mm

---
