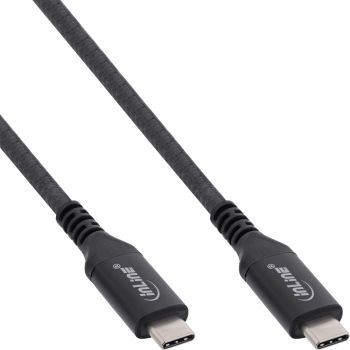

InLine® USB4 cable, USB-C, male/male, 40 Gb/s, black, 1.50 m content_copy

USB4 cable for fast data transfer, high-resolution video and up to 240WFast data transfer: USB4 Gen 3x2 enables speeds of up to 40 Gb/s in dual-lane operation. This allows you to transfer large amounts of data at high speed via a single USB-C connection.
High charging power: USB Power Delivery 3.1 supports power profiles from 5V/3A to 48V/5A and a maximum of 240W. This allows you to power compatible USB-C devices via the same cable connection.
High-resolution image transmission: The USB-C cable supports resolutions up to 7680 x 4320 at 60 Hz. This allows you to connect compatible devices to displays or USB graphics solutions for detailed image output.
Wide USB compatibility: The USB4 cable is backward compatible with USB 3.2, USB 3.1, USB 3.0 and USB 2.0. This allows it to be used with various compatible USB-C devices and interfaces.
High-quality cable construction: An outer textile braid, twisted wire pairs inside and aluminum connectors form a high-quality construction for regularly used USB-C connections in everyday life.
The InLine USB4 cable lets you connect compatible devices via USB-C and utilize data transfer, video transmission, and power delivery through a single cable connection. USB4 Gen 3x2 supports data transfer rates of up to 40 Gb/s in dual-lane operation. This is suitable, for example, for connecting external USB hard drives, USB graphics solutions, and other devices with a USB-C port.
The cable supports image transmission resolutions up to 7680 x 4320 at 60 Hz. This means it can also be used for compatible display connections.
USB Power Delivery 3.1 supports power profiles from 5V/3A to 48V/5A. This allows for a maximum power output of 240W with compatible devices and power sources.
Existing USB devices can also be flexibly integrated. The cable is backward compatible with USB 3.2, USB 3.1, USB 3.0, and USB 2.0. An outer textile braid, twisted wire pairs inside, and aluminum connectors complete the high-quality cable construction.
Connectors: USB-C male to USB-C male
USB standard and data transfer: USB4 Gen 3x2, data transfer rate up to 40 Gb/s, dual-lane
USB compatibility: Backward compatible with USB 3.2, USB 3.1, USB 3.0 and USB 2.0
USB Power Delivery: USB Power Delivery 3.1, 5V/3A to 48V/5A, maximum 240W
Video transmission: Resolution up to 7680 x 4320 at 60 Hz
Cable construction: Textile braid on the outside, twisted wire pairs on the inside
Connector type: Aluminum connector
Color: Black

Certificates
Compliance certificates	TÜV mark
Features
USB version	USB4 Gen 3x2
Connector 1	USB C
Connector 2	USB C
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	24/30
Cable jacket material	Textile
Maximum data transfer rate	40 Gbit/s
Cable type	Round cable
USB Power Delivery up to	240 W
Product colour	Black
Fast charging
USB Power Delivery (USB PD)
Logistics data
Package volume	500 cm³
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package type	Hanging box
Package width	105 mm
Package depth	210 mm
Package height	22 mm
Package weight	84 g
Power
Output voltage	48 V
Output current (max)	5 A
Technical data
Outer diameter	5.1mm
Side B	USB-C male
USB specification	USB 4
Operation temperature	0 - 50°C
Length	1.50m
Storage temperature	-20 - 60°C
Side A	USB-C male
Length packaging	0.210m
Article height	0.70cm
Data transmission rate	40Gb/s
Height packaging	0.022m
Width packaging	0.105m
Article length	150.00cm
Diameter	AWG 24/30
Design	Round cable
Packing	Retail
Net weight	0.060kg
Colour	Black
Packaging volume	0.0005m³
Signal	Data/Power
Article width	1.30cm
Weight	0.084kg
Shielding	Double shielding
Type	USB4
UL
Weight & dimensions
Cable length	1.5 m
Cable diameter	5.1 mm
Width	13 mm
Depth	1500 mm
Height	7 mm
Weight	60 g
Dimensions (WxDxH)	13 x 1500 x 7 mm

---
