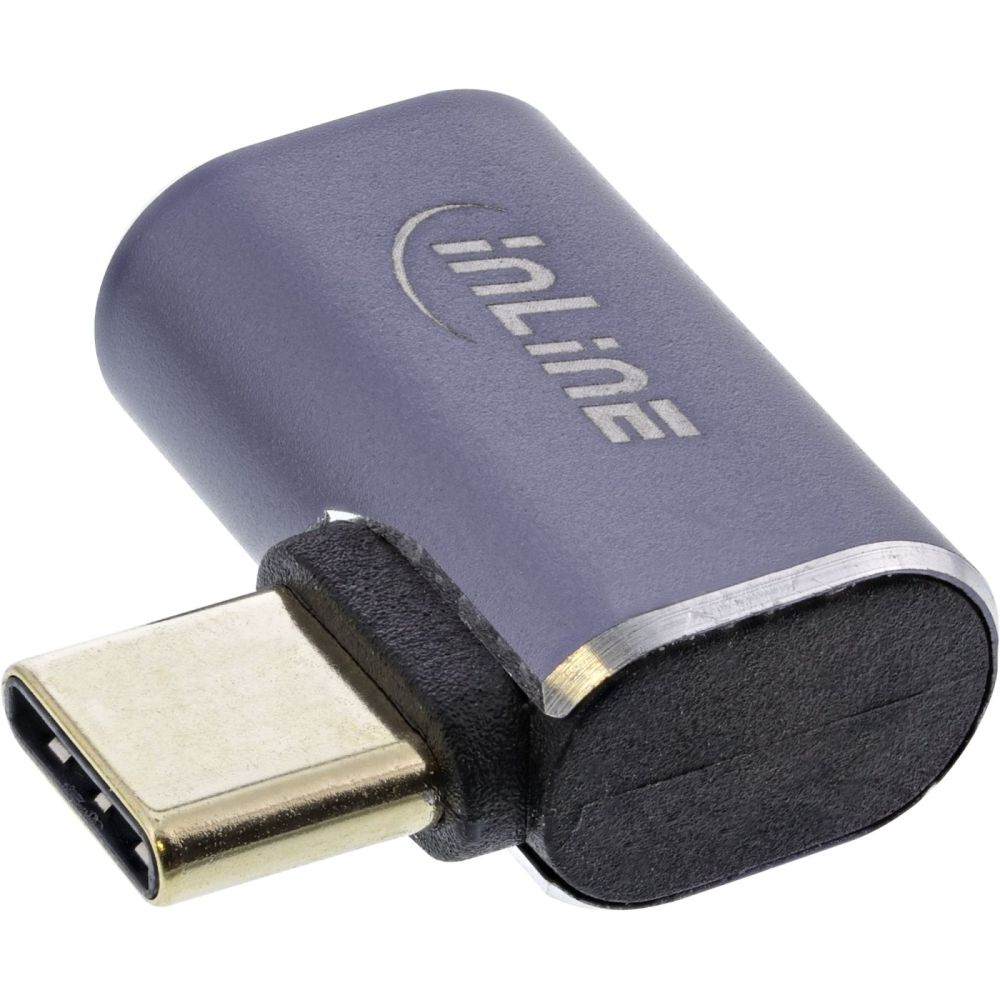

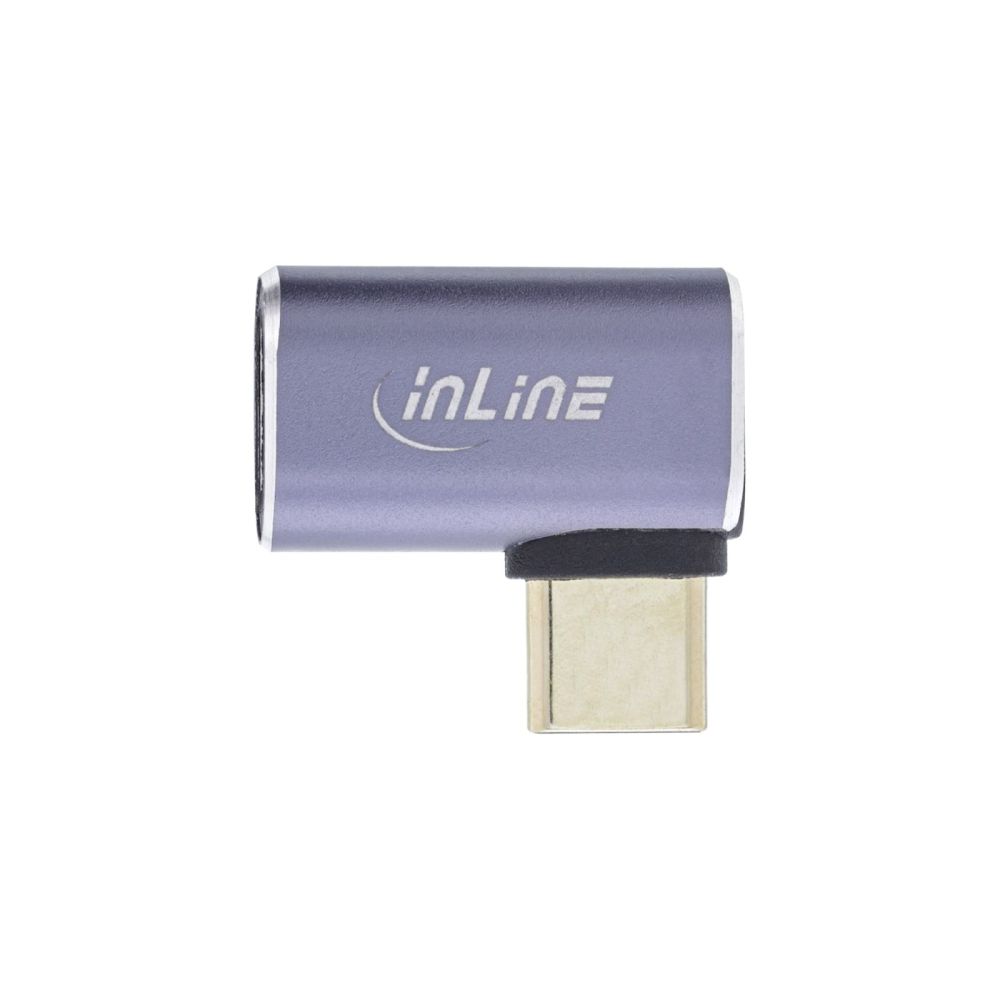

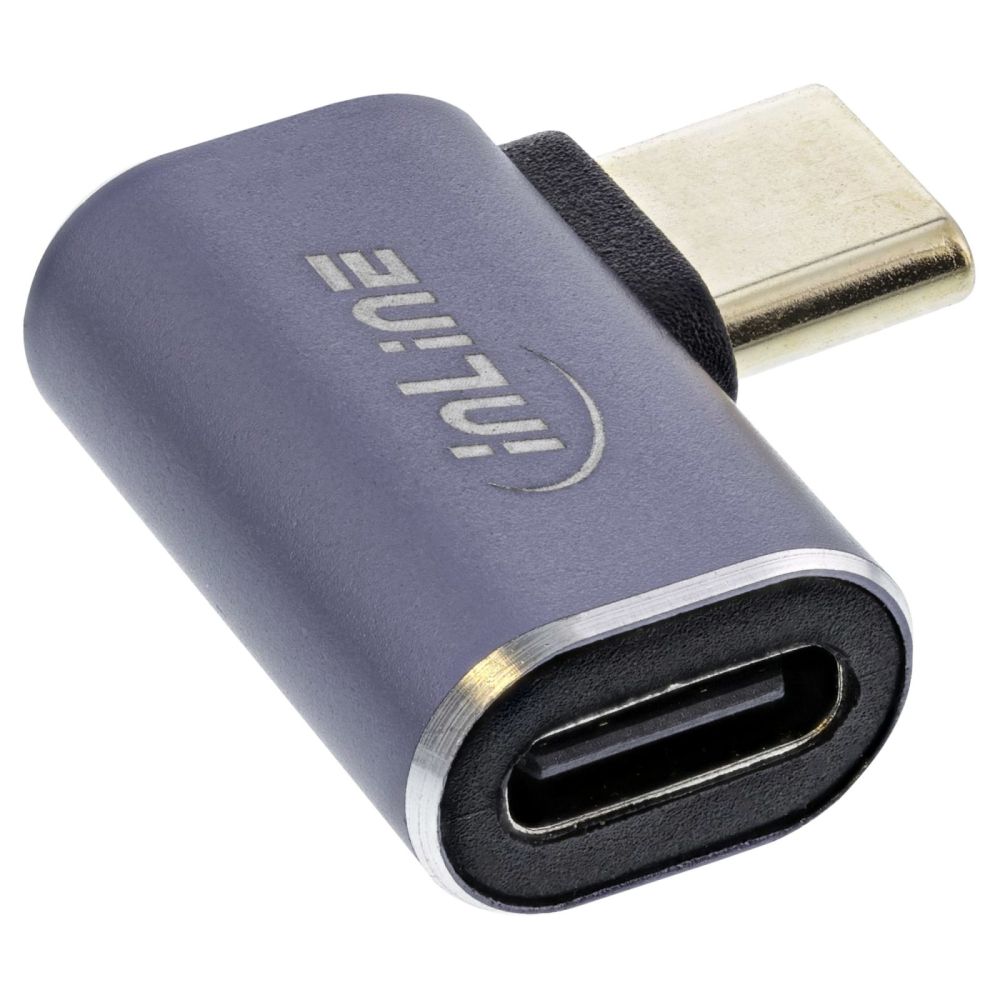

InLine® USB4 Adapter, USB-C male/female right/left angled, aluminium, grey content_copy

More space at the USB-C port with an angled USB4 adapterSave space at tight ports: Right/left-angled USB-C adapter reduces bending forces and keeps cabling tidy.
High transmission performance: USB4 with up to 40 Gb/s for fast data and 8K at 60 Hz for displays.
Powerful power delivery: EPR up to 240 W (48 V/5 A) for charging high-performance devices.
Convenient handling: Reversible USB-C plug for easy connection.
Durable design: Aluminum housing for frequent plugging and unplugging.
The compact USB-C angle adapter routes your port to the right or left to save space and relieves cable strain in confined situations. It supports USB4 with data rates up to 40 Gb/s, video output up to 8K at 60 Hz, and EPR up to 240 W (48 V/5 A). This lets you connect USB devices or charge notebooks, tablets, and phones via a stable, precise-fit plug connection.
On the desk, on wall mounts, or in racks, the adapter provides more freedom of movement and reduces strain on sockets. It proves itself in professional IT environments, in on-site installations, in service deployments, and in existing infrastructures of companies and public institutions.
Connection: USB-C plug to USB-C socket
Orientation: right/left-angled
Standard: USB4
Data rate: up to 40 Gb/s
Video: up to 8K at 60 Hz
Power: up to 240 W (EPR 48 V/5 A)
Housing: aluminum

Logistics data
Package volume	100 cm³
Other features
Dimensions (WxDxH)	23 x 25 x 5 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	120 mm
Package height	5 mm
Package weight	5 g
Package type	Polybag
Performance
Product colour	Grey
Housing material	Aluminium
Data transfer rate	40 Gbit/s
Maximum resolution	7680 x 4320 pixels
Maximum refresh rate	60 Hz
Ports & interfaces
Connector 1	USB Type-C
Connector 2	USB Type-C
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Angled
Connector 2 form factor	Straight
Power
Input voltage	48 V
Input current	5 A
USB powered
Technical data
USB specification	USB 4
Article width	2.30cm
Compatibility USB	USB 4
Side A	USB-C male
Net weight	0.003kg
Weight	0.005kg
Colour	Grey
Assignment	1:1
Signal	Data
Side B	USB-C female
Supported display resolution	up to 7680x4320/60Hz
Width packaging	0.070m
Height packaging	0.005m
Data transmission rate	40Gb/s
Packaging volume	0.0001m³
Article length	2.50cm
Length packaging	0.120m
Design	Right/left angled
Article height	0.50cm
Housing material	Aluminum
Weight & dimensions
Width	23 mm
Depth	25 mm
Height	5 mm
Weight	3 g

---
