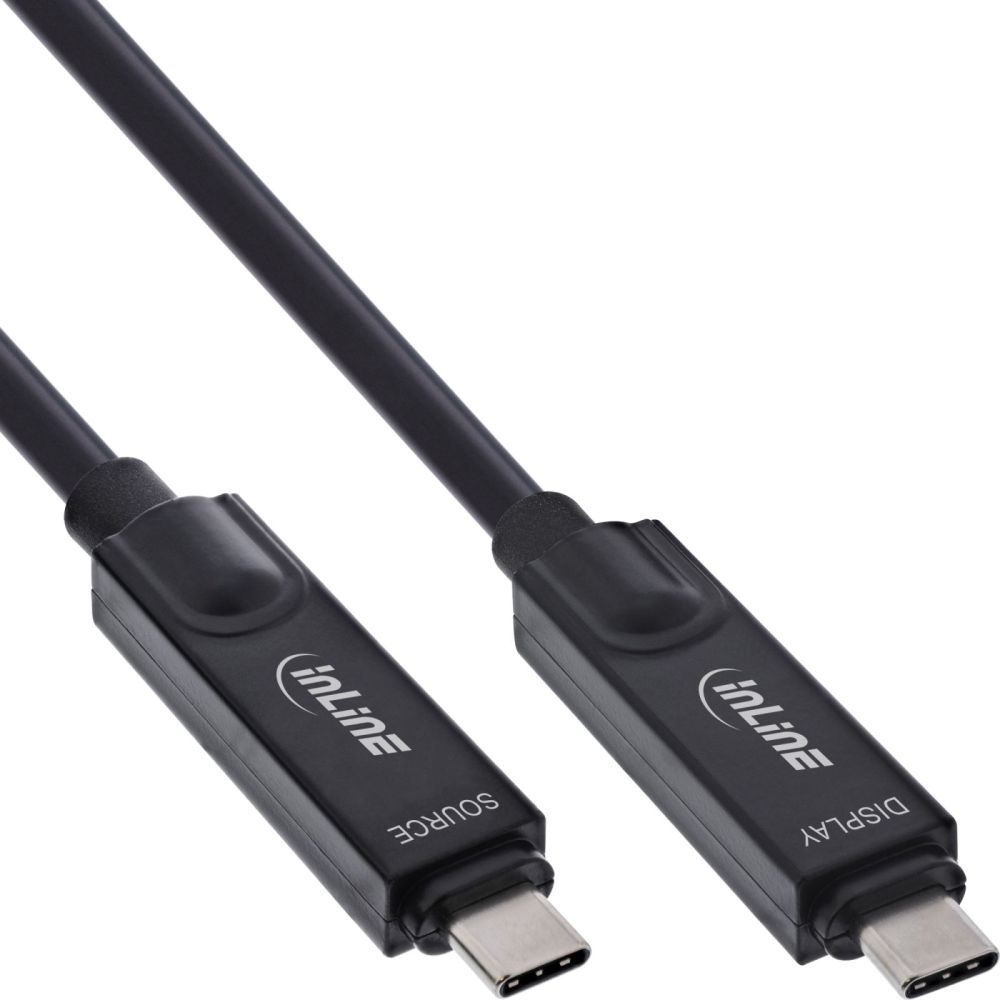

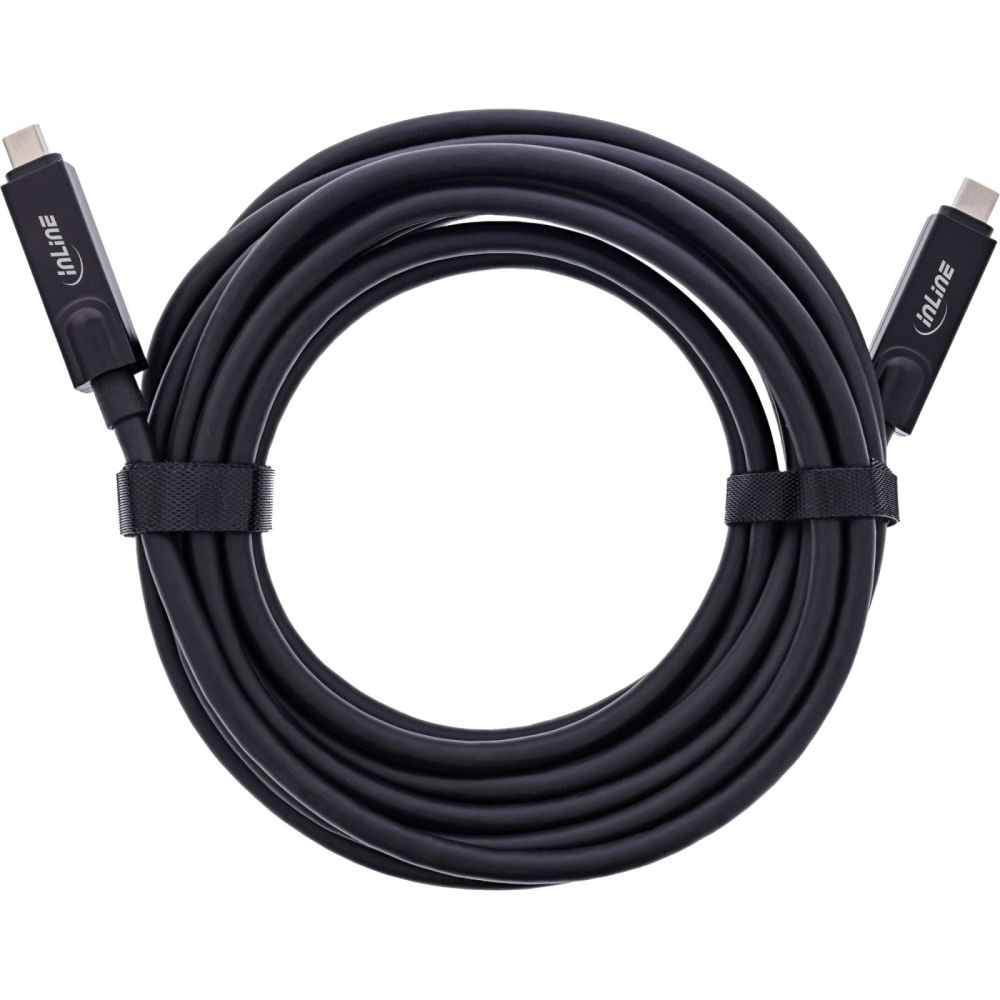

InLine® USB 3.2 Gen.2 AOC cable, USB-C male/male, 8K60Hz, 60W, black, 5m content_copy

8K and 4K compatibility for brilliant visualisation: Transmits videos in 8K@60 Hz and 4K@144 Hz – ideal for UHD monitors, gaming and multimedia applications.
Active optical technology for long distances: Enables reliable transmissions over several metres without loss of quality; ideal for large setups.
Supports DisplayPort Alt Mode via USB-C: Compatible with 4-lane/2-lane DP Alt Mode – including HDR10, HDCP 2.2, EDID and 3D function.
Fast data rates and power supply: Supports up to 10 Gb/s and USB 2.0 and supports Power Delivery up to 20 V/3 A
Rugged, lightweight cable design: High-quality workmanship with metal connectors, OM3 fibres and only 30 mm bending radius for maximum flexibility.
The InLine® USB 3.2 Gen.2 AOC cable impresses with its active optical signal processing and is the ideal choice for anyone who values the highest image quality and reliable data transmission. Thanks to the support for 8K@60 Hz and 4K@144 Hz, it is particularly suitable for gaming, home office, presentations or media streaming in brilliant resolution.
The hybrid technology of OM3 fibres and copper wires ensures that even longer distances of up to 15 m can be bridged without loss - without any external power supply. DisplayPort Alt Mode (4-lane/2-lane) is supported, supplemented by functions such as HDR10, HDCP 2.2, EDID and 3D.
Whether for USB-C monitors or UHD projectors: with a 10 Gb/s transfer rate, USB 2.0 compatibility and Power Delivery up to 20 V/3 A, you are perfectly prepared for any situation. The flexible and robust design with metal housing makes the cable a long-lasting companion.
USB-C to USB-C plug
Active optical signal transmission
8K@60 Hz / 4K@144 Hz
Data rate up to 10 Gb/s + 480 Mb/s (USB 2.0)
HDR10, HDCP 2.2, EDID, 3D
Power delivery up to 20 V/3 A
Plug-and-play
Robust housing
5x OM3 fibre, 8x copper conductors
Bending radius: 30 mm
Operating temperature range: 0–50 °C
Storage: -20–70 °C

Certificates
Compliance certificates	CE, TÜV mark
Features
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector housing material	Metal
Maximum data transfer rate	10000 Mbit/s
Cable type	Round cable
USB Power Delivery up to	60 W
Product colour	Black
DisplayPort version	1.4
Maximum resolution	7680 x 4320 pixels
Maximum refresh rate	144 Hz
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
HDCP version	2.2
Plug and Play
USB Power Delivery (USB PD)
USB Type-C DisplayPort Alternate Mode
High Dynamic Range (HDR) supported
HDCP
3D
Logistics data
Package volume	0 cm³
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package type	Box
Package width	155 mm
Package depth	170 mm
Package height	55 mm
Package weight	407 g
Power
Output voltage	20 V
Output current (max)	3 A
Technical data
Type	USB internal
DP-Lanes	4
Operation temperature	0 - 50°C
Side A	USB-C male
Video resolution	8K@60Hz / 4K@120Hz
Signal	Data
Packing	Retail
Cable structure	5 fibres (1 adaptive)
Length	5m
Length packaging	0.170m
Design	Round cable
Side B	USB-C male
Max. supported power	60W
Article length	500.00cm
Colour	Black
Net weight	0.334kg
Article height	0.90cm
Variant	AOC cable
Weight	0.407kg
Width packaging	0.155m
Storage temperature	-20 to +70°C
Height packaging	0.055m
Article width	1.40cm
Data transmission rate	10Gb/s
USB specification	USB 3.2 Gen.2
Bending radius (static)	30mm
Outer diameter	5.0mm
Bending radius (dynamic)	100mm
UL
Weight & dimensions
Cable length	5 m
Cable diameter	5 mm
Width	14 mm
Depth	5000 mm
Height	9 mm
Weight	334 g
Bend radius (min)	3 cm
Dimensions (WxDxH)	14 x 5000 x 9 mm

---
