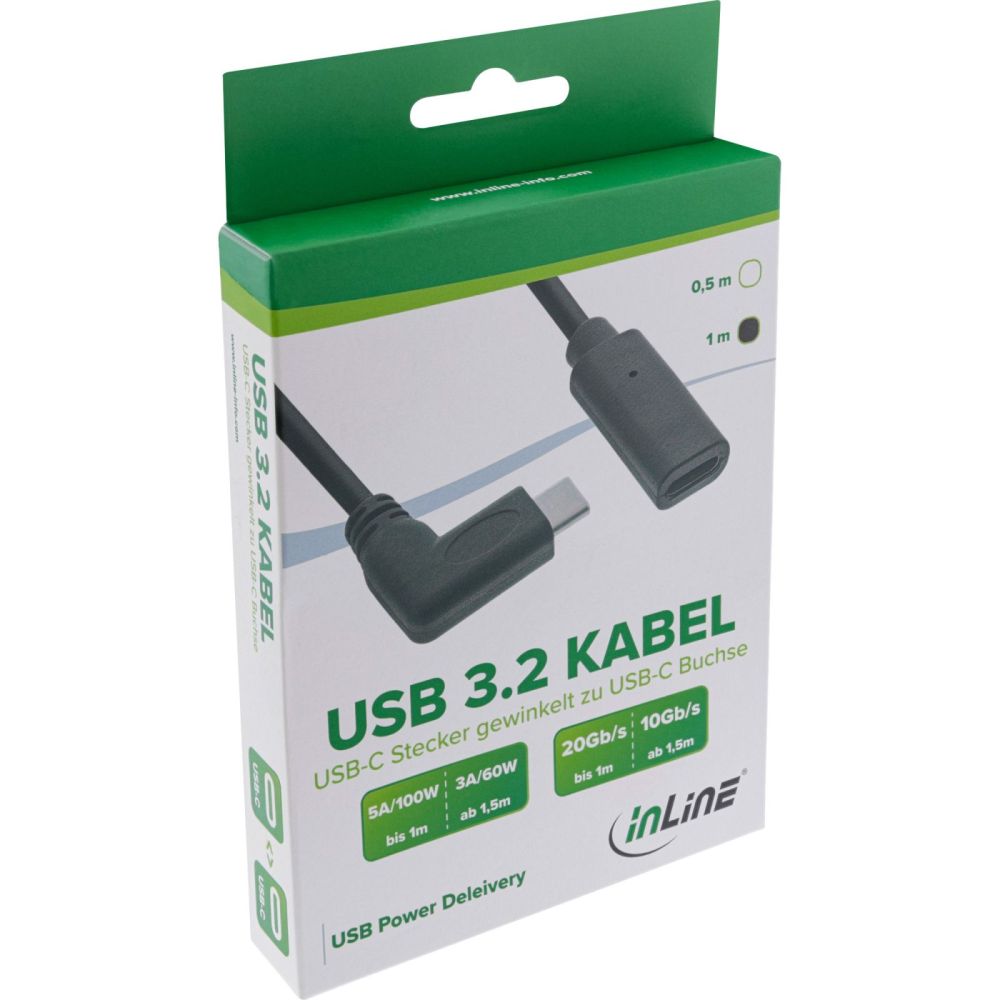

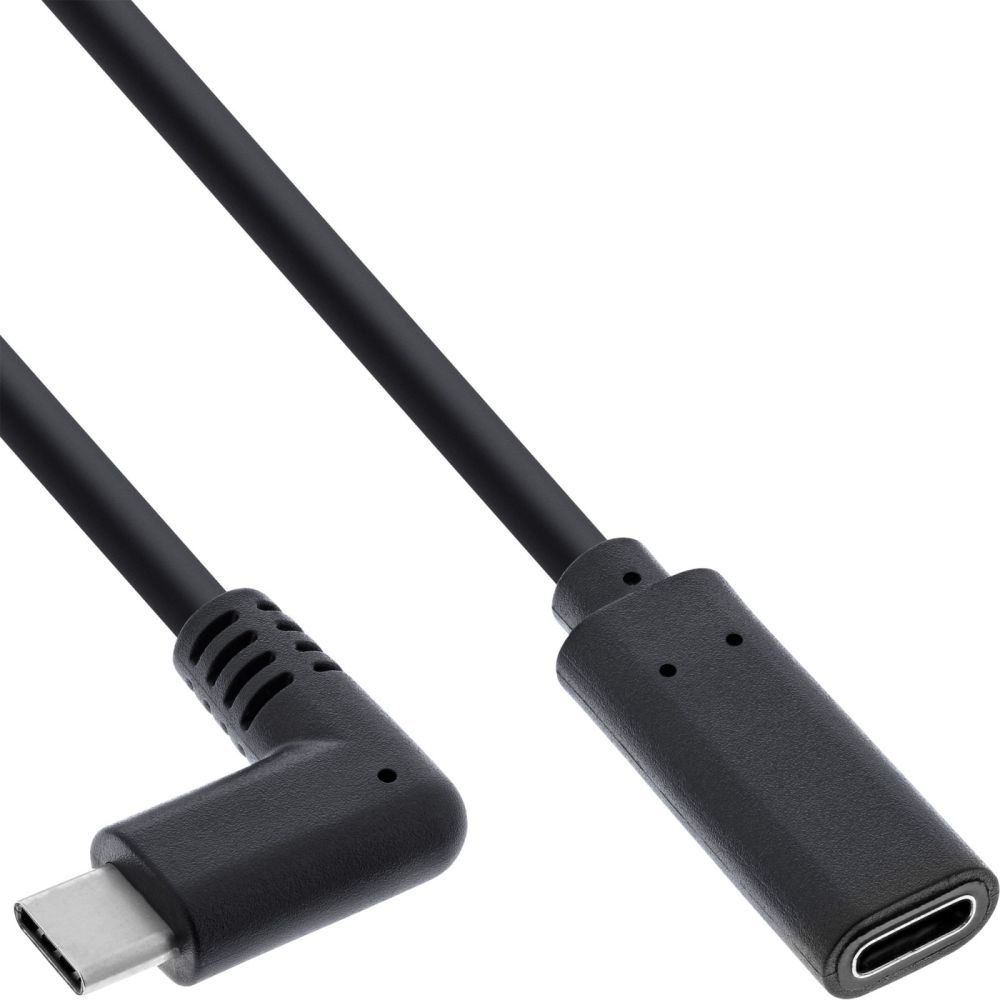

InLine® USB-C extension cable, USB 3.2, angled, black, 1 m content_copy

USB-C extension with angled plug for flexible connectionsFlexible connection: The USB-C extension simplifies connections at hard-to-reach ports. The angled USB-C plug supports space-saving routing.
Fast data transfer: The USB 3.2 extension cable supports up to 20 Gb/s at lengths up to 1 m and up to 10 Gb/s from 1.5 m for fast transfer of compatible data.
Powerful charging: The USB-C extension supports USB Power Delivery up to 100 watts and 5 amperes up to 1 m, and up to 60 watts and 3 amperes from 1.5 m.
Reliable connection: Triple-shielded twisted pairs support stable signals and reduce potential interference when using USB-C.
Practical extension: The USB-C extension cable enables flexible use of existing connections for various USB-C applications, providing additional reach.
The USB-C extension expands existing cable connections for more flexible use of USB-C devices. Its angled plug particularly suits hard-to-reach or side-facing ports.
The USB 3.2 extension cable offers fast data transfer and USB Power Delivery for charging compatible devices. Performance depends on cable length.
Triple-shielded twisted pairs support a stable connection and reliable signal transmission.
USB 3.2 extension cable
Connector 1: USB-C plug, angled
Connector 2: USB-C socket
Data transfer rate:up to 20 Gb/s for cable lengths up to 1 m
up to 10 Gb/s for cable lengths from 1.5 m
USB Power Delivery:up to 100 watts at a charging current up to 5 amperes for cable lengths up to 1 m
up to 60 watts at a charging current up to 3 amperes for cable lengths from 1.5 m
Triple-shielded twisted pairs
Colour: Black

Features
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Angled
Connector 2 form factor	Straight
Maximum data transfer rate	5000 Mbit/s
Product colour	Black
Logistics data
Package volume	600 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package type	Hanging box
Package width	107 mm
Package depth	240 mm
Package height	23 mm
Package weight	66 g
Power
Output current (max)	3 A
Technical data
Height packaging	0.023m
Width packaging	0.107m
Storage temperature	-20 - 60°C
Length packaging	0.240m
Colour	Black
Outer diameter	5.0mm
Article length	100.00cm
Data transmission rate	20Gb/s
Variant	Angled
Net weight	0.039kg
Type	USB 3.2 Gen.1x2
Operation temperature	0 - 50°C
Packing	Retail
Shielding	Double shielding
Side A	USB-C male
Packaging volume	0.0006m³
Article height	0.60cm
Weight	0.066kg
Side B	USB-C female
USB specification	USB 3.2 Gen.2
Article width	1.30cm
Signal	Data/Power
UL
Gold plated contacts
Weight & dimensions
Cable length	1 m
Width	13 mm
Depth	1000 mm
Height	6 mm
Weight	39 g
Dimensions (WxDxH)	13 x 1000 x 6 mm

---
