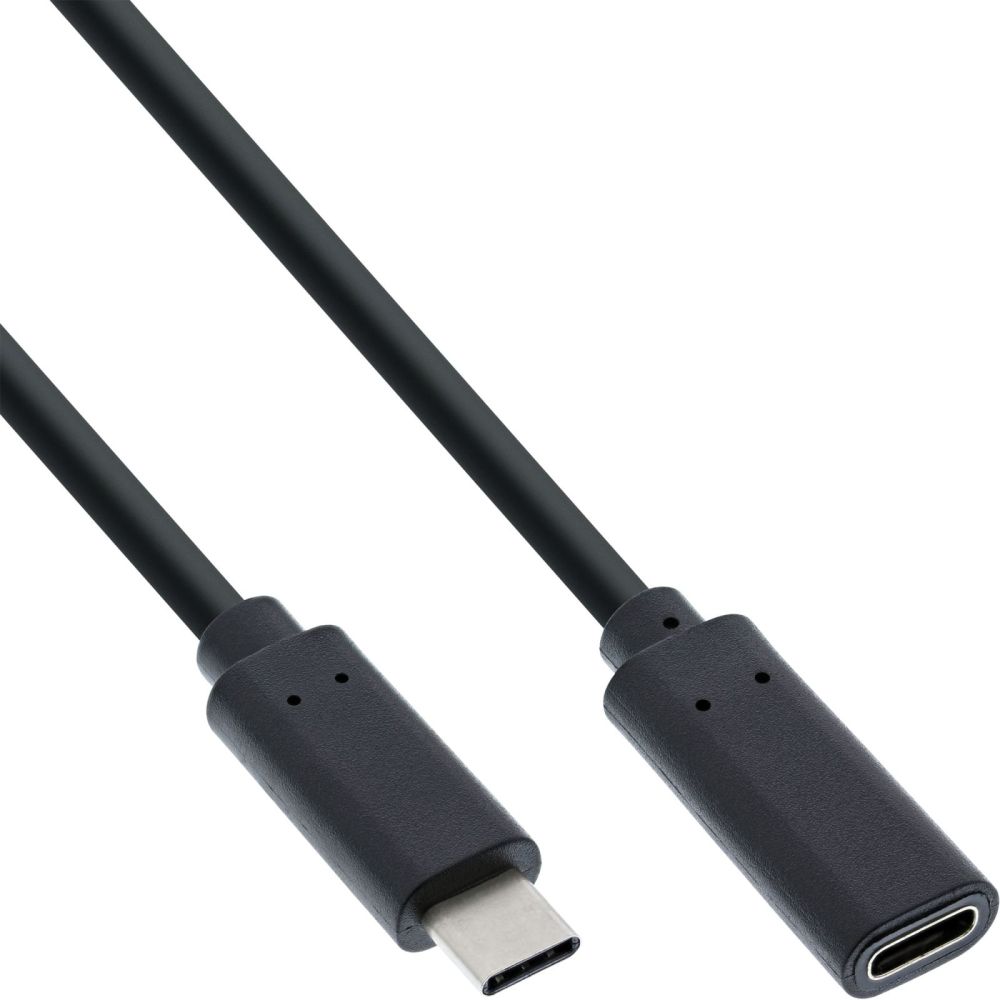

InLine® USB 3.2 USB-C extension cable, 20 Gb/s, 100 W, black, 1 m content_copy

USB-C extension for fast data transfer and powerful chargingFlexible extension: Extend existing USB-C cabling with a USB-C plug and socket when the cable does not reach the desired port.
Fast data transfer: Depending on length, the USB-C extension cable reaches up to 20 Gb/s or 10 Gb/s for a high-performance extension of your connection.
Powerful charging: USB Power Delivery supports up to 100 W at 5 A or 60 W at 3 A depending on length, allowing flexible extension of existing USB-C charging connections.
High-quality cable construction: Triple-shielded twisted pairs support reliable data transfer, making the USB 3.2 extension suitable for permanently installed USB-C connections.
More reach at the port: Use the extension to make hard-to-reach ports more accessible or extend cable routes without replacing existing USB-C cabling.
The InLine USB 3.2 USB-C extension cable extends existing connections without replacing the cabling. Its USB-C plug and socket simplify extension where a port is hard to reach or the cable does not reach the required position.
The extension supports fast data transfer and USB Power Delivery. Maximum performance depends on length: short versions offer up to 20 Gb/s and 100 W at 5 A; longer versions offer up to 10 Gb/s and 60 W at 3 A.
Triple-shielded twisted pairs support reliable data transfer, allowing flexible extension of USB-C cabling to suit the installation space.
Connector 1: USB-C plug
Connector 2: USB-C socket
Data transfer rate:up to 20 Gb/s for cable lengths up to 1 m
up to 10 Gb/s for cable lengths from 1.50 m
USB Power Delivery:up to 100 W at a charging current up to 5 A for cable lengths up to 1 m
up to 60 W at a charging current up to 3 A for cable lengths from 1.50 m
Cable construction: Triple-shielded twisted pairs
Colour: Black

Features
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Connector 1 gender	Female
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum data transfer rate	5000 Mbit/s
Product colour	Black
Logistics data
Package volume	900 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package type	Hanging box
Package width	150 mm
Package depth	240 mm
Package height	25 mm
Package weight	57 g
Power
Output current (max)	3 A
Technical data
Type	USB 3.2 Gen.2x2
Operation temperature	0 - 50°C
Packing	Retail
Shielding	Double shielding
Width packaging	0.150m
Side A	USB-C male
Outer diameter	5.0mm
Net weight	0.040kg
Data transmission rate	20Gb/s
Packaging volume	0.0009m³
Article length	100.00cm
Weight	0.057kg
USB specification	USB 3.2 Gen.2
Article height	0.60cm
Signal	Data/Power
Storage temperature	-20 - 60°C
Height packaging	0.025m
Length packaging	0.240m
Colour	Black
Side B	USB-C female
Article width	1.30cm
UL
Gold plated contacts
Weight & dimensions
Cable length	1 m
Width	13 mm
Depth	1000 mm
Height	6 mm
Weight	40 g
Dimensions (WxDxH)	13 x 1000 x 6 mm

---
