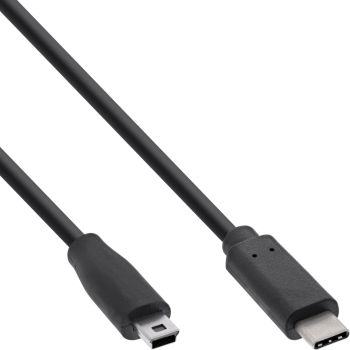

InLine® USB 2.0 Cable, USB-C male / mini-B male (5pin), black, 1m content_copy

USB-C to USB Mini-B cable for data transfer and peripheralsDirect USB-C connection: Enables devices with a USB Mini-B port to be connected to modern PCs or laptops with a USB-C port.
Reliable data transfer: Supports USB 2.0 data transfer rates of up to 480 Mb/s for external hard drives and other USB devices.
Reversible USB-C plug: The USB-C plug can be inserted in either direction, making it easy to use.
Versatile applications: Suitable for external USB hard drives, USB graphics cards and other peripherals with a USB Mini-B port.
Supports USB Power Delivery: Supports power delivery to compatible devices at up to 1 A for cable lengths of up to 1 m.
The InLine USB 2.0 cable with USB-C plug to USB Mini-B plug enables the direct connection of modern devices with a USB-C port to external hard drives, USB graphics cards and other peripherals with a USB Mini-B port. The connection cable is suitable for numerous applications in the office, home office and multimedia sectors.
The USB 2.0 specification supports data transfer rates of up to 480 Mb/s, making it suitable for typical data and peripheral connections in everyday use. The cable also supports USB Power Delivery for powering compatible devices.
Versions up to 1 m support a charging current of up to 1 A. Versions up to 5 m support a charging current of up to 0.5 A. The reversible USB-C connector makes it easy to connect compatible devices and can be plugged in either way round.
With various cable lengths available, the USB-C to USB Mini-B cable is suitable for both short direct connections and flexible installations with greater distances between devices. The black cable design allows for discreet integration into existing workplace or multimedia environments.
Colour: Black
End A: USB-C connector
End B: USB Mini-B connector (5-pin)
Type: USB 2.0
Signal: Data transfer
Data transfer rate: up to 480 Mb/s
USB Power Delivery support: Yes
Charging current up to 1 m: 1 A
Charging current up to 5 m: 0.5 A

Features
USB version	USB 2.0
Connector 1	USB C
Connector 2	Mini-USB B
Connector gender	Male/Male
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum data transfer rate	480 Mbit/s
Product colour	Black
Logistics data
Package volume	600 cm³
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	105 mm
Package depth	265 mm
Package height	23 mm
Package weight	52 g
Technical data
Packing	Retail
Signal	Data
Side A	USB-C male
Outer diameter	4.0mm
Article length	100.00cm
Colour	Black
Length packaging	0.265m
Width packaging	0.105m
Type	USB 2.0 mini
Data transmission rate	480Mb/s
Side B	miniUSB-B male
Article width	1.30cm
USB specification	USB 2.0
Operation temperature	0 - 50°C
Packaging volume	0.0006m³
Article height	1.30cm
Weight	0.052kg
Net weight	0.035kg
Storage temperature	-20 - 60°C
Height packaging	0.023m
UL
Gold plated contacts
Weight & dimensions
Cable length	1 m
Width	13 mm
Depth	1000 mm
Height	13 mm
Weight	35 g
Dimensions (WxDxH)	13 x 1000 x 13 mm

---
