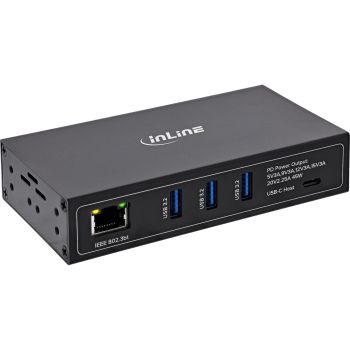

InLine® Industrial 4-Port USB PoE Hub (3x USB-A / 1x USB-C) content_copy

4-port PoE USB-C hub with Gigabit Ethernet and 60 W power supplyCombined power and data supply: Powers your USB-C device directly via Power over Ethernet whilst simultaneously transmitting data and network signals via a single cable, without the need for an additional power supply
Versatile connectivity expansion: Expands a USB-C device with three USB-A ports and offers additional connection options for peripherals and storage devices whilst ensuring stable operation
Integrated Gigabit network connection: Enables a reliable LAN connection at up to 1000 Mb/s and ensures stable data transmission even with demanding applications
Optimised for industrial environments: A robust aluminium housing aids heat dissipation and enables use across extended temperature ranges and for continuous operation
High operational reliability: Integrated protection functions such as overvoltage, overcurrent, short-circuit and ESD protection ensure reliable operation and automatic recovery
The InLine Industrial PoE USB-C Hub combines multiple functions in a compact device. It expands a USB-C-capable system with additional USB ports, provides a network connection and simultaneously supplies the connected device with power via Power over Ethernet.
Thanks to PoE technology, power is supplied directly via the RJ45 port. A separate power supply is not required. This reduces cabling requirements and enables flexible installation even in locations without a direct power supply.
With three USB-A ports, the hub offers additional connection options for peripheral devices. At the same time, the integrated Gigabit Ethernet interface ensures a stable network connection at speeds of up to 1000 Mb/s. The combination of data transfer, networking and power supply makes the device an efficient solution for structured installations.
The robust aluminium housing supports reliable heat dissipation and is designed for use at elevated temperatures. Protective functions such as overvoltage, overcurrent, short-circuit and ESD protection contribute to operational safety and ensure reliable continuous operation.
Technical Specifications
Interfaces:
3x USB-A (USB 3.2 Gen 1)
1x USB-C (Host)
1x RJ45 (Gigabit Ethernet)
Data transfer:
USB up to 5 Gb/s, backwards compatible;
Network 10/100/1000 Mb/s
Power supply:
Power over Ethernet (PoE) in accordance with IEEE802.3bt, up to 60 W total power, up to 45 W for the host device, no external power supply required
Protection functions:
Surge protection, overcurrent protection, short-circuit protection, ESD protection and automatic recovery after faults
Compatibility:
Windows, macOS, Linux, Android, Chrome OS and USB-C devices with Power Delivery support
Housing:
Aluminium housing for improved heat dissipation
Environmental conditions:
Operating temperature: 0 °C to 70 °C
Storage temperature: -40 °C to +125 °C
Humidity: 10% to 85% (non-condensing)
Mounting:
Mounting possible using the included mounting brackets
Contents
1 x InLine® Industrial PoE USB Hub, 60 W, USB 3.2 Gen 1, 4-port
1 x USB-C to USB-C cable, approx. 1 m
1 x Mounting kit
1 x DIN rail 10 cm & clip
1 x User manual (German / English)

Features
Data transfer rate	5000 Mbit/s
Product colour	Black
Housing material	Aluminium
Cable length	1 m
Plug and Play
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	100,1000,10 Mbit/s
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 125 °C
Operating relative humidity (H-H)	10 - 85%
Other features
Dimensions (WxDxH)	67 x 128 x 27 mm
Chipset	VL817S
Packaging content
Cables included	USB Type-C to USB Type-C
AC adapter included
Manual
Packaging data
Quantity per pack	1 pc(s)
Package width	80 mm
Package depth	174 mm
Package height	55 mm
Package volume	800 cm³
Package weight	348 g
Package type	Box
Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A, RJ-45
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ports quantity	4
Ethernet LAN (RJ-45) ports	1
Terminal block port
DC-in jack
Power
Power supply type	DC
Input voltage	12 V
Input current	2 A
System requirements
Mac operating systems supported	MacOS
Windows operating systems supported
Linux operating systems supported
Technical data
Ports	4x USB 3.2 Gen.1
Device type	Industrial Hub
Weight	0.348kg
Net weight	0.192kg
Transmission rate	5Gb/s
Width packaging	0.080m
Packaging volume	0.0008m³
Article length	12.80cm
Height packaging	0.055m
Article width	6.70cm
Number of ports	4
Length packaging	0.174m
USB specification	USB 3.2 Gen.1
Article height	2.70cm
Card reader
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	67 mm
Depth	128 mm
Height	27 mm
Weight	192 g

---
