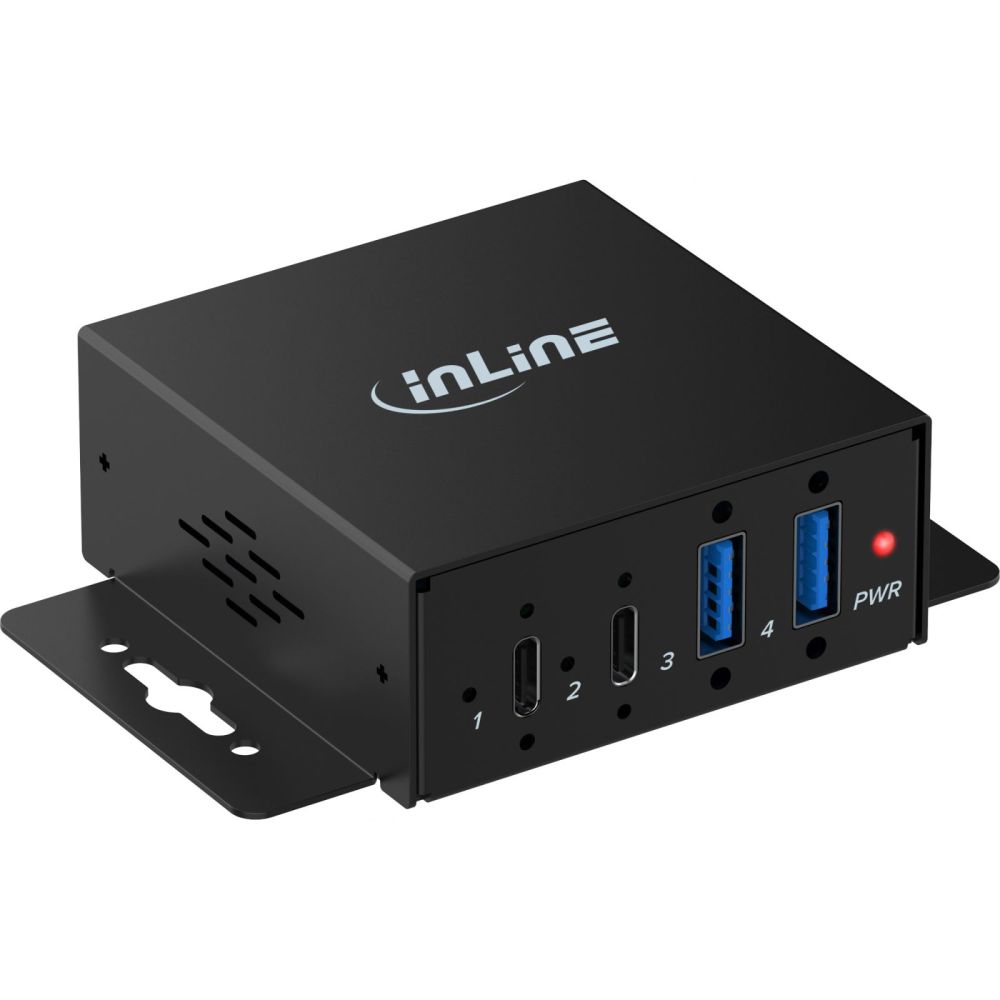

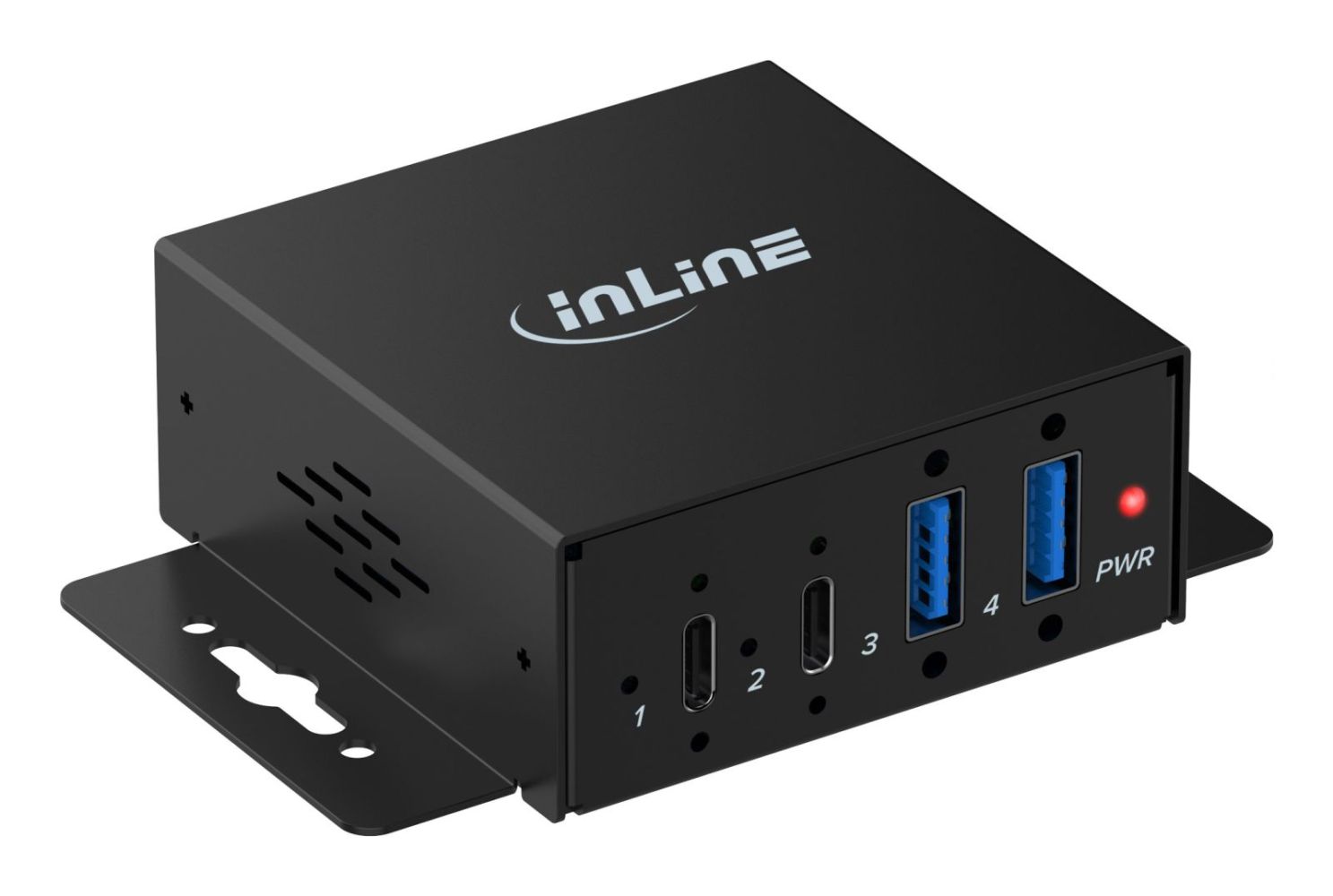

InLine® USB 3.2 Industrial Hub, 4-port, 2x USB-A, 2x USB-C content_copy

4-port USB-C industrial hub, 2x USB-A and 2x USB-C, metal housing, 5 Gb/s, with power supplyReliable USB expansion for multiple devices: Expands a USB-C port by 4 ports (2x USB-A and 2x USB-C) for the simultaneous operation of multiple USB devices with a stable connection
Robust metal housing for demanding environments: The sturdy housing reliably protects the technology and is suitable for permanent installations in demanding operating environments
Fast data transfer with USB 3.2: Supports transfer rates of up to 5 Gb/s and enables efficient data communication whilst multiple devices are connected
Flexible power supply and charging function: Supports 12–24 V DC as well as BC1.2 for powering connected devices, ideal for applications with multiple USB end devices
Secure hold thanks to lockable USB-C port: The screw lock ensures a stable connection and reduces interruptions caused by movement or vibration
This USB-C industrial hub expands a single port to include four additional ports, comprising two USB-A and two USB-C interfaces. This allows multiple USB devices to be operated simultaneously and efficiently integrated into existing systems.
The robust metal housing protects the internal components and ensures reliable operation even under demanding conditions. The hub can be used flexibly on a desktop or permanently mounted.
Technical Specifications
Chipset: VL817

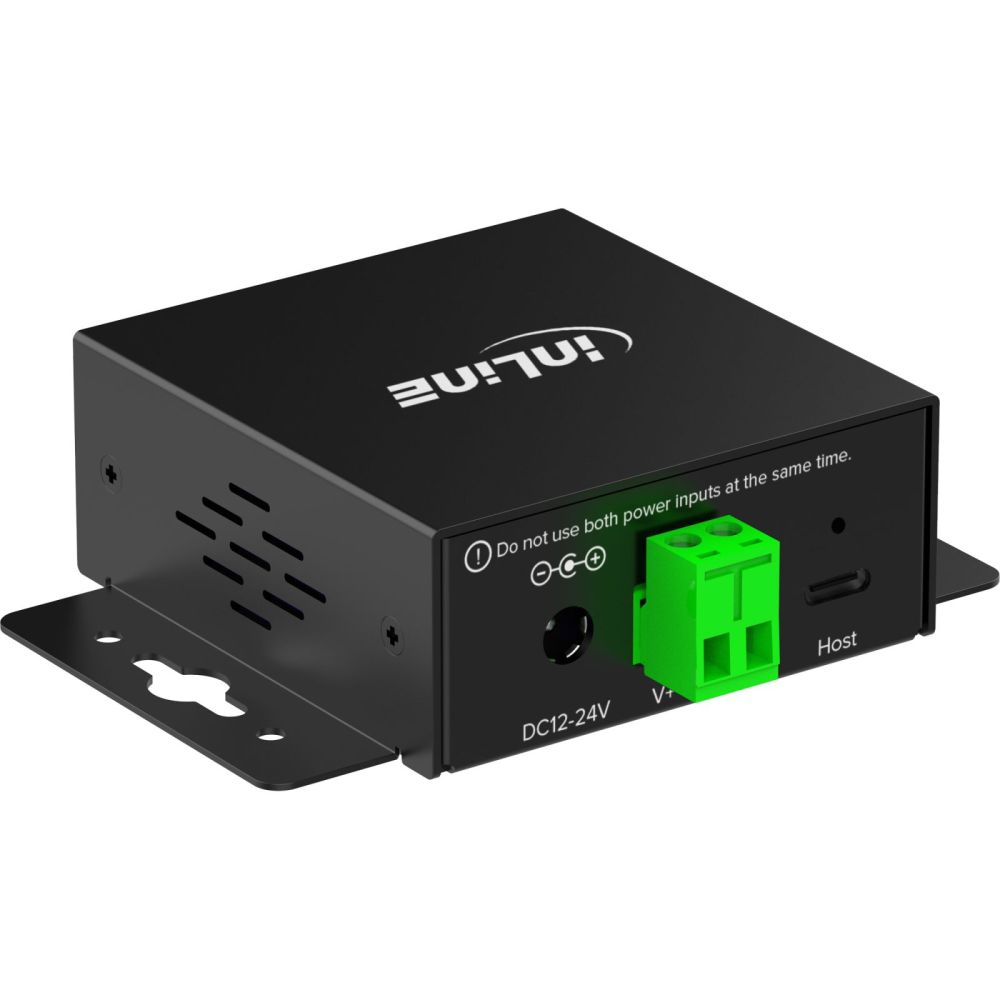

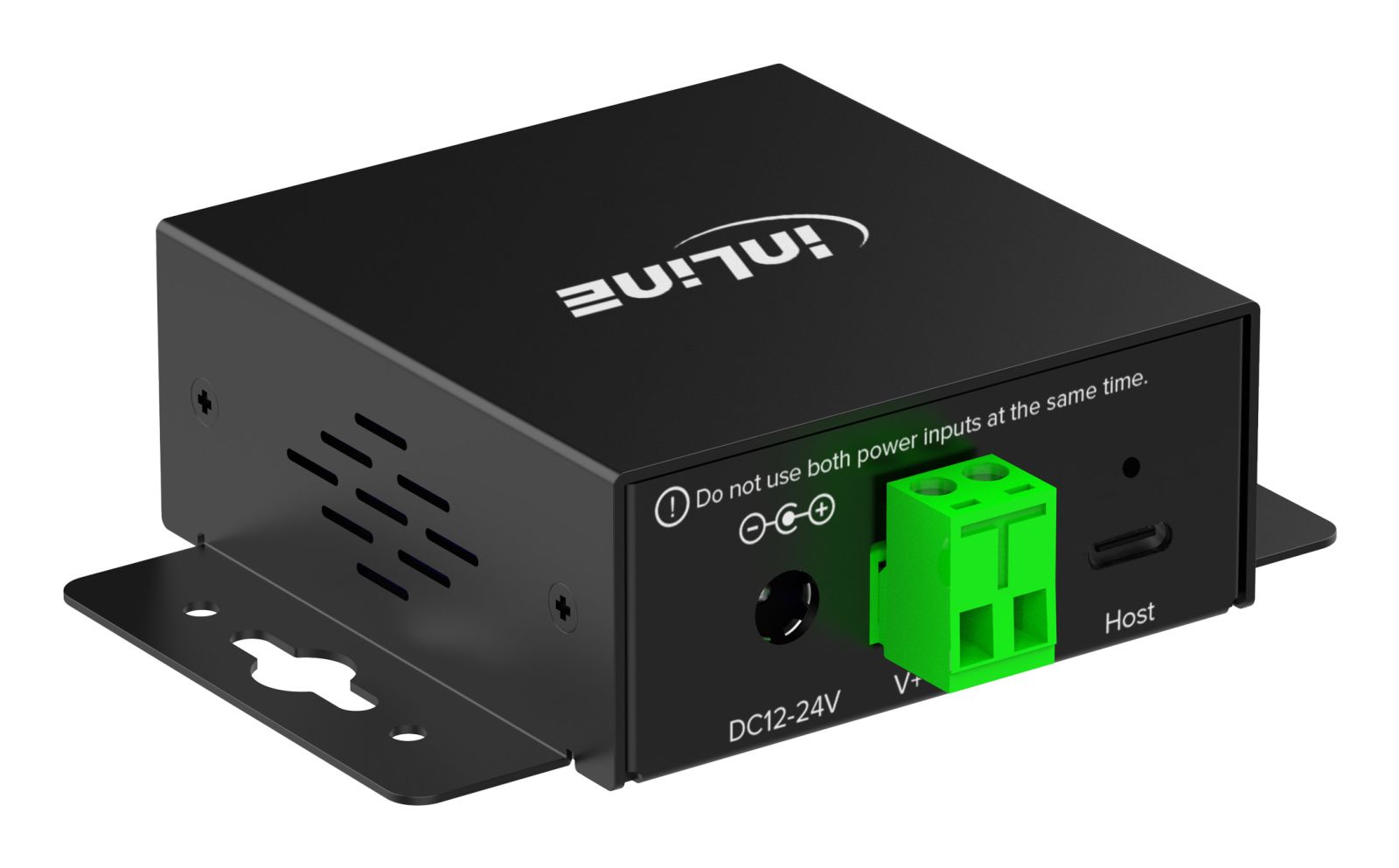

Inputs:
1x USB-C port for connection to host computer (screw lock compatible)
1x DC input (5.5 x 2.5 mm)
1x alternative 2-pin terminal connection
Supported input voltage: 12–24 V DC

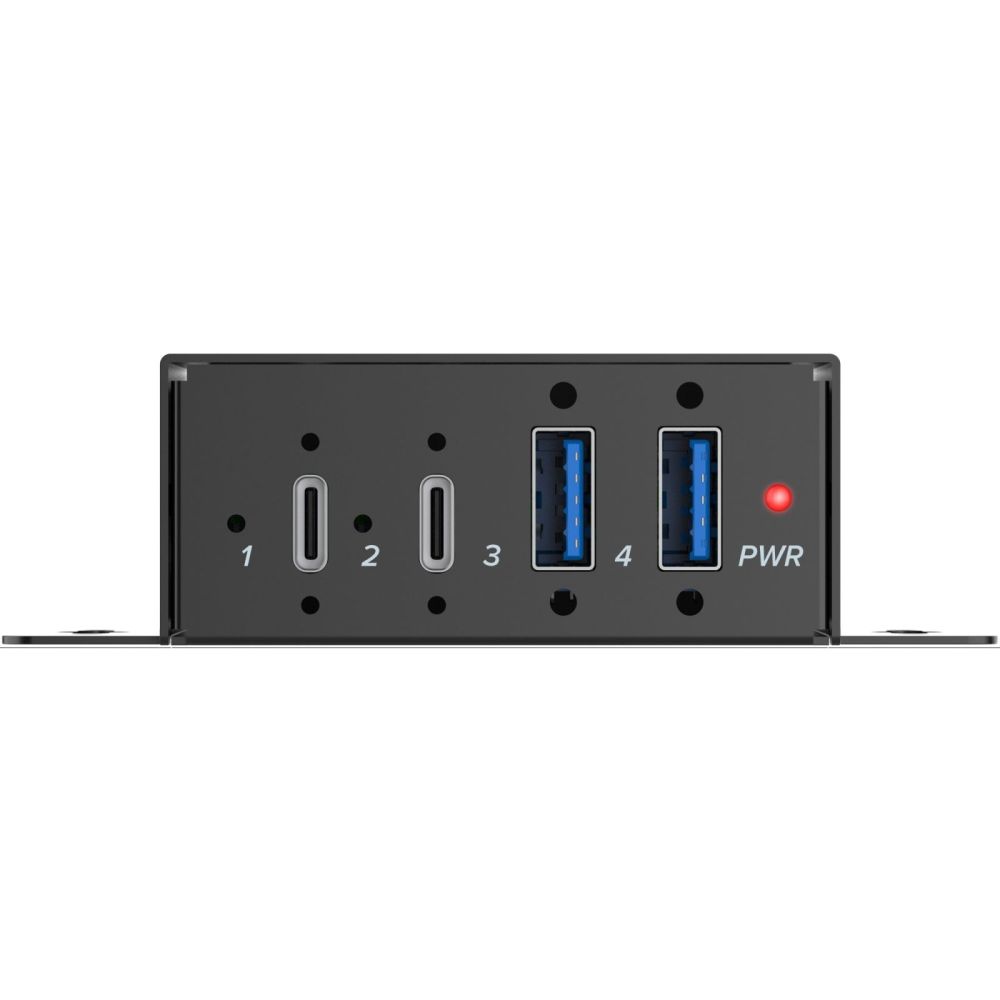

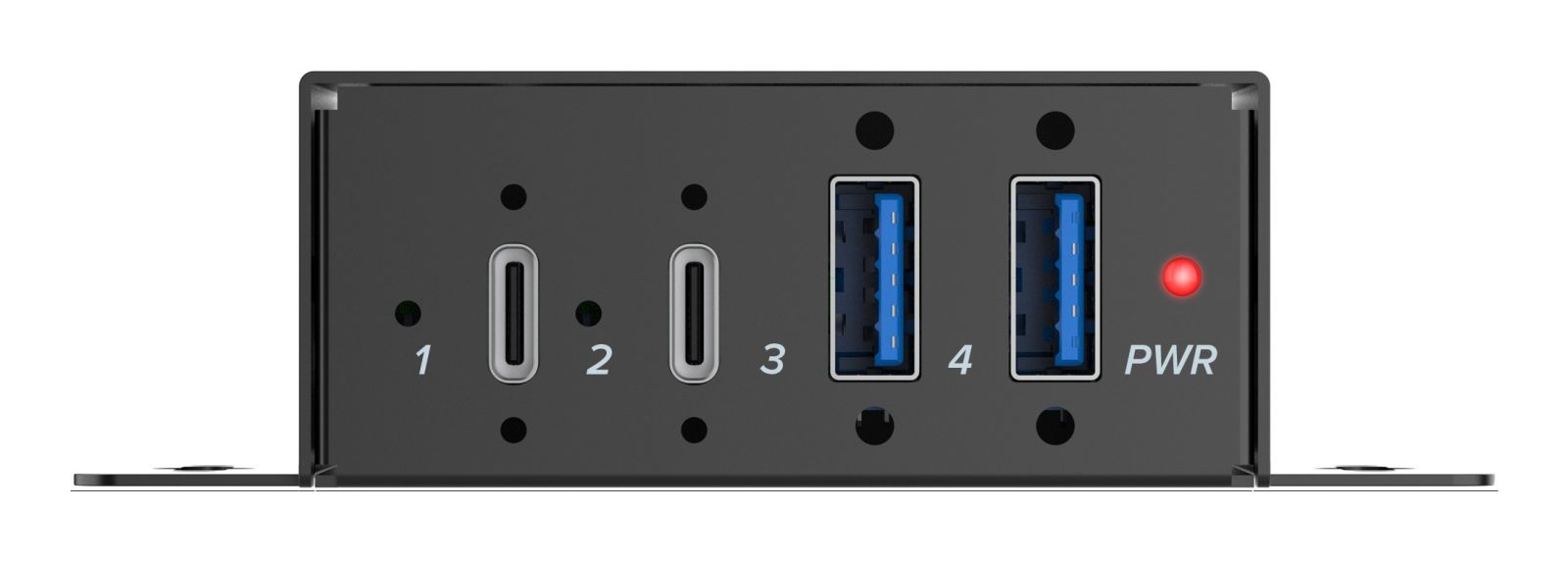

Outputs:
2x USB-A 3.2 Gen.1 ports (5 Gb/s)
2x USB-C 3.2 Gen.1 ports (5 Gb/s)
BC1.2 - USB Battery Charging Specification 1.2 (max. 5 V / 1.5 A per port)
Note: When using multiple USB ports simultaneously, the available power is distributed among the connected devices
Protection mechanisms:
Short circuit, overcurrent, overvoltage
ESD/antistatic protection: 4 kV / 8 kV / 350 W
Housing: Metal, black
Mounting: Wall mounting or desktop use
LED indicator: Yes
Plug & Play: No drivers required
Operating temperature: -20 °C to +70 °C
Storage temperature: -40 °C to +125 °C
Operating humidity: 10–85% (non-condensing)
Storage humidity: 5–90% (non-condensing)
Operating systems: Windows, macOS, Linux
External power supply (power adaptor)
Type: external plug-in power adaptor (optional)
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: 2.0 A
Output power: 24.0 W
Average efficiency during operation: 87.45%
Efficiency at low load (10%): 84.07%
Power consumption at no load: 0.07 W

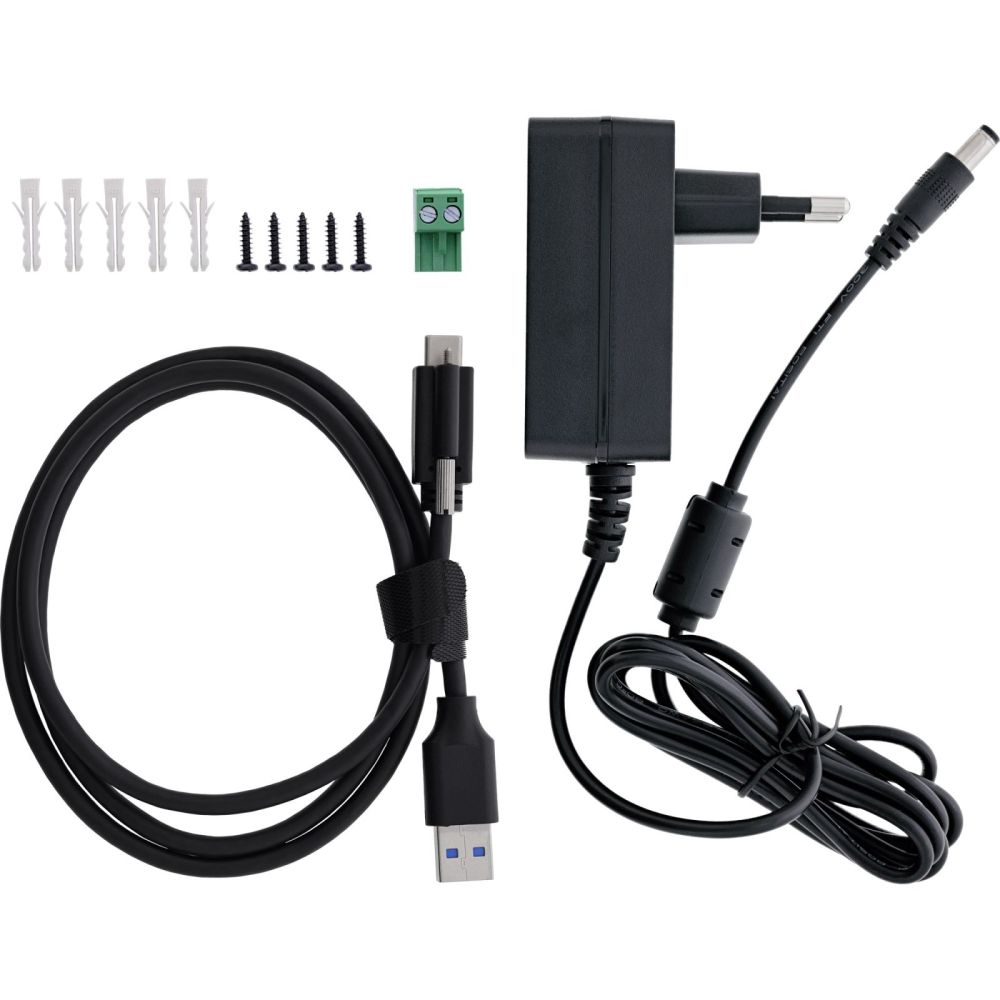

Contents
1x InLine USB 3.2 Gen.1 industrial hub, 4-port, 2x USB-A / 2x USB-C
1x lockable USB-A to USB-C cable, 1 m
1x mounting kit
1x external power supply 12 V / 2 A
1x user manual (German/English)

Features
Data transfer rate	5000 Mbit/s
Product colour	Black
Housing material	Metal
Cable length	1 m
Plug and Play
Operational conditions
Operating temperature (T-T)	-20 - 70 °C
Storage temperature (T-T)	-40 - 125 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Other features
Dimensions (WxDxH)	76 x 95 x 26 mm
Chipset	VL817S
Packaging content
Cables included	USB Type-C to USB Type-C
AC adapter included
Manual
Packaging data
Quantity per pack	1 pc(s)
Package width	160 mm
Package depth	200 mm
Package height	63 mm
Package volume	2000 cm³
Package weight	455 g
Package type	Box
Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Ports quantity	4
Terminal block port
DC-in jack
Power
Power supply type	DC
Input voltage	12 V
Input current	2 A
AC input frequency	50/60 Hz
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows Vista
Mac operating systems supported
Linux operating systems supported
Technical data
USB specification	USB 3.2 Gen.1
Article width	7.60cm
Packaging volume	0.0020m³
Article height	2.60cm
Height packaging	0.063m
Device type	Industrial Hub
Length packaging	0.200m
Article length	9.50cm
Connection	USB-A / USB-C
Net weight	0.152kg
Transmission rate	5Gb/s
Number of ports	4
Weight	0.455kg
Width packaging	0.160m
Special feature	Aluminum
Ports	2x USB-C + 2x USB-A
Card reader
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	76 mm
Depth	95 mm
Height	26 mm
Weight	152 g

---
