InLine® USB 3.2 Gen.1 Industrial Hub, USB-C, 10-port, with power supply content_copy

10-port USB-C industrial hub with 5 Gb/s and high-performance power supplyMaximum connectivity with ten USB-C ports: Expands a single USB-C port into ten USB-C ports, enabling the simultaneous operation of multiple devices with stable data transfer speeds of up to 5 Gb/s
Industrial-grade design for extreme conditions: A robust aluminium housing and a wide temperature range from -40 °C to +85 °C enable reliable operation under demanding conditions
Powerful power supply for multiple devices: A 70 W power supply unit supports the simultaneous operation of several connected devices with stable power and dynamic power distribution
Flexible power supply for versatile integration: Supports 12–24 V DC via terminal or DC IN, as well as operation via the supplied power supply unit for maximum application flexibility
Safe operation thanks to integrated protection functions: Protection against short circuits, overcurrent, overvoltage and ESD ensures stable operation and protects connected devices

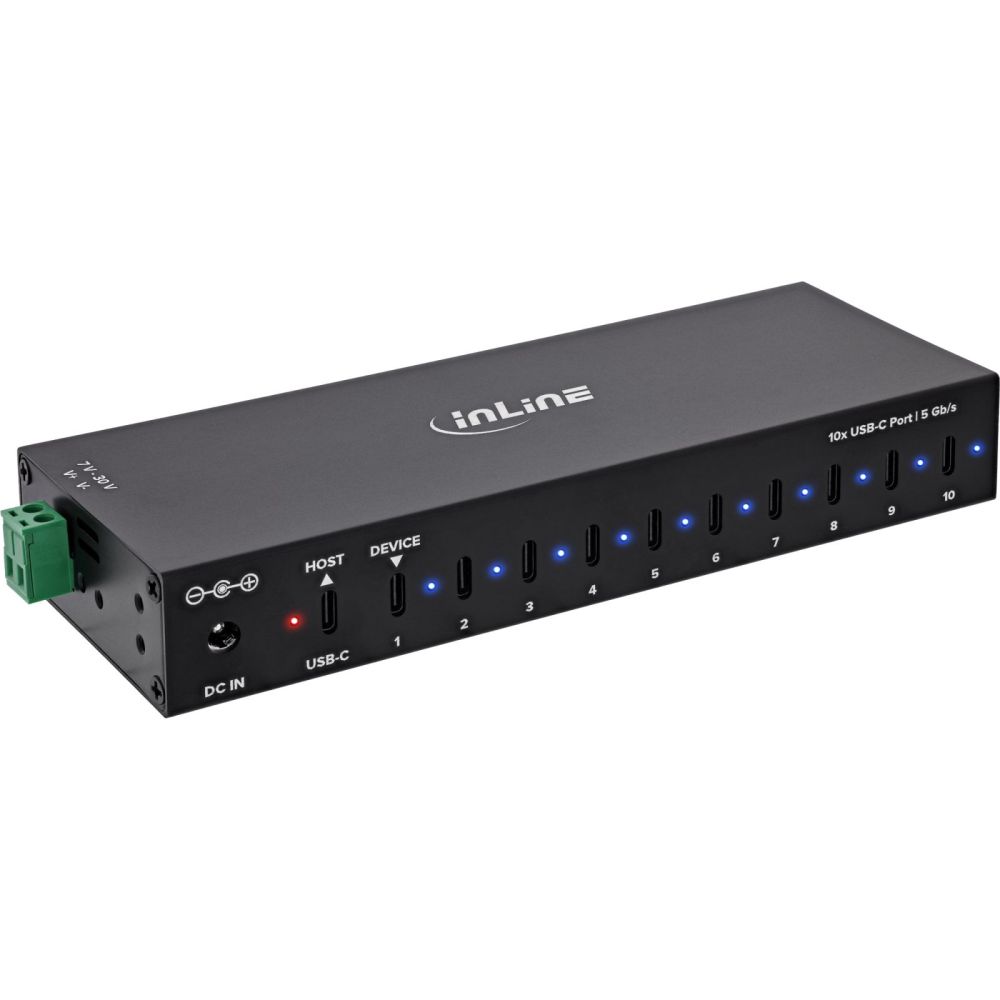

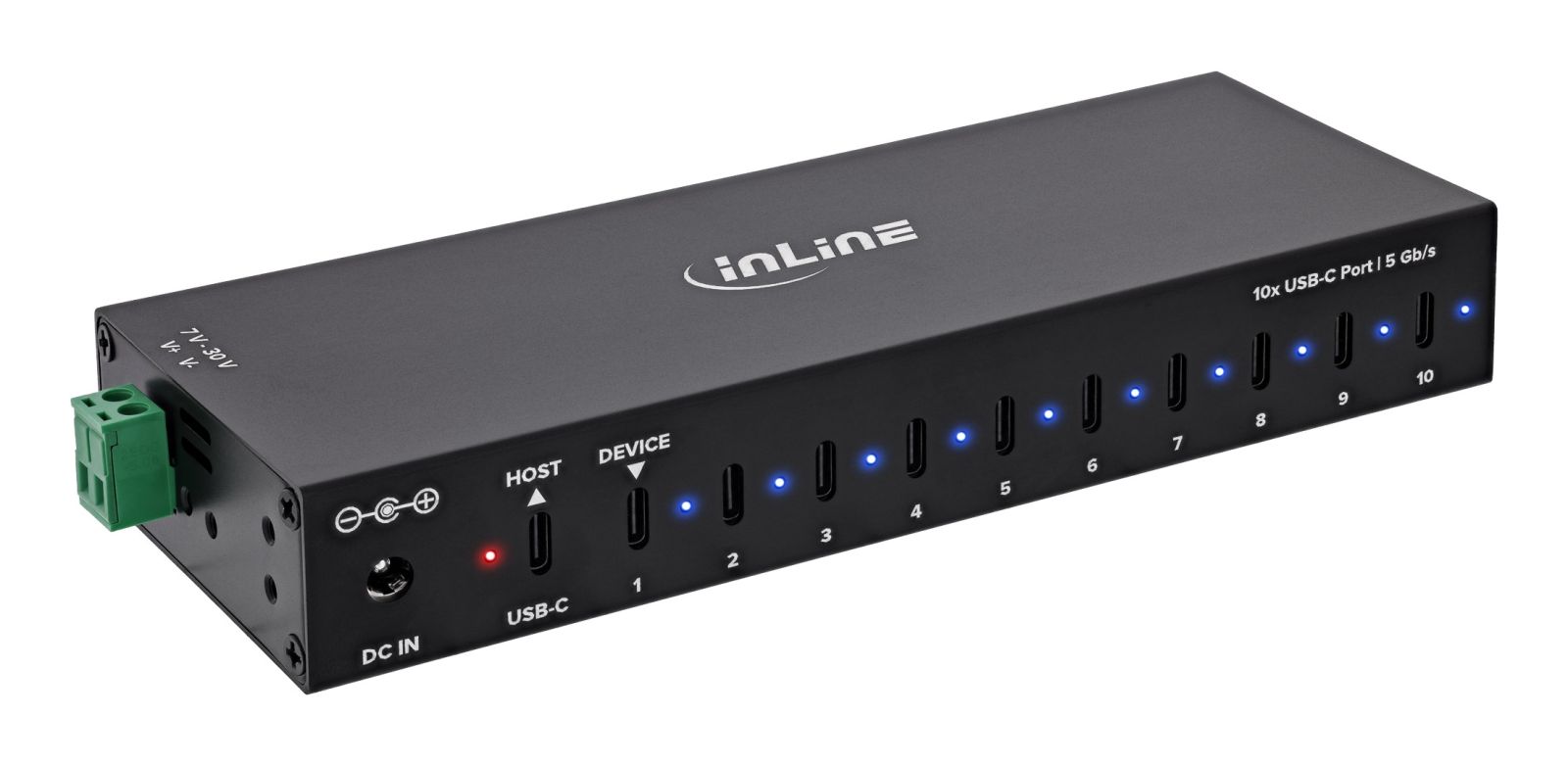

This USB-C industrial hub expands a single USB-C port to include ten additional USB-C ports, enabling the simultaneous operation of multiple devices with stable power. It supports the USB 3.2 Gen.1 standard with data transfer rates of up to 5 Gb/s and is backwards compatible with older USB versions.
The robust aluminium housing ensures high durability and supports use in demanding environments. The hub operates reliably within a temperature range of -40 °C to +85 °C and is suitable for industrial applications.
Technical specifications
Chipset: VL817
Inputs:
1x USB-C port for connection to host computer
1x DC input (5.5 x 2.5 mm)
1x Alternative 2-pin terminal connection
Supported input voltage: 12–24 V DC
Outputs:
10x USB-C 3.2 Gen.1 ports (5 Gb/s)
BC1.2 - USB Battery Charging Specification 1.2 (max. 5 V / 3 A per port)
Note: When using multiple USB ports simultaneously, the available power is distributed among the connected devices
Protection mechanisms:
Short circuit, overcurrent, overvoltage
ESD/antistatic protection: 4 kV / 8 kV / 350 W
Housing: Aluminium, black

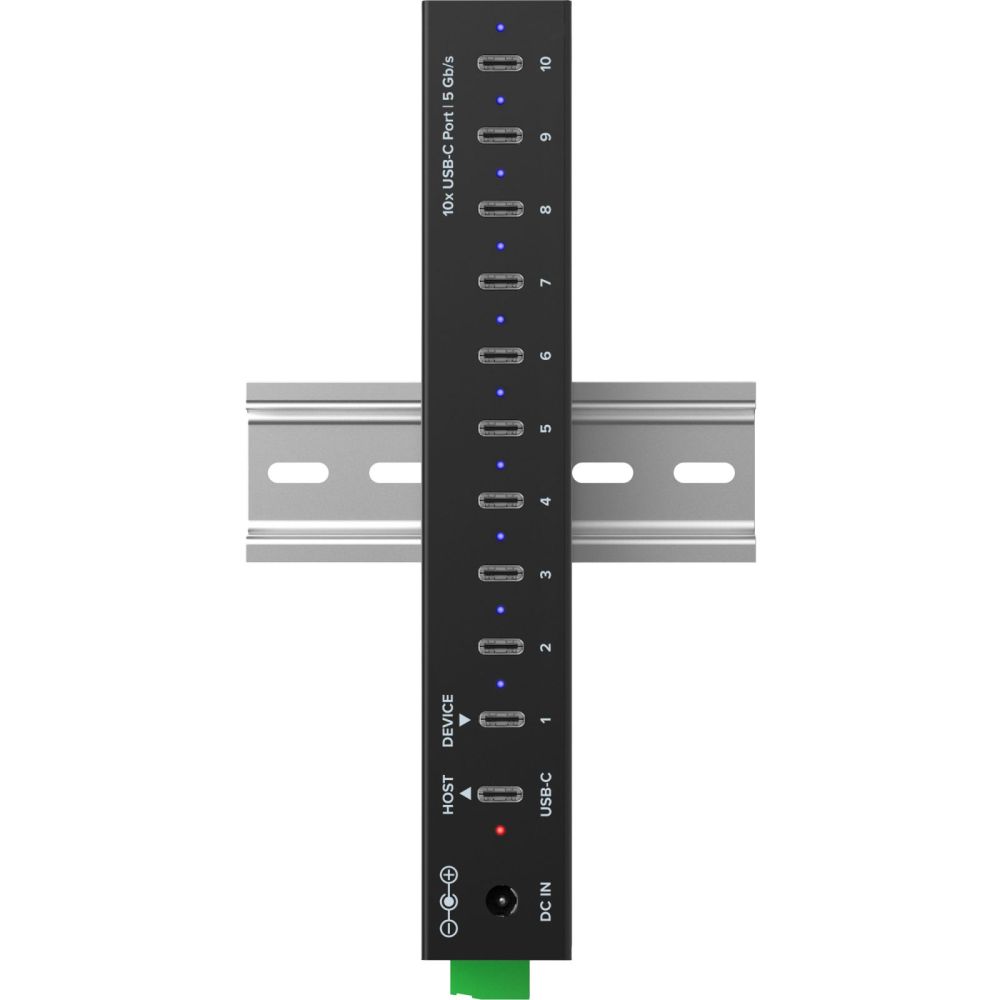

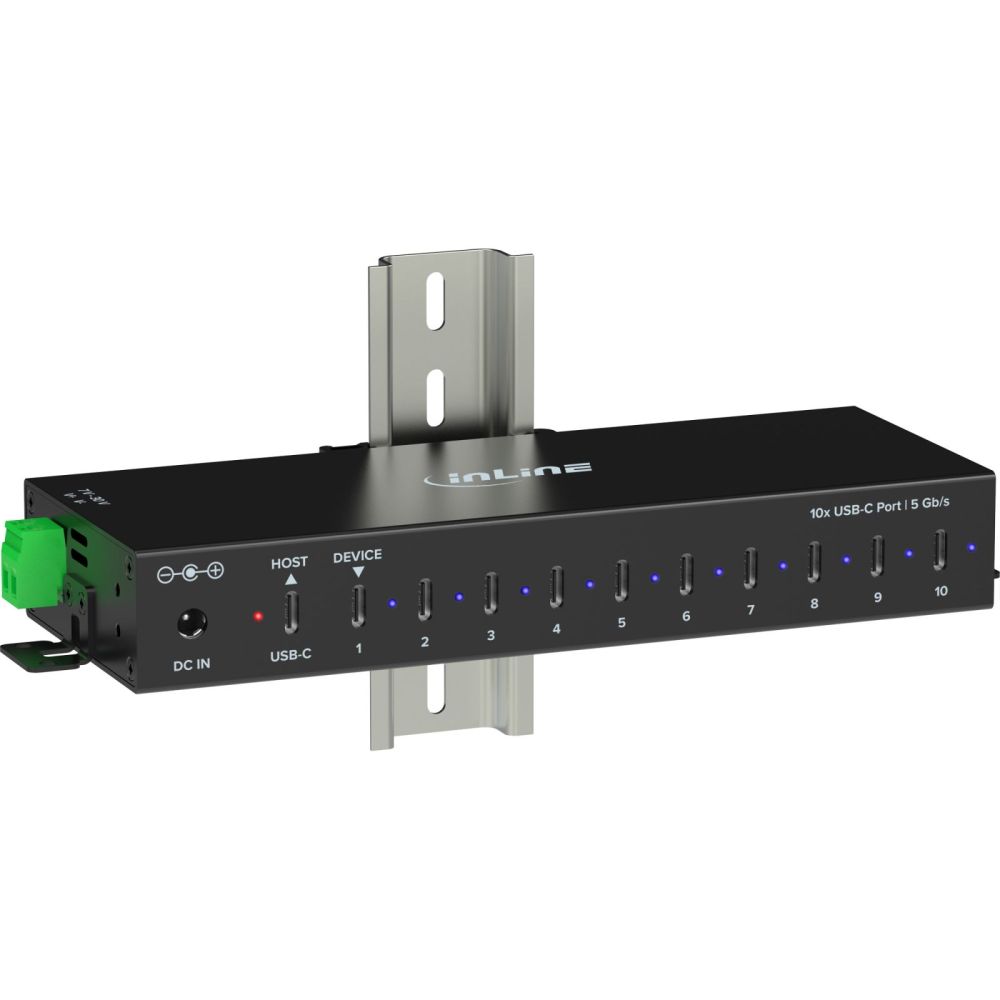

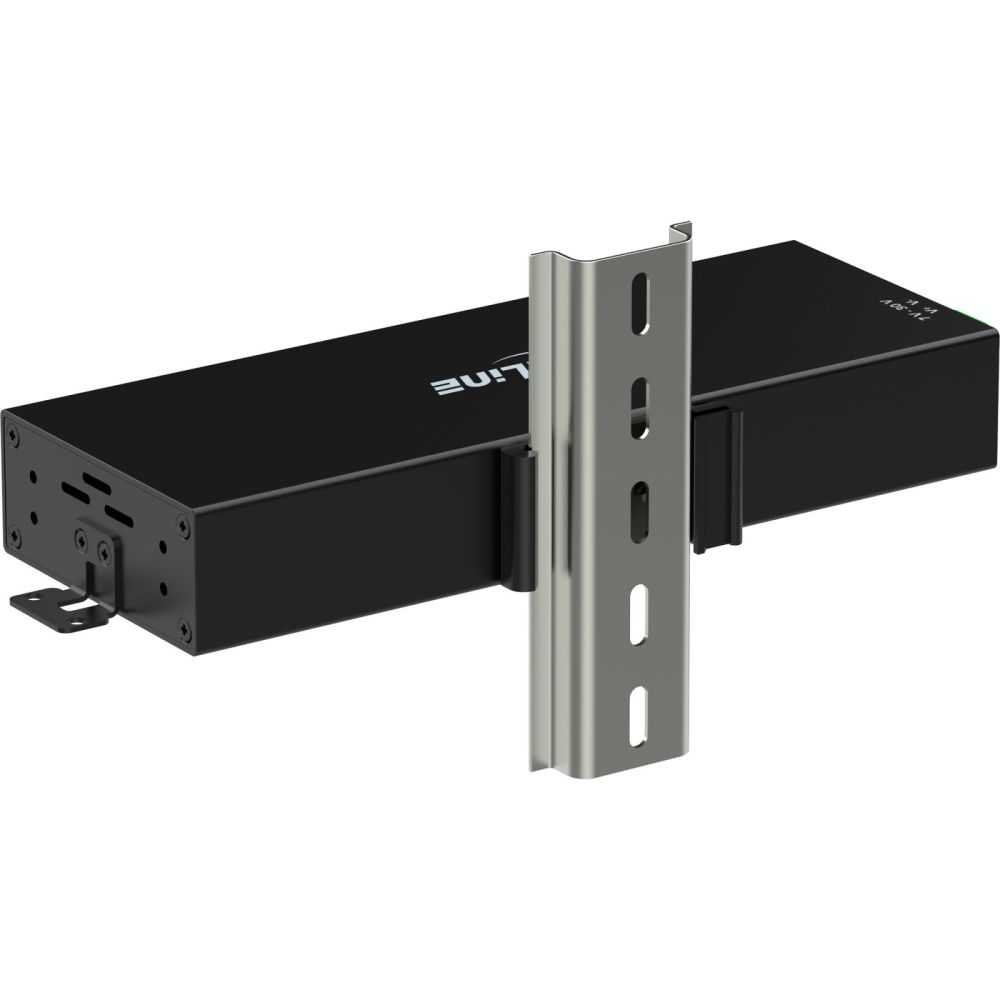

Mounting: DIN rail or wall bracket
LED indicator: Yes
Plug & Play: No drivers required
Standby power consumption: 0.07 W
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +125 °C
Humidity: 10–85% (non-condensing)
Operating systems: Windows, macOS, Linux
External power supply (power adaptor)
Type: external plug-in power adaptor
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 20.0 V DC
Output current: 3.5 A
Output power: 70.0 W
Average operating efficiency: 91.81%
Efficiency at low load (10%): 80.73%
Power consumption at no load: 0.17 W

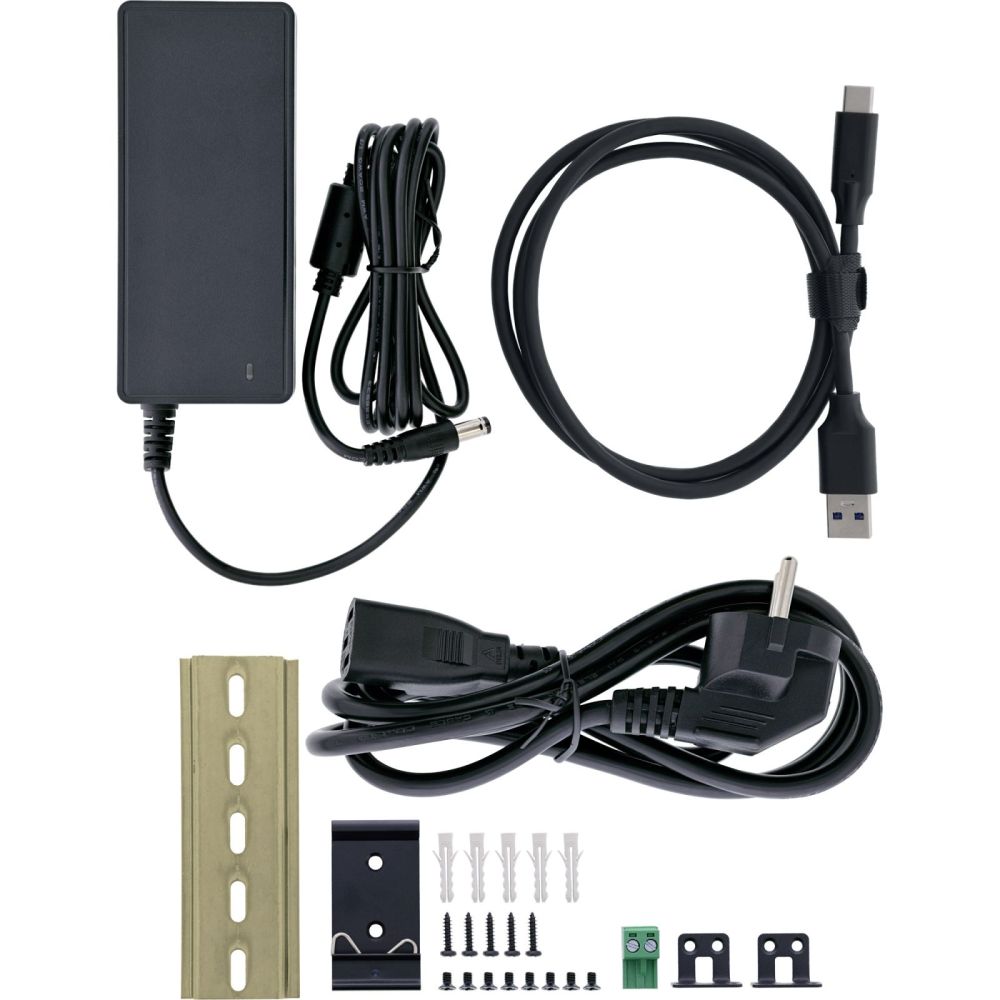

Contents
1x InLine USB 3.2 Gen.1 Industrial Hub, USB-C, 10-port
1x USB-C to USB-C cable, 1 m
1x Mounting kit
1x DIN rail 10 cm & clip
1x Terminal block
1x External power supply 20 V / 3.5 A
1x User manual (German/English)

Features
Data transfer rate	5000 Mbit/s
Product colour	Black
Housing material	Aluminium
Cable length	1 m
Plug and Play
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 125 °C
Operating relative humidity (H-H)	10 - 85%
Other features
Dimensions (WxDxH)	67 x 188 x 27 mm
Chipset	VL817S
Packaging content
Cables included	USB Type-C to USB Type-C
AC adapter included
Manual
Packaging data
Quantity per pack	1 pc(s)
Package width	160 mm
Package depth	238 mm
Package height	65 mm
Package volume	2500 cm³
Package weight	883 g
Package type	Box
Ports & interfaces
Host interface	2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	10
Ports quantity	10
Terminal block port
DC-in jack
Power
Power supply type	DC
Input voltage	12 V
Input current	2 A
System requirements
Mac operating systems supported	MacOS
Windows operating systems supported
Linux operating systems supported
Technical data
USB specification	USB 3.2 Gen.1
Article height	2.70cm
Height packaging	0.065m
Article width	6.70cm
Connection	USB-C
Packaging volume	0.0025m³
Article length	18.80cm
Number of ports	10
Net weight	0.254kg
Width packaging	0.160m
Special feature	Aluminum
Length packaging	0.238m
Transmission rate	5Gb/s
Weight	0.883kg
Device type	Industrial Hub
Power supply
Card reader
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	67 mm
Depth	188 mm
Height	27 mm
Weight	254 g

---
