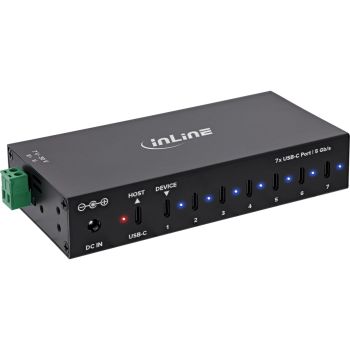

InLine® USB 3.2 Gen.1 Industrial Hub, USB-C, 7-port, with power supply content_copy

7-port USB-C industrial hub with 5 Gb/s and flexible power supplyMaximum connectivity with seven USB-C ports: Expands a single USB-C port into seven USB-C ports, enabling the simultaneous operation of multiple devices with stable data transfer speeds of up to 5 Gb/s
Industrial-grade design for extreme conditions: A robust aluminium housing and a wide temperature range from -40 °C to +85 °C enable reliable operation under demanding conditions
Powerful power supply for multiple devices: A 48 W power supply unit supports the simultaneous operation of multiple connected devices, with dynamic power distribution during parallel use
Flexible power supply for versatile integration: Supports 12–24 V DC via terminal or DC IN, as well as operation via the supplied power supply unit for maximum flexibility
Safe operation thanks to integrated protection functions: Protection against short circuits, overcurrent, overvoltage and ESD ensures stable operation and protects connected devices
This USB-C industrial hub expands a single USB-C port to include seven additional USB-C ports, enabling the simultaneous operation of multiple devices with stable performance. It supports the USB 3.2 Gen.1 standard with data transfer rates of up to 5 Gb/s and is backwards compatible with older USB versions.
The robust aluminium housing ensures high durability and supports use in demanding environments. The hub operates reliably within a temperature range of -40 °C to +85 °C and is suitable for industrial applications.
Technical specifications
Chipset: VL817
Inputs:
1x USB-C port for connection to host computer
1x DC input (5.5 x 2.5 mm)
1x alternative 2-pin terminal connection
Supported input voltage: 12–24 V DC
Outputs:
7x USB-C 3.2 Gen.1 ports (5 Gb/s)
BC1.2 - USB Battery Charging Specification 1.2 (max. 5 V / 3 A per port)
Note: When using multiple USB ports simultaneously, the available power is distributed among the connected devices
Protection mechanisms:
Short circuit, overcurrent, overvoltage
ESD/antistatic protection: 4 kV / 8 kV / 350 W
Housing: Aluminium, black
Mounting: DIN rail or wall bracket
LED indicator: Yes
Plug & Play: No drivers required
Standby power consumption: 0.07 W
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +125 °C
Humidity: 10–85% (non-condensing)
Operating systems: Windows, macOS, Linux
External power supply (power adaptor)
Type: external plug-in power adaptor
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: 4.0 A
Output power: 48.0 W
Average operating efficiency: 88.59%
Efficiency at low load (10%): 87.92%
Power consumption at no load: 0.07 W
Contents
1x InLine USB 3.2 Gen.1 Industrial Hub, USB-C, 7-port
1x USB-C to USB-C cable, 1 m
1x Mounting kit
1x DIN rail 10 cm & clip
1x Terminal block
1x External power supply 12 V / 4 A
1x User manual (German/English)

Features
Data transfer rate	5000 Mbit/s
Product colour	Black
Housing material	Aluminium
Cable length	1 m
Plug and Play
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 125 °C
Operating relative humidity (H-H)	10 - 85%
Other features
Dimensions (WxDxH)	66 x 148 x 28 mm
Chipset	VL817S
Packaging content
Cables included	USB Type-C to USB Type-C
AC adapter included
Manual
Packaging data
Quantity per pack	1 pc(s)
Package width	160 mm
Package depth	200 mm
Package height	60 mm
Package volume	1900 cm³
Package weight	585 g
Package type	Box
Ports & interfaces
Host interface	2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	7
Ports quantity	7
Terminal block port
DC-in jack
Power
Power supply type	DC
Input voltage	12 V
Input current	2 A
System requirements
Mac operating systems supported	MacOS
Windows operating systems supported
Linux operating systems supported
Technical data
USB specification	USB 3.2 Gen.1
Article width	6.60cm
Height packaging	0.060m
Device type	Industrial Hub
Connection	USB-C
Number of ports	7
Weight	0.585kg
Ports	7x USB 3.2 Gen.1
Net weight	0.198kg
Transmission rate	5Gb/s
Special feature	Aluminum
Packaging volume	0.0019m³
Article height	2.80cm
Width packaging	0.160m
Length packaging	0.200m
Article length	14.80cm
Card reader
Power supply
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	66 mm
Depth	148 mm
Height	28 mm
Weight	198 g

---
