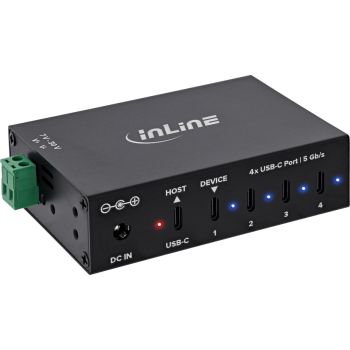

InLine® USB 3.2 Gen.1 Industrial Hub, USB-C, 4-port, with power supply content_copy

4-port USB-C industrial hub, 5 Gb/s, DIN rail, 12–24 V power supplyReliable expansion of USB-C interfaces: Extends a USB-C port with four USB-C ports for the simultaneous operation of multiple devices in industrial environments
Flexible power supply for industrial applications: Supports 12–24 V DC via terminal connection or DC IN, as well as operation via an external power supply
Robust design for demanding environments: Aluminium housing and extended temperature range enable use under extreme conditions
Safe operation thanks to integrated protection mechanisms: Protection against short circuits, overcurrent, overvoltage and ESD for stable data and power transmission
Easy integration and installation: Suitable for DIN rail or wall mounting; Plug & Play enables quick deployment without driver installation
This USB-C industrial hub enables the reliable expansion of a USB-C port with four additional USB-C ports. It has been specially developed for use in industrial environments and provides a stable connection for multiple USB devices simultaneously.
Thanks to support for the USB 3.2 Gen.1 standard, the hub achieves data transfer rates of up to 5 Gb/s and is backwards compatible with older USB standards. This enables flexible use with existing systems and devices.
Power is supplied either via an external power supply unit or directly from industrial power sources in the range of 12–24 V DC. An alternative 2-pin terminal connection is also available, allowing the hub to be optimally integrated into various installation environments.
Technical specifications
Chipset: VL817
Inputs:
1x USB-C port for connection to host computer
1x DC input (5.5 x 2.5 mm)
1x Alternative 2-pin terminal connection
Supported input voltage: 12–24 V DC
Outputs:
4x USB-C 3.2 Gen.1 ports (5 Gb/s)
BC1.2 - USB Battery Charging Specification 1.2 (max. 5 V / 3 A per port)
Note: When using multiple USB ports simultaneously, the available power is distributed among the connected devices
Protection mechanisms:
Short circuit, overcurrent, overvoltage
ESD/antistatic protection: 4 kV / 8 kV / 350 W
Housing: Aluminium, black
Mounting: DIN rail or wall bracket
LED indicator: Yes
Plug & Play: No drivers required
Standby power consumption: 0.07 W
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +125 °C
Humidity: 10–85% (non-condensing)
Operating systems: Windows, macOS, Linux
External power supply (power adapter)
Type: external plug-in power supply
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: 2.0 A
Output power: 24.0 W
Average operating efficiency: 87.45%
Efficiency at low load (10%): 84.07%
Power consumption at no load: 0.07 W
Contents
1x InLine® USB 3.2 Gen.1 Industrial Hub, USB-C, 4-port
1x USB-C to USB-C cable, 1 m
1x Mounting kit
1x DIN rail 10 cm & clip
1x Terminal block
1x External power supply 12 V / 2 A
1x User manual (German/English)

Features
Data transfer rate	5000 Mbit/s
Product colour	Black
Housing material	Aluminium
Cable length	1 m
Plug and Play
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 125 °C
Operating relative humidity (H-H)	10 - 85%
Other features
Dimensions (WxDxH)	66 x 106 x 27 mm
Chipset	VL817S
Packaging content
Cables included	USB Type-C to USB Type-C
AC adapter included
Manual
Packaging data
Quantity per pack	1 pc(s)
Package width	160 mm
Package depth	200 mm
Package height	65 mm
Package volume	2100 cm³
Package weight	490 g
Package type	Box
Ports & interfaces
Host interface	2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	4
Ports quantity	4
Terminal block port
DC-in jack
Power
Power supply type	DC
Input voltage	12 V
Input current	2 A
System requirements
Mac operating systems supported	MacOS
Windows operating systems supported
Linux operating systems supported
Technical data
USB specification	USB 3.2 Gen.1
Number of ports	4
Article length	10.60cm
Packaging volume	0.0021m³
Article height	2.70cm
Article width	6.60cm
Ports	4x USB 3.2 Gen.1
Transmission rate	5Gb/s
Special feature	Aluminum
Width packaging	0.160m
Height packaging	0.065m
Net weight	0.117kg
Connection	USB-C
Weight	0.490kg
Device type	Industrial Hub
Length packaging	0.200m
Card reader
Power supply
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	66 mm
Depth	106 mm
Height	27 mm
Weight	117 g

---
