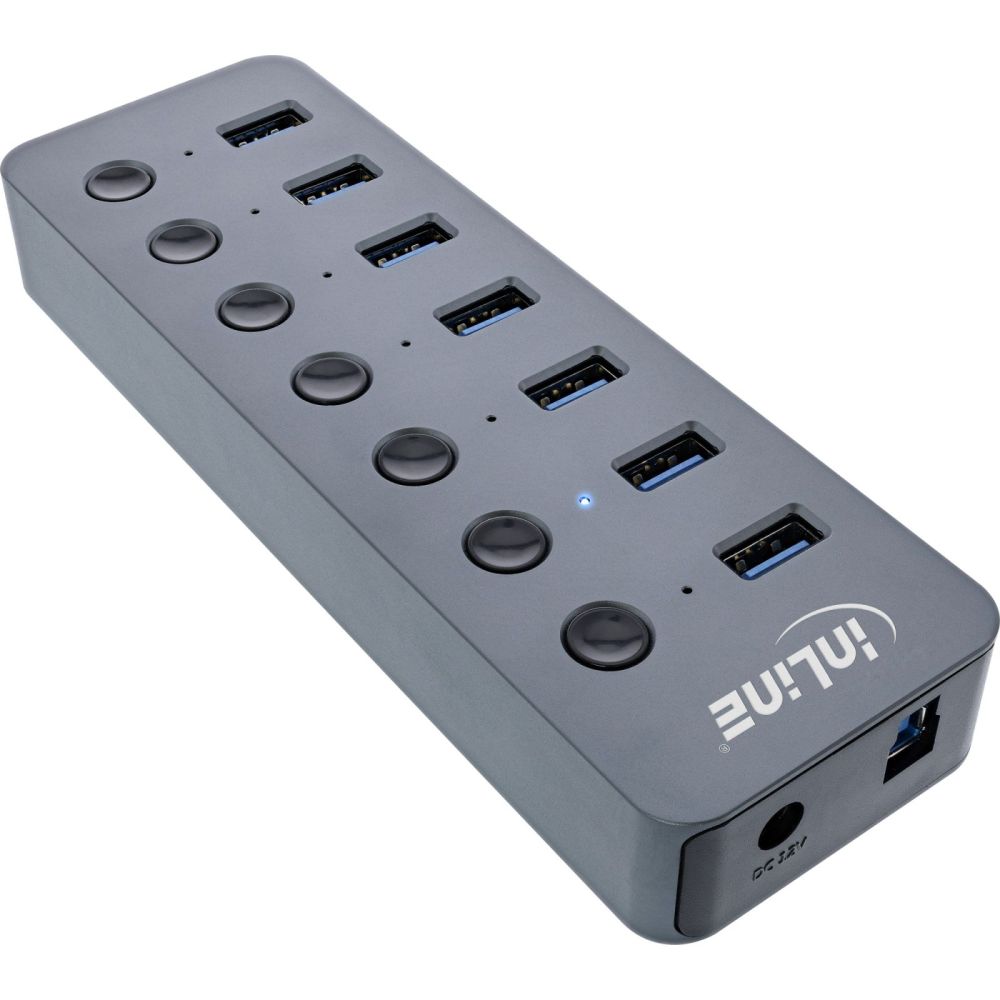

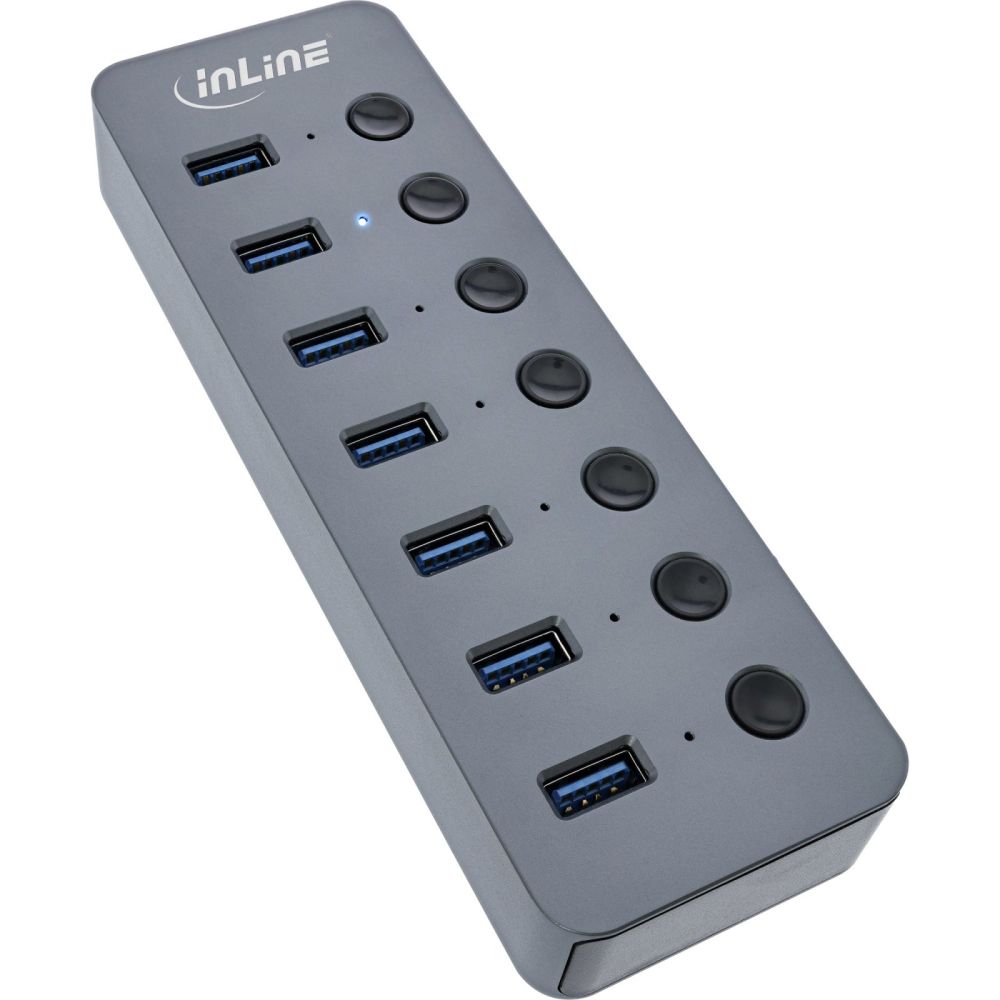

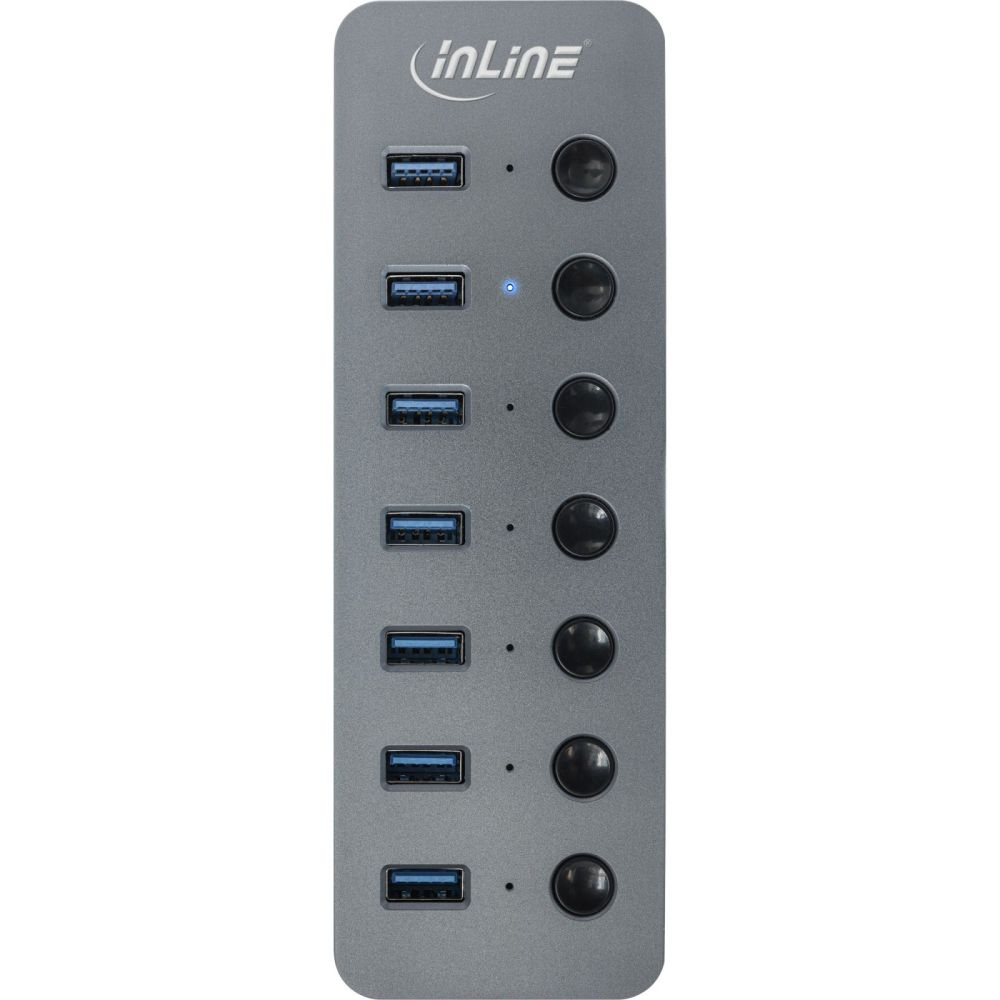

InLine® USB 3.2 Gen.1 hub, 7-port, with switch, aluminium, grey, with PSU content_copy

Control USB peripherals flexibly with 7 individually switchable portsIndividually switchable ports: Switch connected devices on or off per port and relieve system resources.
High transfer rate up to 5 Gb/s: Fast data flows for storage, scanners, and other USB peripherals.
Reliable power supply: 24 W plug-in power supply and USB BC 1.2 support operation of compatible devices.
Robust aluminum housing: Durable long-term use and a high-quality feel on the desk.
Flexible host connectivity: Includes 1 m USB-A-to-B cable and USB Type-C plug to USB-A socket adapter.
With this 7-port USB 3.2 Gen.1 hub, you control your USB peripherals precisely: Each port can be individually enabled or disabled via a switch, so devices are connected to the computer only when needed. Up to 5 Gb/s enable fast file transfers, while the 24 W plug-in power supply together with USB BC 1.2 supports powering compatible devices. The sturdy aluminum housing is suitable for permanent use on the desk.
In professional IT environments, in on-site installations, and in service deployments, the solution provides clear connectivity in existing infrastructures. Companies and public institutions benefit from the straightforward setup with the 1 m USB-A-to-B cable as well as the USB Type-C plug to USB-A socket adapter, which facilitates connection to different hosts.

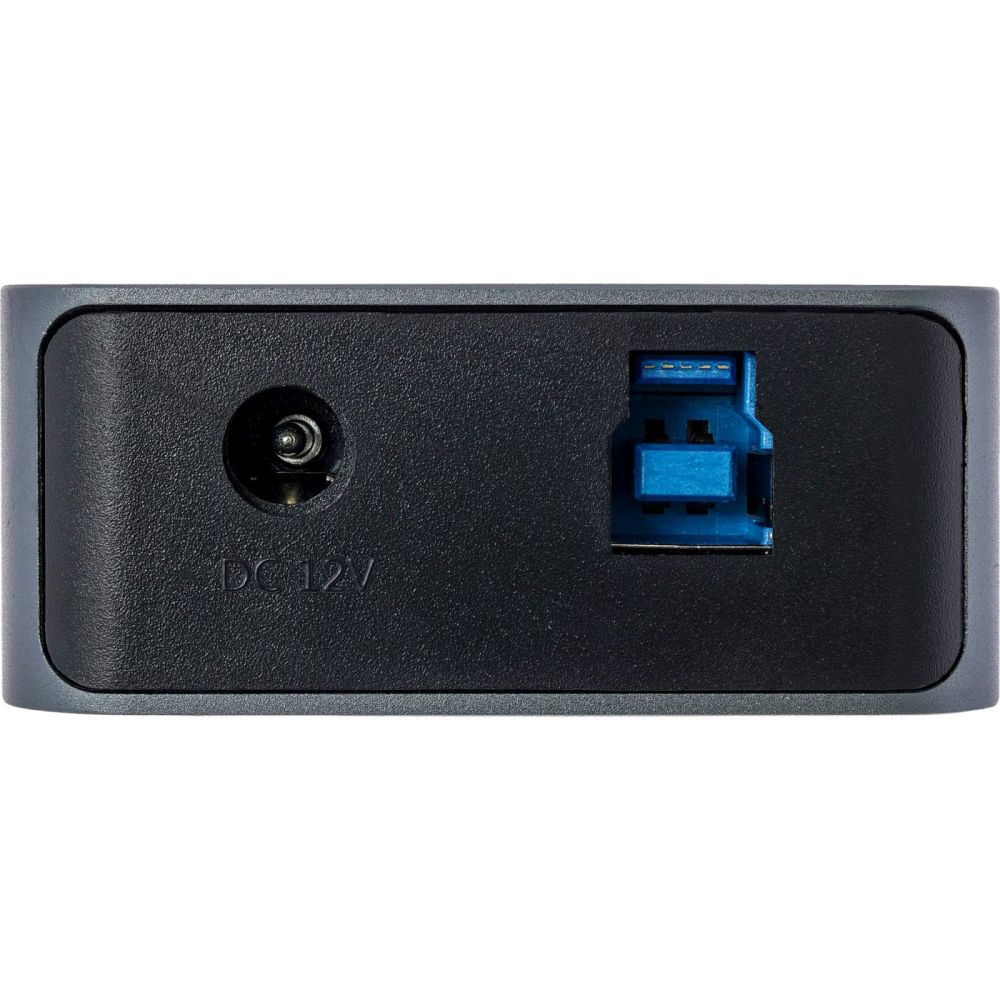

Connection: Input USB 3.2 Type-B socket; Output 7x USB 3.2 Gen.1 Type-A socket
Switching: 7 ports individually switchable
Data transfer: up to 5 Gb/s
Support: USB BC 1.2
Power supply: plug-in power supply 12 V/2 A (24 W)
Housing: aluminum
Color: gray
Cable: USB-A plug to USB-B plug, 1 m
Adapter: USB Type-C plug to USB-A socket
Chipset: VL815
Dimensions: approx. 16.8 x 5.6 x 2.4 cm
Power supply input: AC 100-240 V ~50/60 Hz, 0.6 A
Power supply output: 12.0 V DC, max. 2.0 A, 24.0 W
Efficiency (operation): 89.26 %
Efficiency (10 % load): 86.42 %
Power consumption (no load): 0.07 W

Features
Data transfer rate	5000 Mbit/s
Product colour	Grey
Housing material	Aluminium
LED indicators
Other features
Dimensions (WxDxH)	1 x 2 x 0.23 mm
Packaging content
Interface adapters included	USB Type-C male - USB Type-A female
Cables included	USB Type-A to USB Type-B
AC adapter included
Packaging data
Quantity per pack	1 pc(s)
Package width	142 mm
Package depth	190 mm
Package height	55 mm
Package volume	1500 cm³
Package weight	413 g
Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	7
Ports quantity	7
Card reader integrated
DC-in jack
Power
Power supply type	DC
Power supply	24 W
Input voltage	12 V
Input current	2 A
Technical data
Packaging volume	0.0015m³
Article width	0.10cm
Colour	Grey
Transmission rate	5Gb/s
Number of ports	7
Width packaging	0.142m
Ports	7x USB 3.2 Gen.1
Type	USB 3.2 Hub
USB specification	USB 3.2 Gen.1
Article height	0.023cm
Connection	USB-A
Height packaging	0.055m
Net weight	0.189kg
USB cable	USB-A plug
Device type	USB hub
Article length	0.20cm
Weight	0.413kg
Length packaging	0.190m
Power supply
Card reader
Weight & dimensions
Width	1 mm
Depth	2 mm
Height	0.23 mm
Weight	189 g

---
