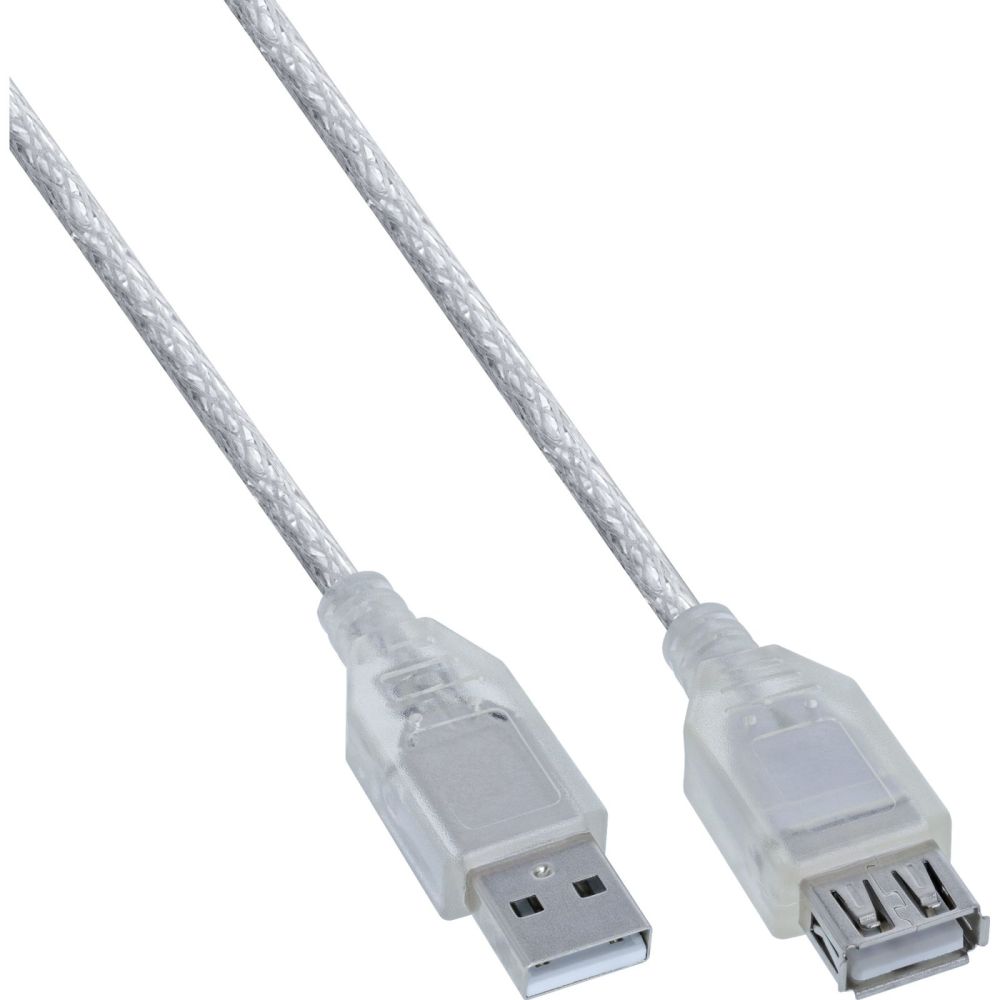

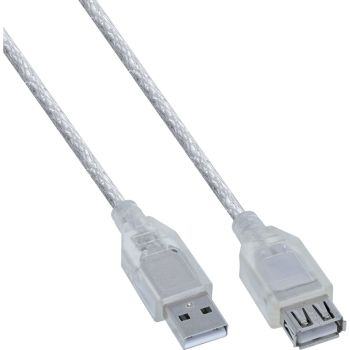

InLine® USB 2.0 Extension Cable Type A M/F, transparent, 0.5m
|
1,73 EUR |
|||||||||||
|
( 2,06 EUR incl. VAT ) ≈ £1.45 | ≈ $1.94 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22194952 | ||||||||||
| Mfg Part No: | 34650 | ||||||||||
| UPC/EAN: | 4043718263400 | ||||||||||
| Weight: | 0.029 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 34650:
Double shielding: The combination of braided and foil shielding ensures stable signal transmission in everyday use.
Versatile applications: Suitable for extending existing USB connections between PCs and USB peripherals.
Solid copper conductors: The conductor design with solid copper conductors ensures reliable data connections even over longer cable runs.
Distinctive cable appearance: The transparent cable sheath provides a modern and eye-catching look in workplace or multimedia environments.
The InLine USB 2.0 extension cable allows for the flexible extension of existing USB connections between devices with a USB Type A port. The combination of a USB Type A plug and a USB Type A socket is suitable for numerous applications in office, home office and multimedia environments.
The USB 2.0 specification supports data transfer rates of up to 480 Mb/s, making it suitable for typical data and peripheral connections in everyday use. The extension cable is compatible with USB 2.0, USB 1.1 and USB 1.0 devices.
The double shielding, consisting of braided mesh and foil, ensures reliable signal transmission. In addition, the solid copper conductors ensure stable data connections even over longer cable runs. This makes the cable ideal for extending existing USB ports on PCs, laptops or USB peripherals.
The transparent cable sheath provides a modern and eye-catching look in workplace or multimedia environments. With various cable lengths available, the USB extension cable is suitable for both short connections and longer distances between devices and USB ports.
Colour: Transparent
End A: USB Type A plug
End B: USB Type A socket
Type: USB 2.0
Signal: Data transfer
Data transfer rate: up to 480 Mb/s
Compatibility: USB 2.0, 1.1 and 1.0
Conductor material: Solid copper wires
Gauge: AWG24/28
Shielding: Double, braided and foil
| Features | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector gender | Male/Female |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24/28 |
| Connector contacts plating | Nickel |
| Conductor material | Copper |
| Maximum data transfer rate | 480 Mbit/s |
| Cable colour | Transparent |
| Product colour | Transparent |
| Ferrite bead | |
| Logistics data | |
| Package volume | 200 cm³ |
| Packaging data | |
| Package width | 75 mm |
| Package depth | 105 mm |
| Package height | 20 mm |
| Package weight | 29 g |
| Power | |
| Input voltage | 5 V |
| Output voltage | 5 V |
| Technical data | |
| UL E-number | E324703 |
| Data transmission rate | 480Mb/s |
| USB specification | USB 2.0 |
| Side B | USB-A male |
| Shielding | Double shielding |
| Packing | Retail |
| Variant | CU |
| Side A | USB-A female |
| Signal | Data |
| Height packaging | 0.020m |
| Width packaging | 0.075m |
| Diameter | AWG 24/28 |
| Packaging volume | 0.0002m³ |
| Article width | 1.80cm |
| Operation temperature | 0 - 50°C |
| Net weight | 0.026kg |
| Design | Round cable |
| Type | USB 2.0 |
| Length packaging | 0.105m |
| Article length | 50.00cm |
| Weight | 0.029kg |
| Colour | Transparent |
| Outer diameter | 4.3mm |
| Article height | 1.00cm |
| Storage temperature | -20 - 60°C |
| Gold plated contacts | |
| UL | |
| Weight & dimensions | |
| Cable length | 0.5 m |
| Width | 18 mm |
| Depth | 500 mm |
| Height | 10 mm |
| Weight | 26 g |
| Dimensions (WxDxH) | 18 x 500 x 10 mm |
Questions & answers
What is the delivery time of InLine® USB 2.0 Extension Cable Type A M/F, transparent, 0.5m?
The article InLine® USB 2.0 Extension Cable Type A M/F, transparent, 0.5m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 34650 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® USB 2.0 Extension Cable Type A M/F, transparent, 0.5m always at the best possible price. We can give you a discount of 2% on InLine® USB 2.0 Extension Cable Type A M/F, transparent, 0.5m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® USB 2.0 Extension Cable Type A M/F, transparent, 0.5m we can offer you a price of 1,70 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
