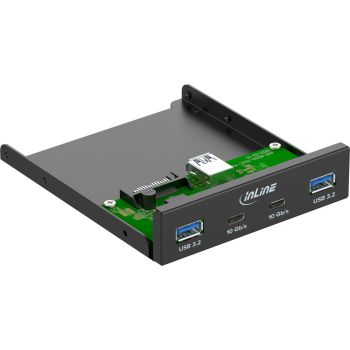

InLine® 8,9 cm ( 3,5 inch ) front panel, 2x USB-A + 2x USB-C, 10 Gb/s, metal, black content_copy

Modern USB access on the front: Two USB-A and two USB-C ports allow quick access to devices directly on the front of the PC.
High data rate with 10 Gb/s: USB 3.2 Gen2 ports deliver fast data transfer for SSDs, external hard drives or large media content.
Stable connection thanks to SATA power: The additional power connection ensures reliable operation of power-hungry USB devices.
Easy installation in a 3.5-inch bay: Fits perfectly into standard bays in many PC cases – ideal for retrofitting or upgrading.
Universally compatible with Windows & Linux: Plug & Play without driver installation ensures quick start-up and flexible use.
The InLine 3.5-inch front panel offers a convenient solution for quickly connecting USB devices to the front of your PC. Equipped with two USB-A 3.2 Gen2 and two USB-C 3.2 Gen2 ports, the installation panel supports data rates of up to 10 Gb/s – ideal for transferring large files, backups or working with external SSDs.
The front panel is connected via a USB Type-E port on the motherboard and a SATA power connection. This ensures a stable power supply – even for power-hungry devices such as external hard drives or chargers. Integrated protection against overvoltage and overcurrent ensures safe operation.
The robust black metal housing blends seamlessly into the PC design and fits into all standard 3.5-inch drive bays. Thanks to Plug & Play, the panel is ready for use immediately without additional drivers – under Windows as well as Linux. Ideal for anyone who wants to equip or expand their desktop PC with modern USB ports.
2x USB-A 3.2 Gen2 ports (10 Gb/s)
2x USB-C 3.2 Gen2 ports (10 Gb/s)
Housing material: metal, colour: black
Chipset: VL822
Compatible with Windows and Linux
Connections: 1x USB-A socket, 1x SATA 15-pin
Plug & Play – no drivers required
Operating temperature: 0 °C to +70 °C
Storage temperature: -40 °C to +125 °C
Dimensions: 120.5 x 102.2 x 25.5 mm
Weight: 156 g
Scope of delivery: 1x front panel, 1x USB-A to Type-E cable, 5x screws, 1x manual

Features
Size (imperial)	8.89 cm (3.5")
Type	I/O ports panel
Product colour	Black
Material	Metal
Data transfer rate	10 Gbit/s
Chipset	VL822
Logistics data
Package volume	700 cm³
Country of origin	Taiwan
Operational conditions
Storage temperature (T-T)	-40 - 125 °C
Operating temperature (T-T)	0 - 70 °C
Packaging content
Cables included	USB
Screws included
Manual
Packaging data
Package width	140 mm
Package depth	150 mm
Package height	35 mm
Package weight	231 g
System requirements
Windows operating systems supported
Linux operating systems supported
Technical data
Length packaging	0.150m
Type	Front panel
Weight	0.231kg
Article height	2.60cm
Interface	USB 3.2 Gen.2
Connections internal	1x USB-A socket / 1x SATA 15-pin
Width packaging	0.140m
Connections external	2x USB-A socket / 2x USB-C socket
Transmission rate	10Gb/s
USB specification	USB 3.2 Gen.2
Design	3.5"
Height packaging	0.035m
Net weight	0.153kg
Packaging volume	0.0007m³
Colour	Black
Article width	10.00cm
Article length	12.00cm
Technical details
Dimensions (WxDxH)	100 x 120 x 26 mm
Compliance certificates	CE
Weight & dimensions
Width	100 mm
Depth	120 mm
Height	26 mm
Weight	153 g

---
