InLine® USB 3.0 to 2.0 Adapter internal USB3.0 19 Pin to USB2.0 internal device content_copy

Internal USB 3.0 to USB 2.0 adapter, 19-pin to 10-pin, for motherboard headerConnecting internal USB 2.0 devices to a USB 3.0 header: Enables the use of existing internal USB 2.0 components via a USB 3.0 19-pin motherboard connector without replacing existing hardware.
Direct connection without active conversion: Supports stable signal transmission and utilises the existing interface with data transfer rates in accordance with the USB 2.0 standard.
Ideal solution when USB 2.0 ports are missing: Enables the expansion of internal connection options when no free USB 2.0 headers are available on the motherboard.
Compact design for easy integration: Space-saving design facilitates installation within the chassis and supports neat internal cabling.
Easy installation on the motherboard: Direct connection to the USB 3.0 header without the need for an additional power supply or further accessories.

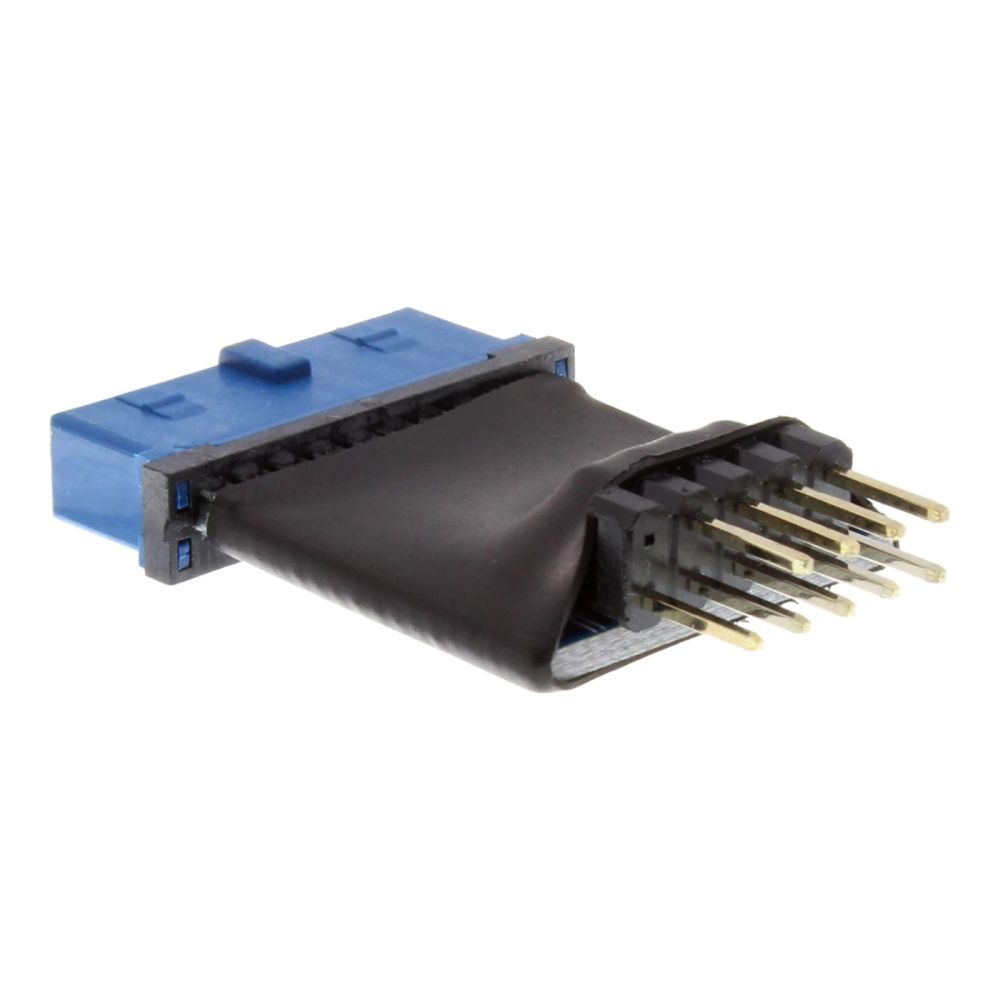

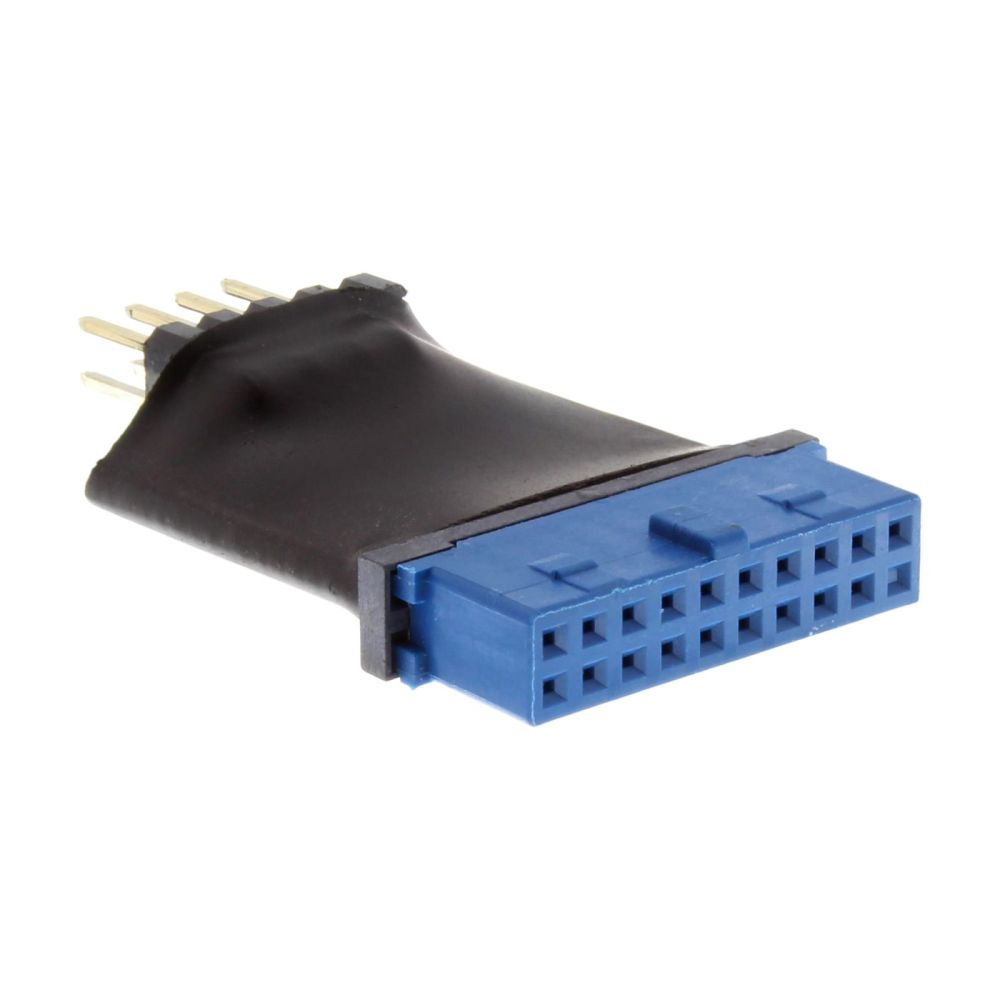

This internal adapter enables the connection of USB 2.0 devices to a USB 3.0 motherboard port. It connects a USB 3.0 19-pin connector to a USB 2.0 pin header, thereby establishing a direct connection between the two interfaces.
Data transfer takes place without active conversion and complies with the USB 2.0 standard. This makes the adapter suitable for applications where internal USB 2.0 components are to continue to be used.
The adapter is a practical solution for systems where no free USB 2.0 ports are available. It allows existing internal devices to continue to be used via a USB 3.0 header.
Thanks to its compact design, the adapter can be easily integrated into the chassis. Installation takes place directly on the motherboard and requires no additional components.
Connector: USB 3.0 motherboard connector, 19-pin
Connector: USB 2.0 pin header, 10-pin
Application: internal adapter for motherboard connectors
Data transfer rate: max. USB 2.0

Logistics data
Package volume	200 cm³
Other features
Dimensions (WxDxH)	24 x 38 x 8 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	65 mm
Package depth	105 mm
Package height	20 mm
Package weight	13 g
Performance
Product colour	Black, Blue
Ports & interfaces
Connector 1	USB 3.0
Connector 2	USB 2.0
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Technical data
Side B	10pin mainboard connector USB
Article width	2.40cm
USB specification	USB 3.2 Gen.1
Article height	0.80cm
Type	Straight
Compatibility USB	USB 2.0
Length packaging	0.105m
Signal	Data
Net weight	0.004kg
Data transmission rate	480Mb/s
Width packaging	0.065m
Side A	19pin header USB
Packaging volume	0.0002m³
Article length	3.80cm
Height packaging	0.020m
Weight	0.013kg
Weight & dimensions
Width	24 mm
Depth	38 mm
Height	8 mm
Weight	4 g

---
