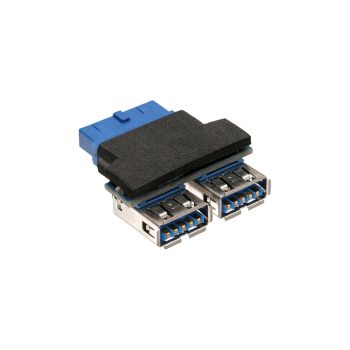

InLine® USB 3.0 Adapter internal 2x USB A female to mainboard header content_copy

USB 3.0 adapter with 2x USB-A sockets for internal motherboard connectorsTwo USB-A ports for internal expansion: Enables the connection of two external USB devices via an internal 19-pin motherboard connector.
Compact design for space-saving installations: At approx. 5 cm in length, the adapter is suitable for systems with limited space inside the case.
USB 3.2 Gen.1 compatible: Supports modern data connections with compatible USB devices, motherboards and connection cables.
Direct connection to internal USB headers: The 19-pin header connector enables connection to compatible motherboard sockets for internal USB expansions.
Flexible solution for system customisation: Suitable for case modifications, internal USB expansions and custom connection solutions with USB-A sockets.
The USB 3.0 adapter with 2x USB-A sockets on a 19-pin pin header enables the internal expansion of compatible systems by two external USB ports. The adapter connects directly to a compatible motherboard header and supports data connections with USB devices.
The compact design, approximately 5 cm in length, is suitable for space-saving installations inside the case. The two USB-A sockets support the connection of compatible USB devices and connection cables.
Thanks to the USB 3.2 Gen.1 specification, the adapter supports modern data connections for various applications and system environments. The 19-pin pin header enables direct connection to compatible internal USB ports on the motherboard.
The adapter is suitable for case modifications, internal USB expansions and custom connection solutions with USB-A interfaces.
USB 3.0 adapter
2x USB-A sockets
19-pin USB header connector
Signal: Data
Type: Straight
USB specification: USB 3.2 Gen.1
Length: approx. 5 cm

Logistics data
Package volume	200 cm³
Other features
Dimensions (WxDxH)	34 x 36 x 13 mm
Packaging data
Package width	65 mm
Package depth	105 mm
Package height	20 mm
Package weight	19 g
Package type	Blister
Performance
Product colour	Black, Blue
Data transfer rate	5 Gbit/s
USB required
Plug and Play
Ports & interfaces
Connector 1	2x USB 3.0 A
Connector 2	19-pin USB 3.0
Connector 1 gender	Female
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Nickel
Cable length	0.05 m
Technical data
Packaging volume	0.0002m³
Article length	3.60cm
Type	Straight
Weight	0.019kg
Side A	19pin header USB
Article width	3.40cm
Height packaging	0.020m
Length packaging	0.105m
Signal	Data
Side B	USB-A female x2
Net weight	0.009kg
USB specification	USB 3.2 Gen.1
Article height	1.30cm
Width packaging	0.065m
Weight & dimensions
Width	34 mm
Depth	36 mm
Height	13 mm
Weight	9 g

---
